Description

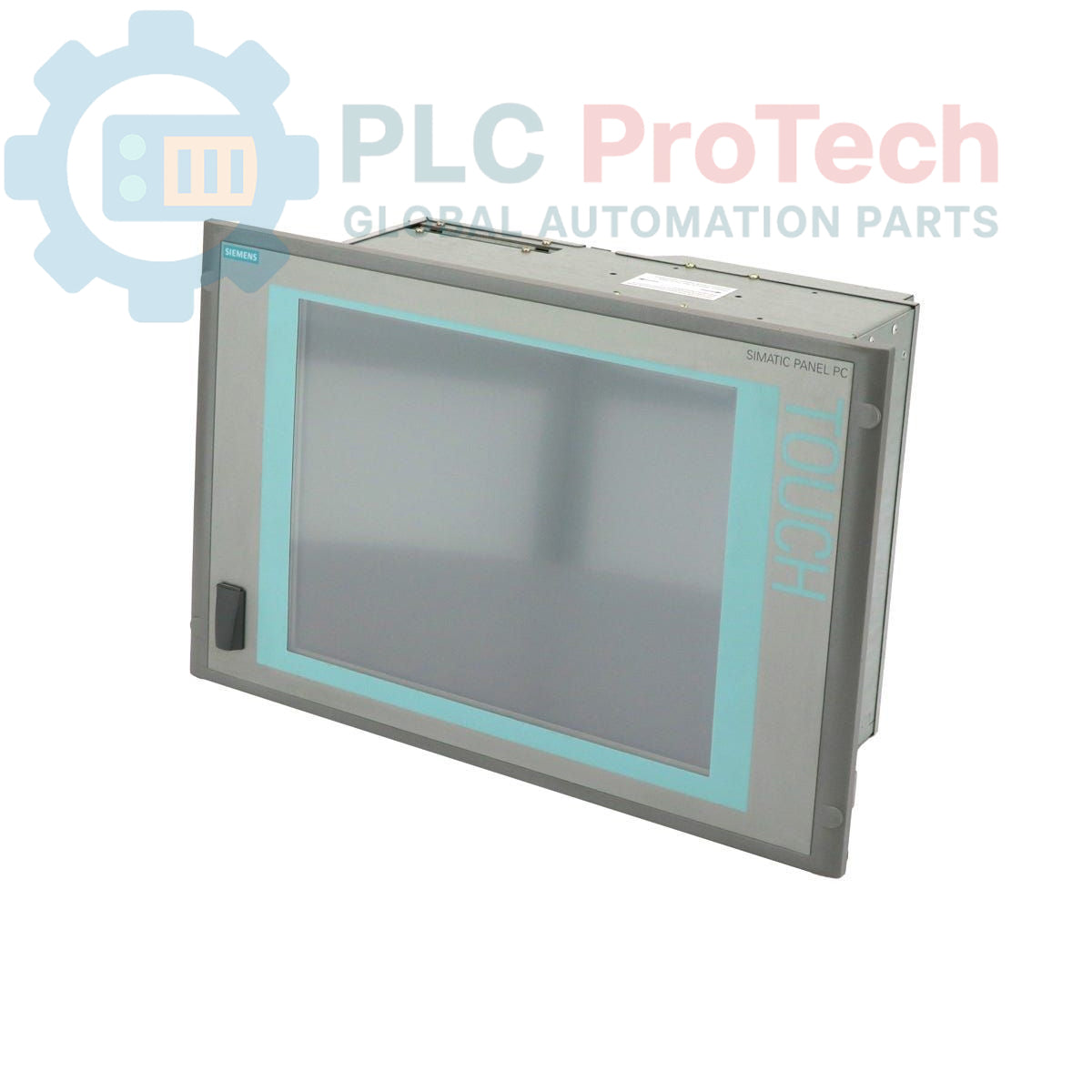

The Siemens 6AV7820-0AA10-1AB0 is a SIMATIC Panel PC 577, an industrial-grade computer designed for human-machine interface (HMI) and control applications. This unit features a 12-inch touch display, is powered by a Celeron 2.0 GHz processor, and is equipped with 512 MB of DDR400 SDRAM. It includes a DVD-ROM drive and comes pre-installed with a multi-language version of Windows 2000 SP4 Professional. This model is suitable for legacy system maintenance and replacements where specific hardware and software configurations are required.

Features

• 12-inch integrated touch screen display for operator control.
• Celeron processor operating at 2.0 GHz.
• 512 MB DDR400 SDRAM for application processing.
• Integrated DVD-ROM optical drive.
• Pre-installed with Windows 2000 SP4 Professional (MUI).
• Designed for panel mounting in industrial enclosures.
• Note: This product is classified as obsolete by the manufacturer, making it a critical spare for existing systems.

Applications

• Process visualization and control
• Machine-level data acquisition and logging
• Supervisory Control and Data Acquisition (SCADA) nodes
• Factory automation and assembly line monitoring
• Replacement for identical legacy HMI systems

Technical Specifications

Installation Guidelines

1. 1
   De-energize Equipment: Before installation, completely de-energize the control cabinet. Use a calibrated multimeter to verify zero energy state. Apply Lockout/Tagout (LOTO) procedures to prevent accidental re-energization.
2. 2
   Panel Mounting: Ensure the panel cutout dimensions match the PC 577's requirements. Secure the unit into the panel using all provided mounting clamps, tightening them evenly to create a proper seal and ensure mechanical stability.
3. 3
   Protective Earth (PE) Connection: Connect the chassis ground terminal of the Panel PC to the cabinet's protective earth bus bar using a low-impedance conductor. This is critical for both safety and noise immunity.
4. 4
   Power and I/O Wiring: Connect the DC power supply, communication cables (e.g., Ethernet, PROFIBUS), and any other peripheral I/O. Route signal and communication cables separately from high-voltage power lines to minimize electromagnetic interference.
5. 5
   System Power-Up: After verifying all connections, remove LOTO devices and re-energize the cabinet. Power on the Panel PC and confirm that the operating system boots correctly and all connected devices are recognized.
