Description

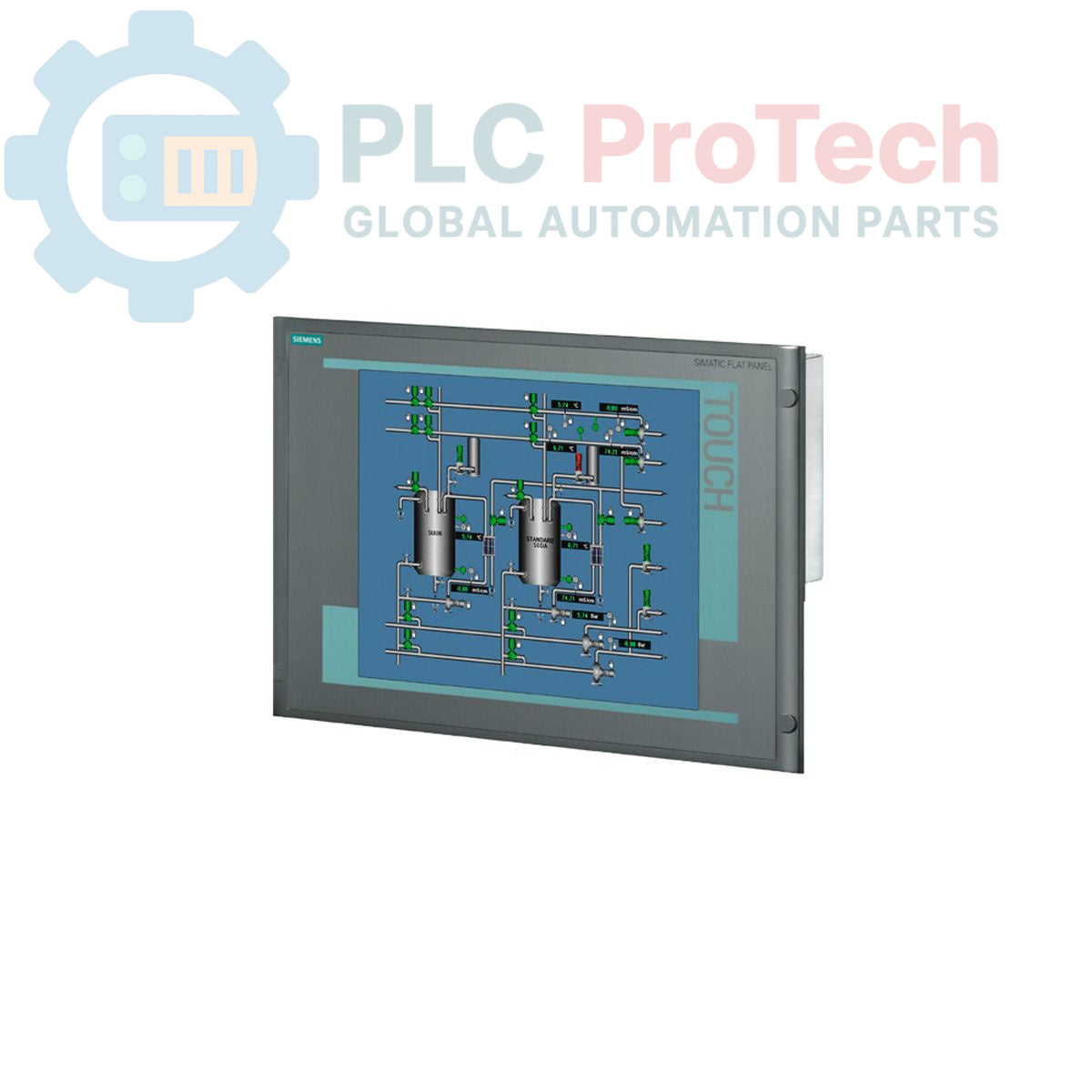

The Siemens 6AV7861-2AB00-2AA0 is a SIMATIC Flat Panel 15, an industrial display unit featuring a 15-inch TFT screen with a resolution of 1024 x 768 pixels. Designed for demanding industrial environments, this panel provides clear and reliable visual feedback for various automation applications. It supports flexible power input options, operating on both 24 V DC and 120/240 V AC. Connectivity is ensured through VGA and DVI-D interfaces, making it compatible with a wide range of industrial computers and controllers. The unit includes a 1.8-meter VGA cable for immediate integration, and its robust construction ensures suitability for continuous operation in production systems.

Features

• 15-inch TFT display for clear visual feedback
• Resolution of 1024 x 768 pixels
• Dual power input: 24 V DC and 120/240 V AC
• VGA and DVI-D video interfaces for broad compatibility
• Includes a 1.8-meter VGA cable
• Robust design for continuous industrial operation

Applications

The Siemens 6AV7861-2AB00-2AA0 SIMATIC Flat Panel 15 is suitable for deployment in various industrial settings requiring reliable human-machine interface (HMI) capabilities. Typical applications include:

• Process visualization in manufacturing plants
• Operator control stations in production lines
• Monitoring and diagnostic displays in automation systems
• Integration into control cabinets and consoles in demanding environments

Technical Specifications

Installation Guidelines

1. De-energize System: Ensure all power to the installation area and connected equipment is de-energized and locked out before beginning any work.
2. Mounting: Securely mount the flat panel in its designated enclosure or panel cutout, ensuring proper ventilation and access for cabling.
3. Power Connection: Connect the appropriate power supply (24 V DC or 120/240 V AC) to the panel's power input terminals, observing correct polarity for DC connections.
4. Video Connection: Connect the video source (industrial PC or controller) to the panel using either the VGA or DVI-D interface. Utilize the included 1.8 m VGA cable if applicable.
5. Cable Management: Route all cables to prevent strain, interference, and damage. Ensure proper grounding of the panel and associated equipment to minimize electrical noise and ensure safety.
6. Verification: After installation, re-energize the system and verify proper display functionality and communication with the connected video source.
