Description

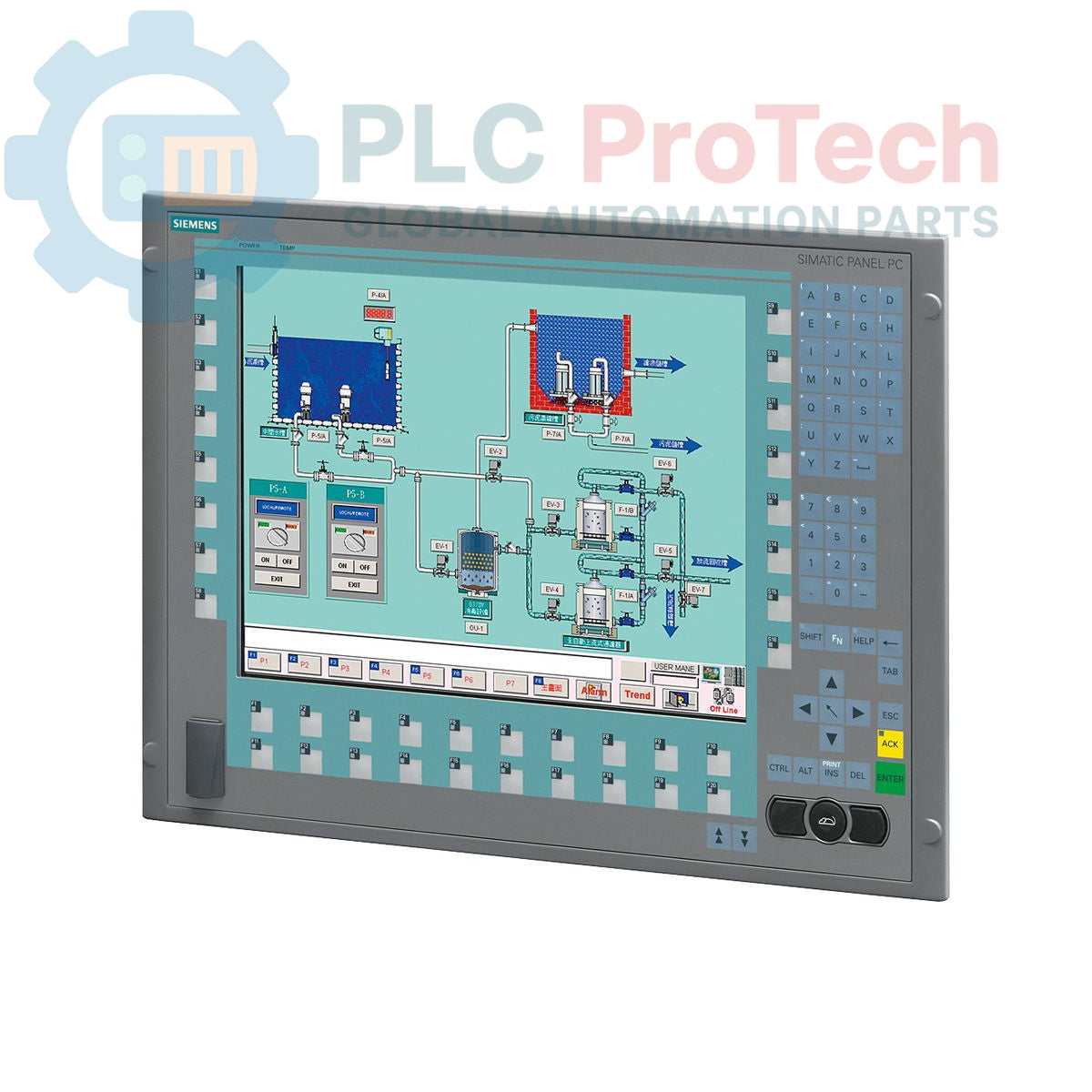

The Siemens 6AV7873-0BC30-1AA0 is a SIMATIC Panel PC 677B designed for industrial control and human-machine interface (HMI) applications. This unit is equipped with a 15-inch key-operated display with a native resolution of 1024x768 pixels and is powered by an Intel Core 2 Duo T5500 processor. It includes 2 GB of DDR2 RAM, a 160 GB SATA hard disk drive, and a DVD+-R+-RW optical drive for data storage and software installation. For network and peripheral connectivity, the panel provides dual Gigabit Ethernet ports, four USB 2.0 ports, a serial port, and an integrated PROFIBUS/MPI interface. This model is configured with a 110/230 V AC power supply and is delivered without a pre-installed operating system, allowing for custom software deployment.

Features

• 15-inch key-operated display with 1024x768 resolution
• Intel Core 2 Duo T5500 processor operating at 1.66 GHz
• 2 GB DDR2 system memory
• 160 GB 3.5-inch SATA Hard Disk Drive
• Integrated DVD+-R+-RW optical drive
• Dual 10/100/1000 Mbit/s Ethernet ports for network redundancy or separation
• Onboard PROFIBUS/MPI interface for field-level communication
• Front-side USB port for convenient peripheral access
• Two available PCI expansion slots

Applications

• Machine-level control and visualization
• Process monitoring and data acquisition systems
• Manufacturing Execution Systems (MES) terminals
• Industrial automation control rooms
• Automotive and assembly line management

Technical Specifications

Installation Guidelines

1. 1 Ensure the control cabinet is completely de-energized and locked out. Verify the absence of voltage before proceeding.
2. 2 Prepare the panel cutout according to the manufacturer's dimensional drawings. Ensure the mounting surface is clean, flat, and free of debris.
3. 3 Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to the specified torque to ensure a proper seal.
4. 4 Connect a low-impedance protective earth (PE) conductor to the designated grounding terminal on the PC chassis. This is a critical safety connection.
5. 5 Connect the 110/230 V AC power supply cable. Ensure the source voltage matches the unit's rating.
6. 6 Connect all required communication and peripheral cables, such as Ethernet, PROFIBUS, and USB devices. Ensure proper cable strain relief.
7. 7 After verifying all connections are secure, remove the lockout/tagout devices and re-energize the cabinet to perform initial system startup and configuration.
