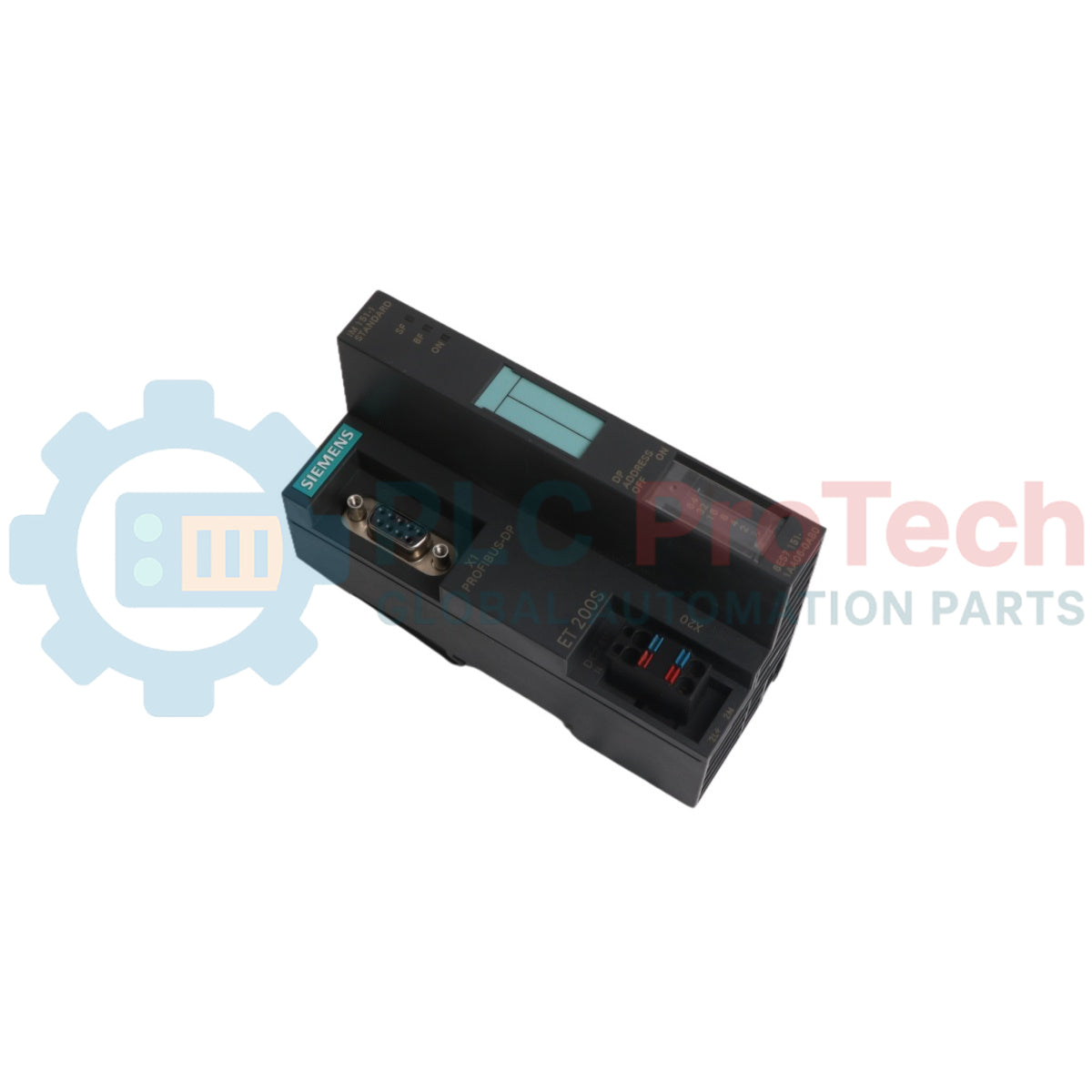

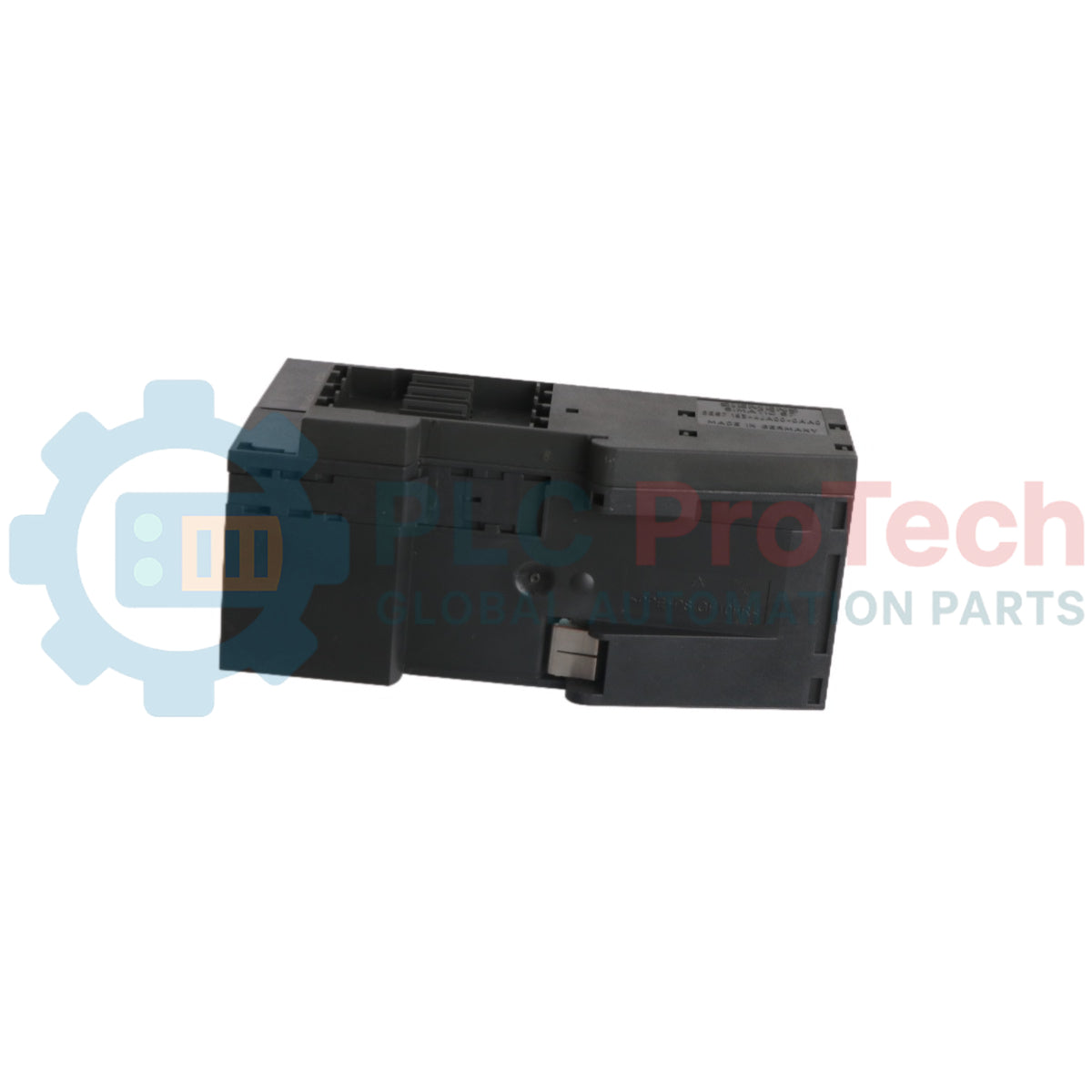

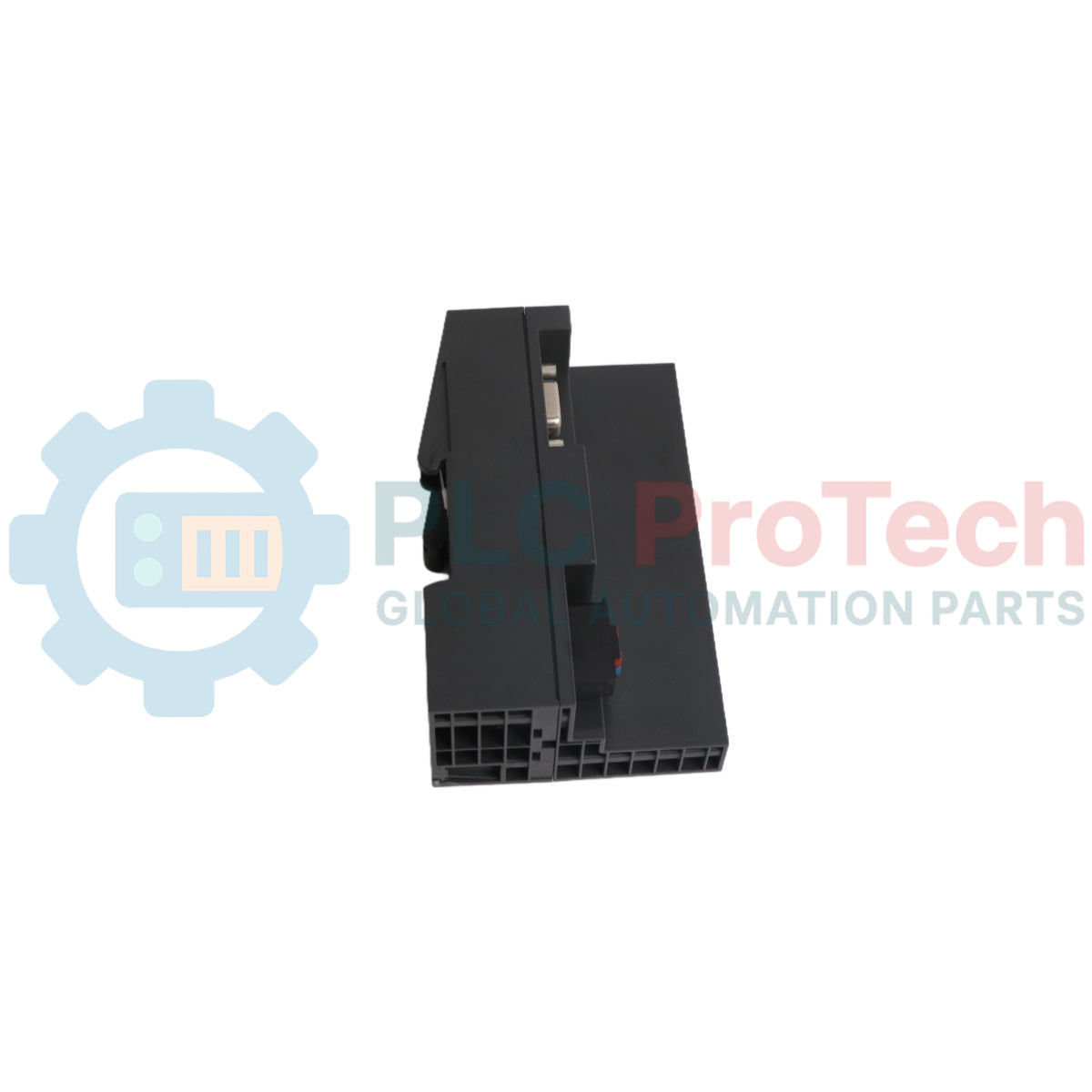

Siemens 6ES7151-1AA06-0AB0 SIMATIC ET 200S Interface Module

SKU 6ES7151-1AA06-0AB0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6ES7151-1AA06-0AB0
  • Origin Germany
  • Product Type: PLC Interface Modules
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.24 kg
  • Dimensions: 6 cm x 15 cm x 13 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Interface Modules SIMATIC ET 200S
Quantità
Call sales Contact

Product Description

Description

This is a Siemens 6ES7151-1AA06-0AB0 interface module for the SIMATIC ET 200S distributed I/O system. It functions as the head station, managing communication between a higher-level controller and the connected I/O modules via PROFIBUS DP. The module supports both PROFIBUS DP V0 and V1 protocols and can manage an extensive system of up to 63 I/O modules. It is designed to handle a data volume of 244 bytes for inputs and 244 bytes for outputs, ensuring efficient data exchange for control and monitoring tasks. The module operates on a standard 24 V DC supply and includes a termination module for proper bus installation.

Features

  • ■Supports PROFIBUS DP V0 and V1 protocols for flexible network integration.
  • ■Manages up to 63 peripheral I/O modules.
  • ■Data volume capacity of 244 bytes for inputs and 244 bytes for outputs.
  • ■Operates on a nominal 24 V DC power supply.
  • ■Connects to the PROFIBUS network via a standard 9-pin D-sub connector.
  • ■Allows for a maximum station width of up to 2 meters.

Applications

  • ■Discrete manufacturing and assembly lines.
  • ■Process control systems in chemical and pharmaceutical plants.
  • ■Machinery automation and OEM equipment.
  • ■Material handling and conveyor systems.

Technical Specifications

Specification Value
Manufacturer Siemens
Model Number 6ES7151-1AA06-0AB0
Product Series SIMATIC ET 200S
Module Type Interface Module (IM 151-1 Standard)
Communication Protocol PROFIBUS DP V0, V1
Bus Connection 9-pin D-sub Connector
Supply Voltage 24 V DC
Input Current (from supply) 200 mA
Output Capacity 80 mA
Max. Number of I/O Modules 63
Data Volume (Inputs) 244 bytes
Data Volume (Outputs) 244 bytes
Max. Station Width 2 m
Shipping Weight 0.24 kg
Dimensions (W x H x D) 4.0 x 12.5 x 10.5 cm
Package Dimensions (Calculated) 6 cm x 15 cm x 13 cm
Country of Origin Germany
HS Code 8537101190

Installation Guidelines

CRITICAL WARNING: Electrical Hazard. Disconnect and lock out all power sources before installation or removal. Work must be performed by qualified personnel only. Failure to de-energize equipment can result in severe injury or death.
  1. 1 Verify that the control cabinet is de-energized and locked out according to established safety procedures.
  2. 2 Mount the module onto a standard 35mm DIN rail, ensuring it is securely seated. Position it as the first module (head station) in the ET 200S assembly.
  3. 3 Connect the 24 V DC power supply to the designated terminals on the included termination module, observing correct polarity. Ensure the power source is stable and properly fused.
  4. 4 Connect the PROFIBUS DP cable to the 9-pin D-sub connector. Use high-quality, shielded PROFIBUS cable and ensure the shield is properly terminated at both ends for noise immunity.
  5. 5 Set the PROFIBUS address using the rotary switches on the module, ensuring the address is unique on the network segment.
  6. 6 After all connections are verified, remove the lockout/tagout and re-energize the system for commissioning.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What communication protocol does the 6ES7151-1AA06-0AB0 module use?
This interface module uses the PROFIBUS DP protocol and is compatible with both V0 and V1 standards.
How many I/O modules can be connected to this interface module?
The module can manage a distributed I/O station with up to 63 peripheral modules, with a maximum total station width of 2 meters.
What are the power supply requirements for this module?
The Siemens 6ES7151-1AA06-0AB0 requires a nominal 24 V DC power supply.
What is the data handling capacity of this module?
It is designed to handle a data volume of 244 bytes for inputs and 244 bytes for outputs between the controller and the I/O modules.
