Description

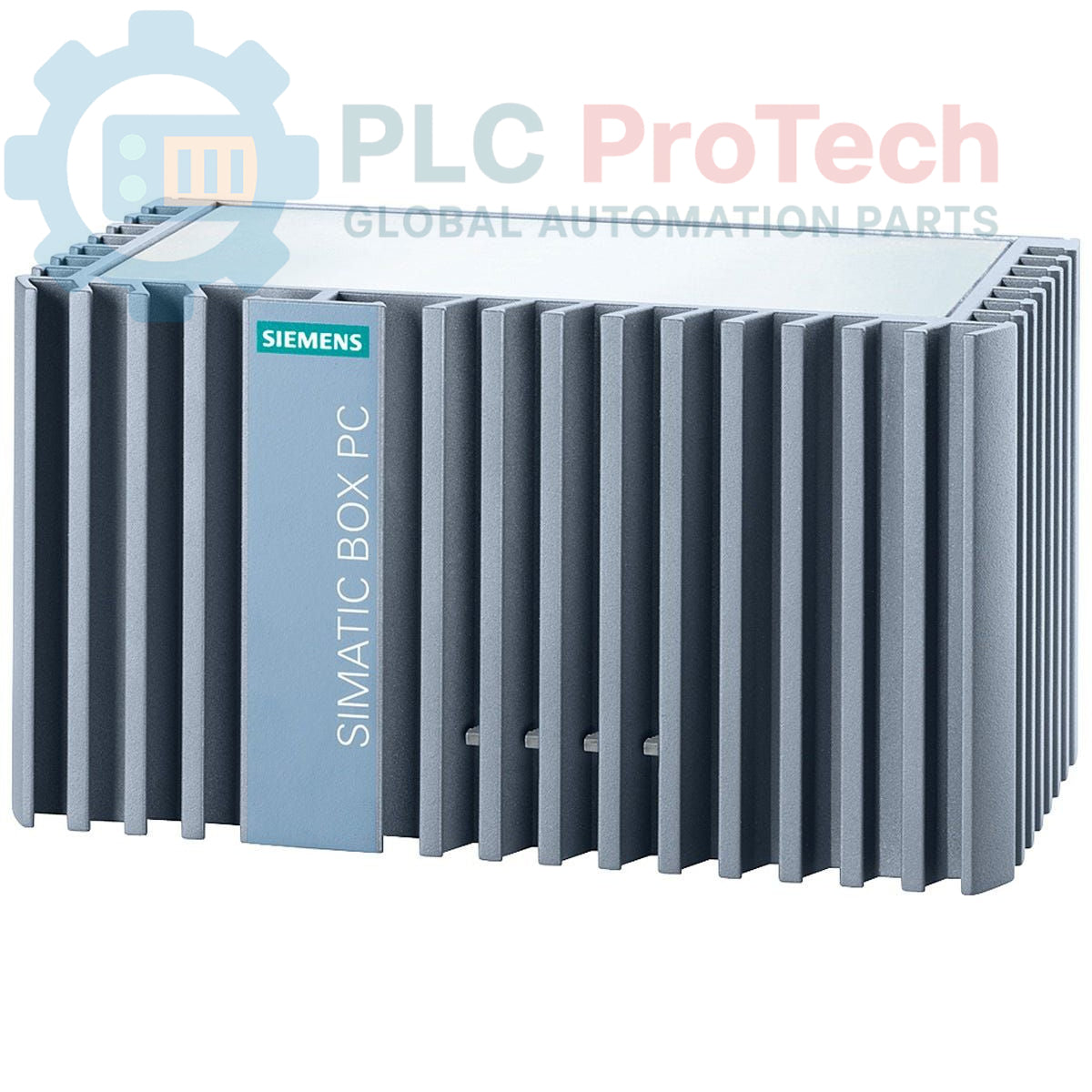

The Siemens 6ES7647-8AH10-2AA4 is a SIMATIC IPC277D Nanobox PC designed for industrial automation applications. This compact industrial PC features an Intel Atom E660 processor operating at 1.3 GHz, 2 GB of RAM, and a 250 GB SATA HDD with retentivity for data integrity. It comes pre-installed with Windows XP Professional SP3 (MUI) and is configured for basic side mounting. Connectivity options include a DVI-I graphics card connection, two 10/100/1000 Mbps Ethernet RJ45 ports, four high-current USB V2.0 ports, and a COM1 RS232 serial interface. An integrated CompactFlash slot provides additional storage or expansion capabilities. The unit operates on a 24 V DC industrial power supply, making it suitable for integration into various control systems and HMI solutions.

Features

• Intel Atom E660 (1.3 GHz) Processor
• 2 GB RAM
• 250 GB SATA HDD with Retentivity
• Pre-installed Windows XP Professional SP3 (MUI)
• 1x DVI-I Graphics Output
• 2x 10/100/1000 Mbps Ethernet RJ45 Ports
• 4x USB V2.0 (High Current) Ports
• 1x COM1 RS232 Serial Port
• Integrated CompactFlash Slot
• 24 V DC Industrial Power Supply
• Basic Side Mounting Design

Applications

The Siemens SIMATIC IPC277D Nanobox PC is suitable for a wide range of industrial applications requiring a robust and compact computing solution, including:

• Machine control and visualization
• Data acquisition and processing
• Distributed control systems (DCS)
• Human Machine Interface (HMI) applications
• Embedded control tasks
• Industrial communication gateways

Ordering Information

Technical Specifications

Connections / Interfaces

• DVI-I: For connecting a display or monitor.
• Ethernet RJ45: Two ports for network connectivity (10/100/1000 Mbps).
• USB V2.0: Four high-current ports for peripheral devices.
• CompactFlash Slot: For removable storage or expansion.
• COM1 RS232: Serial port for communication with legacy devices or specific industrial equipment.
• 24 V DC Power Input: For industrial power supply connection.

Installation Guidelines

1. Safety First: Ensure all power to the installation area is de-energized before beginning any work.
2. Mounting: Mount the Nanobox PC using its basic side mounting points on a suitable panel or enclosure. Ensure adequate clearance for ventilation and cable routing.
3. Power Connection: Connect the 24 V DC industrial power supply to the designated terminals. Observe correct polarity to prevent damage.
4. Grounding: Properly ground the unit to the system's protective earth to ensure electrical safety and minimize electromagnetic interference.
5. Peripheral Connections: Connect DVI-I for display, RJ45 cables for Ethernet, and USB devices as required. Ensure all connections are secure.
6. Serial Communication: Connect RS232 devices to the COM1 port if serial communication is needed.
7. Cable Management: Route all cables neatly and securely, separating power and signal cables where possible to reduce interference.
8. Environmental Considerations: Install the unit in an environment that complies with its specified operating temperature and humidity ranges. Avoid direct sunlight, excessive vibration, and corrosive atmospheres.
9. Power Up: After all connections are verified, re-energize the system and power on the Nanobox PC.
