Description

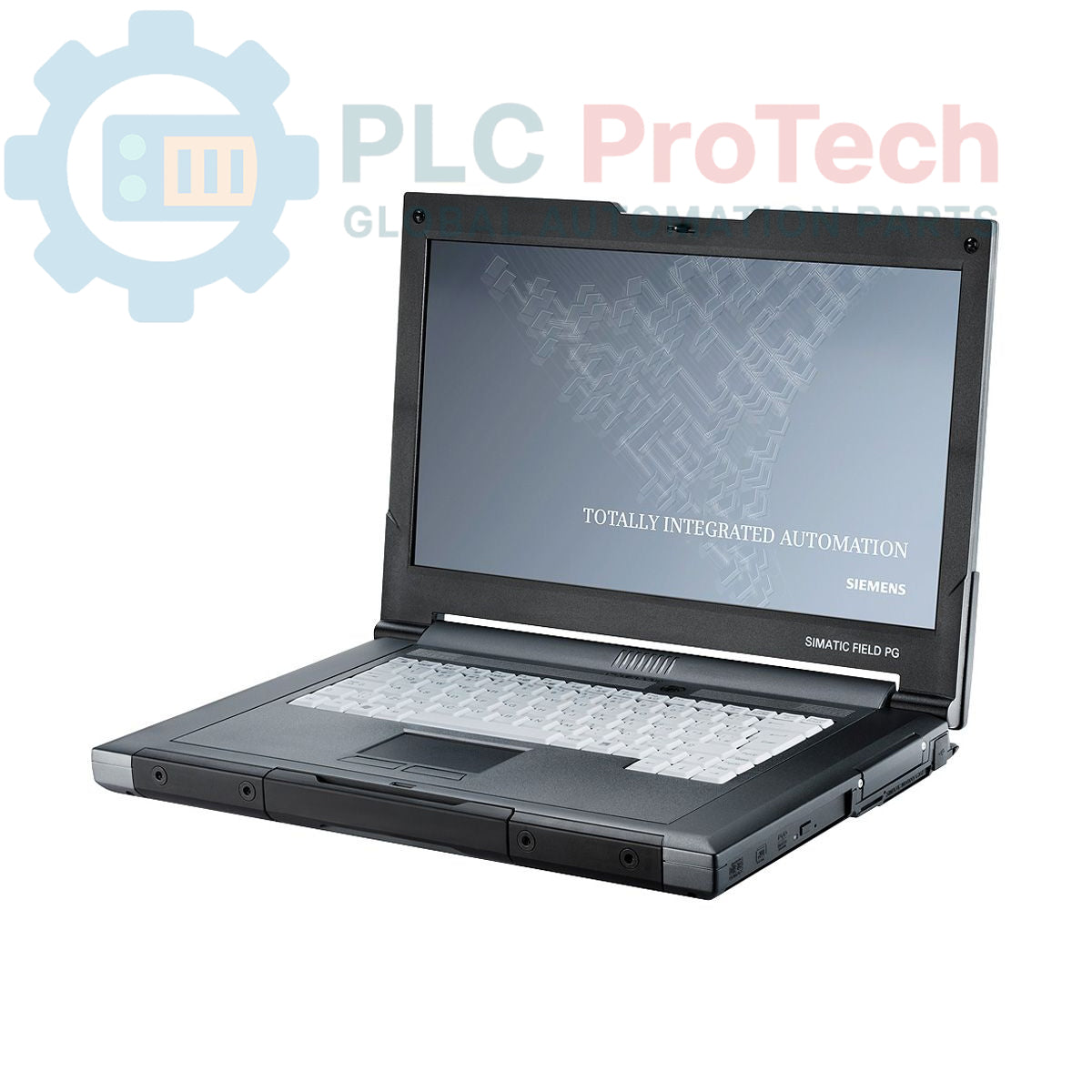

The Siemens 6ES7715-1BB20-0AE1 is a SIMATIC Field PG M3 Premium, a ruggedized portable programming device designed for commissioning, servicing, and maintaining automation systems directly in industrial environments. This unit is equipped with an Intel Core i5-520M 2.4 GHz processor, 3 GB of DDR3 RAM, and a 500 GB SATA hard drive for robust performance. It features a 15.6-inch Full HD display and comes pre-loaded with a suite of engineering software, including licenses for STEP 7 Professional V11, WinCC Advanced V11, and STEP 7 Micro/WIN on a Windows XP Professional operating system. This model is specified without an S5 interface or S5-EPROMMER and includes an MPI cable for direct connectivity to SIMATIC controllers.

Features

• Processor: Intel Core i5-520M (2.4 GHz)
• Memory: 3 GB DDR3 RAM (1x 1 GB, 1x 2 GB configuration)
• Storage: 500 GB SATA Hard Disk Drive (HDD)
• Display: 15.6-inch Full HD with 1920 x 1080 resolution
• Optical Drive: DL Multi-Standard DVD RW
• Pre-installed Software: STEP 7 Professional V11, WinCC Advanced V11, STEP 7 Micro/WIN
• Operating System: Windows XP Professional (English Multi-User Interface)
• Connectivity: Includes MPI cable for PLC communication
• Keyboard: QWERTY layout with German characters

Applications

• Commissioning and startup of PLC and HMI systems
• On-site diagnostics and troubleshooting of industrial control panels
• Programming and software modification for SIMATIC controllers
• System maintenance and data backup in manufacturing and process plants
• Mobile engineering workstation for automation technicians and system integrators

Technical Specifications

Installation Guidelines

1. 1 Upon receipt, visually inspect the Field PG and all accessories for any signs of shipping damage. Do not use if the chassis or cables are compromised.
2. 2 Select the appropriate line cable for your region and connect it securely to the Field PG's power adapter and a suitable mains outlet.
3. 3 Power on the device and allow the operating system to load completely. Verify that the pre-installed Siemens engineering software (STEP 7, WinCC) launches correctly.
4. 4 Before connecting to a PLC or control system, establish a stable, clean, and dry work surface. Take precautions against electrostatic discharge (ESD), especially when handling communication cables.
5. 5 Use the provided MPI cable to establish a connection between the Field PG and the target automation device. Ensure connectors are fully seated and secured.
6. 6 After completing work, disconnect the communication cable from the PLC first, then from the Field PG. Power down the device and store it in a clean, dry location to protect it from industrial contaminants.
