Description

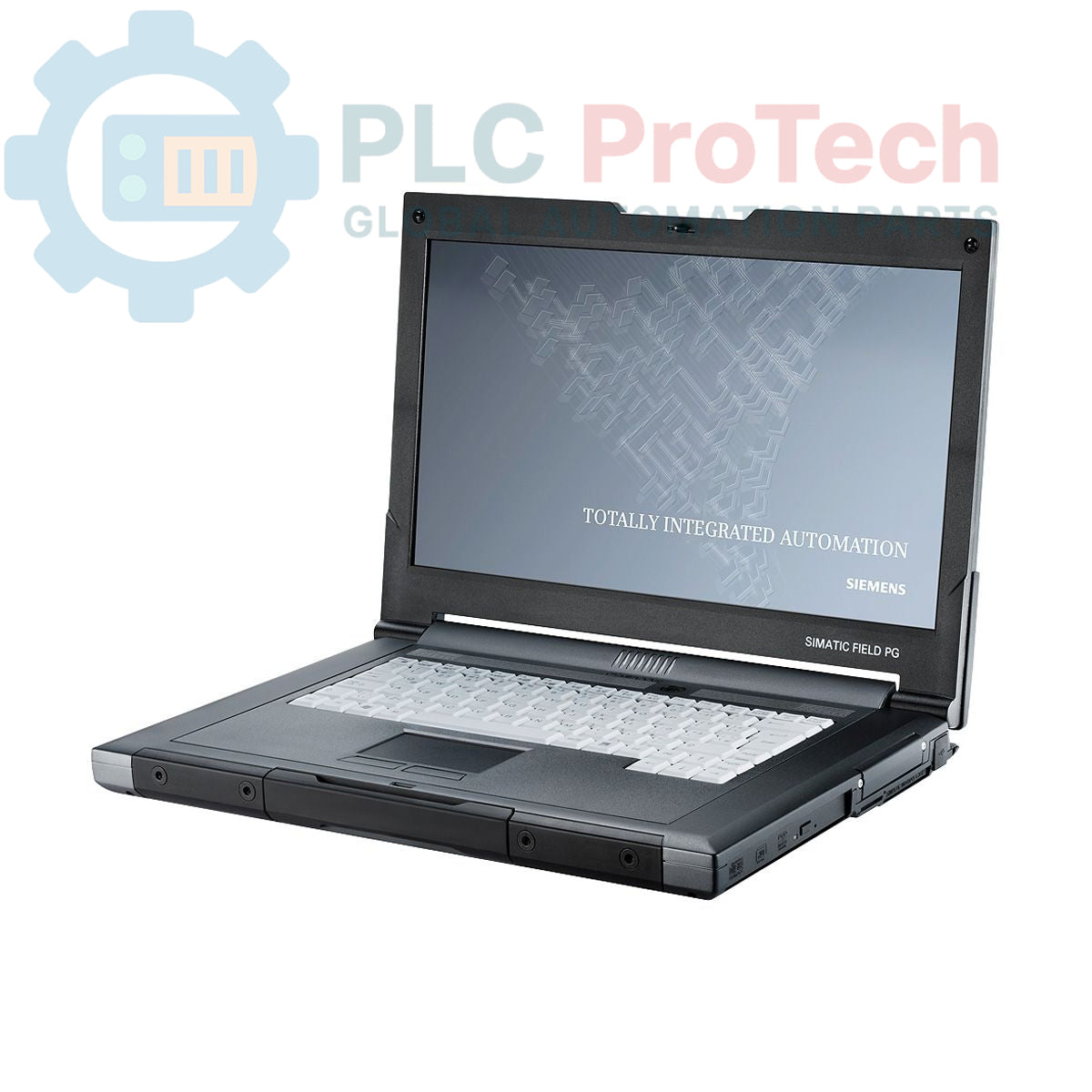

The Siemens 6ES7715-1BB20-0AE3 is a SIMATIC Field PG M3 Premium mobile programming device, designed for industrial automation tasks. This unit features an Intel Core i5-520M processor running at 2.4 GHz, a 500 GB SATA Hard Disk Drive (HDD), and a DL Multi-Standard DVD RW drive. It is equipped with a 15.6-inch Full HD display (1920 x 1080 resolution) and a QWERTY keyboard with a German layout. The device comes pre-installed with Windows XP Professional English MUI, including language images for German, French, Spanish, and Italian. The Premium configuration includes 3 GB of DDR3 RAM (1x 1 GB, 1x 2 GB) and licenses for essential Siemens automation software: STEP 7 Professional V11, WinCC Advanced V11, and STEP 7 Micro/WIN. An MPI cable is included for direct connection to SIMATIC PLCs. This model does not include an S5 interface or an S5-EPROMMER, focusing on modern SIMATIC systems. It is supplied with a line cable suitable for various European countries and holds CE approval for Europe.

Features

• Intel Core i5-520M processor (2.4 GHz)
• 500 GB SATA Hard Disk Drive (HDD)
• DL Multi-Standard DVD RW optical drive
• 15.6-inch Full HD display (1920 x 1080 resolution)
• 3 GB DDR3 RAM (Premium configuration)
• Pre-installed Windows XP Professional English MUI
• Includes licenses for STEP 7 Professional V11, WinCC Advanced V11, and STEP 7 Micro/WIN
• QWERTY keyboard with German layout
• MPI cable included
• Without S5 interface and S5-EPROMMER

Applications

• On-site commissioning, diagnostics, and maintenance of SIMATIC PLC systems.
• Software development and configuration for industrial automation projects.
• Mobile engineering workstation for factory automation environments.
• Troubleshooting and parameterization of control systems in the field.

Technical Specifications

Connections / Interfaces

• MPI Interface (via included MPI cable)
• Power Input (via included line cable for specific European regions)

Installation Guidelines

1. Power Connection: Connect the appropriate line cable to the device and a suitable power outlet. Ensure the power supply matches the device's requirements.
2. Initial Setup: Upon first boot, follow any on-screen prompts for initial system configuration. The operating system and core software are pre-installed.
3. Software Activation: Verify the activation status of the included STEP 7 Professional V11, WinCC Advanced V11, and STEP 7 Micro/WIN licenses.
4. Peripheral Connections: Connect the MPI cable to the appropriate port on the Field PG and to the target SIMATIC PLC for programming and diagnostics.
5. Environmental Considerations: Operate the device within typical industrial office or light industrial environments, avoiding extreme temperatures, humidity, or excessive dust.
6. Data Backup: Regularly back up important project data and system configurations to prevent data loss.

Compliance and Certifications

• CE Approval (Europe)
