Description

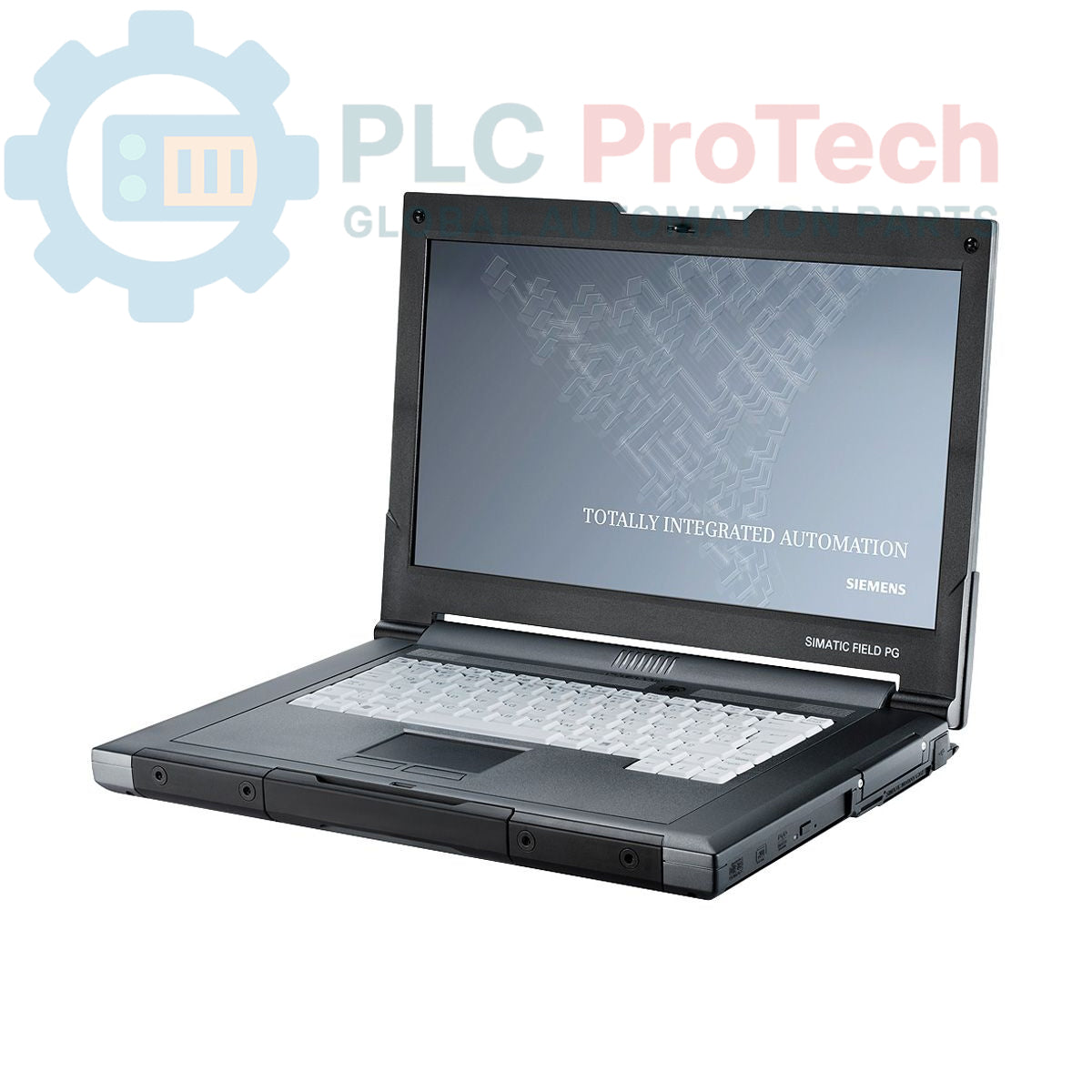

The Siemens 6ES7715-1BB20-0BD1 is a SIMATIC Field PG M3 Premium industrial programming device, designed for mobile engineering and commissioning tasks within automation environments. This unit features a Core I5-520M processor operating at 2.4GHz, complemented by 4 GB DDR3 RAM and a 500 GB SATA HDD. It includes a DL Multi-Standard DVD RW drive and a 15.6-inch Full HD (1920x1080) display, paired with a QWERTY keyboard that also supports German layout. The device comes with Windows 7 Ultimate, 32-bit, pre-installed as an image on the HDD, offering English, German, French, Spanish, and Italian language options. It is supplied with a line cable for various European countries and an MPI cable, along with licenses for STEP 7 Professional V11, WinCC ADV. V11, STEP 5, and STEP 7 Micro/WIN. Note that STEP 5 and STEP 7-Micro/WIN are not pre-installed and are not executable under Windows 7. The device does not include an S5 interface or an S5-EPROMMER.

Features

• Core I5-520M processor, 2.4GHz
• 4 GB DDR3 RAM
• 500 GB SATA HDD
• DL Multi-Standard DVD RW optical drive
• 15.6-inch Full HD (1920x1080) display
• QWERTY keyboard with German layout support
• Pre-installed Windows 7 Ultimate, 32-bit (EN/DE/FR/SP/IT image)
• Includes licenses for STEP 7 Professional V11, WinCC ADV. V11, STEP 5, STEP 7 Micro/WIN
• Supplied with MPI cable and European line cable
• CE approved for Europe
• Without S5 interface or S5-EPROMMER

Applications

The SIMATIC Field PG M3 Premium is suitable for a range of industrial automation applications, including:

• On-site programming and configuration of Siemens SIMATIC PLCs and HMI systems.
• Commissioning and diagnostics of automation equipment.
• Software development and testing for industrial control systems.
• Maintenance and troubleshooting in manufacturing plants and industrial facilities.

Technical Specifications

Installation Guidelines

As an industrial programming device, the SIMATIC Field PG M3 requires careful handling and setup:

1. Power Connection: Connect the device to a suitable power outlet using the provided line cable. Ensure the power supply matches the device's requirements.
2. Initial Setup: Upon first power-up, follow the on-screen prompts for initial Windows 7 configuration.
3. Software Licensing: Activate the included software licenses (STEP 7 Professional V11, WinCC ADV. V11, STEP 5, STEP 7 Micro/WIN) as per Siemens guidelines. Note that STEP 5 and STEP 7-Micro/WIN are not pre-installed and are not executable under Windows 7.
4. Peripheral Connections: Utilize the available ports for connecting external devices such as USB peripherals or external monitors.
5. MPI Communication: Use the supplied MPI cable to establish communication with SIMATIC PLCs for programming and diagnostic purposes.
6. Environmental Considerations: Operate the device within typical industrial environments, avoiding excessive dust, moisture, or extreme temperatures to ensure longevity.
7. Data Backup: Regularly back up important project data and system configurations to prevent data loss.

Compliance and Certifications

• CE Approval: Approved for use within Europe, indicating compliance with relevant European health, safety, and environmental protection legislation.
