Description

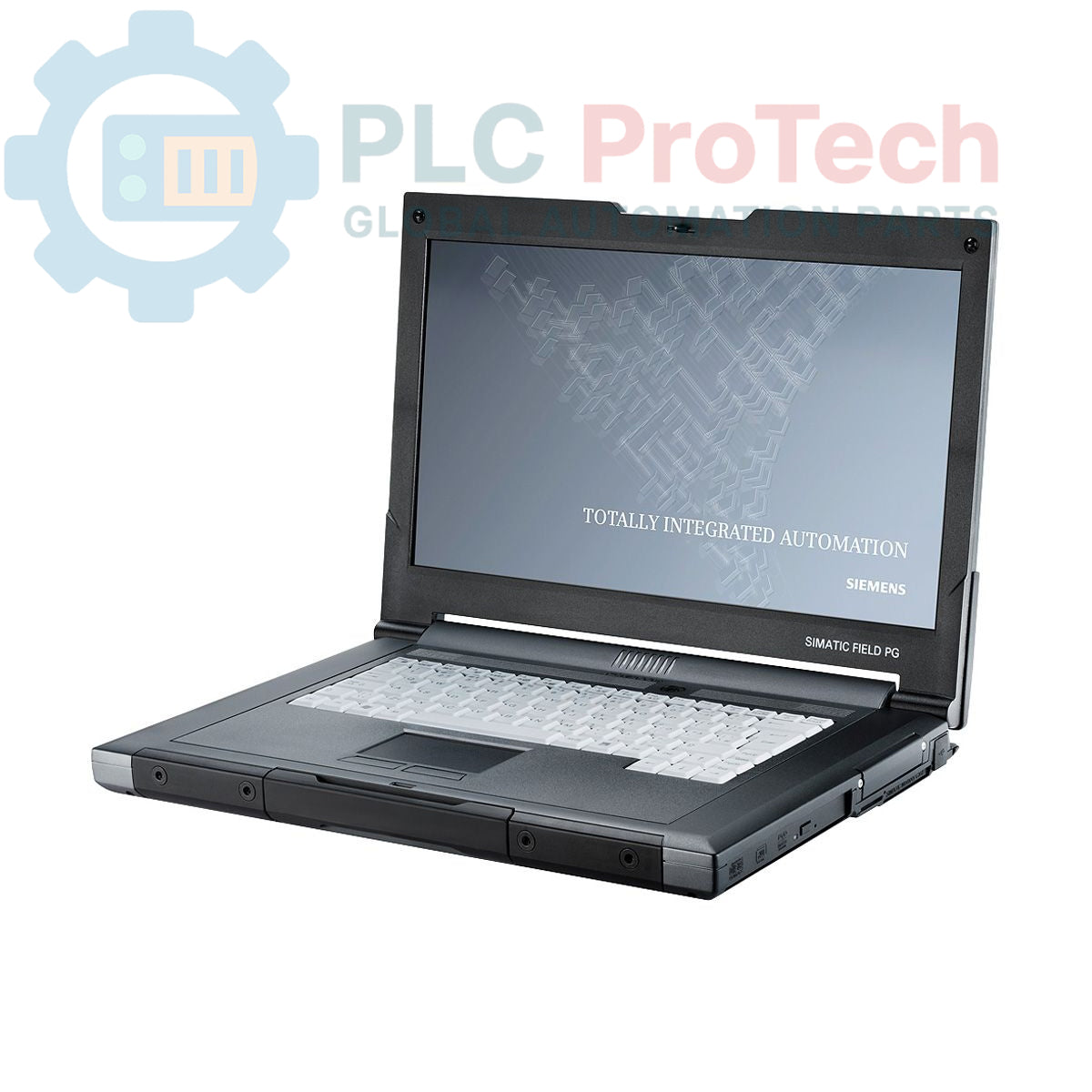

The Siemens 6ES7715-1BB23-0AC3 is a SIMATIC Field PG M3 Premium programming device, designed for mobile engineering and commissioning tasks within industrial automation environments. This robust portable workstation features an Intel Core i5-520M processor operating at 2.4 GHz, paired with 3 GB DDR3 RAM for efficient software execution. It includes a 500 GB SATA HDD for data storage and a DL Multi-Standard DVD RW drive for media handling.

Equipped with a 15.6-inch Full HD display (1920x1080) and a QWERTY keyboard (with German layout support), the device is pre-installed with Windows XP Professional (English MUI, with DE/FR/SP/IT language images on HDD). It comes with essential SIMATIC software licenses, including STEP 7 Professional V11, WinCC Advanced V11, and STEP 5, along with an MPI cable for direct PLC connectivity. The unit is supplied with a power supply cable and has approval for use in China (CCC), making it suitable for specific regional deployments.

Features

• Intel Core i5-520M Processor (2.4 GHz)
• 15.6-inch Full HD Display (1920x1080)
• 500 GB SATA Hard Disk Drive
• DL Multi-Standard DVD RW Optical Drive
• 3 GB DDR3 RAM (Premium Configuration: 1x 1 GB, 1x 2 GB)
• Pre-installed Windows XP Professional (English MUI with additional language images)
• Includes STEP 7 Professional V11, WinCC Advanced V11, and STEP 5 Licenses
• Supplied with MPI Cable
• QWERTY Keyboard (with German layout support)
• Power Supply Cable for China and CCC Approval
• No S5 Interface or S5-EPROMMER

Applications

The SIMATIC Field PG M3 Premium is typically deployed in various industrial settings for:

• Programming, configuration, and diagnostics of SIMATIC S7 PLCs and HMI systems.
• On-site commissioning and startup of automation systems.
• Troubleshooting and maintenance of industrial control equipment.
• Mobile engineering workstations for factory automation and process control.

Technical Specifications

Connections / Interfaces

The device includes an MPI cable for direct connection to SIMATIC PLCs. It is explicitly specified as being without an S5 interface and S5-EPROMMER.

Installation Guidelines

1. Unpacking and Inspection: Carefully unpack the Field PG and inspect for any visible damage from transit.
2. Power Connection: Connect the provided power supply cable (specific for China) to the Field PG and a compatible power outlet. Ensure the power source meets the device's electrical requirements.
3. Initial Power-Up: Power on the Field PG and allow the pre-installed Windows XP Professional operating system to boot. Verify the functionality of the display, keyboard, and touchpad.
4. Software Verification: Confirm the presence and basic functionality of the pre-installed SIMATIC software, including STEP 7 Professional V11, WinCC Advanced V11, and STEP 5.
5. Peripheral Connections: Connect the MPI cable to the appropriate port on the Field PG and the target SIMATIC PLC for programming, diagnostics, or data transfer.
6. Environmental Considerations: Operate the Field PG within a clean, dry environment, ensuring adequate ventilation to prevent overheating. Avoid exposure to extreme temperatures, dust, or moisture.
7. Data Management: Regularly back up critical project data from the 500 GB SATA HDD to external storage to prevent data loss.

Compliance and Certifications

• China Compulsory Certificate (CCC) Approval
