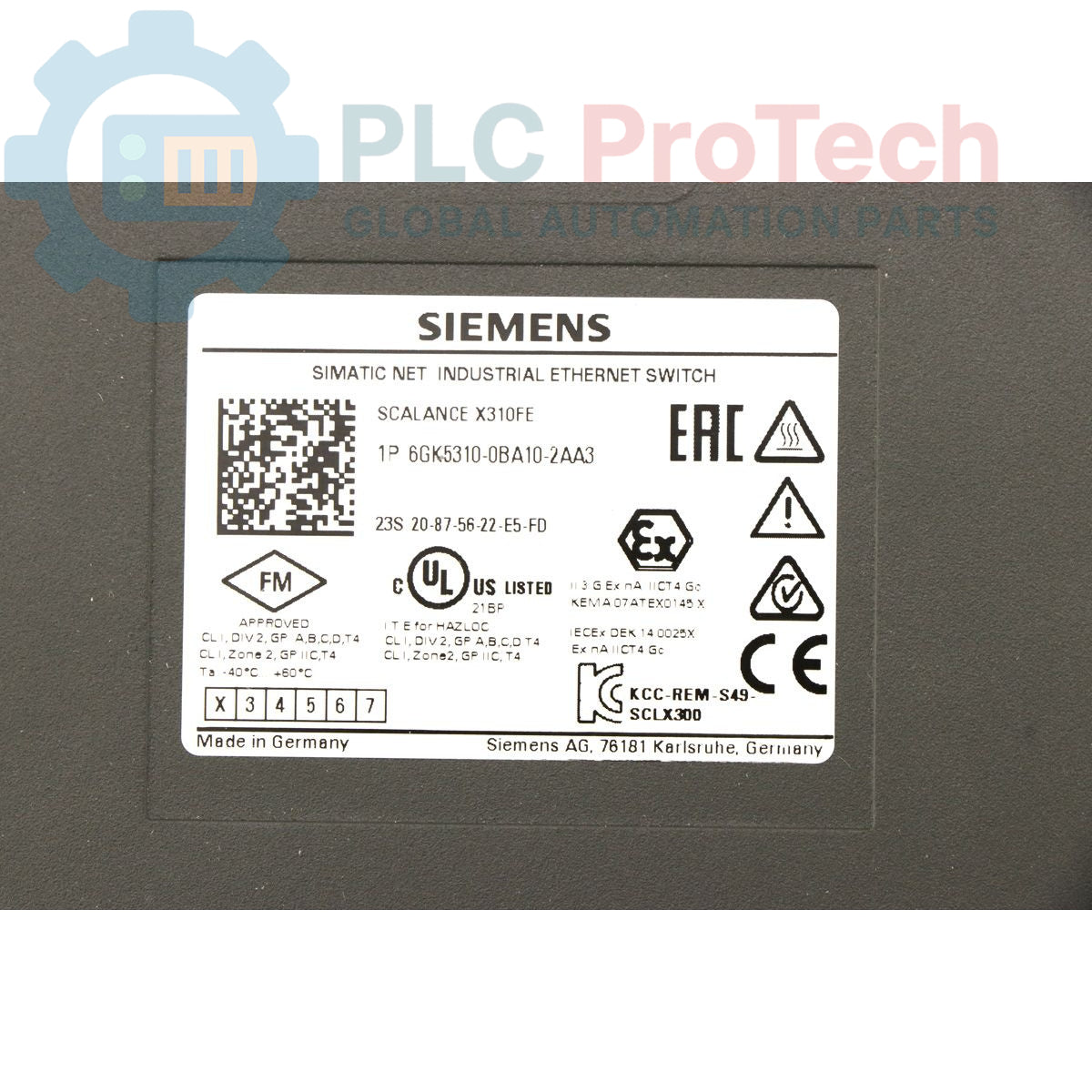

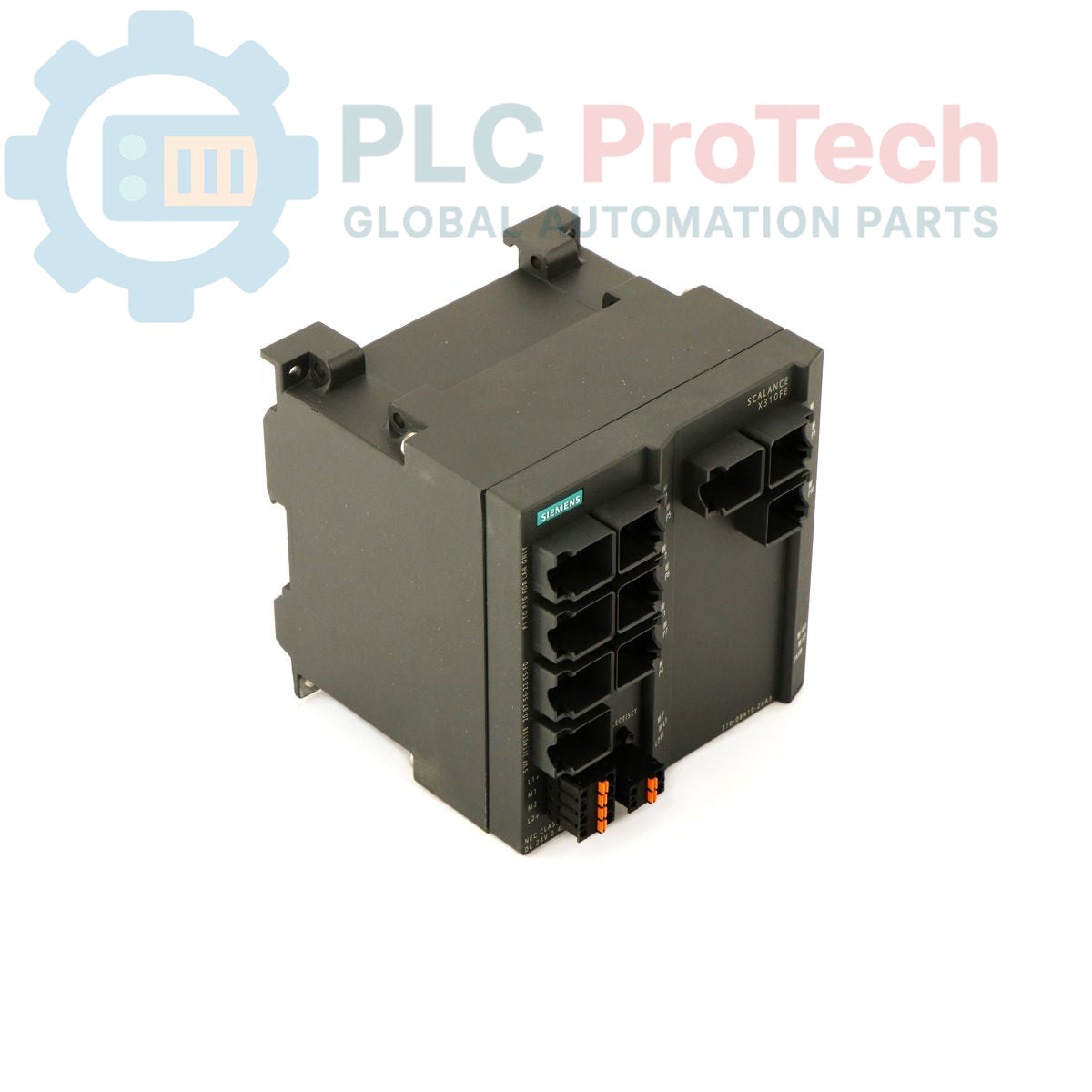

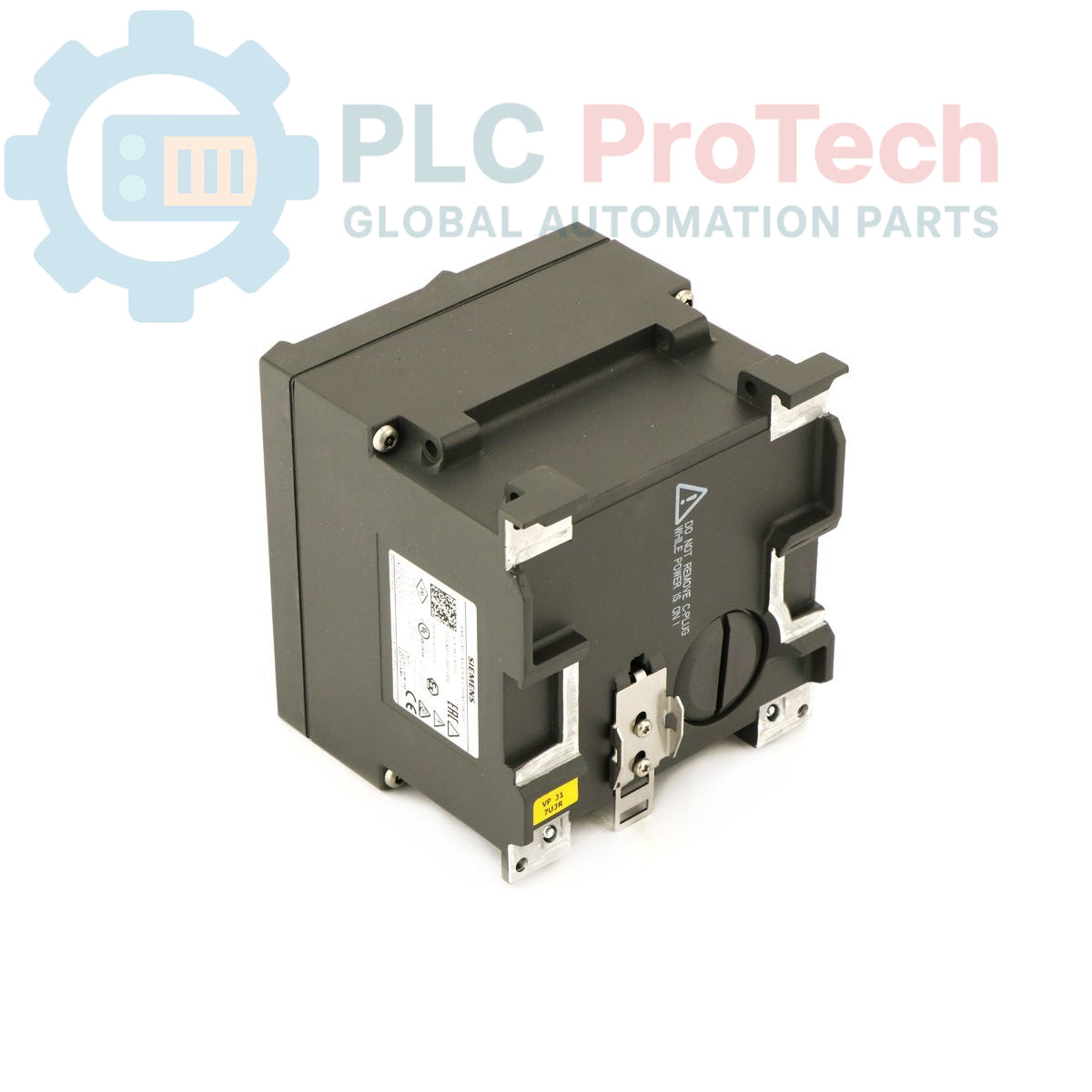

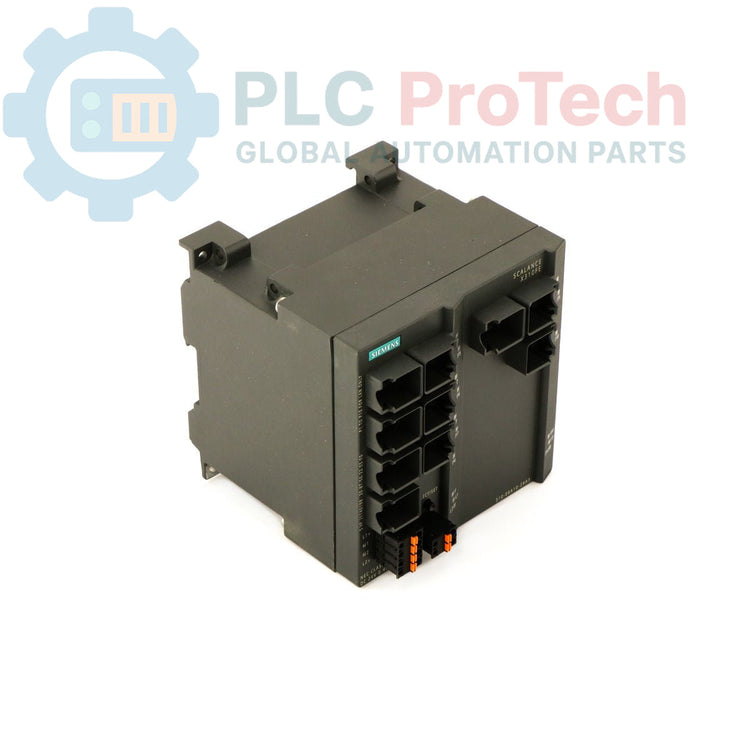

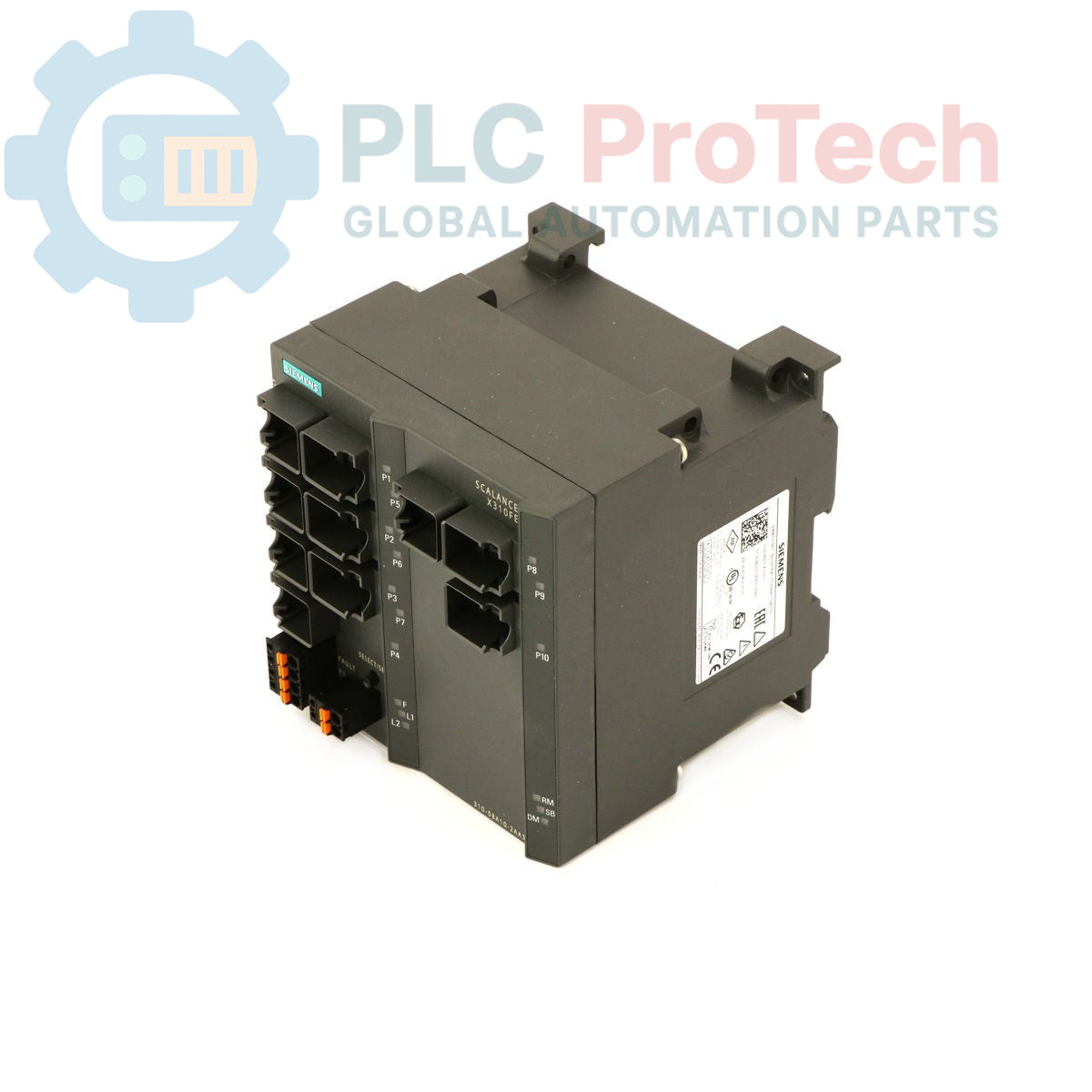

The 6GK5310-0BA10-2AA3 is a SCALANCE X310FE managed Industrial Ethernet (IE) switch designed to deliver high-performance, high-availability networking in industrial automation environments. Featuring ten 10/100 Mbit/s RJ45 ports, this switch supports complex network topologies and offers advanced management features such as redundancy management, VLAN segmentation, and IGMP snooping. It is an ideal solution for critical infrastructure where network stability and rapid diagnostic response are paramount.

Features

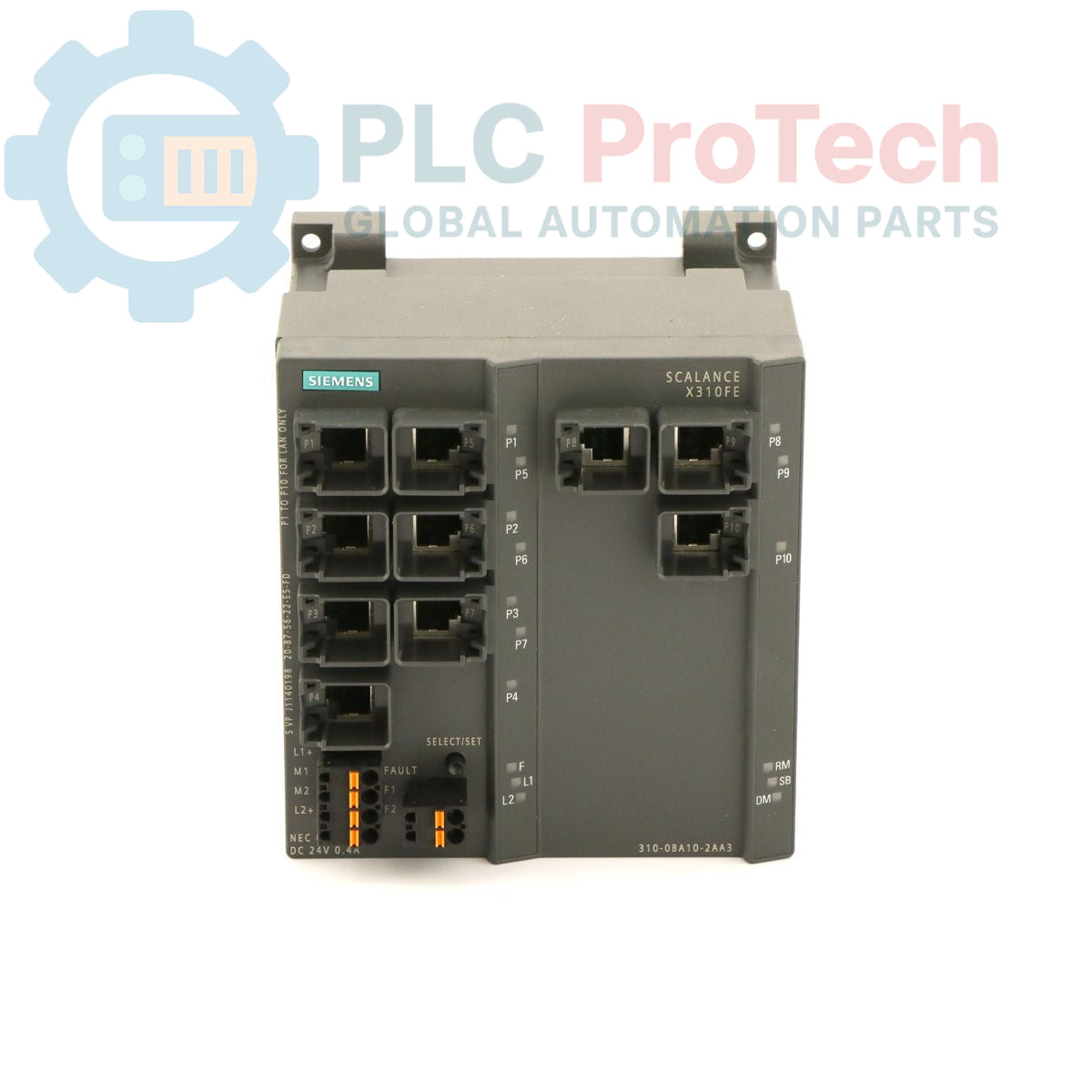

• High Port Density: Equipped with 10 x 10/100 Mbit/s RJ45 ports for versatile device connectivity.
• Network Management: Fully managed switch supporting advanced protocols including RSTP (Rapid Spanning Tree Protocol), VLANs, and IGMP for efficient multicast traffic handling.
• Process Reliability: Integrated Redundancy Manager ensures high availability and fast fault recovery in ring topologies.
• Operational Diagnostics: Features clear LED diagnostic indicators and an error-signaling contact, supplemented by a Select/Set pushbutton for local configuration and status checking.
• PROFINET Ready: Functions as a PROFINET IO device, allowing seamless integration into Siemens automation architectures.
• Ease of Maintenance: Includes a C-plug for easy configuration backup and rapid device replacement without the need for manual reprogramming.

Applications

• Manufacturing and processing plant floor network backbones.
• Integration of field devices into PROFINET-based automation systems.
• Applications requiring network segmentation (VLANs) to separate traffic and increase security.
• Industrial environments necessitating rapid recovery times (Redundancy Manager) in the event of cable or switch failure.

Technical Specifications

Installation Guidelines

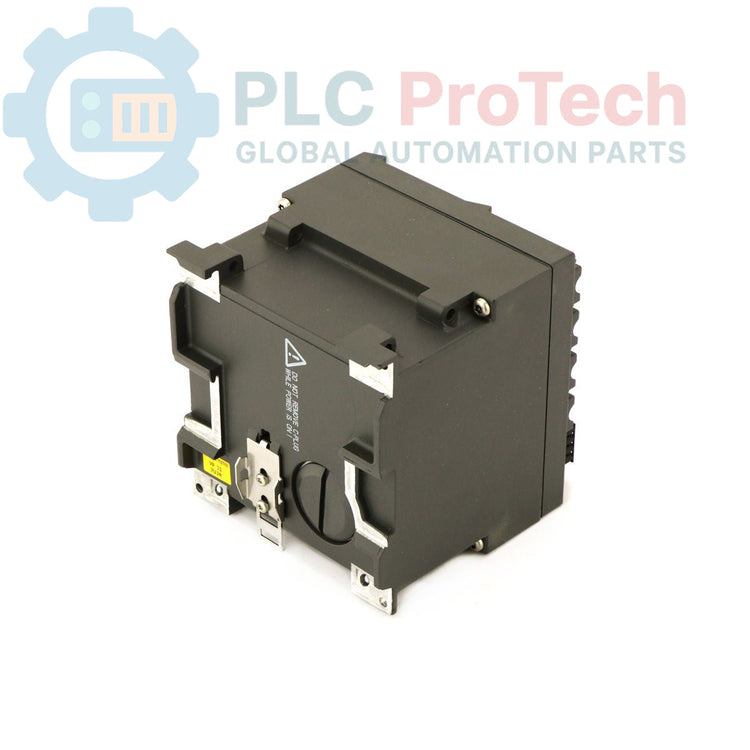

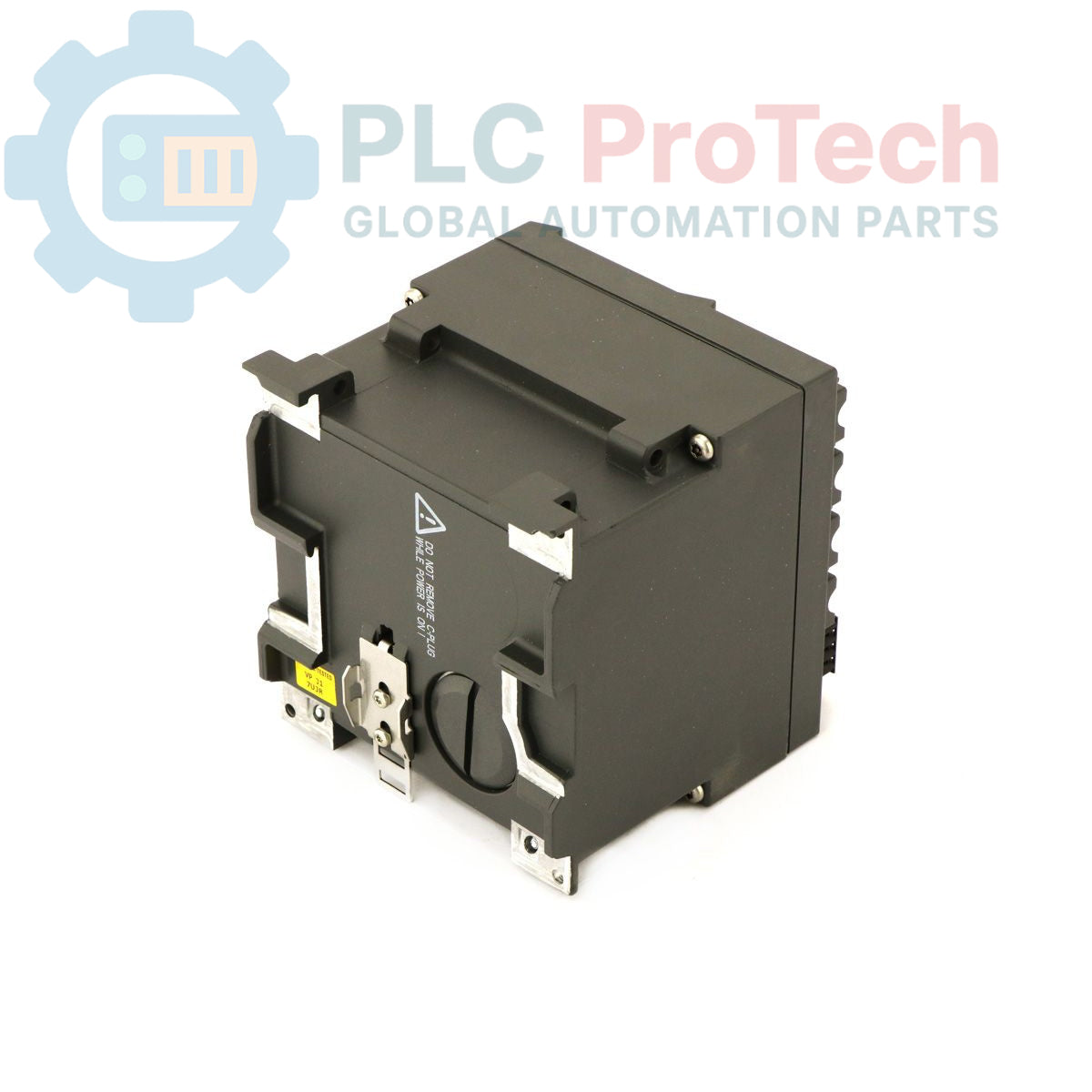

• Mounting: Ensure the switch is mounted on a standard DIN rail within a climate-controlled industrial enclosure. Maintain adequate clearance for cable bending radii and airflow.
• Redundancy Setup: When using the integrated Redundancy Manager, ensure all switches in the ring are properly configured to prevent network loops and broadcast storms.
• C-plug Usage: Insert the C-plug into the designated slot before commissioning. This allows the switch to store its configuration, enabling a "plug-and-play" replacement process if the hardware ever needs to be swapped out.
• EMC Shielding: Use high-quality shielded twisted-pair (STP) Ethernet cables and ensure the switch housing is properly grounded to the cabinet's potential equalization system to maintain immunity to electrical noise.
