Description

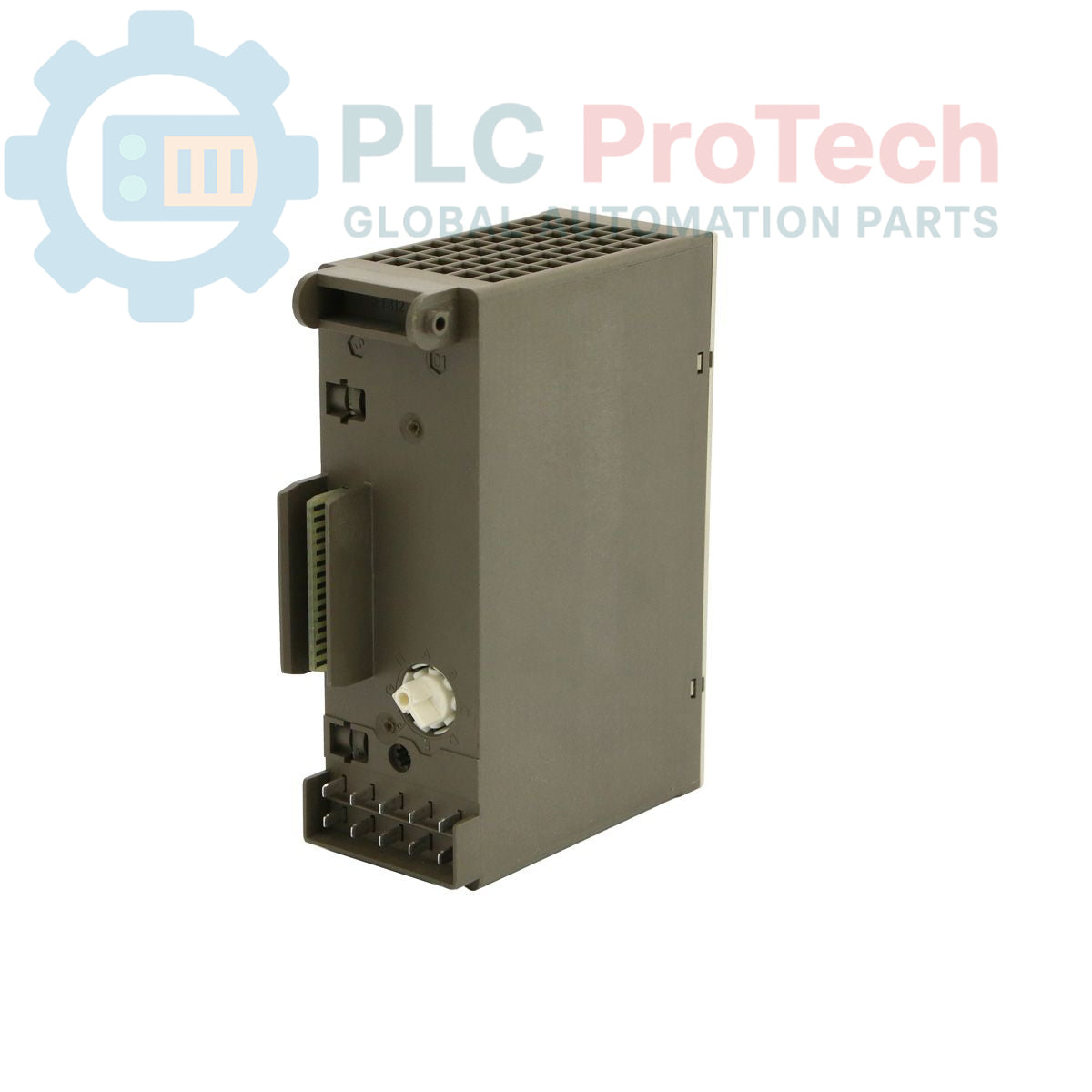

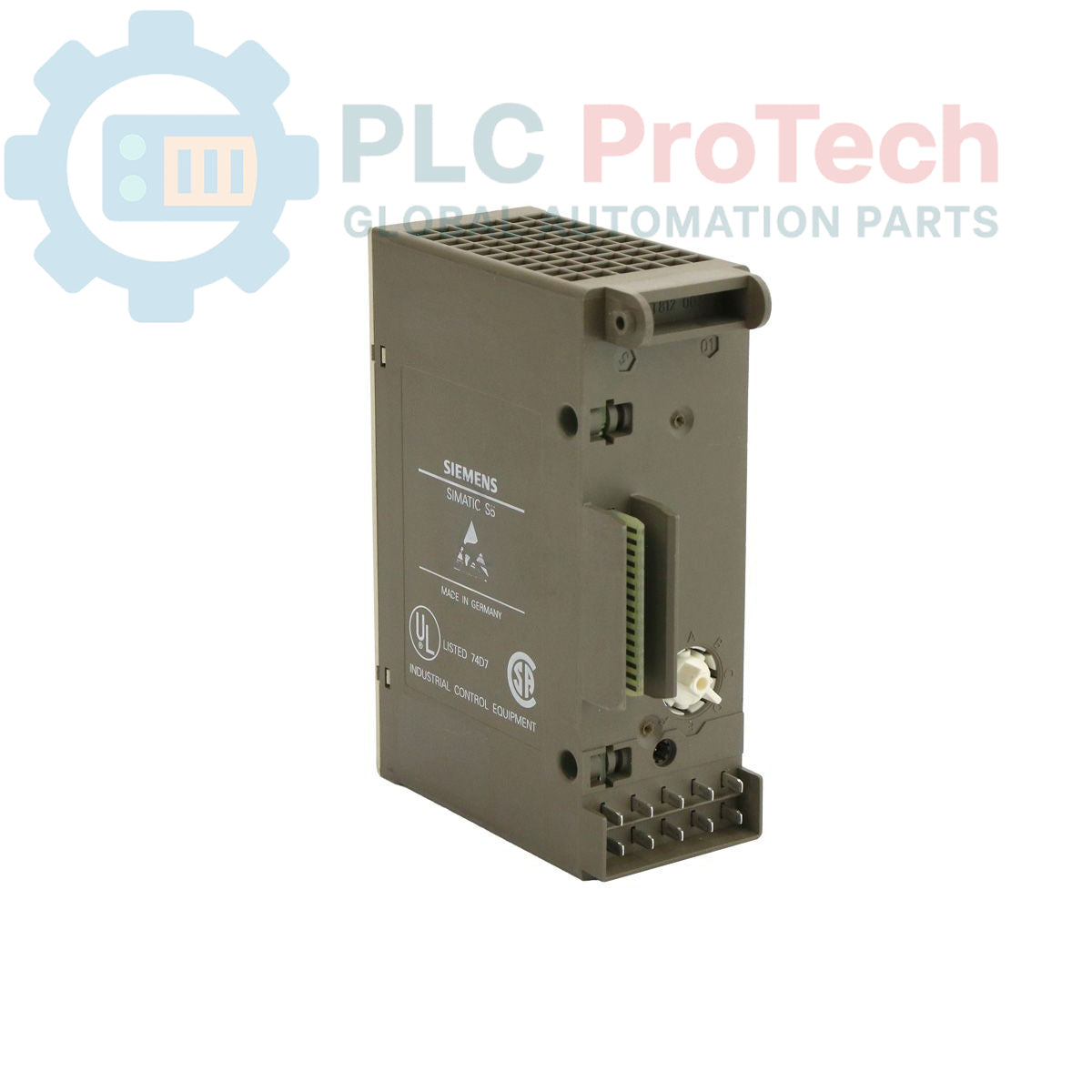

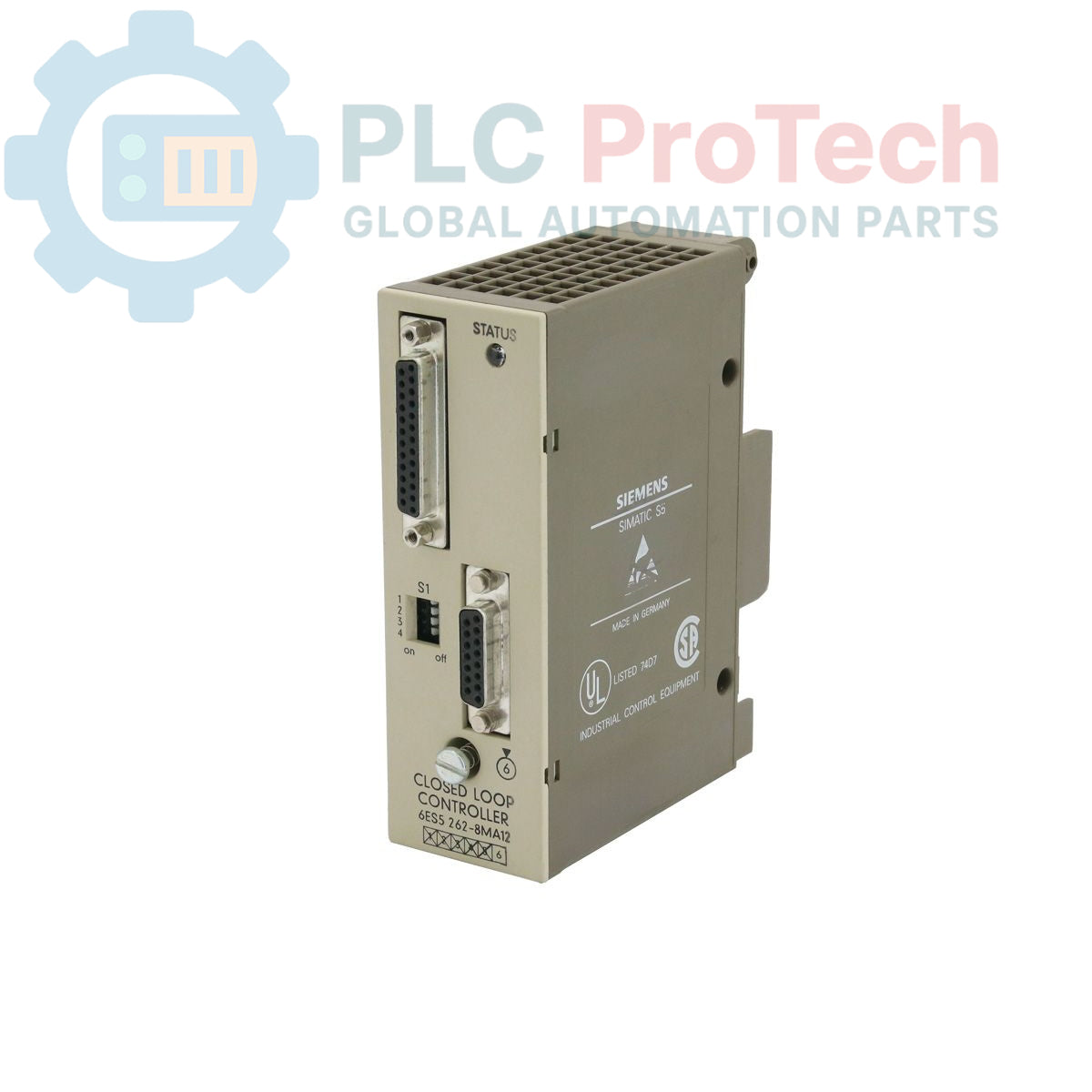

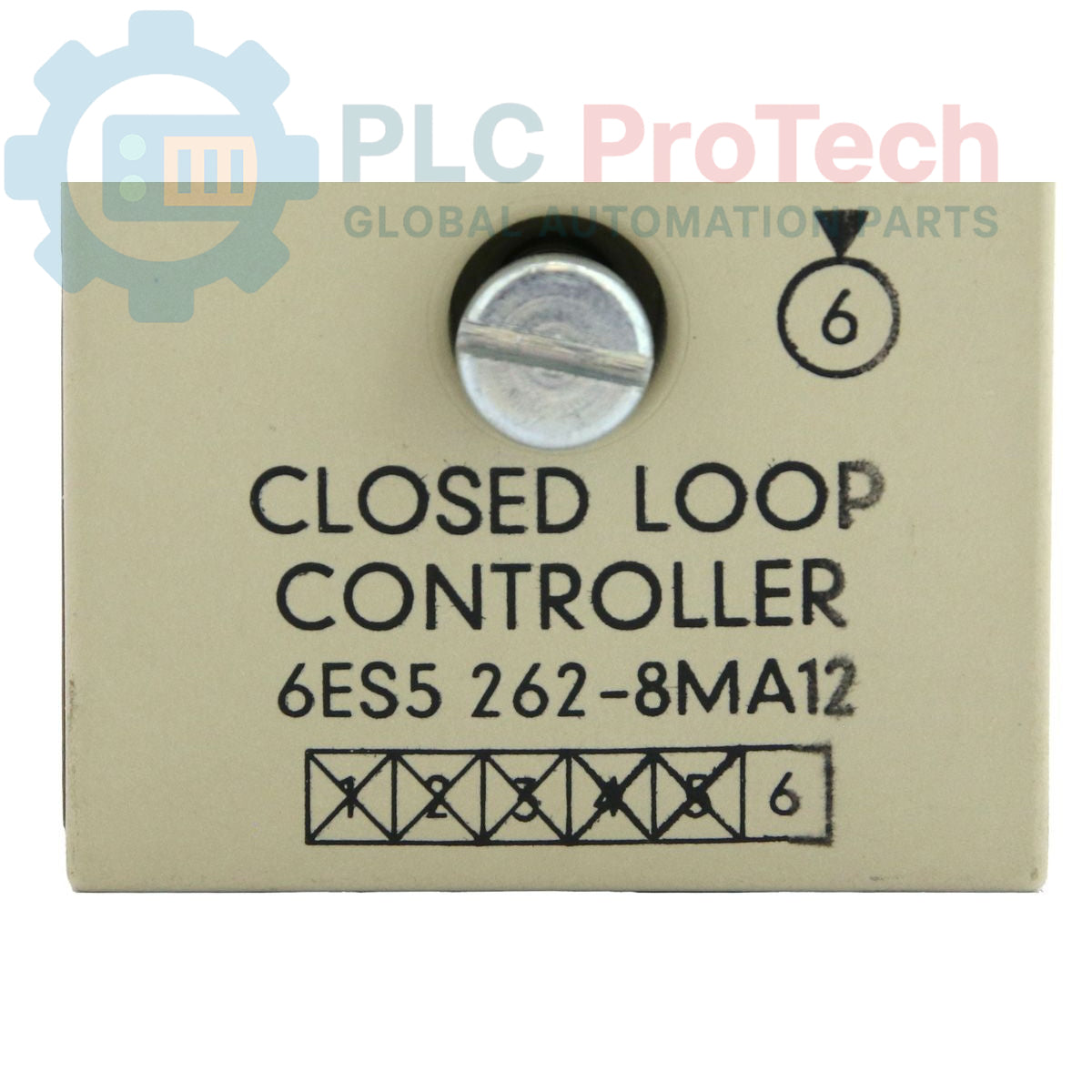

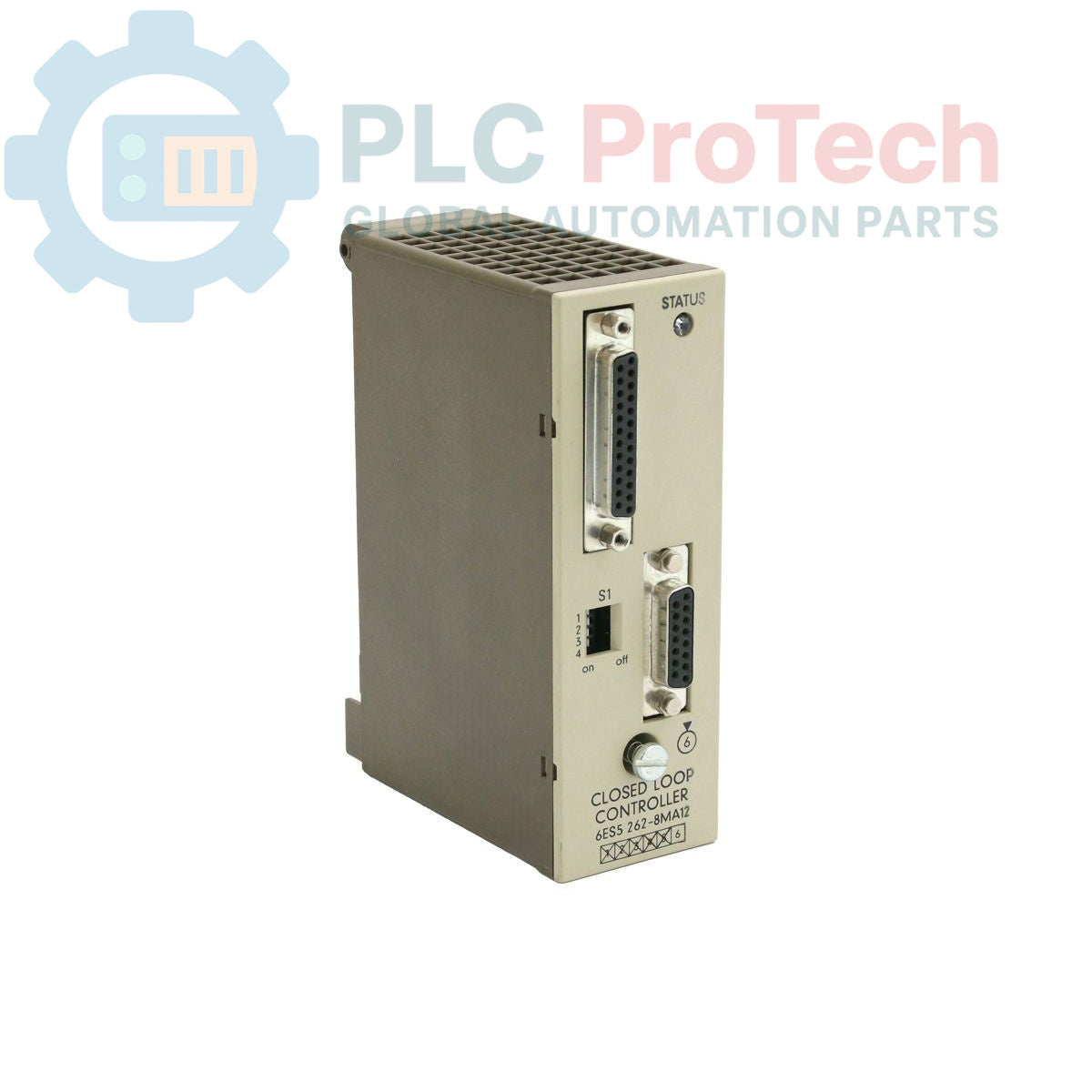

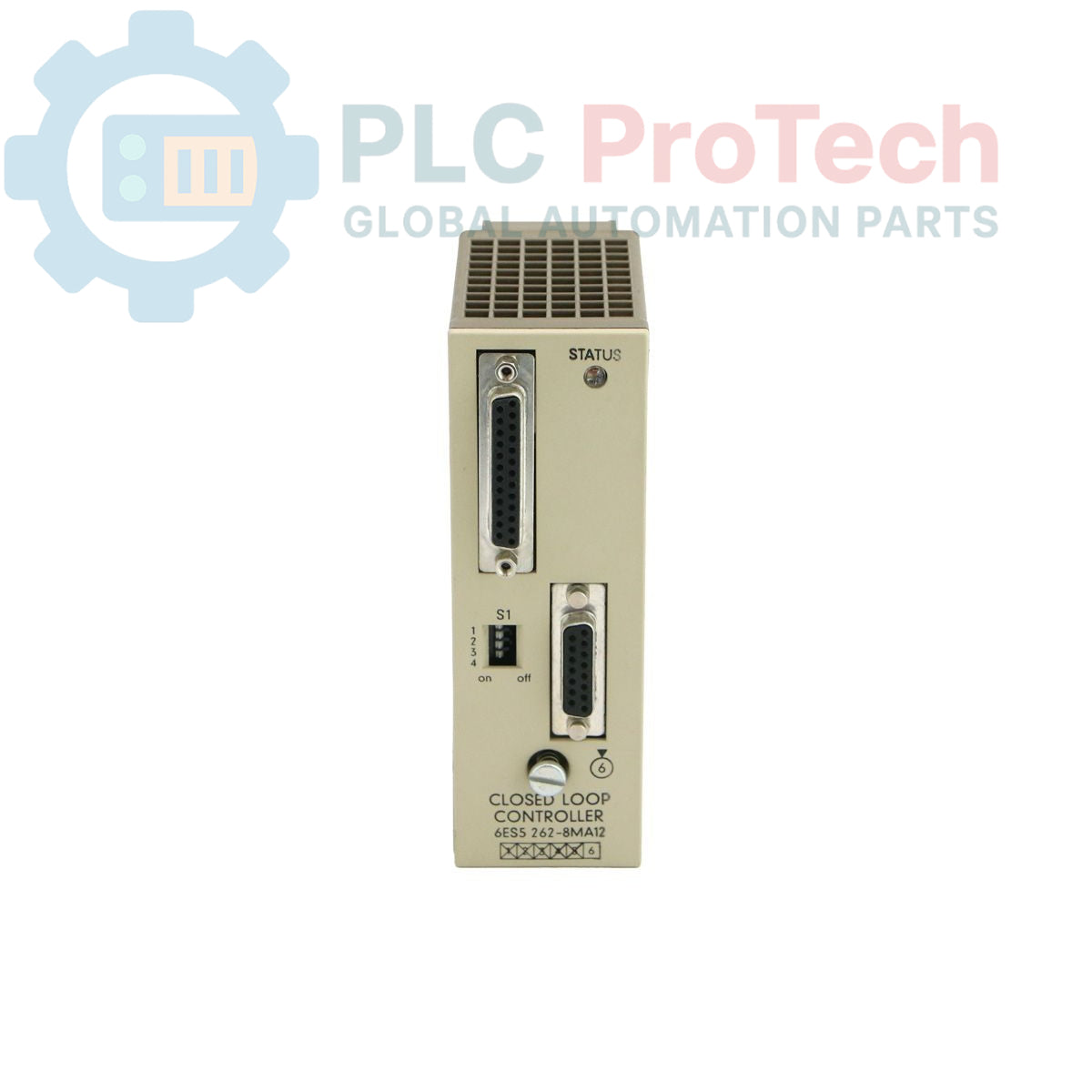

The Siemens Simatic S5 6ES5262-8MA12 is an IP 262 closed-loop control module designed specifically for integration with SIMATIC S5-90U, S5-95U, and S5-100U programmable logic controller systems. Engineered to function as a dedicated K-loop controller, this module executes precise process regulation independently of the main central processing unit, ensuring stable and reliable control loops within legacy industrial automation environments. Classified under an obsolete lifecycle phase, the 6ES5262-8MA12 remains an indispensable replacement component for maintaining and supporting existing SIMATIC S5 automation architectures.

Features

• Dedicated IP 262 closed-loop K-loop controller module
• Designed specifically for SIMATIC S5-90U, S5-95U, and S5-100U PLC systems
• Hardware-based loop control execution independent of main CPU scan cycle
• Obsolete lifecycle status supporting critical legacy system maintenance and direct part replacements

Applications

• Industrial process regulation and temperature control loops
• Legacy SIMATIC S5 automation system maintenance and retrofits
• Chemical and fluid processing plants utilizing S5-100U hardware architectures
• Precision closed-loop motion and variable control applications

Technical Specifications

Installation Guidelines

• Disconnected all rack power supplies completely before inserting or removing the control module from the S5 base unit.
• Handle the module with proper electrostatic discharge (ESD) precautions to protect internal sensitive circuitry.
• Ensure secure mechanical seating within the designated S5 controller slot before fastening retaining mechanisms.
• Route analog sensor and control loop wiring using shielded twisted-pair cables, keeping lines physically separated from high-voltage power lines.
