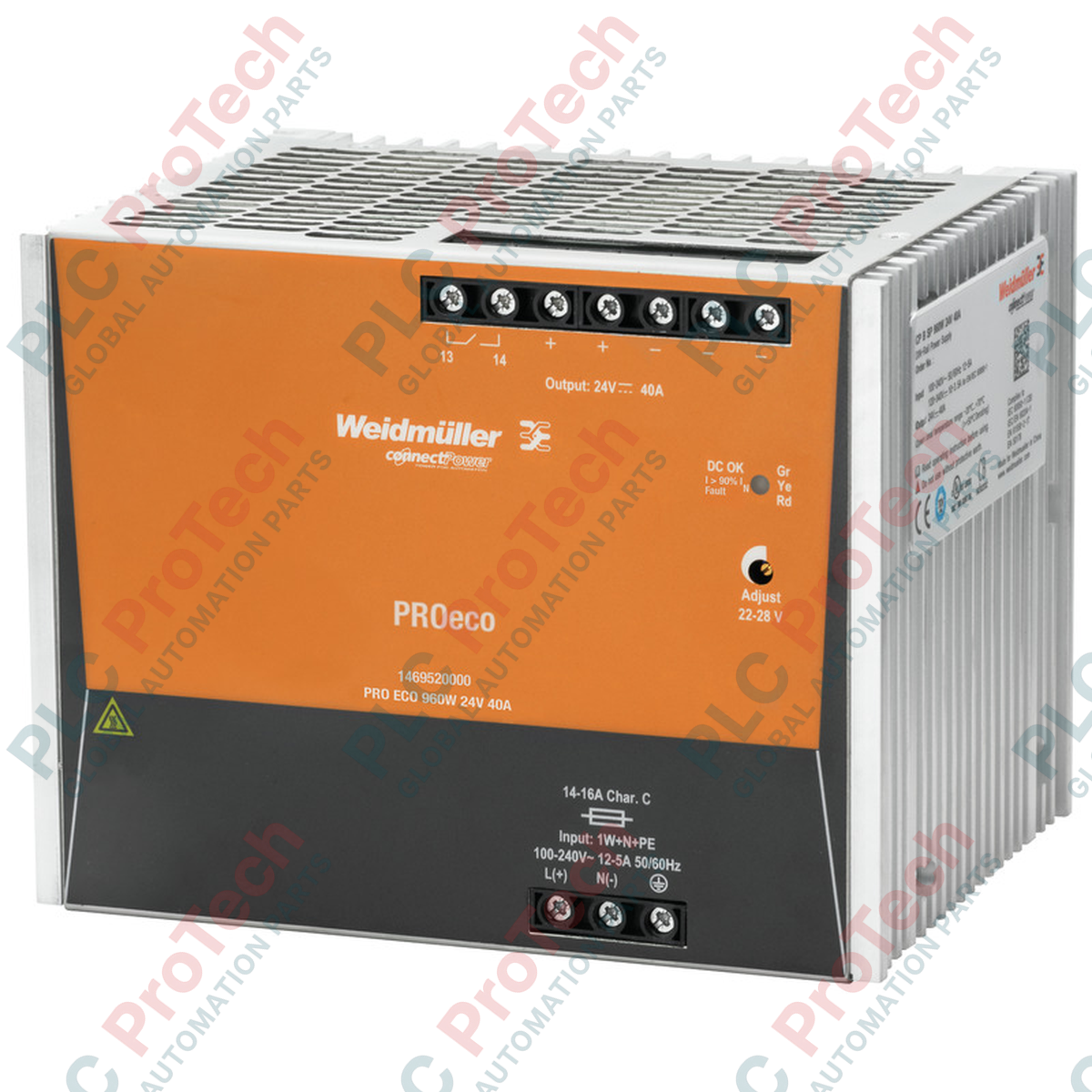

Engineered for high-capacity DC power distribution in demanding industrial environments, the Weidmuller 1469520000 (Model: PRO ECO 960W 24V 40A) switch-mode power supply unit delivers a regulated 24 V DC output at up to 40 A. This robust DIN-rail mountable module combines a compact form factor with 93% operational efficiency, minimizing thermal load inside control cabinets and ensuring stable power delivery to PLCs, HMIs, and field actuators.
Key Features
-
High Operational Efficiency: Achieves up to 93% efficiency, significantly reducing energy dissipation and cabinet heat buildup.
-
Wide Input Range: Supports universal AC input from 85 to 264 V AC and DC input from 80 to 370 V DC for global compatibility.
-
Tri-Color LED Diagnostics: Real-time status monitoring via Green (Uoutput > 21.6 V DC), Yellow (Ioutput > 90% rated), and Red (overload, short-circuit, or overtemperature) indicators.
-
Parallel Capability: Supports direct parallel connection of up to 3 units to scale current capacity or establish redundant power architectures.
-
Robust Protection Suite: Integrated varistor surge protection, short-circuit protection, overload protection, and thermal shutdown.
Industrial Applications
-
Factory Automation: Centralized 24 V DC power distribution for PLC racks, I/O drops, and industrial PCs.
-
Process Control Systems: Reliable power source for transmitters, solenoid valves, and safety barriers in continuous process plants.
-
Machine Building: Heavy-duty power supply for packaging, material handling, and CNC machinery control panels.
-
Water and Wastewater: Robust power infrastructure for outdoor telemetry and pump control stations.
Ordering Information
| Order Number |
Type Designation |
GTIN / EAN |
Standard Package Qty |
| 1469520000 |
PRO ECO 960W 24V 40A |
4050118275704 |
1 pc(s). |
Technical Specifications
| Manufacturer |
Weidmuller |
| Series |
PROeco |
| Rated Output Voltage |
24 V DC ± 1 % (adjustable 22 to 28 V DC via potentiometer) |
| Continuous Output Current |
40 A @ 50 degC / 24 A @ 70 degC |
| Output Power |
960 W |
| AC Input Voltage Range |
85 to 264 V AC (derating required below 100 V AC) |
| DC Input Voltage Range |
80 to 370 V DC (derating required below 120 V DC) |
| AC Current Consumption |
4.6 A @ 230 V AC / 9.9 A @ 110 V AC |
| Frequency Range AC |
47 to 63 Hz |
| Inrush Current |
Max. 5 A |
| Efficiency |
93% |
| Power Loss (Idle / Nominal) |
8 W (Idling) / 85 W (Nominal Load) |
| Connection System |
Screw connection |
| Housing Version |
Metal, corrosion resistant |
| Operating Temperature |
-25 degC to 70 degC |
| Storage Temperature |
-40 degC to 85 degC |
| Dimensions (W x H x D) |
160 mm x 125 mm x 120 mm |
| Net Weight |
3190 g |
| Shipping Weight (Calculated) |
3.5 kg |
Diagnostic LED Status Mapping
| LED Color |
Status / Threshold |
Operational Meaning |
| Green |
Uoutput > 21.6 V DC |
Normal operation; output voltage within acceptable limits. |
| Yellow |
Ioutput > 90% IRated typ. |
High load warning; output current is approaching maximum capacity. |
| Red |
Uoutput < 20.4 V DC |
Fault condition; overload, overtemperature, short-circuit, or low voltage. |
Empirical Engineering Insights
Alternative Models & Compatibility
The PROeco series is designed as a highly space-efficient and cost-effective alternative to Weidmuller's premium PROmax and PROtop series. When replacing older 40 A power supplies, verify the 160 mm width footprint on the TS 35 rail, as high-power units require adequate lateral spacing for heat dissipation.
Application Pitfalls & Engineering Notes
A critical consideration for the PRO ECO 960W is its thermal derating profile. While it delivers a full 40 A at ambient temperatures up to 50 degC, the output capacity derates linearly to 24 A at 70 degC. Operating the unit near its limit in unventilated enclosures will trigger the internal thermal protection, causing output cycling.
Commissioning & Wiring Tips
Due to the high 40 A output current, ensure that output wiring is sized appropriately (minimum 10 AWG / 6 mm² copper wire recommended) to prevent significant voltage drop across the run. When configuring parallel operation for up to 3 units, use a precise digital multimeter to adjust the output voltage of each unit via the front potentiometer to within ±50 mV of each other before tying the outputs together.
Installation Guidelines
CRITICAL WARNING
De-energize all AC and DC power sources before attempting installation, wiring, or maintenance. Ensure the input circuit breaker is locked out. Do not open the metal housing; high residual voltage may remain stored in internal capacitors even after power is disconnected.
1
Snap the unit securely onto a standard TS 35 DIN rail. Ensure the mounting orientation is vertical, with the input terminals at the bottom and output terminals at the top to facilitate natural convection cooling.
2
Maintain a minimum clearance of 50 mm above and below the unit, and 20 mm of lateral clearance from adjacent active heat-producing components.
3
Connect the protective earth (PE) ground terminal first. Wire the AC input (L, N) or DC input terminals using the integrated screw connections, tightening to the manufacturer-specified torque.
4
Connect the 24 V DC load lines to the output terminals, ensuring correct polarity. Energize the input source and verify that the green LED illuminates.
