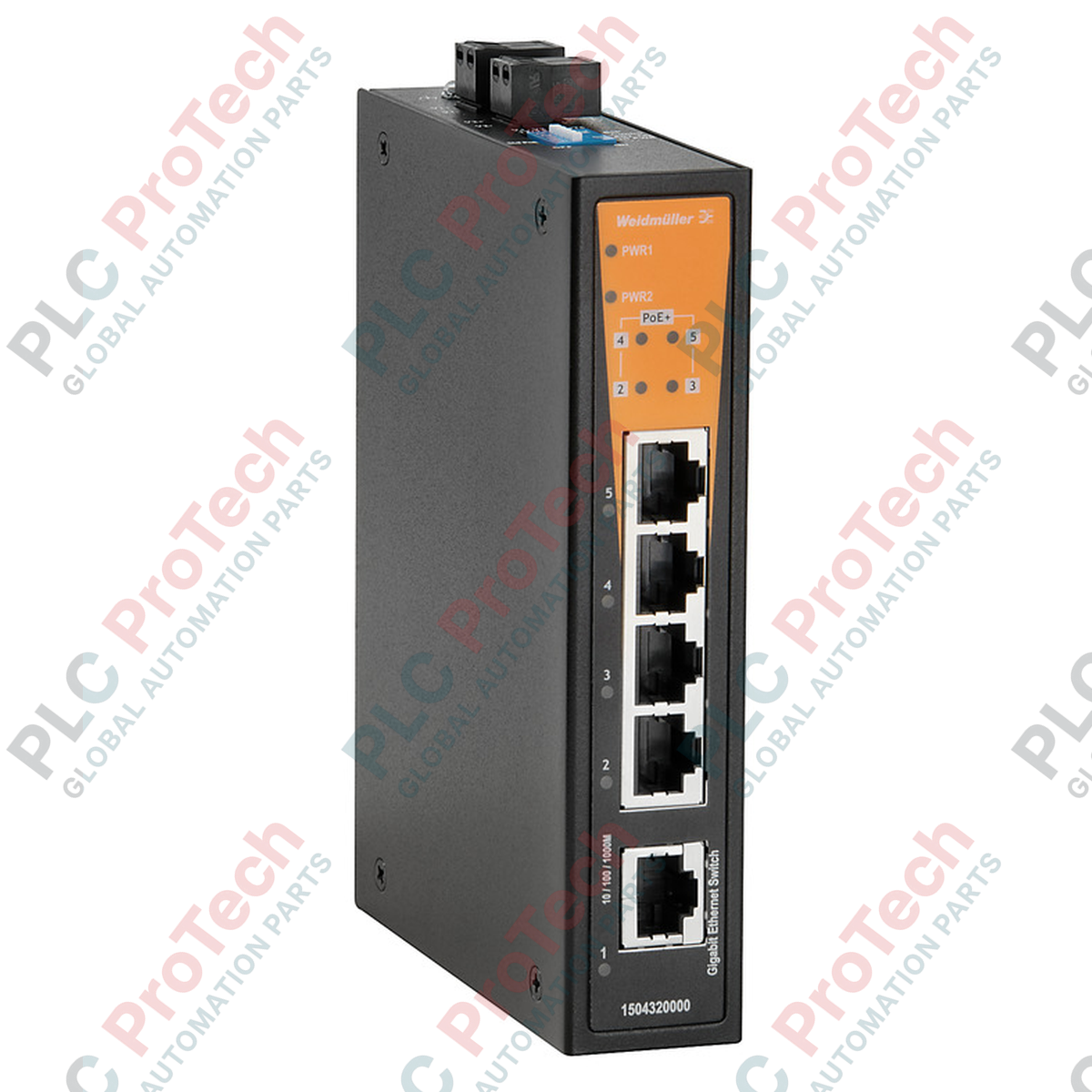

Designed to integrate high-speed copper connections into demanding automation networks, the Weidmuller 1504320000 (Type IE-SW-BL05-1GT-4GTPOE) serves as a robust 5-port Gigabit Ethernet unmanaged switch equipped with Power over Ethernet (PoE) capabilities. This industrial-grade hardware provides reliable data switching and power delivery over a single cable, simplifying field deployments for IP cameras, wireless access points, and remote I/O stations.
| Part Number | Type Designation | Description |
|---|---|---|
| 1504320000 | IE-SW-BL05-1GT-4GTPOE | 5-port Gigabit Unmanaged PoE Switch (4x PoE+, 1x Uplink) |
| Manufacturer | Weidmuller |
| Model Number | IE-SW-BL05-1GT-4GTPOE |
| Part Number | 1504320000 |
| Switch Type | Unmanaged PoE |
| Port Configuration | 4x 10/100/1000BaseT(X) PoE+, 1x 10/100/1000BaseT(X) |
| Data Switching | Store and Forward |
| MAC Table Size | 8 K |
| Packet Buffer Size | 1,024 Kbit |
| Jumbo Frame Support | Up to 10 KB |
| Supply Voltage | 12/24/48 V DC (2 redundant inputs) |
| Inrush Current | 17.4 A at 24 V DC (0.1 to 1 ms) |
| Connection Type | 2 removable 2-pole terminal blocks |
| Housing Material | Aluminium |
| Protection Degree | IP30 |
| Mounting Type | DIN rail |
| Operating Temperature | 0 degC to 60 degC |
| Storage Temperature | -40 degC to 85 degC |
| Operating Humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 29 mm x 135 mm x 105 mm |
| Net Weight | 360 g |
| Shipping Weight (Calculated) | 1.0 kg |
| Interface / Terminal | Connection Type | Functional Assignment |
|---|---|---|
| Ports 1 to 4 | RJ45 (Gigabit) | 10/100/1000BaseT(X) with IEEE 802.3af/at PoE+ power sourcing |
| Port 5 | RJ45 (Gigabit) | Standard 10/100/1000BaseT(X) uplink connection (non-PoE) |
| PWR1 / PWR2 | 2-pole removable terminal block | Redundant DC power supply inputs (12/24/48 V DC) |
The IE-SW-BL05-1GT-4GTPOE is a direct upgrade for older 10/100 Mbps unmanaged PoE switches, providing the necessary bandwidth for modern high-definition IP cameras and high-speed industrial field devices. Ensure that connected PDs (Powered Devices) conform strictly to IEEE 802.3af/at standards to prevent power negotiation faults.
When operating at the upper thermal limit of 60 degC, maintain at least 20 mm of lateral clearance from adjacent heat-producing components on the DIN rail. High PoE loads generate significant internal thermal dissipation; operating at maximum PoE budget inside unventilated, sealed enclosures can lead to thermal throttling or premature component aging.
Always utilize shielded twisted pair (STP) Cat5e or Cat6 cabling in high-noise industrial environments to mitigate electromagnetic interference (EMI). Ensure the switch housing is properly grounded via the functional earth contact on the DIN rail mounting clip to protect sensitive internal circuitry from electrostatic discharge (ESD) and line surges.
De-energize all power sources before mounting, wiring, or servicing the switch. Ensure the input voltage matches the specified limits (12/24/48 V DC) to prevent permanent hardware damage or electrical hazards.
Snap the switch securely onto a standard TS 35 DIN rail, ensuring the metal ground spring on the back makes solid contact with the rail.
Connect the redundant DC power supplies to the 2-pole removable terminal blocks, verifying correct polarity before applying power.
Insert the RJ45 network cables into the appropriate ports. Ports 1 through 4 will automatically negotiate and deliver PoE power to compatible devices.
