Description

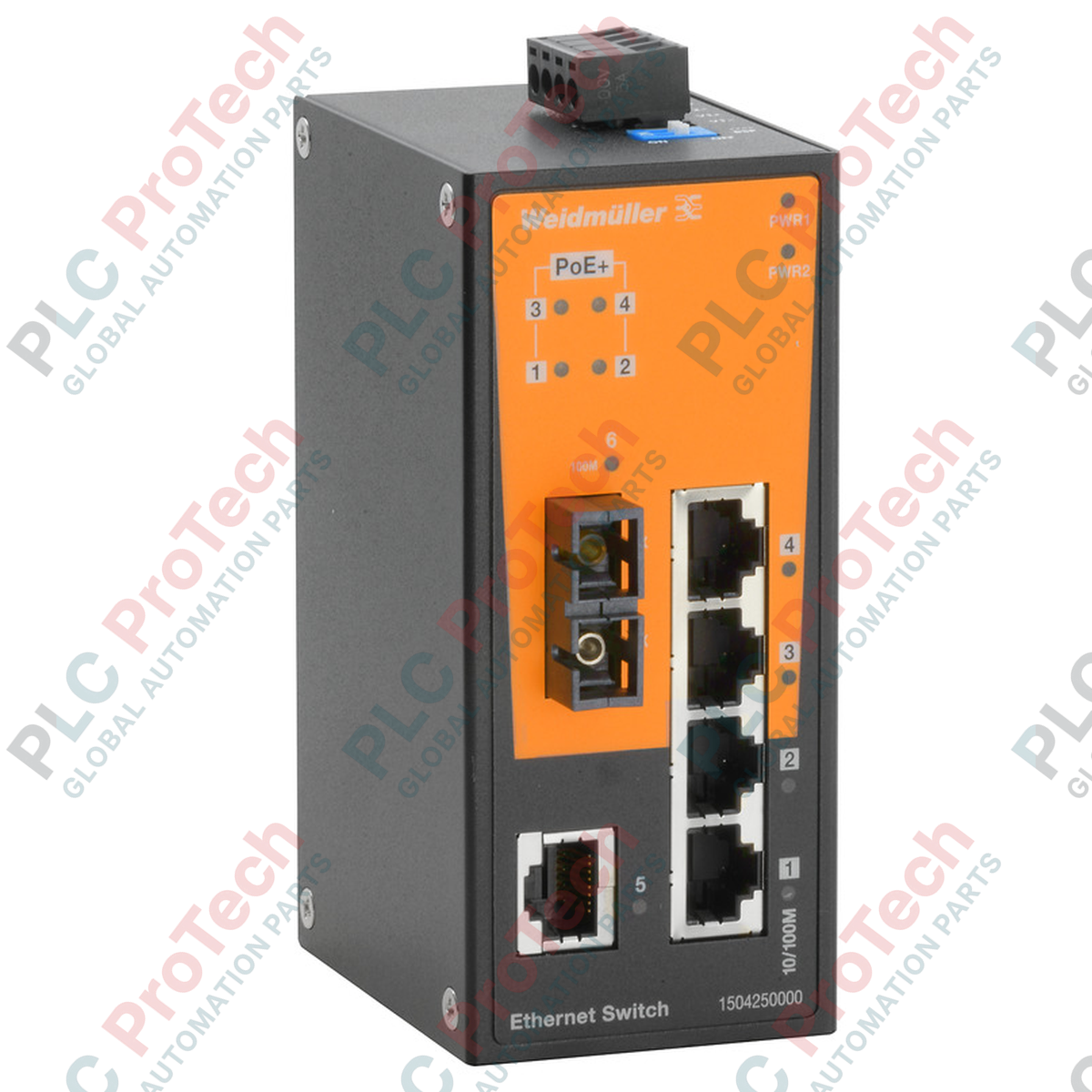

To facilitate reliable Ethernet connectivity and Power over Ethernet (PoE) delivery in demanding industrial environments, the Weidmuller IE-SW-BL06T-1TX-4POE-1SC (part number 1504260000) provides a robust, unmanaged network switching solution. This device features four Power over Ethernet Plus (PoE+) ports, one standard Fast Ethernet copper port, and one 100BaseFX multimode fiber port with an SC-Duplex connector. Engineered for reliable data transmission over long distances, the integrated fiber optic interface supports connections up to 5 km, making it ideal for distributed industrial networks.

The switch is housed in a rugged IP30-rated aluminum enclosure designed to withstand extreme temperatures and mechanical stress. With dual redundant power inputs and an extended operating temperature range, this industrial PoE switch ensures high network availability and continuous performance in critical infrastructure applications.

Features

• Equipped with 4 PoE+ ports compliant with IEEE 802.3at/af standards for powering remote field devices.
• Includes 1 Fast Ethernet port (10/100BaseT(X)) and 1 Multimode fiber port (100BaseFX) with an SC-Duplex connector.
• Supports Store and Forward data switching architecture with a 1 K MAC address table size.
• Redundant dual power inputs (24/48 V DC) to ensure continuous operation in the event of a primary power failure.
• Housed in a rugged IP30-rated aluminum enclosure suitable for harsh industrial environments.
• Wide operating temperature range from -40 degC to 75 degC.

Applications

• Industrial automation and process control systems.
• IP-based video surveillance networks in remote or outdoor locations.
• Power generation plants and water/wastewater treatment facilities.
• Traffic monitoring and intelligent transportation systems (ITS).

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mounting: Securely snap the device onto a standard 35 mm DIN rail. Ensure the DIN rail is properly grounded to the cabinet's earth ground.
• Power Connection: Connect the redundant power supplies to the 4-pin terminal block. Ensure correct polarity to prevent damage to the internal circuitry.
• Grounding: Connect the functional ground terminal on the device to the local ground potential using a low-impedance conductor.
• Ventilation: Maintain adequate clearance around the cooling vents of the IP30 aluminum housing to prevent thermal buildup in enclosed cabinets.
