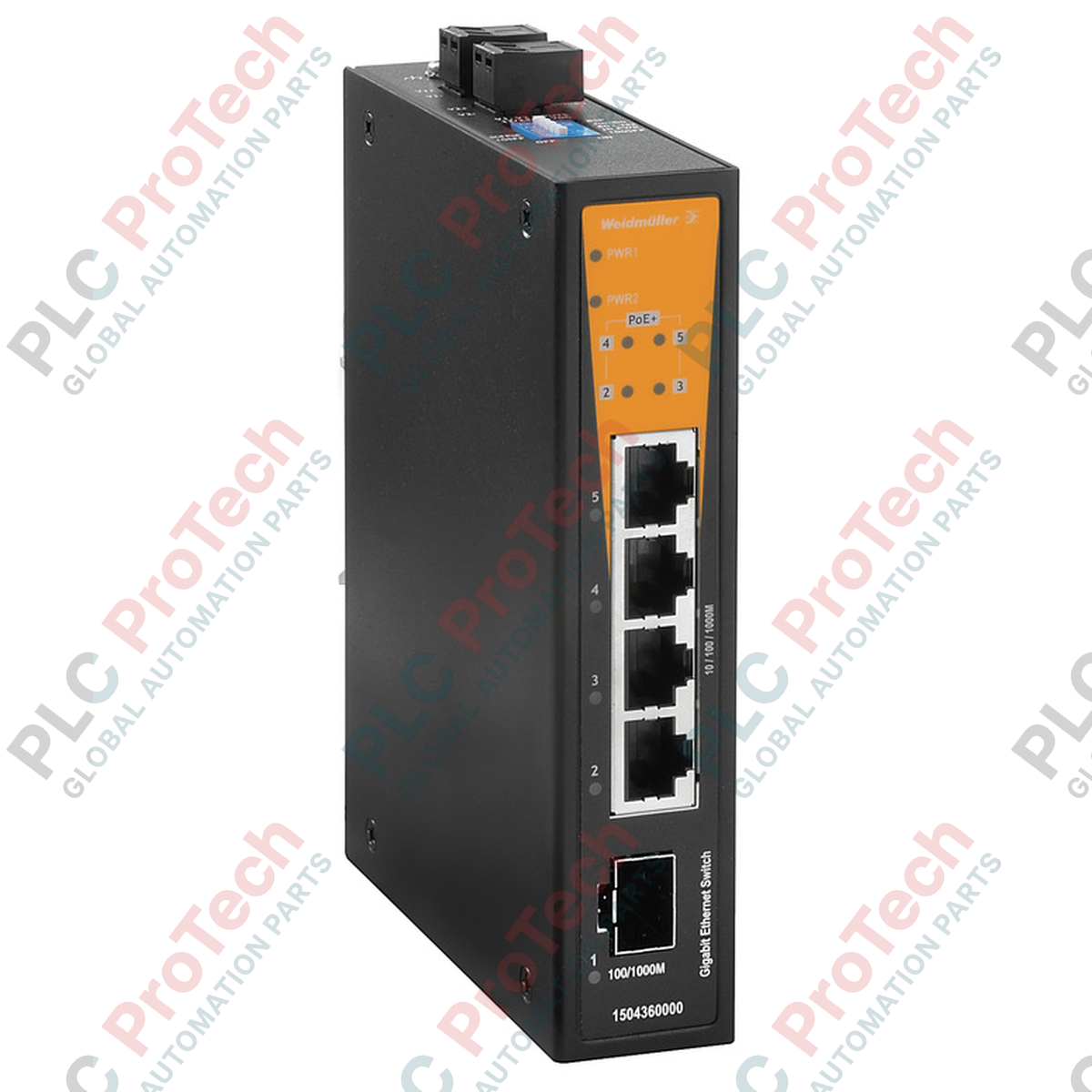

Providing high-speed data transmission and reliable power delivery in demanding environments, the Weidmuller 1504360000 (Model: IE-SW-BL05-1GS-4GTPOE) is an unmanaged Gigabit Ethernet PoE+ switch engineered for industrial automation networks. This robust device features four Gigabit RJ45 ports supporting Power over Ethernet Plus (PoE+) and one Gigabit SFP slot for long-distance fiber optic uplink connectivity, ensuring seamless integration into modern control architectures.
| Specification Parameter | Value / Rating |
|---|---|
| Manufacturer | Weidmuller |
| Model / Type | IE-SW-BL05-1GS-4GTPOE |
| Part Number | 1504360000 |
| Switch Type | Unmanaged PoE+ |
| Port Configuration | 4x RJ45 (10/100/1000BaseT(X)), 1x SFP (1000BaseSFP) |
| Supply Voltage | 12 / 24 / 48 V DC (Redundant dual inputs) |
| Inrush Current | 17.4 A at 24 V DC (0.1 to 1 ms) |
| MAC Table Size | 8 K |
| Packet Buffer Size | 1,024 Kbit |
| Jumbo Frame Support | Up to 10 KB |
| Housing Material | Aluminium |
| Protection Degree | IP30 |
| Mounting Options | DIN rail, Panel (with optional mounting kit) |
| Operating Temperature | 0 degC to 60 degC |
| Storage Temperature | -40 degC to 85 degC |
| Ambient Humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 29 mm x 135 mm x 105 mm |
| Net Weight | 360 g |
| Shipping Weight | 1 Kg |
| Interface / Terminal | Description & Assignment |
|---|---|
| Power Supply Input | 2 removable 2-pole terminal blocks for redundant power connections (V1+, V1-, V2+, V2-) |
| Ports 1 to 4 (RJ45) | 10/100/1000BaseT(X) auto-negotiation, Auto-MDI/MDI-X, PoE+ (IEEE 802.3at/af) power delivery |
| Port 5 (SFP Slot) | 1000BaseSFP slot for standard Gigabit SFP fiber transceivers |
| Grounding | Dedicated grounding screw on the metal chassis for EMI shielding |
The IE-SW-BL05-1GS-4GTPOE serves as an upgrade path from standard Fast Ethernet switches when transitioning to high-definition IP cameras or gigabit-speed field networks. It is physically compatible with standard Weidmuller DIN-rail mounting brackets. SFP compatibility is open, but using industrial-grade Weidmuller SFP transceivers is recommended to ensure stable optical link budgets under extreme temperatures.
While the switch supports a wide input range of 12/24/48 V DC, the total PoE power budget is highly dependent on the input voltage. To achieve the full IEEE 802.3at PoE+ output (30W per port), a stable 48 V DC power supply is required. Operating at 12 V DC limits the available PoE output power. Additionally, ensure your power supply can handle the high transient inrush current of 17.4 A during startup to prevent system-wide voltage dips.
Always use shielded twisted-pair (STP) Cat6 or Cat6A cabling when routing PoE lines near high-voltage motor drives or heavy switchgear. Ensure the functional earth terminal on the switch chassis is connected directly to the panel's low-impedance ground bus to protect the internal Ethernet transceivers from electrostatic discharge and electromagnetic interference.
CRITICAL WARNING
De-energize all power sources before mounting, wiring, or servicing this device. Do not hot-plug terminal blocks under load. Failure to comply can result in electrical arcing, equipment damage, or personal injury.
