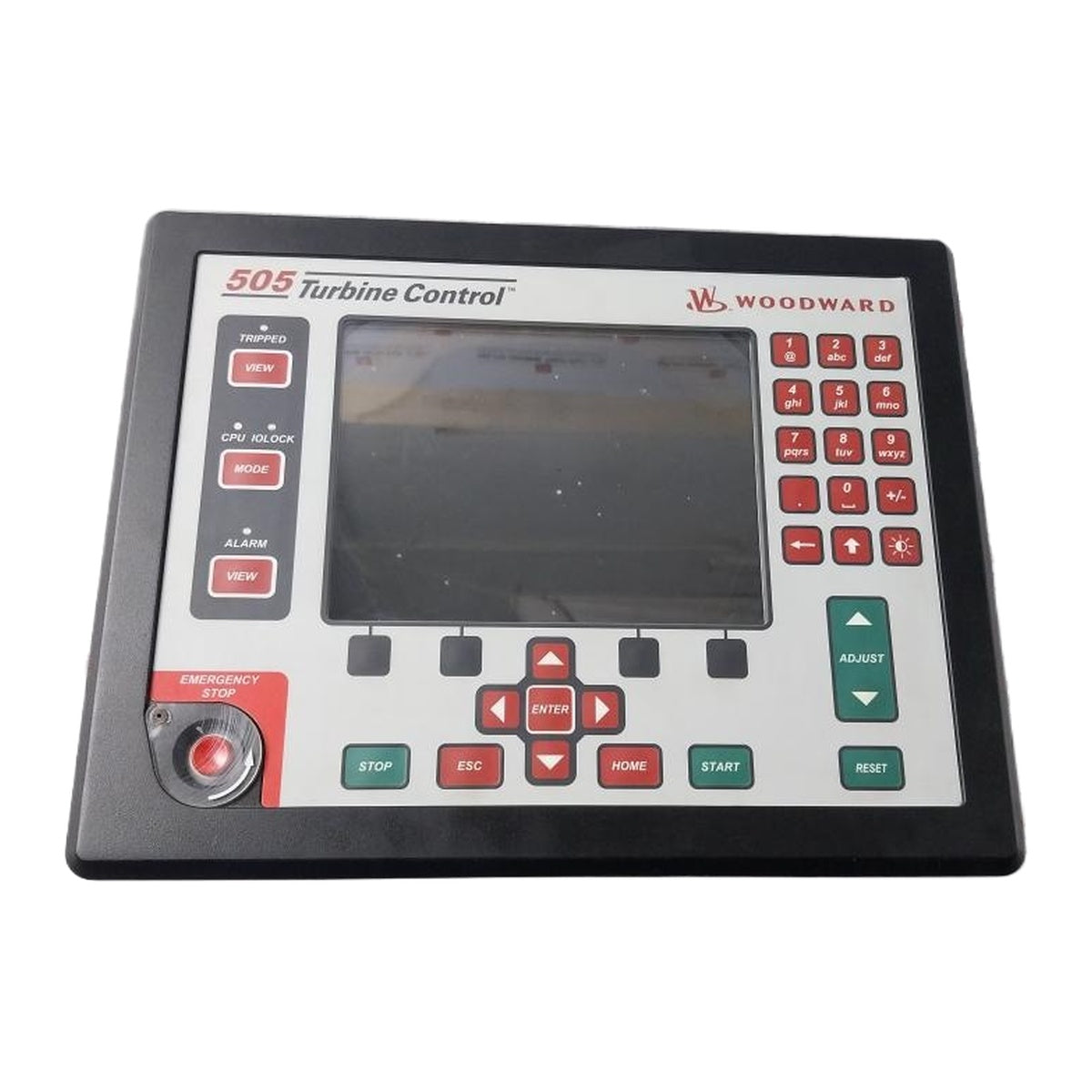

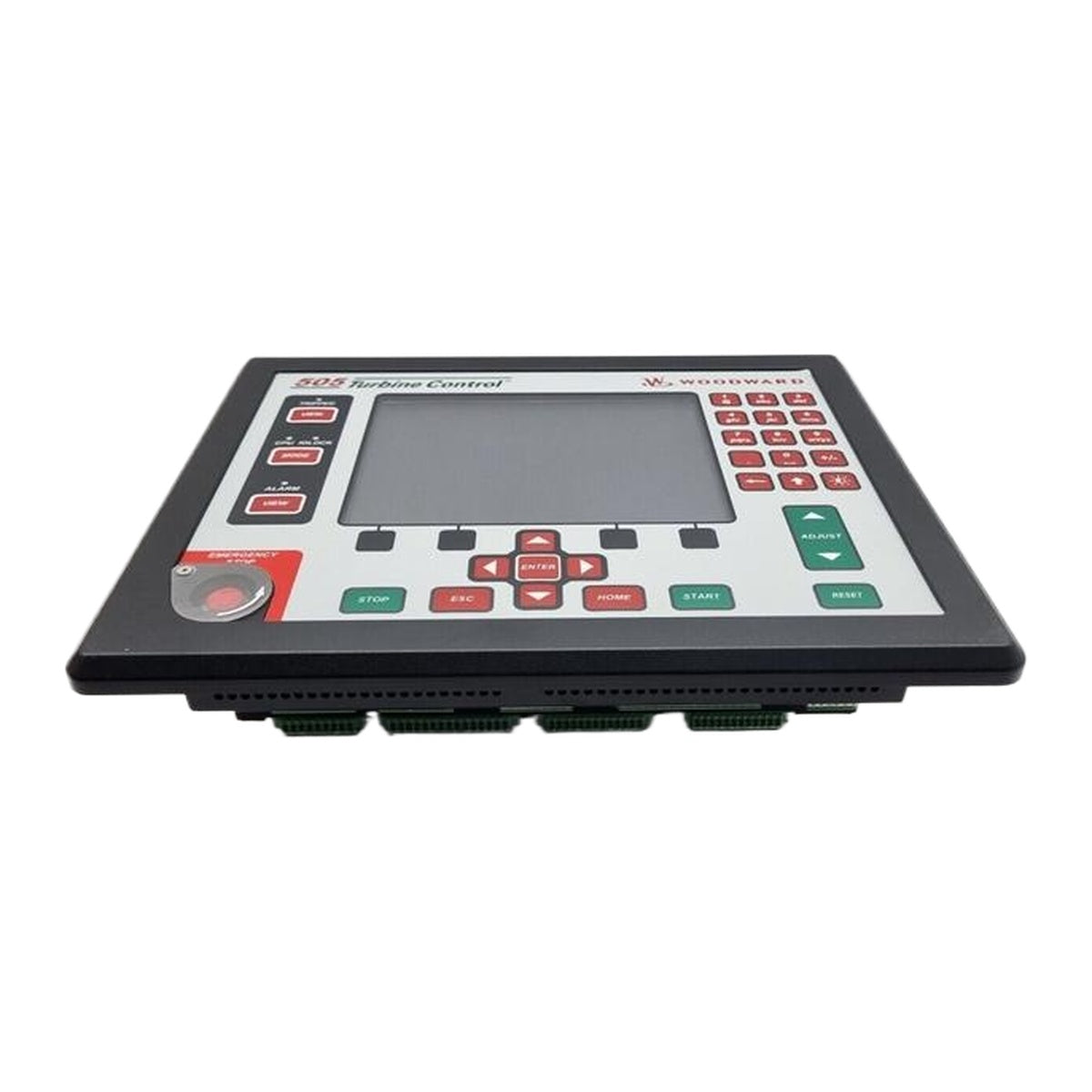

The Woodward 8200-1300 is a digital governor from the 505 turbine control series designed for steam turbine applications. The unit provides digital control for single or dual split range actuator steam turbines, functioning either as a standalone unit or integrated within a plant's distributed control system (DCS).
The 8200-1300 features five internal PID controllers, including a speed/load PID controller, a cascade PID controller, and AUX1 and AUX2 PID controllers. An integrated operator control panel includes an 8.4-inch graphical control panel display and a 34-key keypad equipped with an emergency stop button, control navigation buttons, and four diagnostic status LEDs (CPU health, IO Lock, Summary Alarm, and Summary Trip). Internally, the unit utilizes a watchdog timer and a CPU fault circuit to continuously monitor microprocessor and memory health.
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Model | 8200-1300 |
| Product Series | 505 Turbine Control Series |
| Input Voltage | LVDC (18-32 Vdc) |
| Screen Size | 8.4 inches |
| Keypad | 34 Keys |
| Operating Temperature | -30 degC to +70 degC (with display) |
| Storage Temperature | -30 degC to +70 degC (recommended 0 degC to 40 degC) |
| Ingress Protection | IP20 |
| Pollution Degree | Pollution Degree 2 |
| Overvoltage Category | Overvoltage Category 3 |
| Hazardous Location Rating | Class I, Div. 2, Groups A/B/C/D |
| Non-Hazardous Location Rating | Suitable for non-hazardous locations |
| Field Wiring Requirement | Stranded copper rated at least 75 degC |
