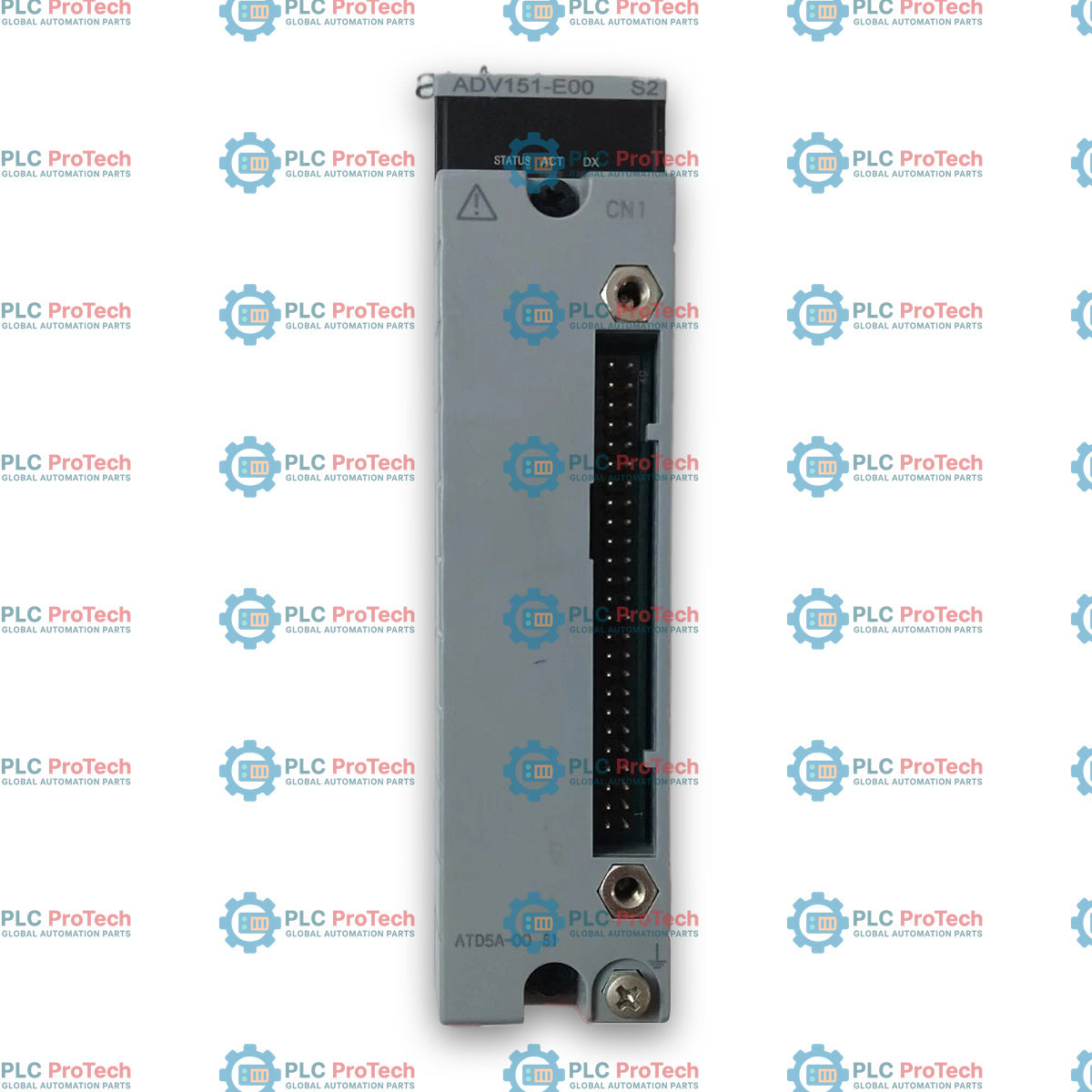

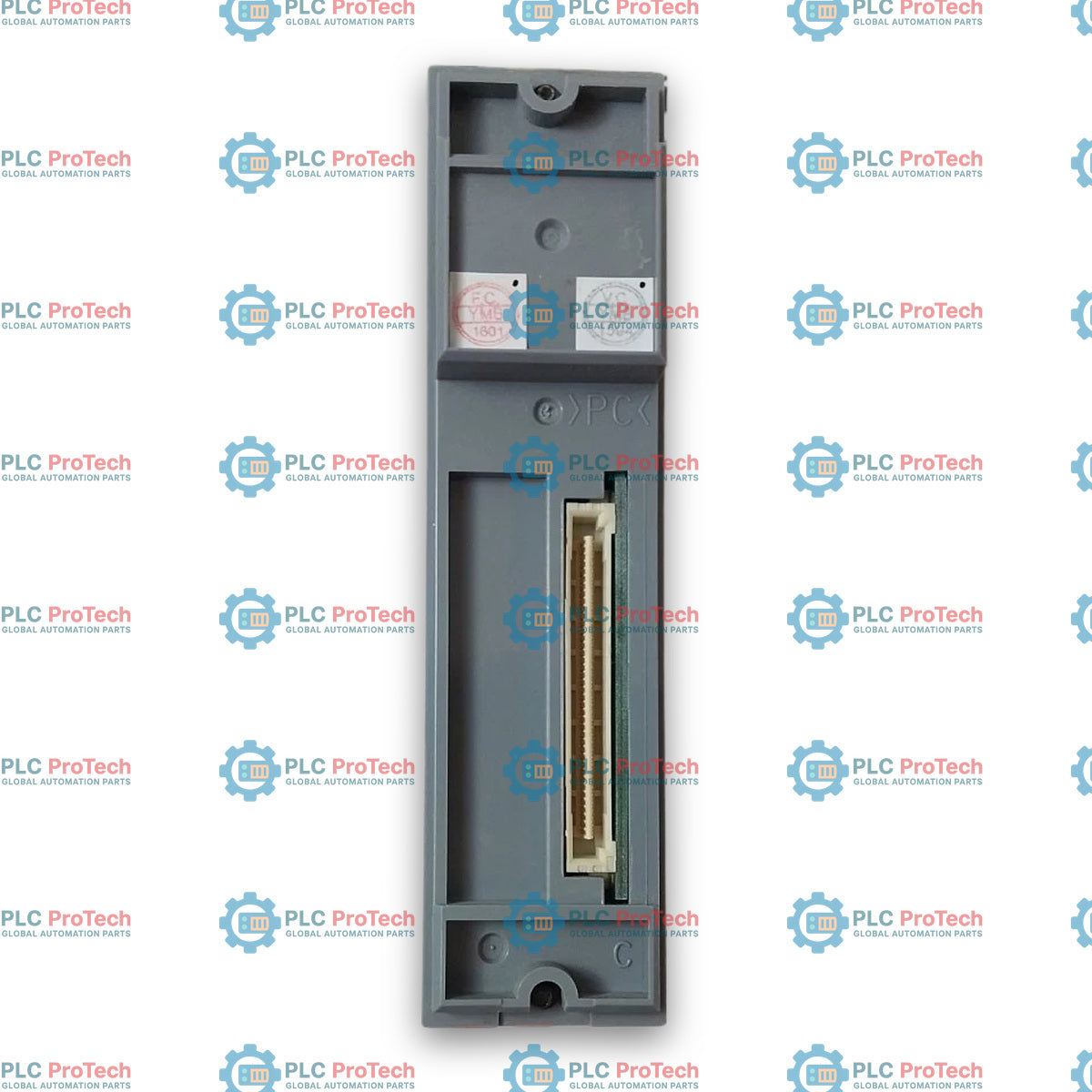

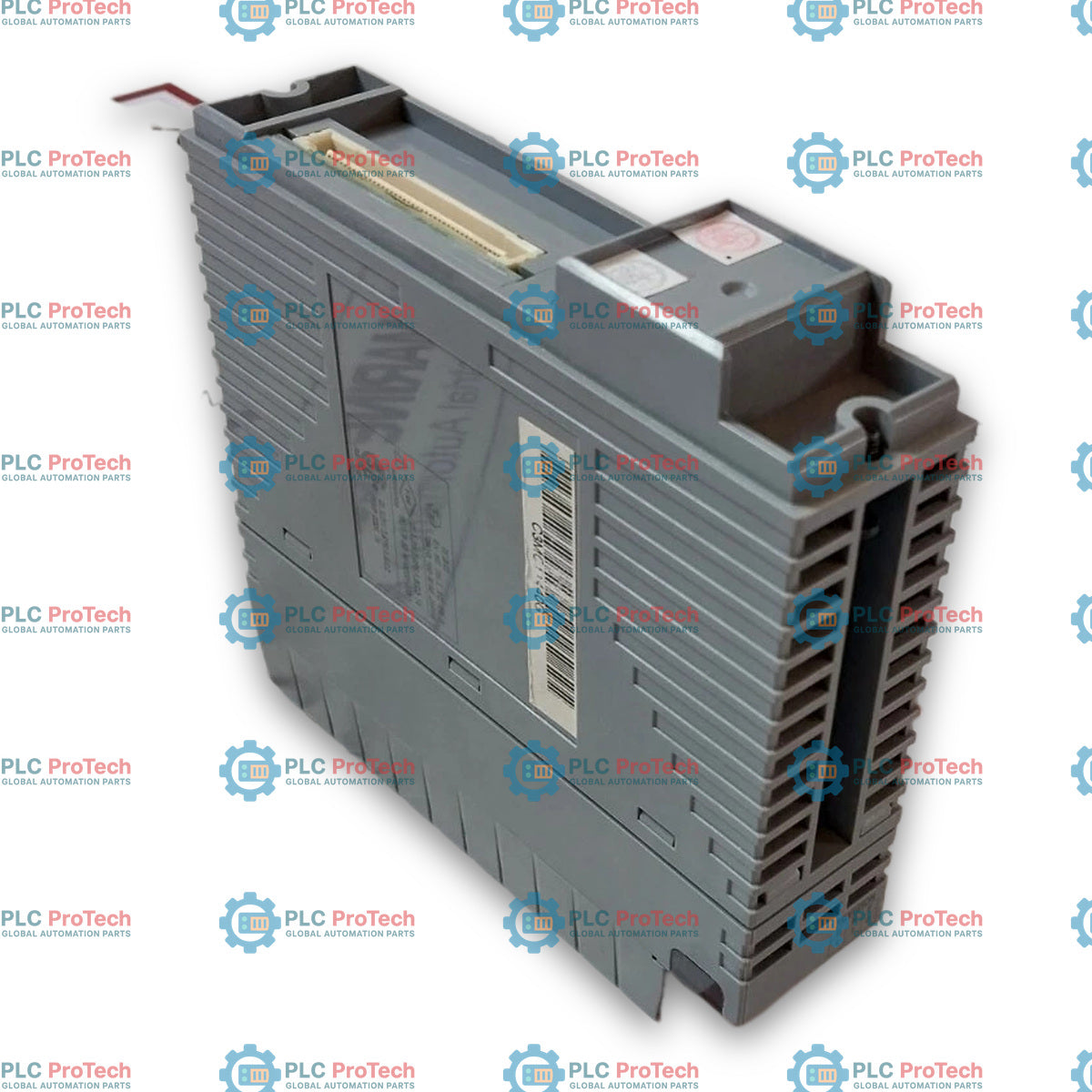

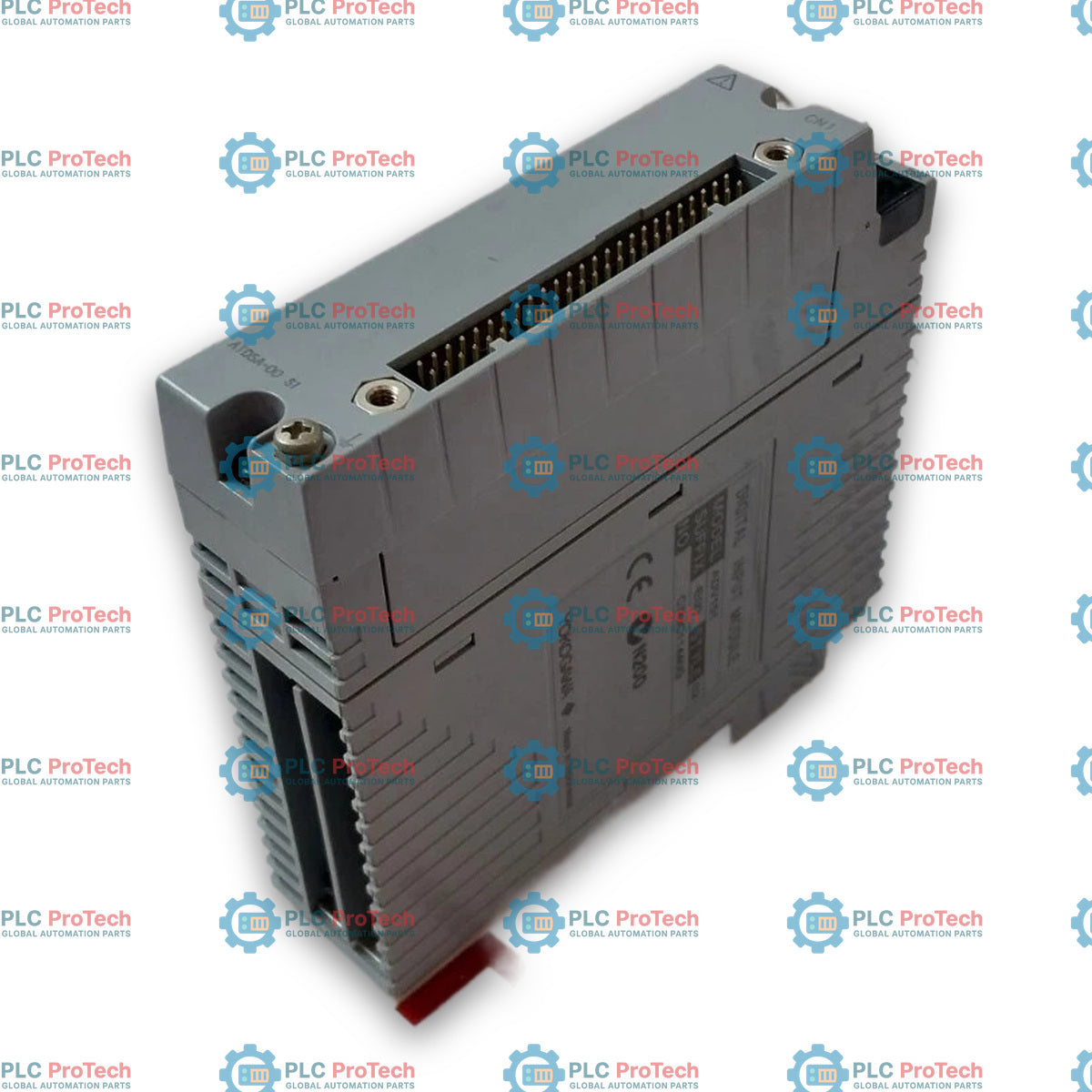

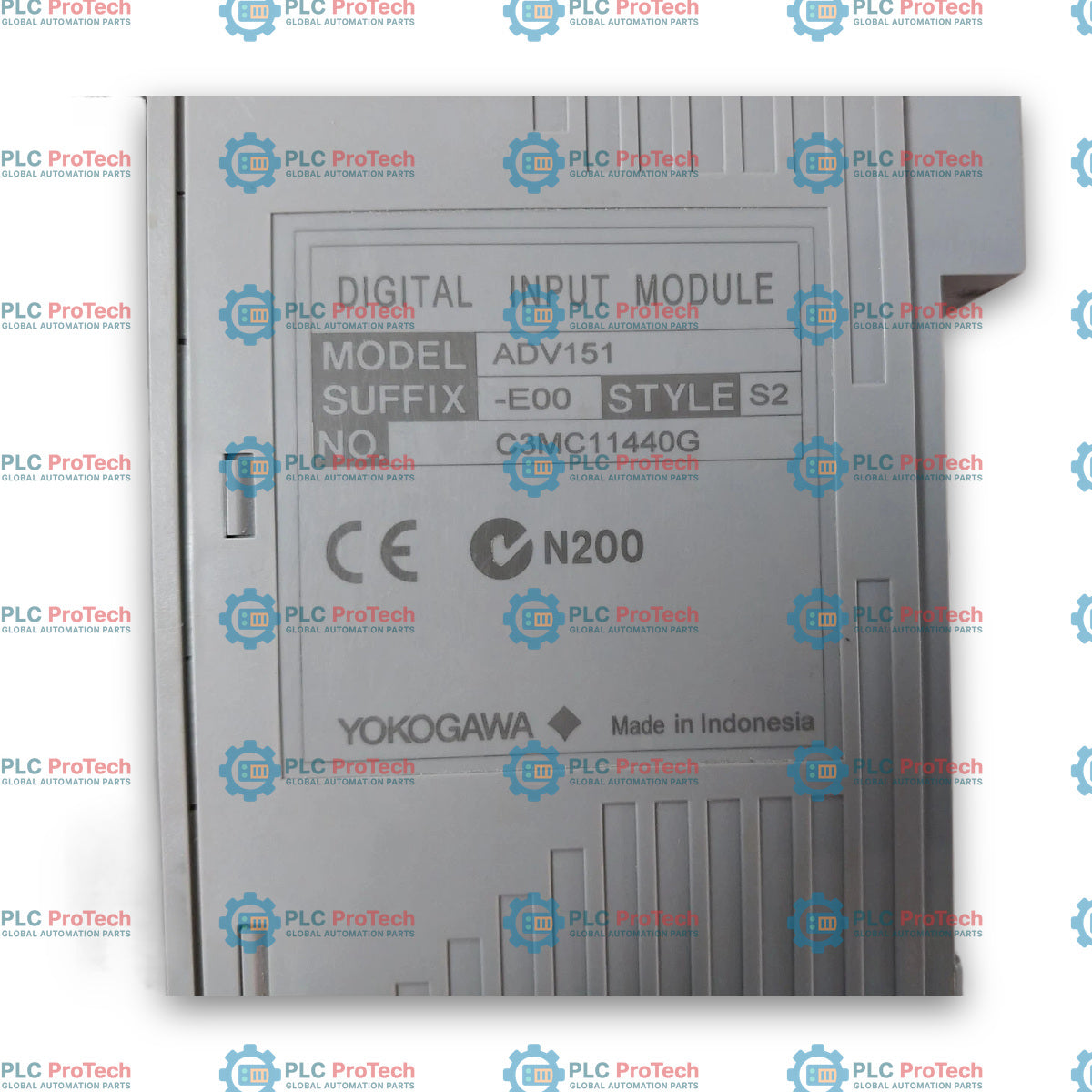

The ADV151-E00 S2 is a 32-channel, 24 V DC isolated digital input module designed for process automation field control systems. It functions as an interface between field ON/OFF status signals and the CENTUM VP system, supporting status input detection, pushbutton edge counting, and Sequence of Events (SOE) data capture. This module features dual-redundant configuration capabilities and provides electrical isolation between input signals and system logic, as well as between channel common groups.
| Model / Suffix Code | Option Code | Description |
|---|---|---|
| ADV151 | — | Digital Input Module (32-channel, 24 V DC, Isolated) |
| -E | — | With SOE capture |
| 0 | — | Without status display; with no explosion protection |
| 0 | — | Basic type |
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Number of Input Channels | 32 |
| Rated Input Voltage | 24 V DC (sink/source) |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | 5.0 V DC or less |
| Input Current (at rated voltage) | 4.1 mA +/- 20 % / channel |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Withstanding Voltage | Between input signal and system: 2 kV AC for 1 minute; Between commons: 500 V AC for 1 minute (common every 16-channel) |
| Input Response Time | 8 ms or less (for status input) |
| Minimum ON Detection Time | 20 ms (for pushbutton input) |
| Maximum ON/OFF Cycle | 25 Hz (for pushbutton input) |
| Maximum Current Consumption | 500 mA (5 V DC) |
| External Connection Types | Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable |
| Weight | Approx. 0.30 kg |
| Dimensions (W x H x D) | 32.8 mm x 130 mm x 107.5 mm |
Ensure proper terminal connection layout using pressure clamp terminal blocks, dedicated AKB331 cables, or MIL connector cables depending on the system configuration.
Global Express Shipping
Returns & Warranty
Manufacturer: Yokogawa
Product No.: ADV151-E00 S2
Country of origin:Japan
Product Type: Digital Input Module
Payment: T/T, Western Union
Weight: 300g
Dimensions: 32.8 mm x 130 mm x 107.5 mm (W x H x D)
Shipping port: Xiamen
Warranty: 12 months
