Yokogawa AFV30D-A41252 CENTUM VP Duplexed Field Control Unit

SKU AFV30D-A41252

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Yokogawa
Product No.: AFV30D-A41252
Origin Japan
Product Type: Field Control Units
Payment: T/T, Western Union
Weight: 8.0 kg
Dimensions: 207 mm x 265.9 mm x 482.6 mm (D x H x W)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

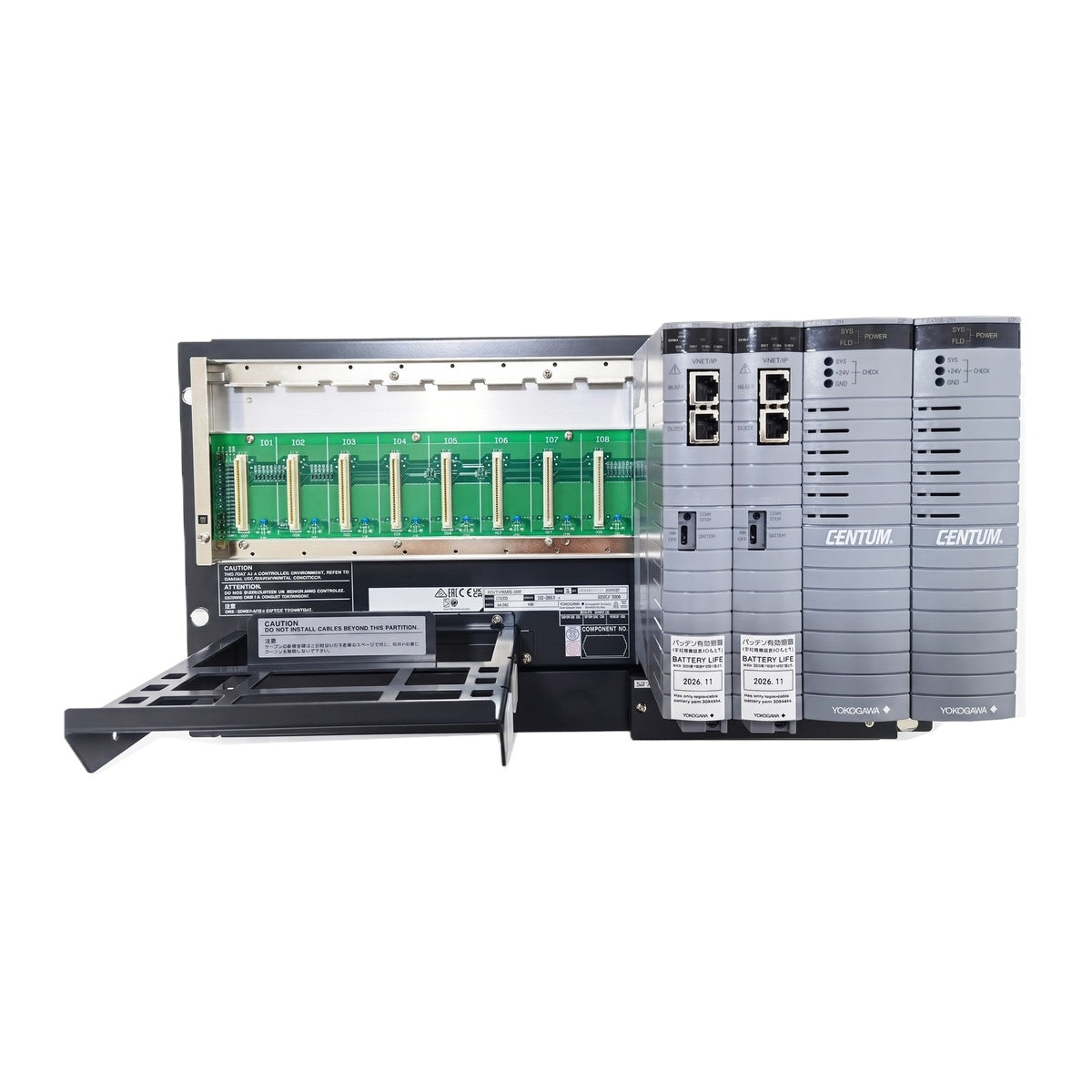

The Yokogawa AFV30D-A41252 is a 19-inch rack-mountable duplexed Field Control Unit (FCU) designed for CENTUM VP systems using Vnet/IP and FIO. As the core of the control function in a Field Control Station (FCS), the AFV30D-A41252 features dual-redundant power supply modules (PW482) and dual-redundant processor modules (CP471) to ensure high system availability. The unit provides dual-redundant Vnet/IP network communications and supports memory protection during power outages. It accommodates up to 8 I/O modules and manages process control operations within integrated automation environments.

Features

Dual-redundant processor module configuration (CP471)
Dual-redundant power supply module configuration (PW482)
Dual-redundant Vnet/IP communication interface
Battery backup for main memory during power failures
Support for up to 13 connectable node units (ESB Bus Node Units ANB10 and Optical ESB Bus Node Units ANB11 combined)
Integrated READY contact output for hardware status signaling
Standard 19-inch rack-mountable physical design

Applications

CENTUM VP Integrated Production Control Systems
Distributed Control Systems (DCS) for process control
Field Control Station (FCS) central processing and I/O execution

Ordering Information

Model / Suffix Code	Description
AFV30D	Duplexed Field Control Unit (for Vnet/IP and FIO, 19-inch Rack Mountable)
-A	Standard type (for CP471)
4	Dual-redundant Vnet/IP, dual-redundant power supply
1	Always 1
2	220-240 V AC power supply
5	Basic type with no explosion protection
2	Always 2 (R6.01 or later)

Technical Specifications

Parameter	Specification
Manufacturer	Yokogawa
Product Model	AFV30D-A41252
Product Type	Duplexed Field Control Unit
Power Supply Voltage	220-240 V AC
Power Supply Frequency	50/60 Hz
Power Consumption	230 VA
Main Memory Battery Backup	Max. 72 hours
Battery Recharge Time	Min. 48 hours
READY Contact Output Rating	30 V DC, max. 0.3 A (Terminals: NC, C)
Processor Modules	2 x CP471 (Dual-redundant)
Power Supply Modules	2 x PW482 (Dual-redundant)
Max. I/O Modules	8
Connectable Node Units	Max. 13 per FCU (ANB10 / ANB11)
Communication Interface	Dual-redundant Vnet/IP
Mounting	19-inch Rack Mounting (M5x8 screws)
Weight	Approx. 8.0 kg
Dimensions	265.9 mm x 482.6 mm x 207 mm (H x W x D)

Connections/Interfaces

Connector / Interface	Function / Description
Power Supply	M4 screw terminal connection
Grounding	M4 screw terminal connection
READY Contact Output	M4 screw terminal connection
Network (Vnet/IP)	UTP cable (CAT5e or better) to Layer 2 switch
ESB Bus Coupler (Slots 7 & 8)	Slot 7 and Slot 8 for EC401 / EC402 modules (Dual-redundant)
Optical ESB Bus Repeater (Slots 1 to 6)	ANT401 or ANT411 master modules installed from right to left in pairs

Installation Guidelines

Cabinet Requirement: To meet safety and EMC standards, the unit must be installed in a keyed metallic cabinet.
Rack Mounting: Secure to a standard 19-inch rack using M5x8 screws and the included insulating bushes.
ESB Bus Couplers: For dual-redundant processor configurations, install ESB Bus Coupler Modules (EC401 or EC402) in both slot 7 and slot 8.
Optical Repeater Installation: Install pairs of ANT401 or ANT411 modules in slots 1 to 6 from right to left according to branch requirements.
Barrier Insulation: If modules with built-in barriers are installed, an insulating partition kit (Part No. T9083ND) must be used.

Compatible Spare Parts & Components

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

How long can the main memory be backed up during a power outage?

The battery provides main memory backup for a maximum of 72 hours, with a minimum required recharge time of 48 hours.

What power supply voltage does this specific unit require?

This module configuration operates on 220 to 240 V AC power at 50/60 Hz frequency.

How many external node units can be connected to the field control unit?

A total maximum of 13 node units (combining ESB Bus Node Units and Optical ESB Bus Node Units) can be connected.

What network interface is used for system communication?

The system utilizes a dual-redundant Vnet/IP communication interface connected via CAT5e or better UTP cables to a Layer 2 switch.
