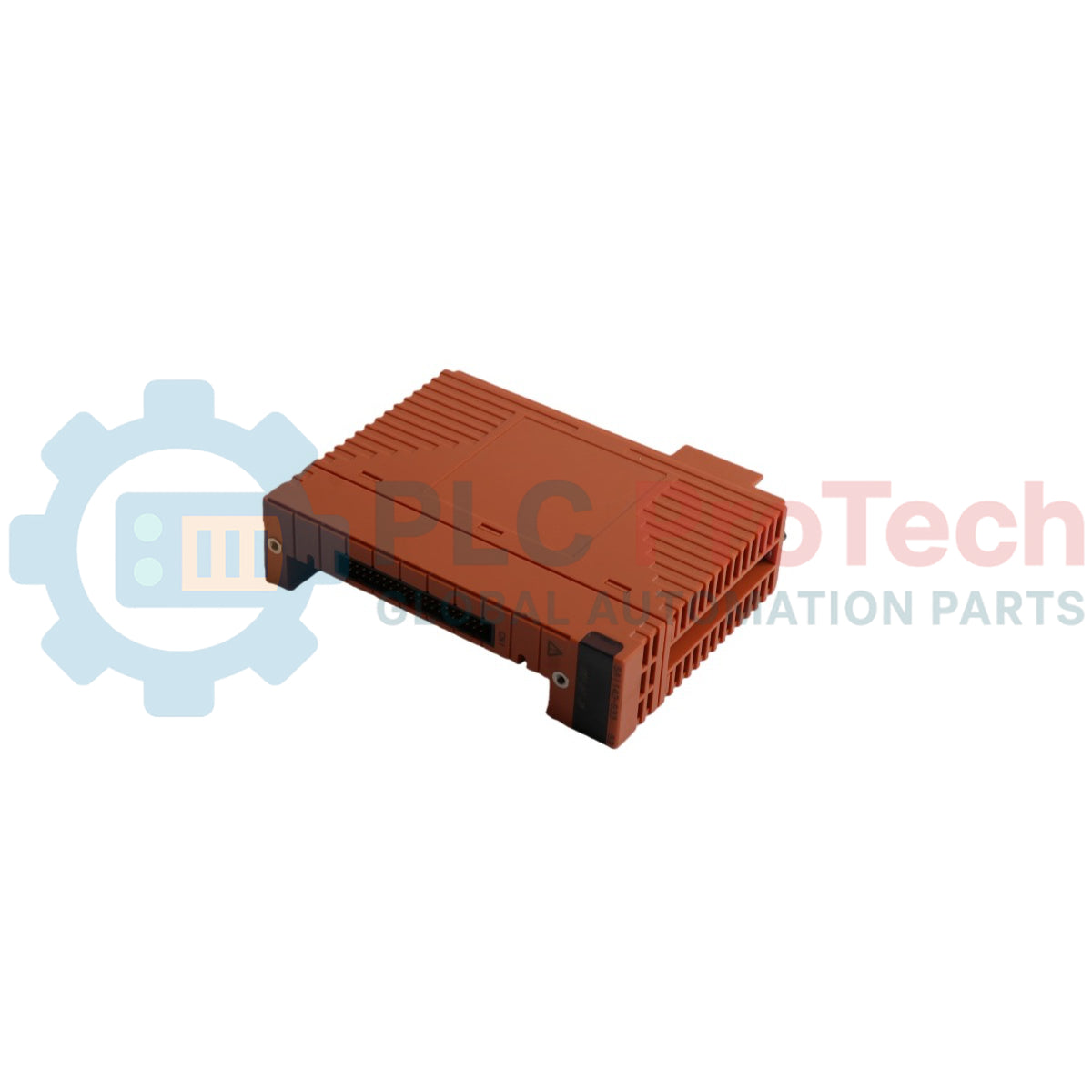

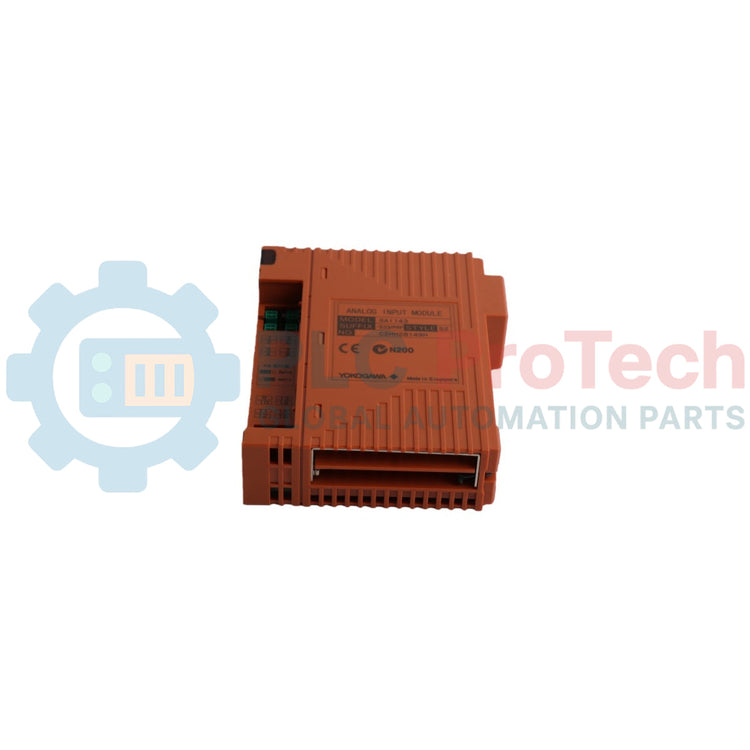

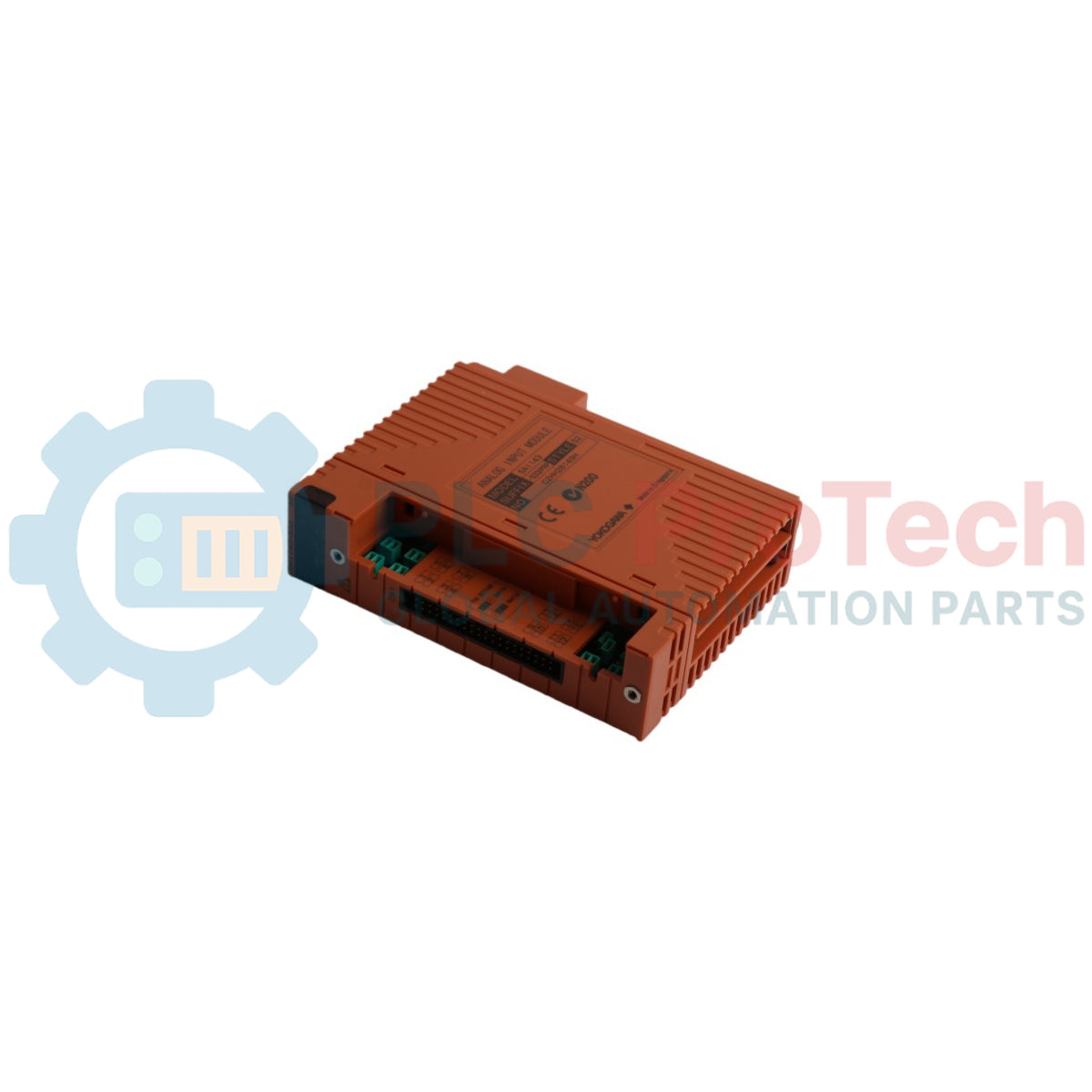

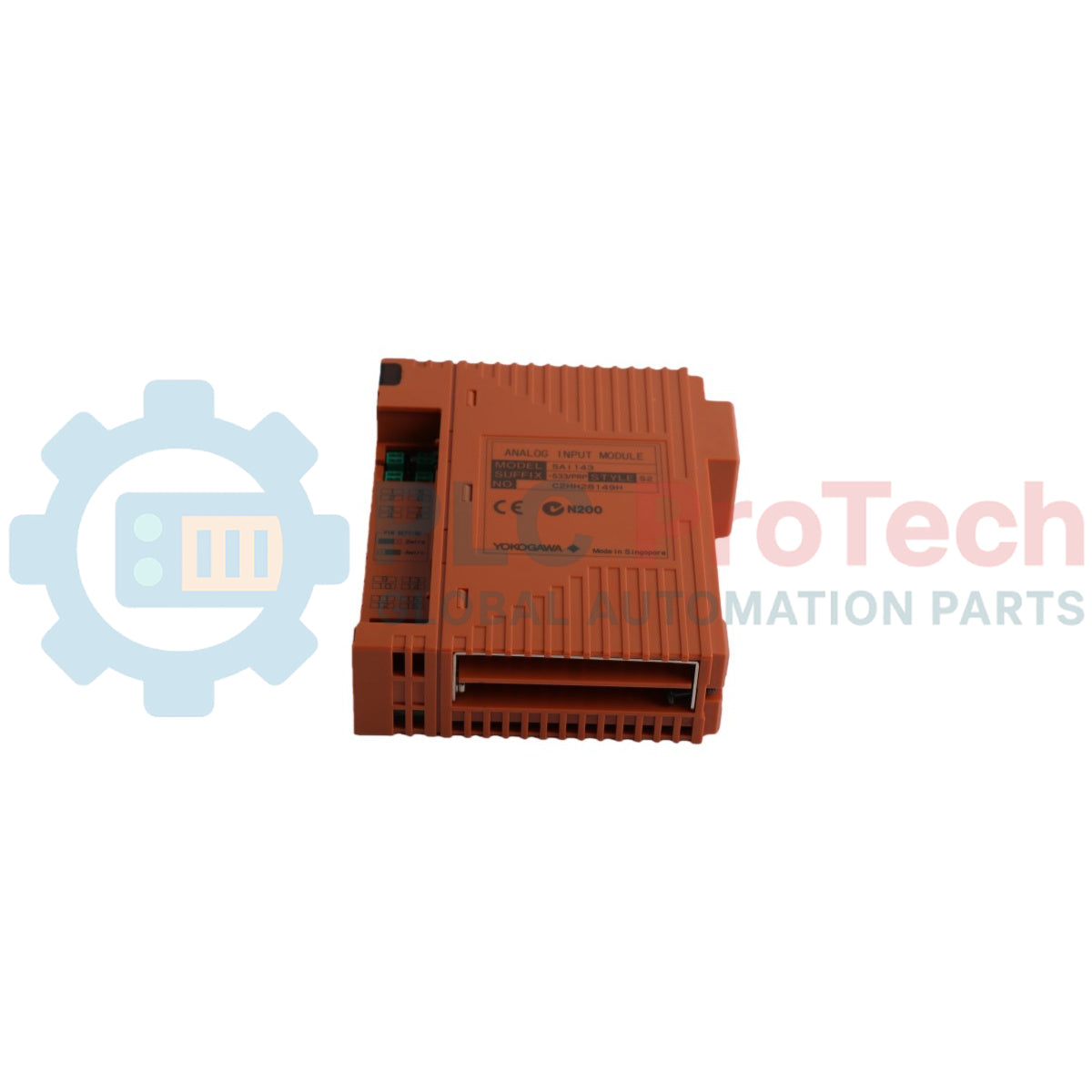

The Yokogawa SAI143-S33 is a high-reliability current input module designed for mounting on the safety node unit and safety control unit within the ProSafe-RS safety instrumented system. This module plays a critical role in safety functions by inputting 4 to 20 mA signals from field instruments directly into the Safety Control Station (SCS). It supports dual-redundant configurations to achieve enhanced system availability and fault tolerance. The SAI143-S33 features standard individual channel configuration pins for 2-wire or 4-wire transmitters and provides module isolation for its 16 processing channels.
| Model | Suffix Codes | Description |
|---|---|---|
| SAI143 | Analog Input Module (4 to 20 mA, 16 channels, module isolation) | |
| -S | Standard type | |
| 3 | For pressure clamp terminal block or MIL cable with no explosion protection | |
| 3 | With ISA Standard G3 and temperature (-20 to 70 degC) |
| Item | Specifications |
|---|---|
| Manufacturer | Yokogawa Electric Corporation |
| Model | SAI143-S33 |
| Number of Input Channels | 16 channels, module isolation |
| Rated Input Range | 4 to 20 mA |
| Permissible Input Range | 0 to 25 mA |
| Input Impedance (Power-ON) | 250 Ohm + Voltage drop in the input protection circuit inside the module / Current value |
| Input Impedance (Power-OFF) | 500 Ohm minimum |
| Maximum Voltage Drop | 0.45 V (in the input protection circuit) |
| Rated Accuracy | ±16 uA (Input range 1 to 23 mA for Style S3) |
| Data Update Frequency | 40 ms |
| Temperature Drift | ±16 uA/10 degC |
| Transmitter Power Supply | 16.15 V minimum (at 20 mA), 26.4 V maximum (at 0 mA) |
| Output Current Limit | 25 mA |
| Withstand Voltage | 1.5 kV AC between input signal and system for 1 minute |
| Maximum Current Consumption | 5 V system: 320 mA, 24 V system: 550 mA |
| Ambient Temperature | -20 to 70 degC |
| Environmental Code | ISA Standard G3 |
| Weight | Approx. 0.34 kg (For pressure clamp terminal block or MIL cable) |
| Dimensions (W x H x D) | 32.8 mm x 130 mm x 107.5 mm (For pressure clamp and MIL cable) |
Global Express Shipping
Returns & Warranty
Manufacturer: Yokogawa
Product No.: SAI143-S33
Country of origin:Japan
Product Type: Analog Input Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 340g
Dimensions: 32.8 mm x 130 mm x 107.5 mm
Shipping port: Xiamen
Warranty: 12 months
