Yokogawa SSB401-13 ESB Bus Interface Module

Yokogawa

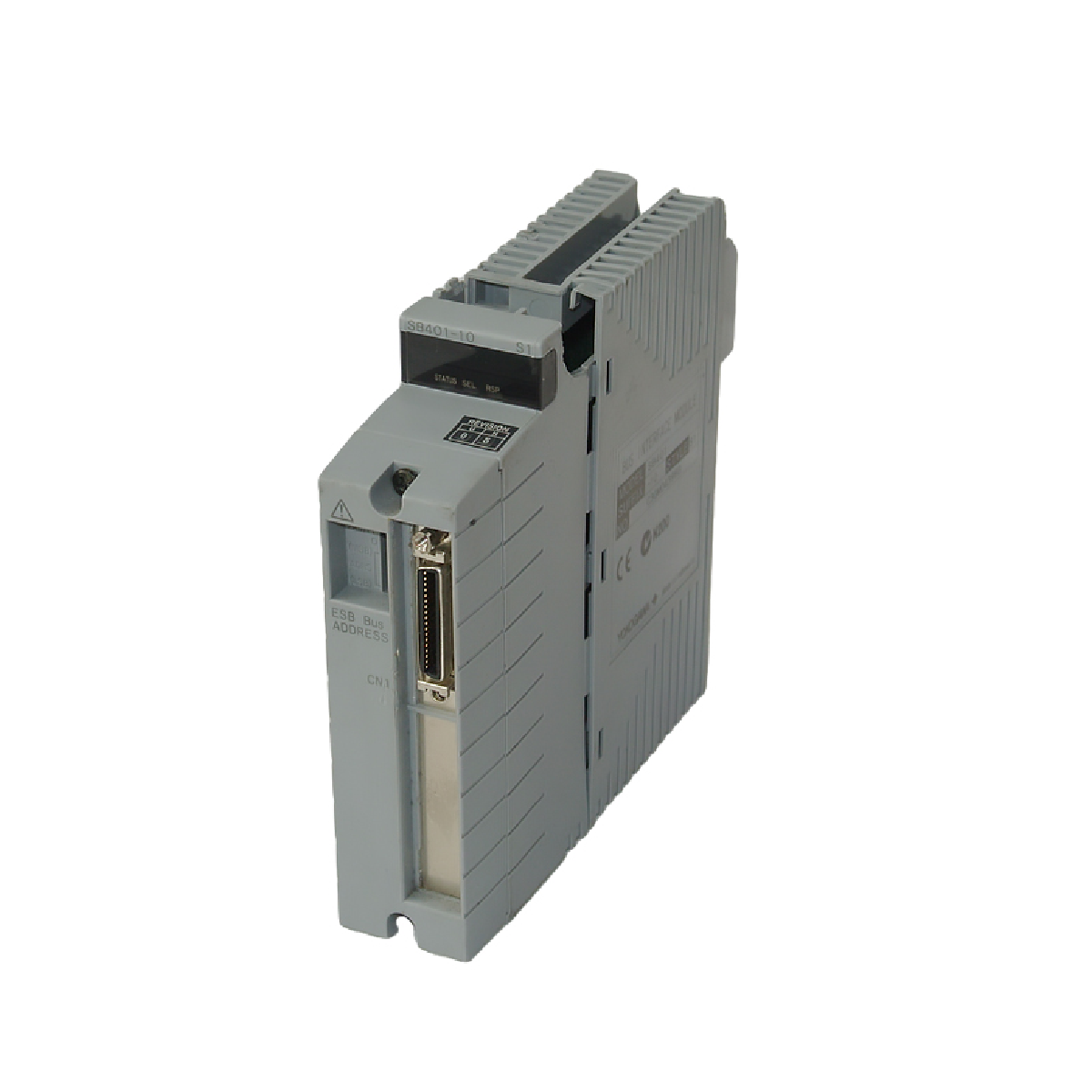

Yokogawa SSB401-13 ESB Bus Interface Module

SKU SSB401-13

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Yokogawa
  • Product No.: SSB401-13
  • Origin Japan
  • Product Type: ESB Bus Interface Module
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.3 kg
  • Dimensions: 3.3cm x 10.7cm x 13cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

ESB Bus Interface Module

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Yokogawa SSB401-13 ESB Bus Interface Module

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

The Yokogawa SSB401-13 is a highly reliable ESB Bus Interface Module engineered for the CENTUM VP integrated production control system. This module is designed to provide an efficient ESB Bus optical transport function, operating exclusively within Vnet/IP network architectures. It enables extended long-distance communication links and is typically installed on safety node units, such as the SNB10D, to seamlessly bridge the safety control system backplane across diverse layout distances. Supporting versatile network topologies, the SSB401-13 facilitates robust and deterministic real-time communication across modern complex process automation architectures.

Features

  • Implements dedicated ESB Bus optical transport functionality designed exclusively for Vnet/IP system frameworks.
  • Versatile network topology support accommodating star type, chain type, or combined star and chain configurations.
  • High-distance extensions ranging from 5 km up to 50 km over verified optical fiber paths.
  • Supports multi-stage topologies with a maximum allocation of two connecting stages.
  • Built to maintain precise signal levels with integrated optical power attenuation management.

Applications

  • Long-distance inter-node distributed safety networks in safety control systems.
  • Petrochemical plants, offshore platforms, and wide-area industrial processing facilities.
  • High-integrity pressure protection systems (HIPPS) and emergency shutdown (ESD) applications.

Technical Specifications

Attribute Specification
Manufacturer Yokogawa Electric Corporation
Model SSB401-13
Function ESB Bus optical transport function (Vnet/IP only)
Connection Method Star type connection, Chain type connection (Available for both star and chain type connection)
Number of Connecting Stage Maximum two
Transmission Distance 5 km to 50 km (total two stages)
Current Consumption 0.5 A
Weight Approx. 0.3 kg

Installation Guidelines

  • Optical Attenuation Management: Attenuate the optical power by 3-4 dB in between SNT411 and SNT511, S2EN501 and SNT511, or SNT411 and S2EN501.
  • Attenuator Requirements: When the optical attenuation by the optical fiber cable is less than 3 dB, an inline attenuator must be used to reduce the overall attenuation by 3 dB.
  • Legacy Style Codes: When both the SNT411's and SNT511's style codes are S1, apply an attenuator to reduce the network attenuation by 1-2 dB.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the maximum transmission distance achievable with the module?
The module supports a long-distance transmission range from 5 km up to 50 km total across a maximum of two connecting stages.
Which communication networks are compatible with the device?
The optical transport function of the device operates exclusively on Vnet/IP systems.
What actions must be taken if the fiber optic cable attenuation measures less than 3 dB?
An inline optical attenuator must be installed in the signal path to successfully reduce the overall attenuation by 3 dB.
What are the allowed networking topologies for this communication layout?
The device accommodates star type connections, chain type connections, or a combination of both star and chain configurations.
Reviews

More from this brand

Yokogawa AAI543-S03 CENTUM VP Analog Input Module
AAI543-S03Yokogawa AAI543-S03 CENTUM VP Analog Input Module
Yokogawa AAI143-S03 CENTUM VP Analog Input Module
AAI143-S03Yokogawa AAI143-S03 CENTUM VP Analog Input Module
Yokogawa AAR181-S50 CENTUM VP RTD Input Module
AAR181-S50Yokogawa AAR181-S50 CENTUM VP RTD Input Module
Yokogawa AI-917-00 ProSafe-SLS Analog Input Module
AI-917-00Yokogawa AI-917-00 ProSafe-SLS Analog Input Module

SSB401-13

Stock & lead time on request

Call
  • Yokogawa SSB401-13 ESB Bus Interface Module
1 1

Yokogawa SSB401-13 ESB Bus Interface Module

Only 4 item(s) left in stock

  • Manufacturer: Yokogawa

  • Product No.: SSB401-13

  • Country of origin:Japan

  • Product Type: ESB Bus Interface Module

  • Barcode: 8537101190

  • Payment: T/T, Western Union

  • Weight: 300g

  • Dimensions: 3.3cm x 10.7cm x 13cm

  • Shipping port: Xiamen

  • Warranty: 12 months

Visualizza dettagli completi
Product Description
FAQ
Shipping Returns
Additional details
Reviews

Description

The Yokogawa SSB401-13 is a highly reliable ESB Bus Interface Module engineered for the CENTUM VP integrated production control system. This module is designed to provide an efficient ESB Bus optical transport function, operating exclusively within Vnet/IP network architectures. It enables extended long-distance communication links and is typically installed on safety node units, such as the SNB10D, to seamlessly bridge the safety control system backplane across diverse layout distances. Supporting versatile network topologies, the SSB401-13 facilitates robust and deterministic real-time communication across modern complex process automation architectures.

Features

  • Implements dedicated ESB Bus optical transport functionality designed exclusively for Vnet/IP system frameworks.
  • Versatile network topology support accommodating star type, chain type, or combined star and chain configurations.
  • High-distance extensions ranging from 5 km up to 50 km over verified optical fiber paths.
  • Supports multi-stage topologies with a maximum allocation of two connecting stages.
  • Built to maintain precise signal levels with integrated optical power attenuation management.

Applications

  • Long-distance inter-node distributed safety networks in safety control systems.
  • Petrochemical plants, offshore platforms, and wide-area industrial processing facilities.
  • High-integrity pressure protection systems (HIPPS) and emergency shutdown (ESD) applications.

Technical Specifications

Attribute Specification
Manufacturer Yokogawa Electric Corporation
Model SSB401-13
Function ESB Bus optical transport function (Vnet/IP only)
Connection Method Star type connection, Chain type connection (Available for both star and chain type connection)
Number of Connecting Stage Maximum two
Transmission Distance 5 km to 50 km (total two stages)
Current Consumption 0.5 A
Weight Approx. 0.3 kg

Installation Guidelines

  • Optical Attenuation Management: Attenuate the optical power by 3-4 dB in between SNT411 and SNT511, S2EN501 and SNT511, or SNT411 and S2EN501.
  • Attenuator Requirements: When the optical attenuation by the optical fiber cable is less than 3 dB, an inline attenuator must be used to reduce the overall attenuation by 3 dB.
  • Legacy Style Codes: When both the SNT411's and SNT511's style codes are S1, apply an attenuator to reduce the network attenuation by 1-2 dB.
