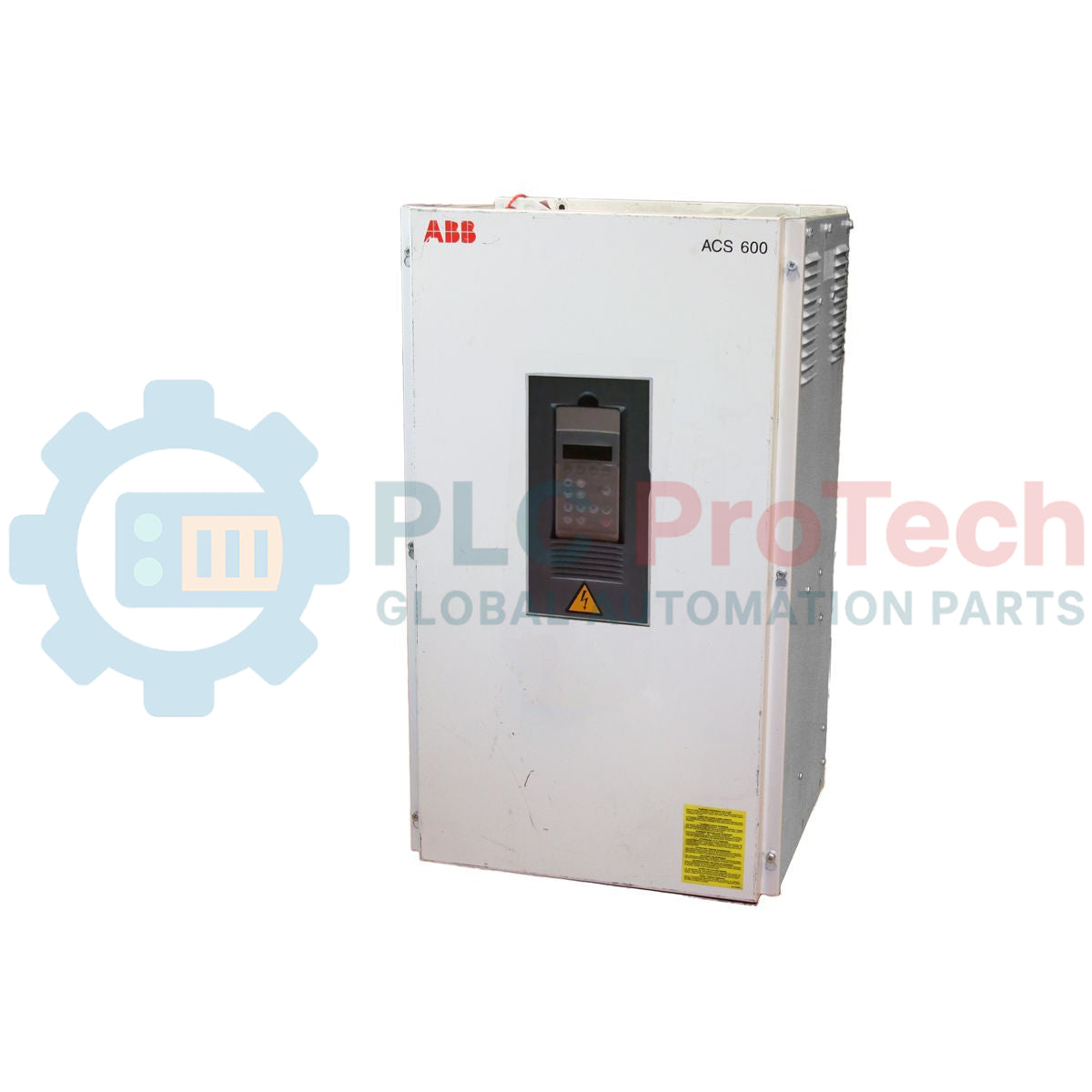

ABB ACS601-0100-3 ACS600 Frequency Converter

Description

Optimizing heavy-duty motor control across demanding industrial architectures, the ABB ACS601-0100-3 is a high-performance three-phase AC frequency converter designed for precise speed and torque regulation of induction motors. Utilizing ABB's proprietary Direct Torque Control (DTC) platform, this frequency converter delivers rapid dynamic torque response without requiring encoder feedback in most standard applications. The robust physical design features a wall-mountable configuration, integrated line choke for input harmonics mitigation, and compatibility with various industrial communication adapters to ensure seamless system integration.

Features

• Direct Torque Control (DTC): Provides motor control performance with exceptional torque response and speed accuracy.
• Integrated Harmonics Mitigation: Built-in AC choke limits input line harmonics and protects the input rectifier stages.
• Flexible Communications: Compatible with optional fieldbus modules for integration into PROFIBUS, Modbus, and EtherNet networks.
• Robust IP21 Protection: Designed for standard industrial wall-mount installation environments.
• Comprehensive Protection Matrix: Real-time monitoring for overcurrent, overvoltage, motor thermal overload, and earth leakage faults.

Applications

• Heavy-duty industrial centrifugal pumps and waste-water processing fans.
• Continuous material handling, heavy conveyors, and sorting systems.
• Extruder drives, industrial mixers, and high-torque agitators in chemical processing.

Technical Specifications

Connections and Interfaces

The terminal block configurations of the integrated NIOC-01 control board provide versatile, isolated control interfaces:

Alternative Models & Compatibility

When migrating legacy systems, note that the ACS601 (wall-mounted) differs physically from the ACS604 (cabinet-installed modules) and the ACS607 (pre-assembled drive cabinets). Main control board variations, such as the NAMC-11 or NAMC-51 boards, dictate firmware compatibility. Ensure that parameter databases and firmware releases match prior to field component replacement, as mismatching can trigger communication faults on the DDCS channel.

Application Pitfalls & Engineering Notes

Electrolytic Capacitor Aging: If this converter has been stored without electrical power for over two years, the DC bus capacitors must be reformed before applying full line voltage. Applying rapid mains voltage to unconditioned capacitors can lead to immediate hardware damage or DC overvoltage faults. Utilize a variable DC power supply to gradually reform the dielectric layers in accordance with ABB service manuals.

Commissioning & Wiring Tips

Always utilize symmetrical, shielded motor cabling to suppress common-mode high-frequency currents. Standard non-shielded cables can generate radio frequency emissions and high shaft voltages, accelerating motor bearing failure. Verify that the PE ground terminal connection is established with a minimum 360-degree shielding clamp at both the converter bracket and the motor frame to minimize electromagnetic interference.

Installation Guidelines
