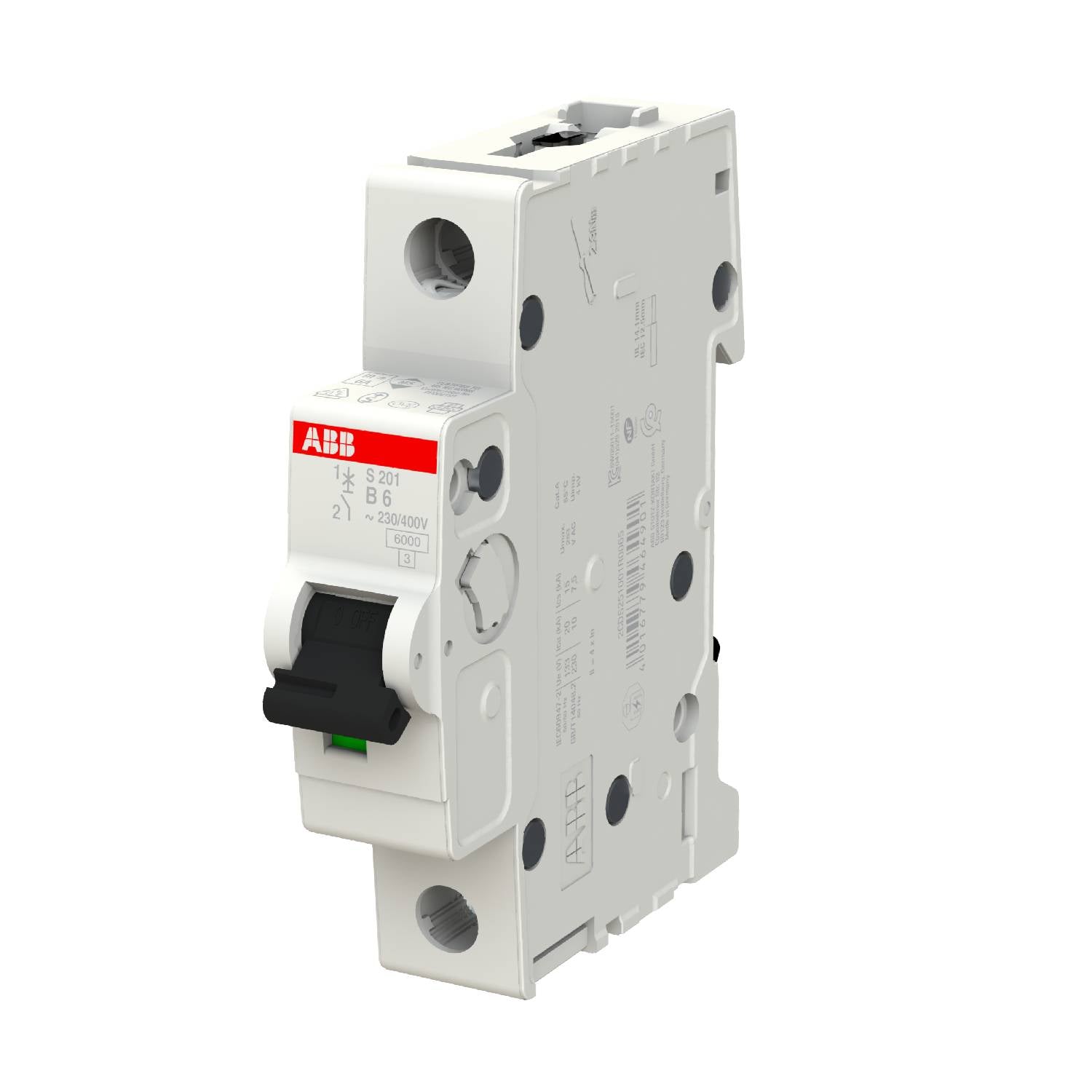

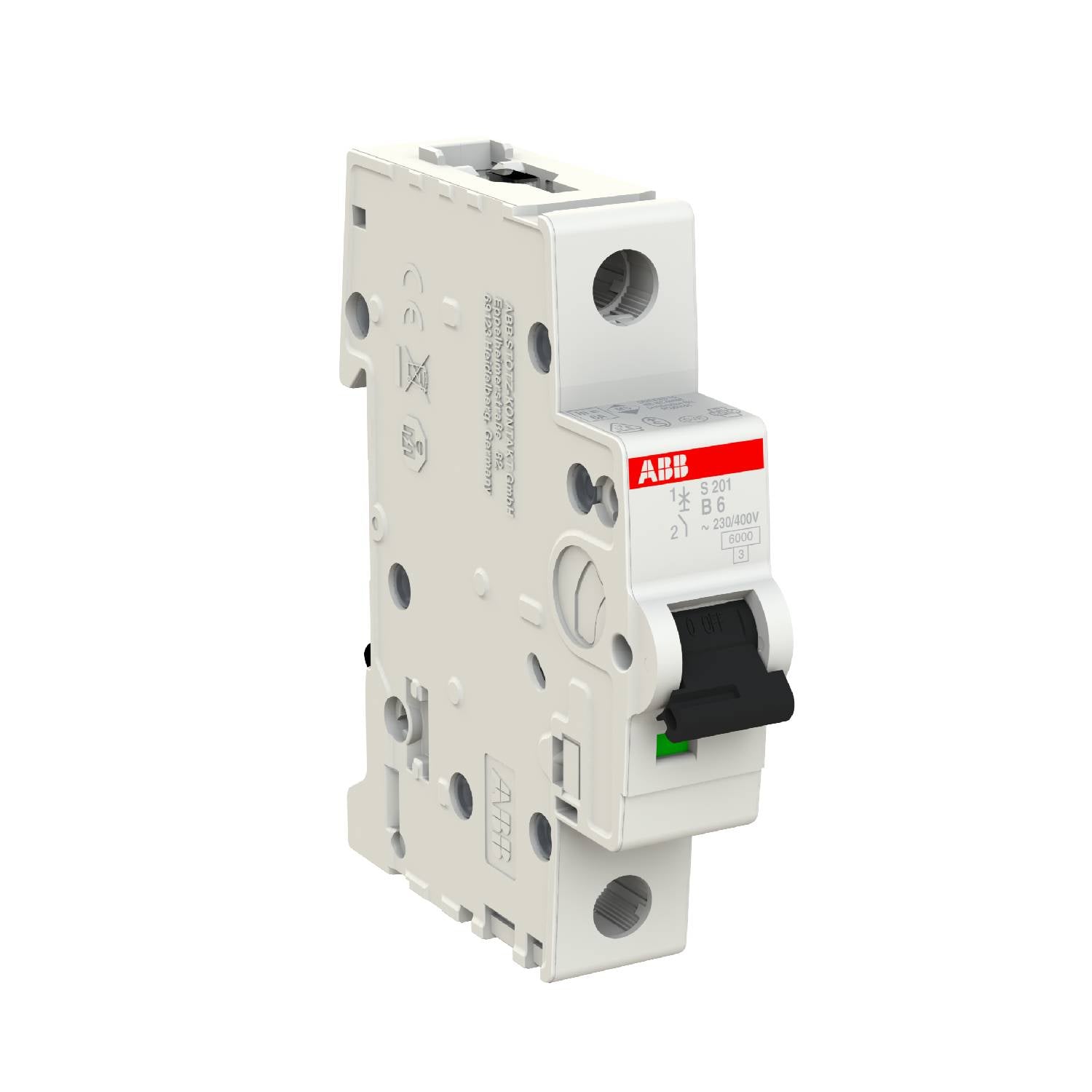

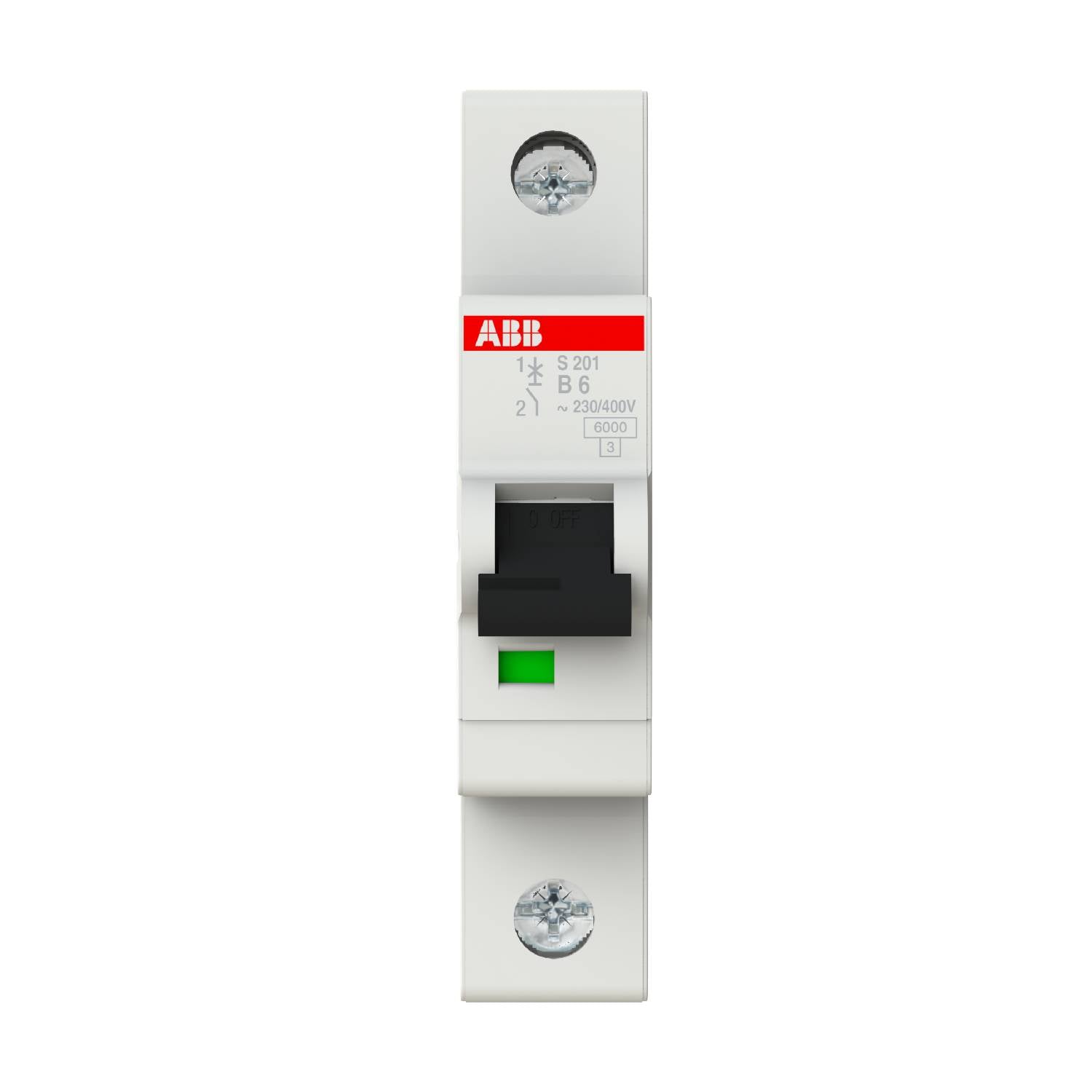

ABB S201-B6 2CDS251001R0065 S200 Miniature Circuit Breaker

Hanya 55 item tinggal dalam stok

Pengilang: ABB
No. Produk: S201-B6 2CDS251001R0065
Negara asal:Sweden
Jenis Produk: Miniature Circuit Breakers
Pembayaran: T/T, Western Union
Berat: 112g
Dimensi: 88 mm x 17.5 mm x 69 mm (H x W x D)
Pelabuhan penghantaran: Xiamen
Jaminan: 12 bulan

Description

The S201-B6 miniature circuit breaker with Product ID 2CDS251001R0065 is a single-pole, current-limiting safety device engineered to provide comprehensive overcurrent mitigation and short-circuit fault protection. As a core component of the System pro M compact S200 product range, this device features two distinct internal tripping mechanisms: a delayed thermal tripping configuration optimized for overload security and an electromechanical magnetic tripping assembly designed for instantaneous short-circuit protection. This circuit breaker is rated for a 6 A operational current and complies fully with major international standards including IEC/EN 60898-1, IEC/EN 60947-2, and UL1077, enabling seamless system compatibility across diverse residential, commercial, and heavy industrial automation environments.

Features

Incorporates a 1P single-pole configuration designed for space-saving terminal tracking and efficient distribution layout.
Utilizes a B-characteristic tripping curve calibrated for specific line and low-surge inductive application parameters.
Features an integrated contact position indicator with a clear visual window displaying Red for ON and Green for OFF states.
Outfitted with a failsafe bidirectional cylinder-lift screw terminal setup to optimize wiring stability and prevent installation errors.
Engineered for high modular versatility with full compatibility for bottom-fitting auxiliary contact installations and accessories.

Applications

Low-voltage electrical distribution boards and branch circuit panel assemblies.
Industrial control panels, manufacturing automation loops, and specialized machinery control networks.
Commercial building facility management grids and standard residential infrastructure protection loops.

Ordering Information

Parameter	Value
Extended Product Type	S201-B6
Product ID	2CDS251001R0065
EAN	4016779464901

Technical Specifications

Parameter	Specification
Manufacturer	ABB
Extended Product Type	S201-B6
Product ID	2CDS251001R0065
Number of Poles	1P
Number of Protected Poles	1
Tripping Characteristic	B
Rated Current (In)	6 A
Input Voltage Type	AC/DC
Rated Operational Voltage	acc. to IEC 60898-1 230 V AC
Rated Insulation Voltage (Ui)	acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp)	4 kV (5 kV at 2000 m / 6.2 kV at Sea Level)
Dielectric Test Voltage	50/60 Hz - 1 min: 2 kV
Rated Short-Circuit Capacity (Icn)	(AC) 6 kA / (DC) 6 kA / (230/400 V AC) 6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)	(133 V AC) 20 kA / (230 V AC) 10 kA / (24 V DC) 20 kA / (60 V DC) 10 kA / (230 V) 10 kA / (400 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics)	(133 V AC) 15 kA / (230 V AC) 7.5 kA
Rated Conditional Short-Circuit Current (Inc)	(230 V) 10 kA / (400 V) 10 kA
Rated Frequency (f)	50/60 Hz
Power Loss	2 W (2 W per Pole at Rated Operating Conditions)
Housing Material	Insulation Group II, RAL 7035
Actuator Material	Insulation Group II, Black, Sealable
Actuator Type	Toggle
Contact Position Indication	Red ON / Green OFF
Energy Limiting Class	3
Electrical Endurance	20000 AC cycle
Mechanical Endurance	20000 cycle
Terminal Type	Screw Terminals
Screw Terminal Type	Failsafe Bidirectional Cylinder-lift Terminal
Connecting Capacity	Busbar 10/10 mm² / Flexible with Ferrule 0.75 ... 25 mm² / Flexible 0.75 ... 25 mm² / Rigid 0.75 ... 35 mm² / Stranded 0.75 ... 35 mm²
Tightening Torque	2.8 N-m
Recommended Screw Driver	Pozidriv 2
Wire Stripping Length	12.5 mm
Ambient Air Temperature	Operation -25 ... +55 Celsius / Storage -40 ... +70 Celsius
Degree of Protection	IP20 (Enclosure with Cover IP40)
Pollution Degree	3
Maximum Operating Voltage UL/CSA	60 V DC / 480Y/277 V AC
Interrupting Rating acc. to UL1077	(277 V AC) 6 kA / (60 V DC) 10 kA / (120 V) 10 kA
Connecting Capacity UL/CSA	Busbar 18-8 AWG / Conductor 18-4 AWG
Tightening Torque UL/CSA	18 in-lb
Product Net Width	17.5 mm
Product Net Height	88 mm
Product Net Depth / Length	69 mm
Product Net Weight	0.112 kg

Installation Guidelines

DIN Rail Installation: Secure the unit firmly onto standard symmetrical tracking choices, including TH35-15 (35 x 15 mm mounting rail) or TH35-7.5 (35 x 7.5 mm mounting rail) according to the IEC 60715 standard.
Mounting Position: The underlying physical design permits installation and execution at any functional mechanical angle orientation.
Power Supply Connection: The architecture allows for arbitrary power supply connection placements based on structural needs.
Terminal Anchoring: Securely clamp the conductors inside the failsafe bi-directional cylinder-lift terminals with a Pozidriv 2 screwdriver to a certified torque of 2.8 N-m (18 in-lb for UL/CSA configurations).

Compliance and Certifications

Declaration of Conformity - CE: 2CDK403001D0607
Declaration of Conformity - UKCA: 9AKK108467A5053
Certification Agencies: EN, IEC, UL
Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077

Model Number / Title	Condition	Availability	Action
ABB S282UC-K10 GHS2820164R0427 S280UC Miniature Circuit Breaker	Original New	In Stock	View Details
ABB S202M-K2UC 2CDS272061R0277 S200MUC Miniature Circuit Breaker	Original New	In Stock	View Details
ABB S282UC-K2 GHS2820164R0277 S280UC Miniature Circuit Breakers MCBs	Original New	In Stock	View Details

Key Features:

#Miniature Circuit Breakers

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

What standard visual cues does the device provide for terminal position updates?

The device features a mechanical contact position indication window that clearly shows Red for an ON status and Green for an OFF status.

What is the calibrated physical tightening torque for terminal connections?

The integrated screw terminals require an engineering tightening torque value of 2.8 N-m for standard industrial tasks or 18 in-lb for UL/CSA arrangements.

What internal mechanical protections are integrated into the device?

The device contains dual safety solutions: a delayed thermal tripping mechanism for overload mitigation and an electromechanical magnetic tripping system for short circuits.
