Beckhoff IL2300-C318 Fieldbus Box PLC Box

Description

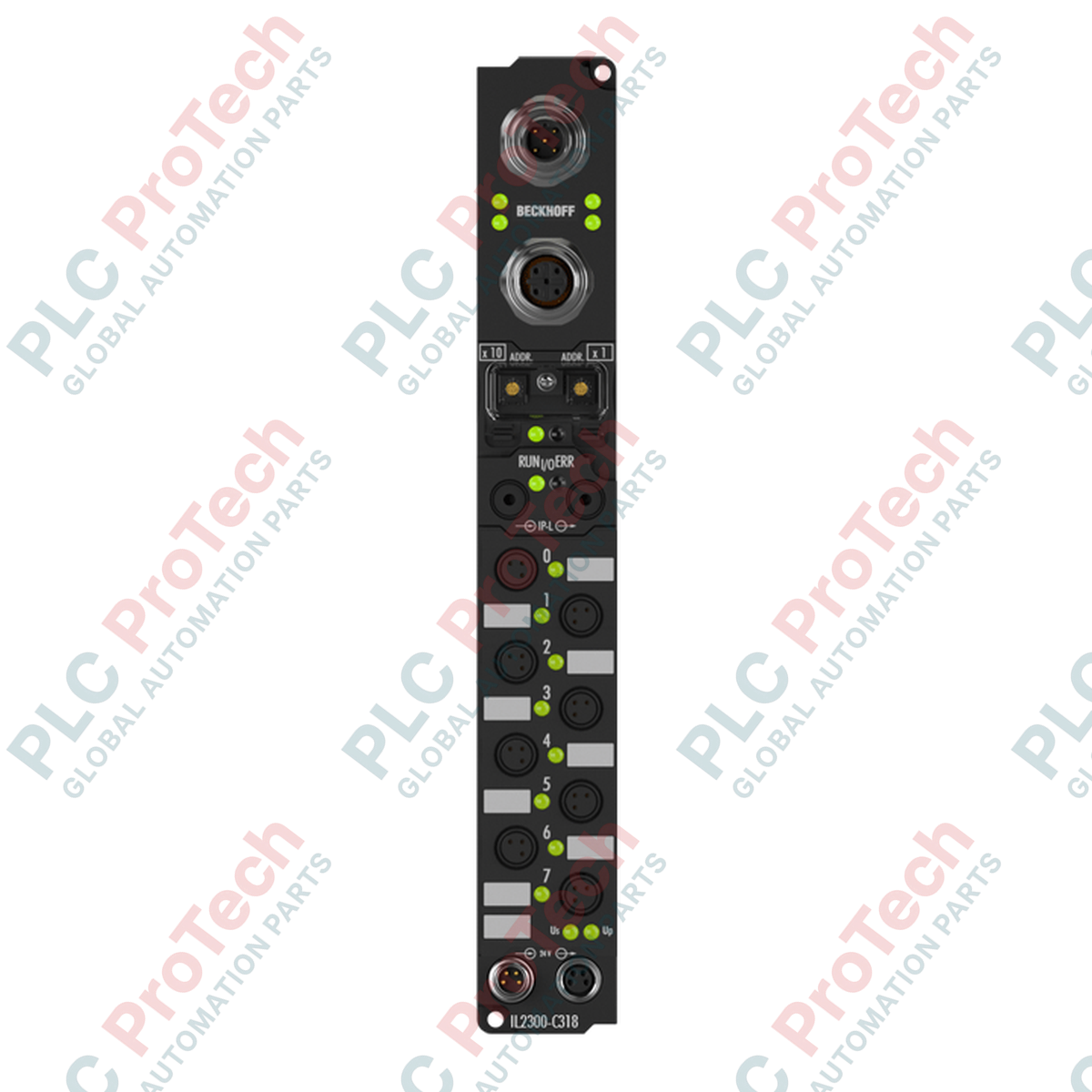

Designed to execute decentralized automation tasks directly in challenging industrial environments, the Beckhoff IL2300-C318 is an IP67-rated Fieldbus Box designed for machine-mount distribution without control enclosures. This high-integrity intelligent unit integrates Profibus DP communications directly with local I/O nodes, facilitating high-speed data transmission up to 12 Mbaud with automatic baud rate detection. By utilizing robust M12 and M8 connector interfaces, the module minimizes field-wiring labor while providing exceptional mechanical protection against moisture, dust, and vibration.

Key Features

• Profibus DP Protocol: Supports complete DP-V1 extensions configured via the KS2000 software tool or direct master controller download.
• High-Speed Transmission: Automatic detection of transfer speeds up to 12 Mbaud for seamless integration into existing networks.
• Integrated T-Connector: Built-in 5-pin M12 socket and plug interface simplifies daisy-chain loop installations.
• Environmental Sealing: Full IP65, IP66, and IP67 protection rating suitable for wet, high-pressure washdown zones.
• Power Distribution: M8 input feed and loop-through outputs to power downstream fieldbus modules efficiently.

Applications

• Automotive assembly lines and robotic welding cells requiring machine-mounted IO.
• Food and beverage packaging machinery subjected to regular washdown cycles.
• Conveyor networks and automated material handling systems spanning long physical distances.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The IL2300-C318 is directly compatible with any standard Profibus-DP Class 1 or Class 2 Master system. When upgrading legacy Beckhoff systems, please verify that your configuration files are using the correct GSD profile matching the device's hardware revision status. The physical footprint remains backward-compatible with older Beckhoff Fieldbus Box units, making direct mechanical drop-in swaps straightforward.

Application Pitfalls & Engineering Notes

A common failure point in decentral machine-mounted setups is the total current limit of the M8 power distribution system. While individual box electronics only draw 85 mA, the total current passed through the M8 loop-through must never exceed 4 A. If your local sensor loads exceed this aggregate rating, separate power distribution blocks must be installed to prevent catastrophic connector overheating.

Commissioning & Wiring Tips

Always ensure that the final physical block on the Profibus string has a dedicated, active M12 terminator installed on the downstream socket. Incorrect network impedance often results in sporadic 12 Mbaud communication dropouts, which are difficult to diagnose. When using KS2000 for field parameterization, ensure the control voltage is stabilized; low control voltage (below 20.4 V DC) will interrupt EEPROM write sequences, leading to parameter corruption faults.
