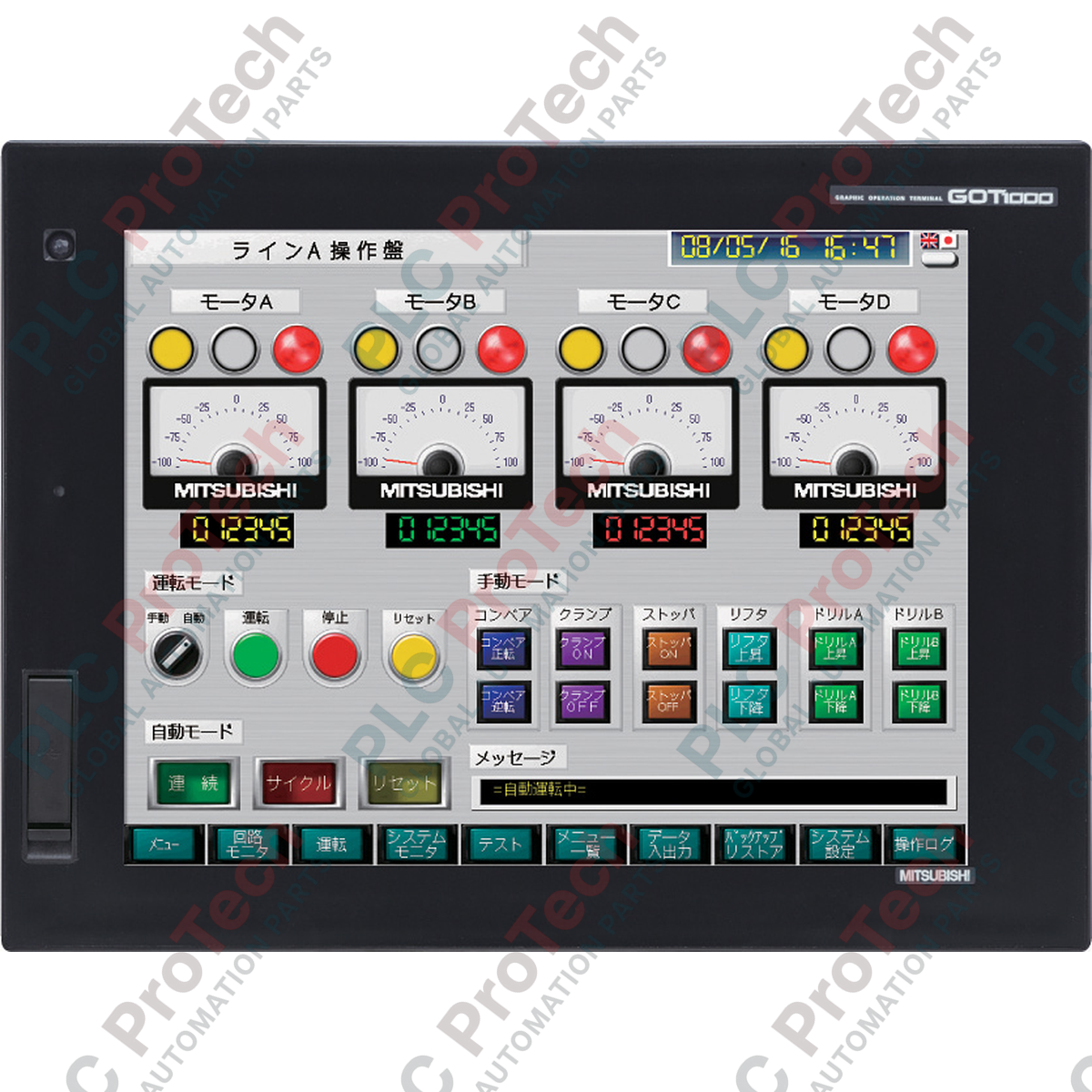

Terminal Antara Muka Operator Mitsubishi Electric GT1695M-XTBA Siri GOT1000 HMI

Description

Engineered for high-capacity visual supervision, the Mitsubishi Electric GT1695M-XTBA functions as a premium, large-format 15-inch human-machine interface (HMI) within the rugged GOT1000 platform. This model delivers sharp, high-resolution graphic interfaces for complex industrial machinery, processing lines, and plant-wide control architectures. Outfitted with high-speed processing, comprehensive built-in connection interfaces, and robust environmental protections, this terminal ensures reliable operator interaction and seamless data flow in severe heavy-industrial facilities.

Features

• High-Visibility Display: Large 15-inch TFT color liquid crystal display featuring XGA 1024 x 768 resolution and 65,536 display colors.
• Enhanced Illumination: High-brightness screen rated at 450 cd/m2 with an 8-step adjustable brightness control.
• Analog Touch System: Resistive analog touch panel ensuring responsive single-point operator input even with gloved hands.
• Integrated Human Sensor: Onboard motion detection with an adjustable detection delay of 0 to 4 seconds and a 1-meter range.
• Ample Storage: 15 MB built-in flash memory dedicated to storing complex screen designs, operation manuals, and operating systems.
• Broad Connectivity: Integrated interfaces for Ethernet, RS-422/485, RS-232, USB Device (Mini-B), and USB Host (Type-A).
• External Media Slot: Type I CompactFlash (CF) card slot for historical data logging, recipe storage, and project backup.

Applications

• Automotive assembly lines requiring high-density diagnostic screens and layout displays.
• Water treatment facilities for comprehensive plant-wide SCADA visualizations.
• Chemical processing and material handling systems requiring local monitoring and recipe adjustments.
• High-capacity control panels where multi-device routing and gateway functionalities are centralized.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

Since the official phase-out schedule of the GT1695M-XTBA, legacy systems are frequently modernized using the newer GOT2000 series, specifically the GT2715-XTBA. If you are upgrading, project files written in GT Designer3 can be migrated directly, though the hardware mounting depth must be checked as newer models typically feature a thinner panel profile.

Application Pitfalls & Engineering Notes

Because of the heavy power draw of the 15-inch high-luminance screen (which consumes up to 64 W), enclosed panels must have adequate ventilation. If optional communication modules or MES interface boards are stacked on the dual expansion slots, the internal operating temperature can quickly spike. Avoid placing the HMI directly above heat-producing equipment like VFDs or heavy contactors within the panel.

Commissioning & Wiring Tips

To prevent touch-point drifting and serial transmission loss on the RS-422/485 port, ensure that the ground terminal is wired directly to a dedicated Type D ground (resistance of 100 Ohms or less) using at least a 2 mm2 ground wire. Do not daisy-chain this terminal with power grounding rails of nearby motors or drives.
