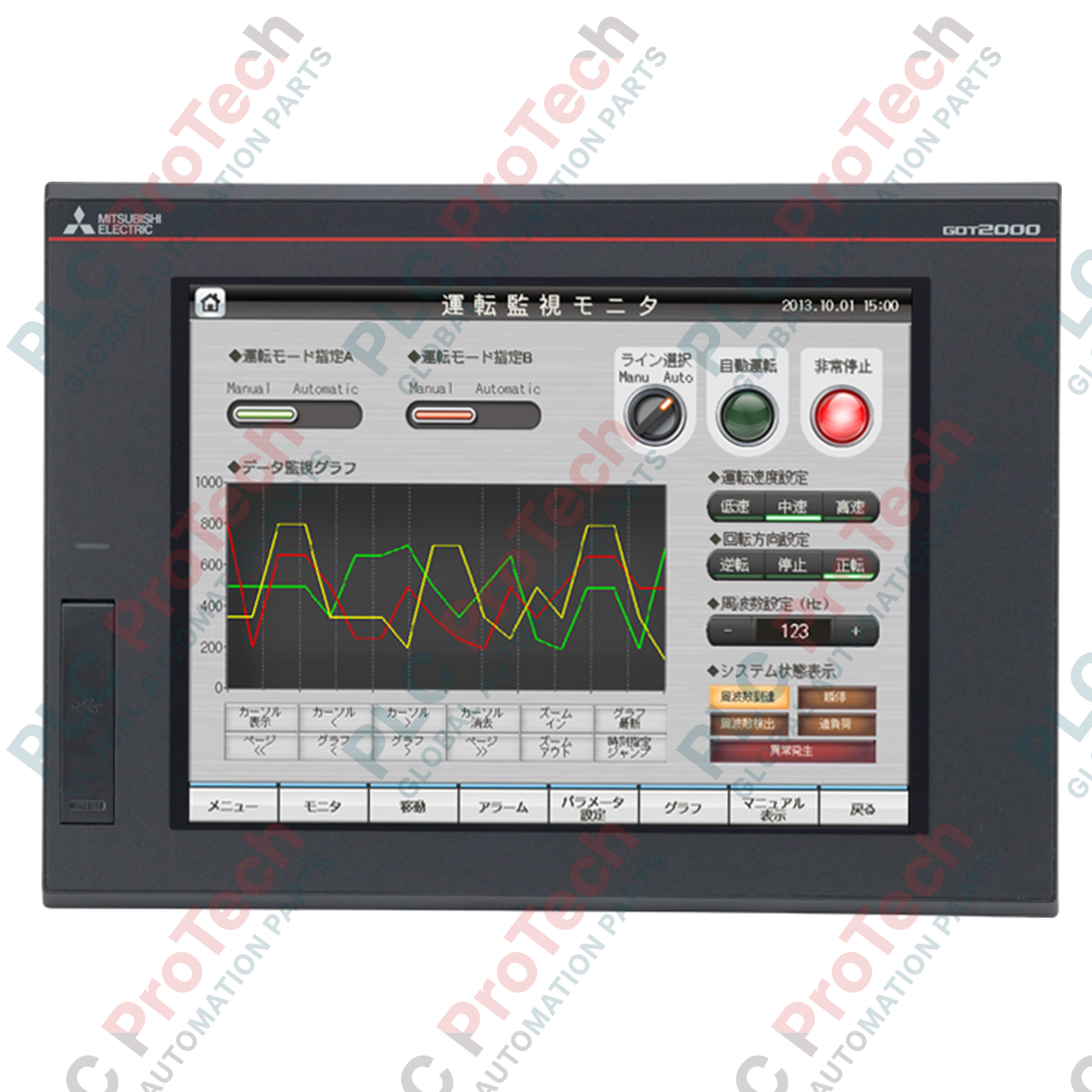

Mitsubishi Electric GT2710-VTBD GOT2000 Advanced HMI Touch Screen

Hanya 10 item tinggal dalam stok

Pengilang: Mitsubishi Electric
No. Produk: GT2710-VTBD
Negara asal:Amerika Syarikat
Jenis Produk: Human Machine Interfaces
Pembayaran: T/T, Western Union
Berat: 2100g
Dimensi: 30.3 cm x 21.8 cm x 5.2 cm
Pelabuhan penghantaran: Xiamen
Jaminan: 12 bulan

Lihat butiran penuh

Description

Designed for complex automation tasks, the GT2710-VTBD is a high-performance Human-Machine Interface (HMI) from the Mitsubishi Electric GOT2000 series. This advanced model features a 10.4-inch VGA TFT color display and supports multi-touch gesture operations, allowing operators to easily pinch, zoom, and swipe through detailed graphic screens. Engineered to withstand demanding factory floor environments, this unit provides seamless visualization and control system interfaces for PLC, inverter, and motion control configurations.

The unit features a black frame bezel and operates on a 24VDC power supply. By utilizing robust internal cooling and high impact resistance components, the GT2710-VTBD ensures reliable, long-term operation inside industrial control enclosures. It serves as a central control and monitoring station in both localized machines and distributed factory networks.

Features

10.4-inch TFT color display with VGA resolution (640 x 480 pixels) for clear, detailed industrial graphics.
Intuitive multi-touch and gesture capability for enhanced screen navigation and parameter adjustments.
Robust noise immunity and 350VAC withstand voltage to handle electrical fluctuations on industrial power lines.
Flexible mounting options supporting both horizontal and vertical installation orientations.
Wide operating temperature envelope up to 55 degC for hot-running control panel environments.
Self-cooling design that eliminates the need for external fan units, reducing dust ingress and maintenance.

Applications

Automotive assembly lines and conveyor control systems.
Water and wastewater processing equipment panels.
Oil, gas, and chemical processing visualization systems.
Power generation and distribution control panels.
Packaging, textile, and material handling machinery.

Technical Specifications

System and Electrical Parameters
Manufacturer	Mitsubishi Electric
Model / Article Number	GT2710-VTBD (270561)
Series	GOT2000 Series
Display Type	TFT Color LCD
Screen Size	10.4 inches
Resolution	VGA (640 x 480 pixels)
Frame Color	Black
Input Power Supply Voltage	24VDC (+25%, -20%)
Maximum Power Consumption	42W or less
Power Consumption (Standalone)	15W (8W or less with backlight turned off)
Inrush Current	5A or less (duration 20ms at ambient 25 degC, maximum load)
Permissible Instantaneous Failure Time	Within 10ms
Noise Resistance	500Vp-p noise voltage, 1us pulse width via noise simulator (25 to 60Hz frequency)
Withstand Voltage	350VAC for 1 minute between power supply terminal and ground
Insulation Resistance	10 Mohm or higher (measured at 500VDC between power supply terminal and ground)
Applicable Wire Size	0.75 to 2 mm2
Terminal Block Screw Size	M3 screw clamp terminals
Tightening Torque	0.5 to 0.8 N.m
Dimensions (W x H x D)	30.3 cm x 21.8 cm x 5.2 cm
Weight (Excluding brackets)	2.1 kg

Environmental Parameters
Operating Ambient Temperature (Horizontal Installation)	0 to 55 degC
Operating Ambient Temperature (Vertical Installation)	0 to 50 degC
Storage Temperature	-20 to 60 degC
Operating/Storage Humidity	10 to 90% RH (non-condensing)
Impact Resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s2 / 15G, 3 times in X, Y, and Z axes)
Operating Altitude	Up to 2000 meters (6562 feet)
Operating Atmosphere	No greasy fumes, corrosive gas, flammable gas, excessive conductive dust, or direct sunlight
Installation Location	Inside closed industrial control panel
Overvoltage Category	Category II or less
Pollution Degree	2 or less
Cooling Method	Self-cooling

Connections and Interfaces

Terminal Name	Function and Cable Specification
Power Terminals (24VDC)	Accepts 0.75 to 2 mm2 conductors. Requires M3 ring or spade terminals (RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A).
Ground Terminal (FG)	Dedicated frame ground terminal. Use recommended tightening torque of 0.5 to 0.8 N.m.

Installation Guidelines

Enclosure Mounting: Always install the HMI inside a dust-tight, IP-rated industrial control cabinet. Ensure the mounting clamps are uniformly tightened to prevent screen distortion or water ingress.
Orientation and Thermal Derating: Note that vertical mounting limits the maximum allowable ambient operating temperature to 50 degC, while horizontal mounting permits up to 55 degC.
Wiring Best Practices: Use shielded power cabling with a minimum cross-section of 0.75 mm2. Separate all low-voltage signal lines from high-voltage AC power lines to avoid electromagnetic interference.
Grounding: Connect the FG terminal directly to a low-impedance facility earth ground with the shortest possible conductor.

Key Features:

#GOT2000 Series #Human Machine Interfaces

What power supply voltage is required for the GT2710-VTBD HMI?

The GT2710-VTBD requires a nominal 24VDC power supply, with an allowable voltage range of +25% to -20% (19.2VDC to 30VDC).

Does this model support touch gestures like pinch-to-zoom?

Yes, as an advanced GOT2000 model, the GT2710-VTBD supports multi-touch gesture functions for intuitive controls and screen navigation.

What is the thermal limitation of installing the unit vertically?

When installed vertically, the maximum operating ambient temperature limit is 50 degC, whereas a horizontal installation permits up to 55 degC.

What size wire should be used for the power supply terminals?

The recommended wire cross-sectional area is between 0.75 and 2 mm2, secured with M3 terminal screws tightened to 0.5 to 0.8 N.m.

Can this HMI operate in locations high above sea level?

Yes, the GT2710-VTBD is designed to operate reliably up to an altitude of 2000 meters (6562 feet).
