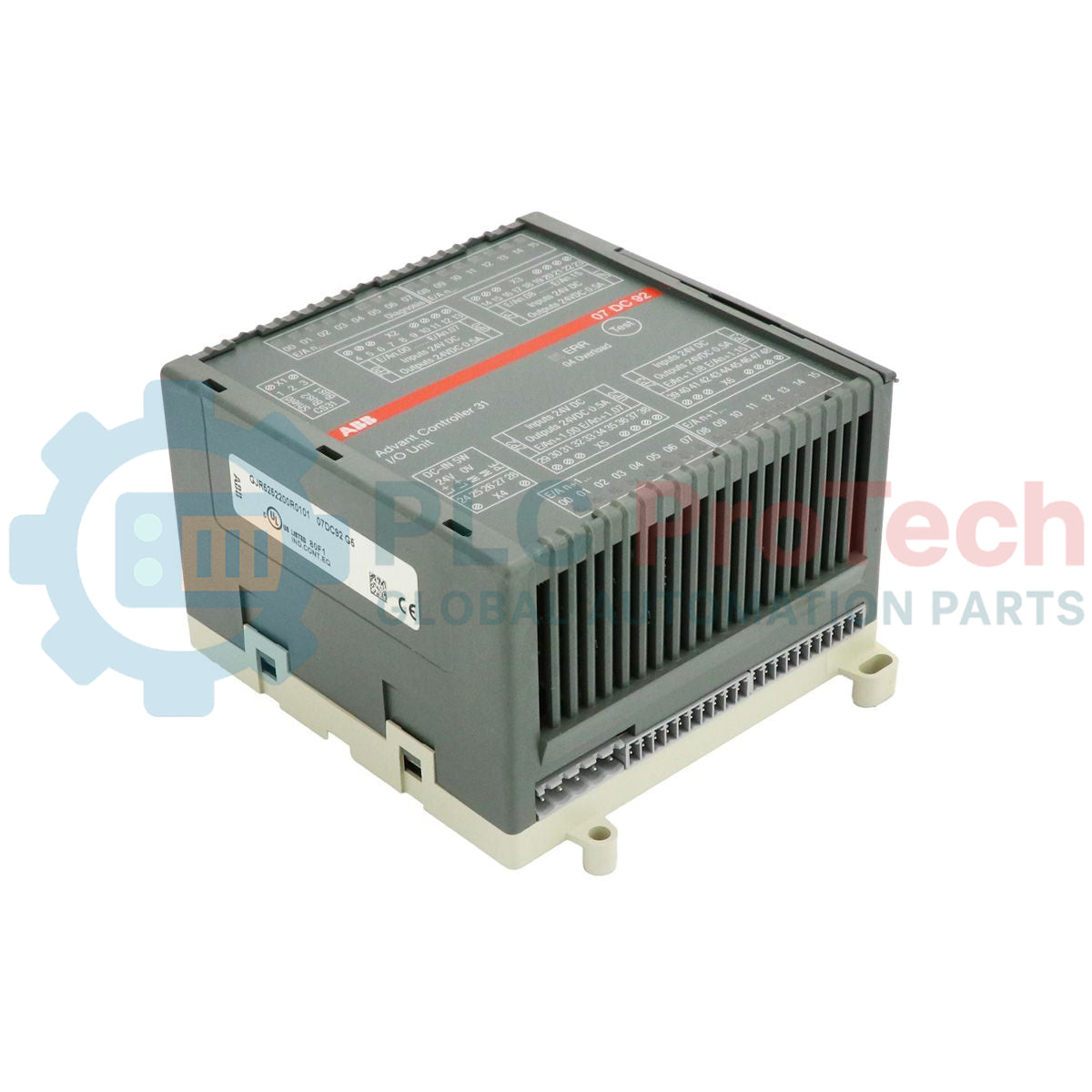

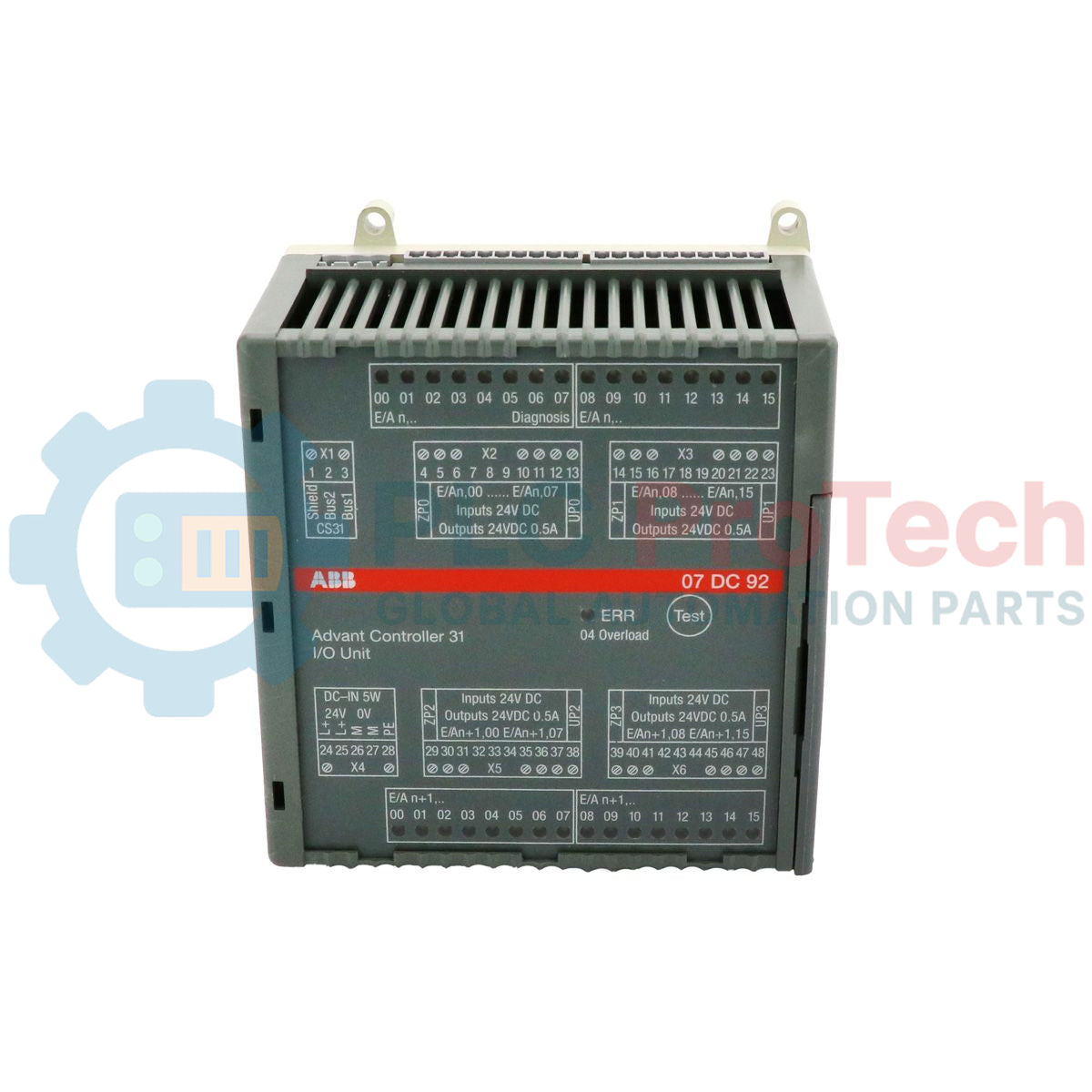

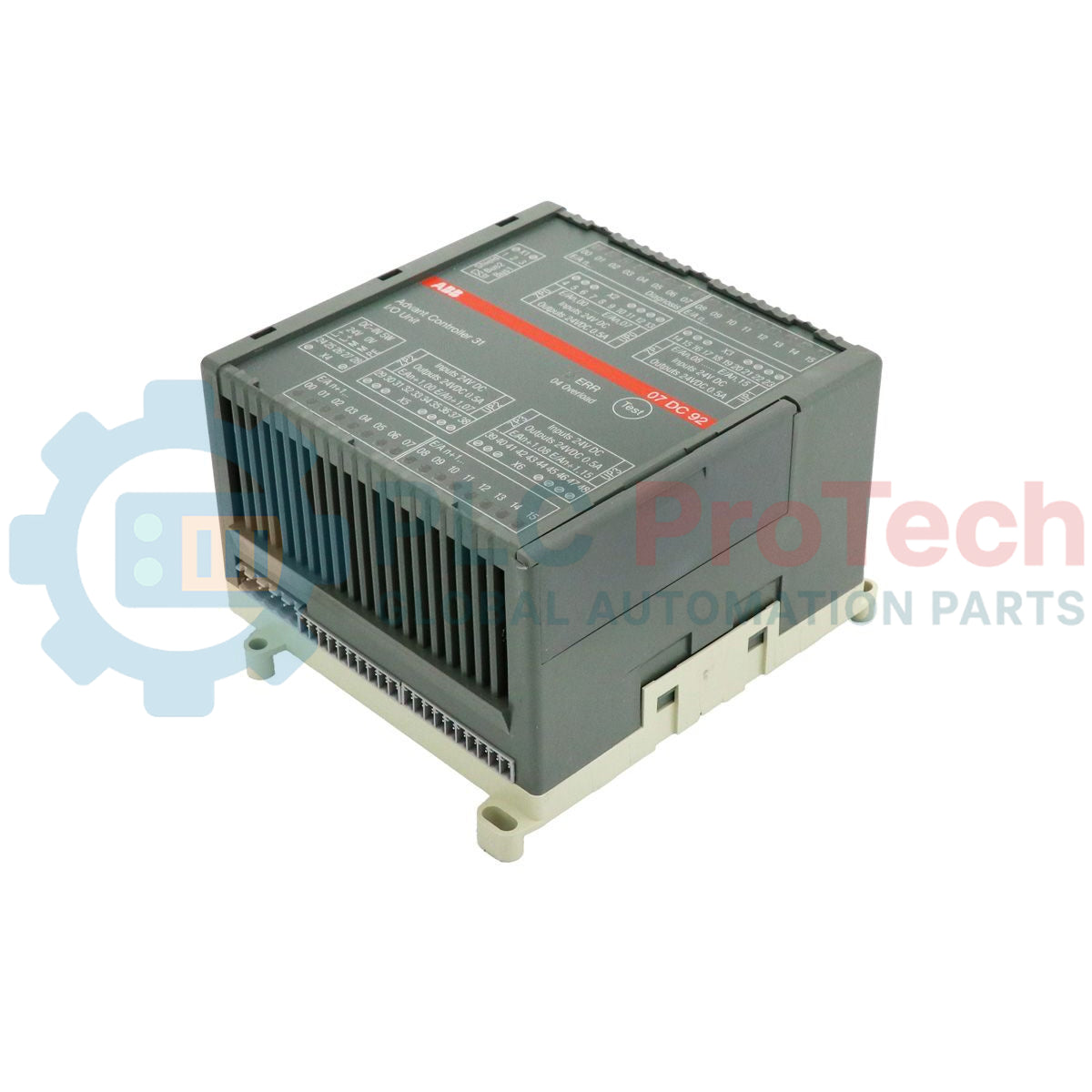

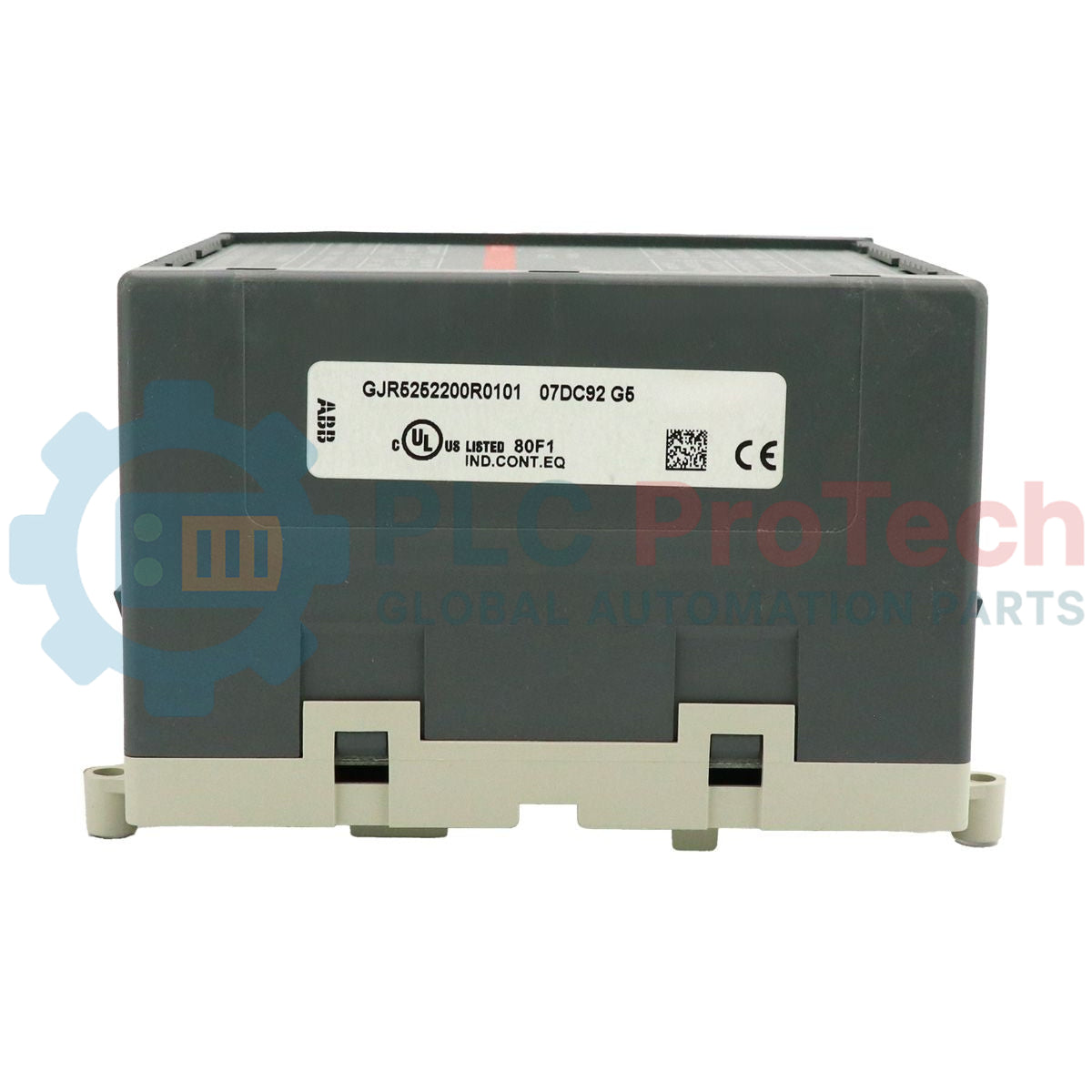

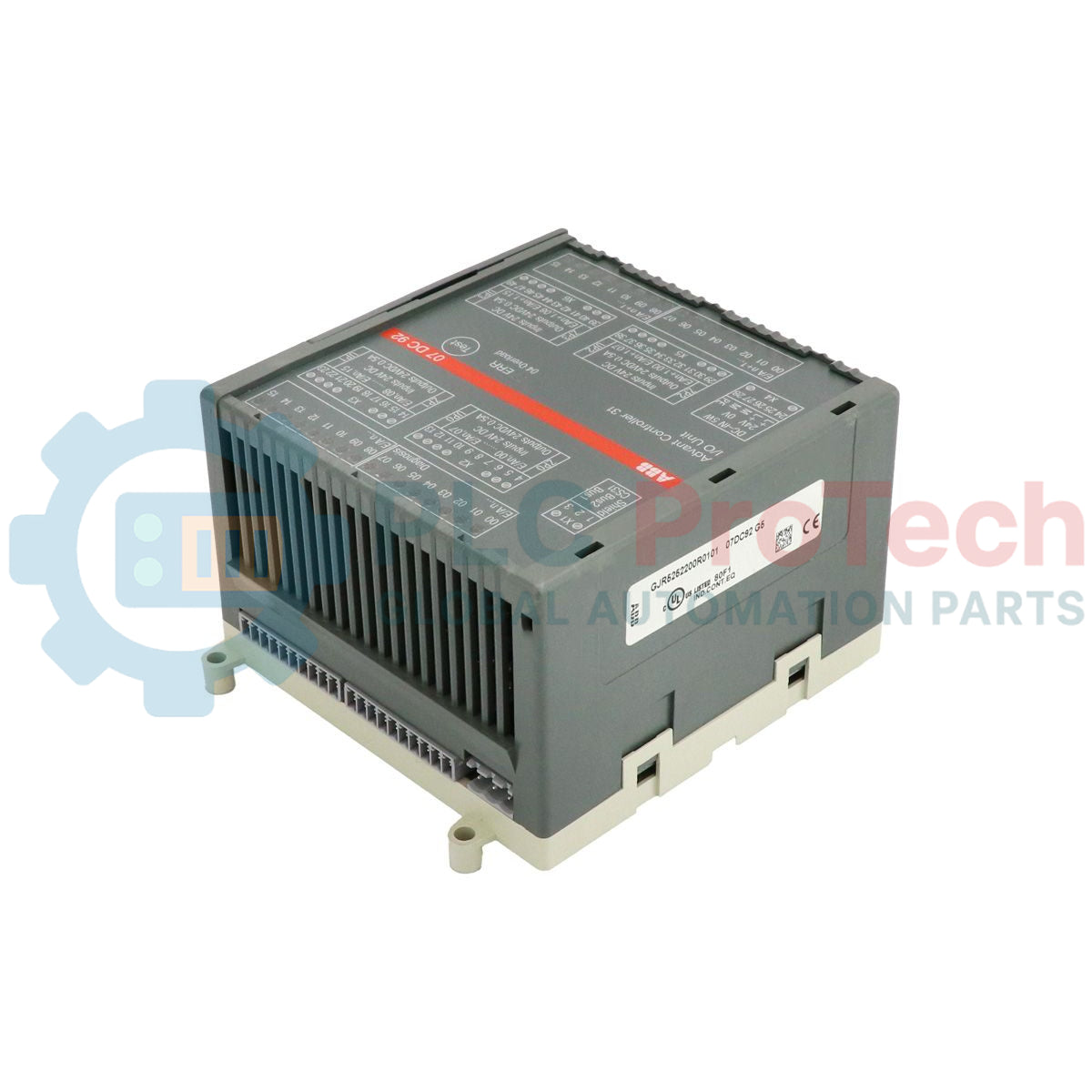

ABB 07 DC 92 GJR5 2522 00 R0101 | AC31 32-Channel Digital I/O Module

ABB 07 DC 92 GJR5 2522 00 R0101 | AC31 32-Channel Digital I/O Module

Only 6 item(s) left in stock
  • Manufacturer: ABB

  • Product No.: GJR5252200R0101

  • Country of origin:Niemcy

  • Product Type: Digital I/O Module

  • Barcode: 85389091

  • Payment: T/T, Western Union

  • Weight: 450g

  • Dimensions: 120 × 140 × 85 mm

  • Shipping port: Xiamen

  • Warranty: 12 months

Ilość
Pokaż kompletne dane

ABB 07 DC 92 (07DC92), order number GJR5 2522 00 R0101, is a remote digital input/output module for the AC31 automation system and CS31 system bus. Unlike fixed I/O modules, all 32 channels can be individually configured by the user program as digital inputs, digital outputs, or re-readable outputs, providing exceptional flexibility for distributed control applications.

The module divides its 32 channels into four electrically isolated groups with eight channels per group. Each output uses transistor technology with a nominal load capacity of 500 mA and incorporates electronic overload and short-circuit protection. Built-in diagnostic functions, channel status LEDs, and communication monitoring assist maintenance personnel during commissioning and fault investigation.

The ABB 07 DC 92 occupies two digital addresses on the CS31 system bus and can also be configured as a dedicated output module when input addresses are not required. This flexibility makes the module suitable for machine automation, process control systems, utility installations, and industrial modernization projects requiring distributed field I/O.

Technical Specifications

Manufacturer ABB
Model 07 DC 92 (07DC92)
Order Number GJR5 2522 00 R0101 (GJR5252200R0101)
Product Type Digital Input / Output Module
System AC31 / Advant Controller 31
Communication Bus CS31 System Bus
Bus Interface EIA RS-485
Number of Configurable Channels 32
Channel Modes Input, Output, Re-readable Output
Channel Groups 4 Groups × 8 Channels
Electrical Isolation Group-to-Group and Bus-to-I/O Isolation
Rated Supply Voltage 24 VDC
Rated Signal Voltage 24 VDC
Maximum Current Consumption 0.15 A (without load)
Maximum Supply Terminal Load 4.0 A
Maximum Power Dissipation 5 W (outputs unloaded), 10 W (outputs loaded)
Reverse Polarity Protection Supported
Operating Temperature 0°C to +55°C
Status Indicators 32 Yellow LEDs + 1 Red Fault LED
Address Setting DIL Switch Under Side Cover

Digital Input Characteristics

Input Channels 32
Input Delay Typical 7 ms
Input Voltage 24 VDC
Signal 0 Range -30 V to +5 V
Signal 1 Range +13 V to +30 V
Input Current at 24 V Typical 7 mA
Reference Potentials ZP0, ZP1, ZP2, ZP3

Digital Output Characteristics

Output Type Transistor Outputs
Output Channels 32
Nominal Output Current 500 mA per Channel
Maximum Group Current 4 A per Group
Leakage Current < 0.5 mA
Overload Protection Integrated
Short-Circuit Protection Integrated
Current Limitation Supported
Overload Threshold Approx. 0.7 A
Automatic Reactivation After Short-Circuit or Overload Removal
Inductive Load Protection Internal Varistor

Installation & Commissioning Guide

Field commissioning of the ABB 07 DC 92 usually begins with verification of the DIL address switch, CS31 bus wiring, and 24 VDC power connections. The module reads its address configuration only during power-up initialization, therefore any address change requires a restart before it becomes effective.

Install the module vertically with the connectors facing upward and downward. Natural convection cooling must remain unobstructed by cable ducts, power supplies, or other cabinet components.

Mounting Method DIN EN 50022 Rail or 4 × M4 Screws
Installation Position Vertical
Cooling Method Natural Convection
Width × Height × Depth 120 × 140 × 85 mm
Weight 450 g

During startup all LEDs illuminate briefly while the module performs initialization. If the CS31 bus is not operating correctly, the red fault LED flashes continuously. Before replacing the module, engineers should verify address settings, bus polarity, controller configuration, and cable continuity.

If an overload or short circuit occurs, the affected output channel is automatically switched off by the protection circuitry. The corresponding channel LED flashes until the fault condition is removed and the output is reactivated.

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

ABB 07 DC 92 GJR5 2522 00 R0101 | AC31 32-Channel Digital I/O Module

Why does the red diagnostic LED continue flashing even though the module has power?

The module has completed its startup sequence but has not established normal communication on the CS31 bus. In most cases the cause is an incorrect station address, communication wiring fault, controller configuration issue, or loss of bus continuity.

Why are several channels reporting faults when only one field device appears to be defective?

The output circuits are arranged in protected groups. A short circuit or overload on a single field device can trigger protection for the affected group, causing multiple channels to report a fault condition until the source of the problem is removed.

What should be checked before replacing a suspected faulty module?

Before replacing the module, verify the 24 VDC supply, CS31 communication status, field wiring integrity, terminal tightness, and controller diagnostics. Communication and wiring issues are more common than actual hardware failure.

Why does an output channel switch off unexpectedly during normal operation?

An output may be automatically disconnected if the load current exceeds the protection threshold or if a short circuit is detected. The protection circuitry prevents damage to the output stage and attempts recovery after the fault condition is removed.

Why is an output LED active while the connected device remains de-energized?

The LED only indicates the output command state. Open field wiring, damaged loads, blown protection devices, voltage drops, or incorrect terminal assignments can prevent the connected device from operating even when the output is commanded ON.

Do address switch changes become effective immediately?

No. The module reads its address configuration during startup. Any change to the DIL switch setting requires a restart before the new address becomes active on the CS31 network.

Can the module operate with both input and output channels configured at the same time?

Yes. Each channel can be individually assigned by the application program. Input, output, and re-readable output functions can coexist within the same module according to system requirements.

What is the most common cause of intermittent I/O faults in service?

Intermittent faults are typically associated with loose terminals, unstable power supplies, damaged field cables, excessive vibration, moisture ingress, or poor communication connections rather than permanent module failure.

Can a replacement module be installed without modifying the AC31 application program?

In most systems, yes. The module does not store application-specific channel assignments. After replacement, engineers should verify the address setting, communication status, and field wiring before returning the system to operation.

Why do outputs repeatedly switch OFF and then recover automatically?

This behavior usually indicates that the electronic protection circuit is responding to an overload or short-circuit condition. The module removes power from the affected output and periodically attempts to restore operation until the fault is cleared.

What should be investigated if communication is lost after maintenance work?

Address settings, CS31 bus polarity, terminal connections, shield continuity, and recently modified field wiring should be inspected first. Most post-maintenance communication problems are related to wiring changes rather than controller or module failure.

Can the module be used as a dedicated output station?

Yes. The 07 DC 92 can be configured as an output-only station when input processing is not required, allowing available address resources on the CS31 network to be used more efficiently.
