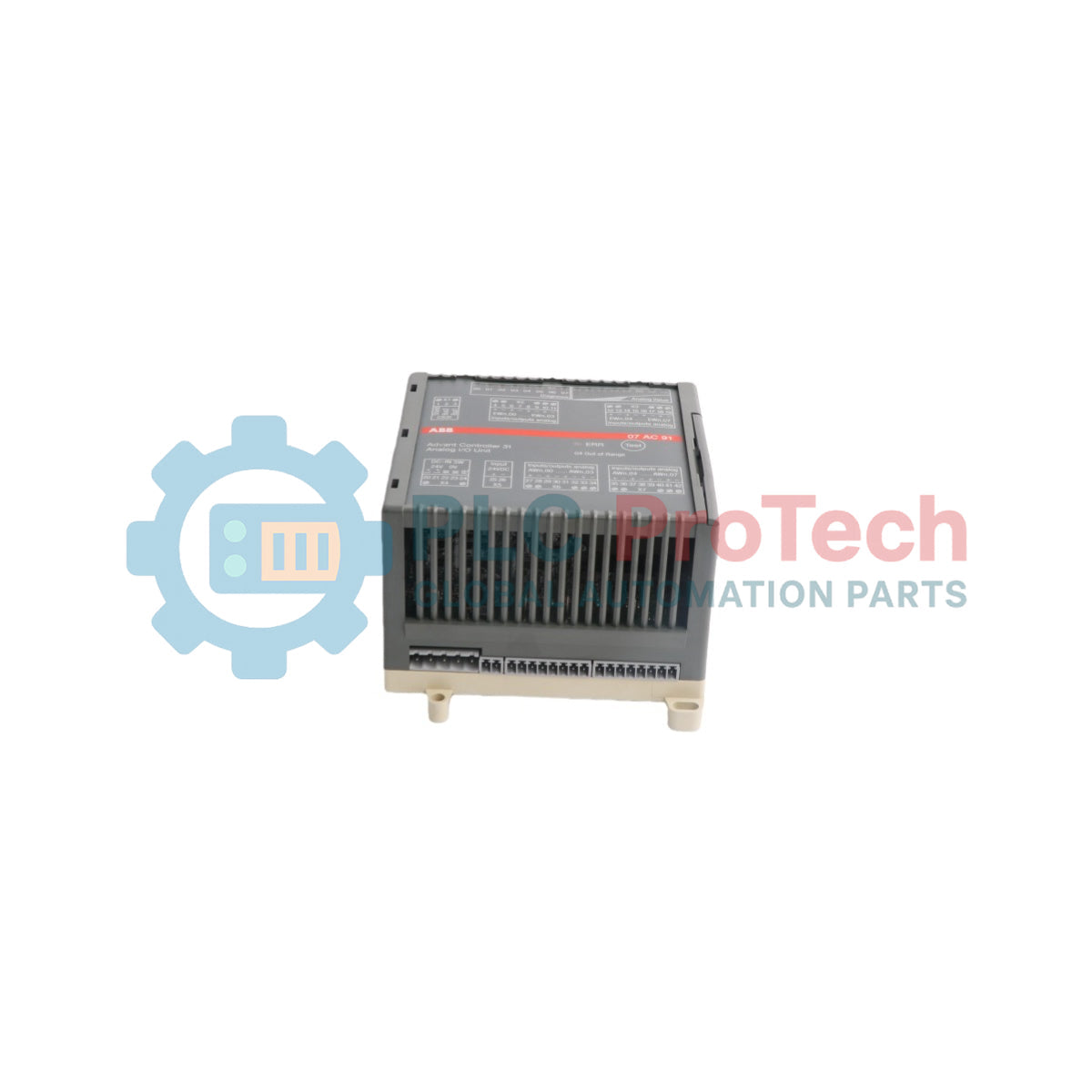

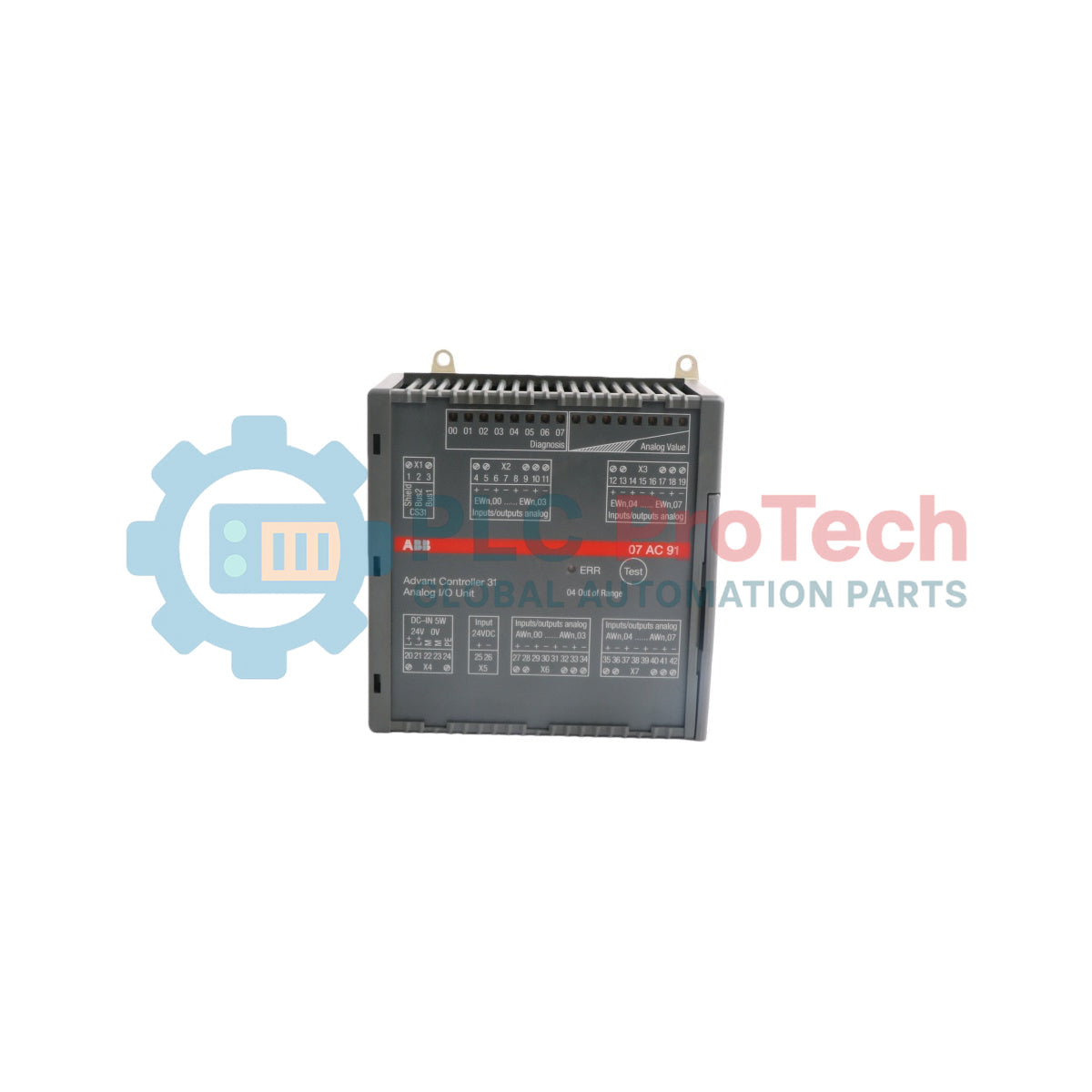

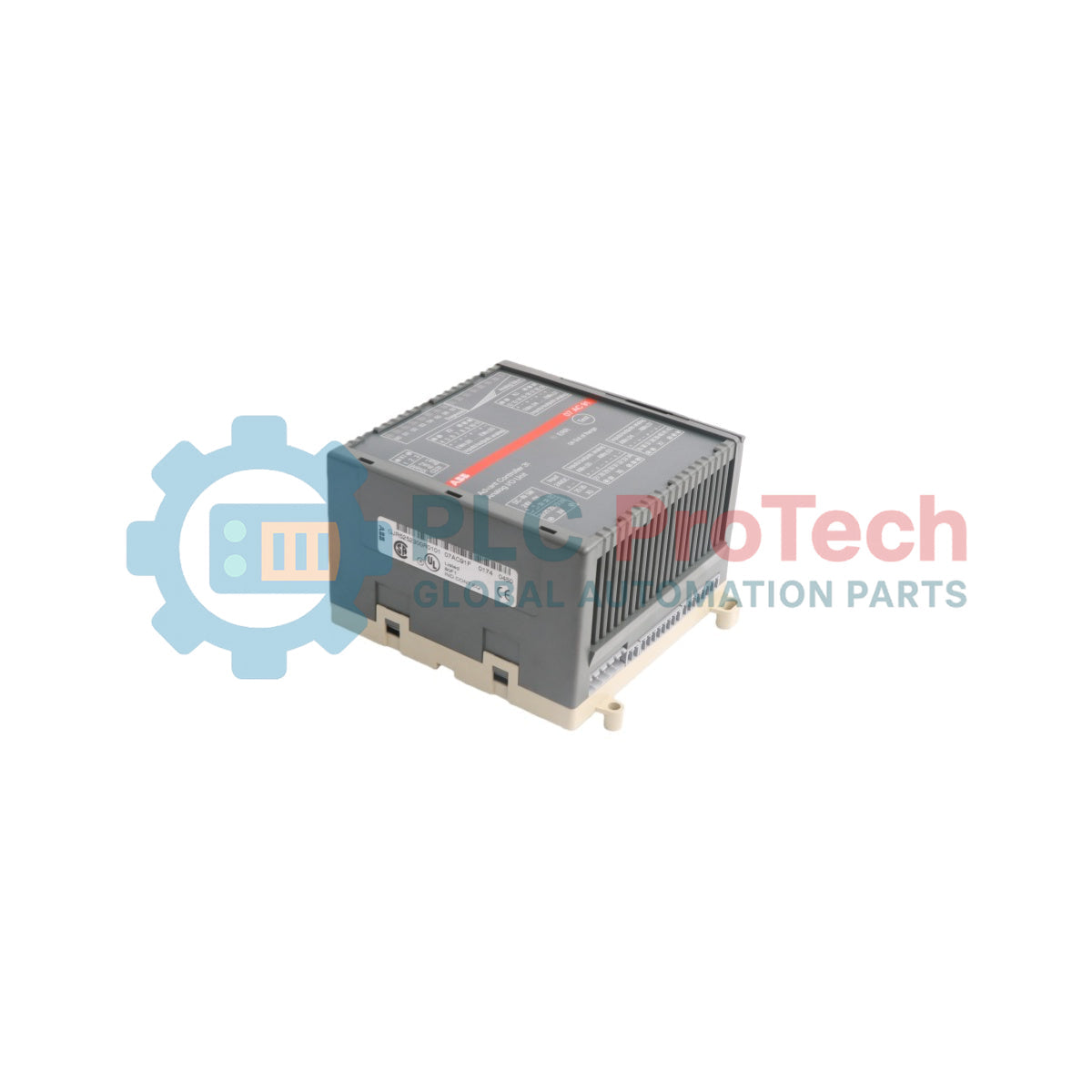

ABB 07AC91 GJR5252300R0101 Advant Controller 31 Analog I/O Module

Description

The 07 AC 91 (Order Number: GJR5 2523 00 R0101), also widely searched under the compact model designations 07AC91 and GJR5252300R0101, functions as a combined multichannel analog processing interface for the Advant Controller 31 (AC31) automation core. This hardware enables simultaneous acquisition of high-resolution field telemetry alongside continuous control output signal modulation over localized regulatory loops.

Operating across a dedicated CS31 system bus architecture using physical EIA RS-485 signaling properties, the hardware coordinates either 8 or 16 channels depending on the selected operating resolution mode (12-bit or 8-bit). A unique feature is the inclusion of integrated self-protecting current shunts that monitor current loops and systematically drop field overloads to prevent hardware circuit damage. Additionally, an external binary enabling input acts as a hardwired safety interlock, ensuring all associated analog output channels collapse immediately to zero if the driving interlock signal drops out.

Features

• Adaptable architecture processing either 8 channels under 12-bit operating mode or up to 16 channels under 8-bit operating mode.
• Individual channel software selection in 12-bit operation accommodating plus or minus 10 V ranges or 0 to 20 mA current loops.
• Integrates an independent hardware-level binary enabling input (24V) mandatory for active execution of the analog output stages.
• Current input nodes incorporate built-in self-protecting shunts with 1-second auto-recovery sampling increments during overcurrent faults.
• Populates a localized visual monitoring interface consisting of 17 diagnostic LEDs for field loop and status reporting.

Applications

• Multi-point continuous feedback and actuator control loops within wastewater facilities, printing plant machinery, and processing infrastructure.
• Distributed analog signal marshaling and diagnostic multiplexing back to a central Advant Controller 31 processing hub.
• Failsafe control of proportional dosing pumps and variable frequency drive arrays requiring separate hardware interlock authorization loops.

Ordering Information

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Enabling Voltage Signal Routing: Wire a permanent 1 signal (+13 to +30 V) across terminals 25 (+) and 26 (-) to permit output activation. A 0 signal (-30 to +5 V) forces voltage loops to 0 V and current loops to 0 mA automatically.
• Noise Mitigation for Unused Inputs: Bridge all unused voltage input terminals directly to improve overall field noise immunity. Unused current inputs maintain low internal impedance properties and can safely remain open.
• Cabinet Ventilation Alignment: Affix the housing exclusively in a vertical position inside the panel layout, ensuring all terminal connectors point straight up and down. Maintain clear spacing above and below to prevent obstruction of natural convection cooling.
• Shield Continuity Policies: Limit field analog runs to a maximum of 100 m using two-core shielded cable above 0.5 mm2, grounding the shields at a single clean instrumentation earth point.

FAQ

• How are network station addresses configured on the 07 AC 91 / 07AC91 module?

  The field identification address and operating mode parameters are adjusted using a manual hardware coding switch block positioned underneath the protective plastic clip cover on the right side of the module housing.

• What is the functional response of the current loop if a field instrument encounters a short-circuit fault?

  The module has an embedded self-protecting current feature. If loop currents spike beyond safe thresholds, the internal measuring shunt is cut off and records an overflow value. The unit tests the line every 1 second, restoring normal tracking once the current falls within limits.

• Is there individual electrical isolation between the discrete analog signal lines?

  No, all input and output channels are non-isolated from one another and share a common electrical node designated as AGND. The CS31 bus interface and the single binary input are, however, fully isolated from the remaining internal circuitry.

• How are signal values mapped inside the controller application logic during 12-bit operation?

  The full scale scale from -100% to +100% relates directly to hex codes ranging from 8008H through 0000H up to 7FF8H, which corresponds to decimal integers -32760 to 32760.
