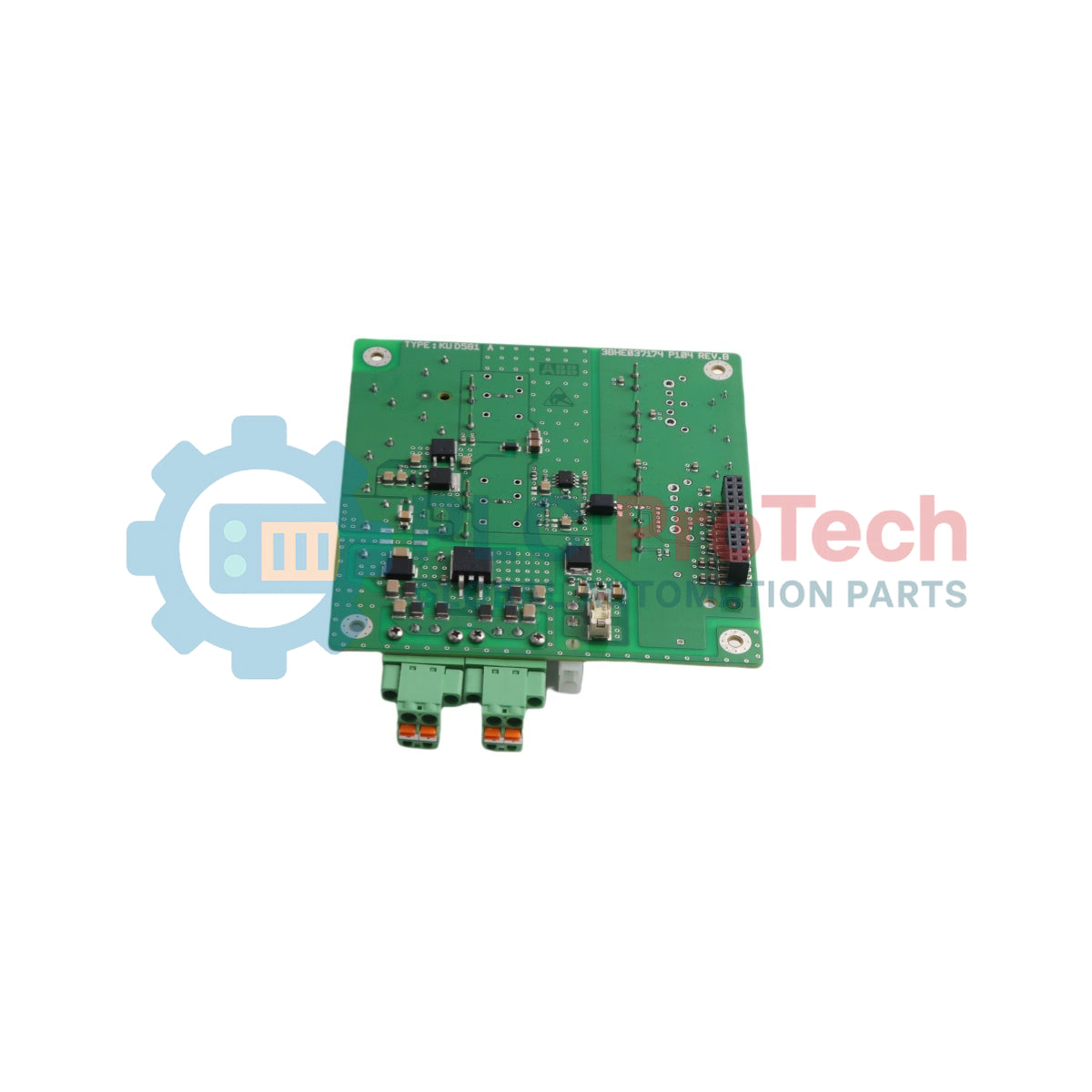

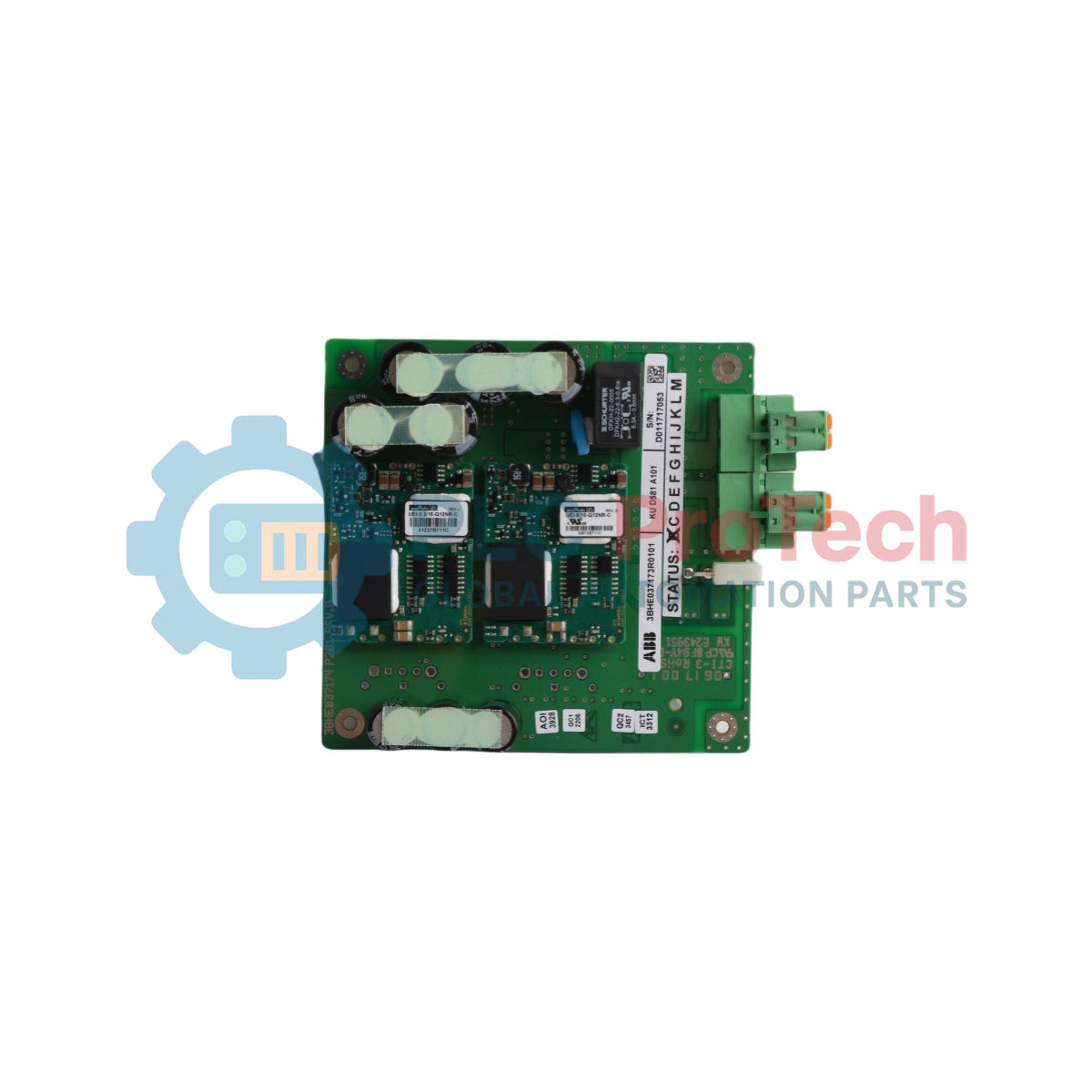

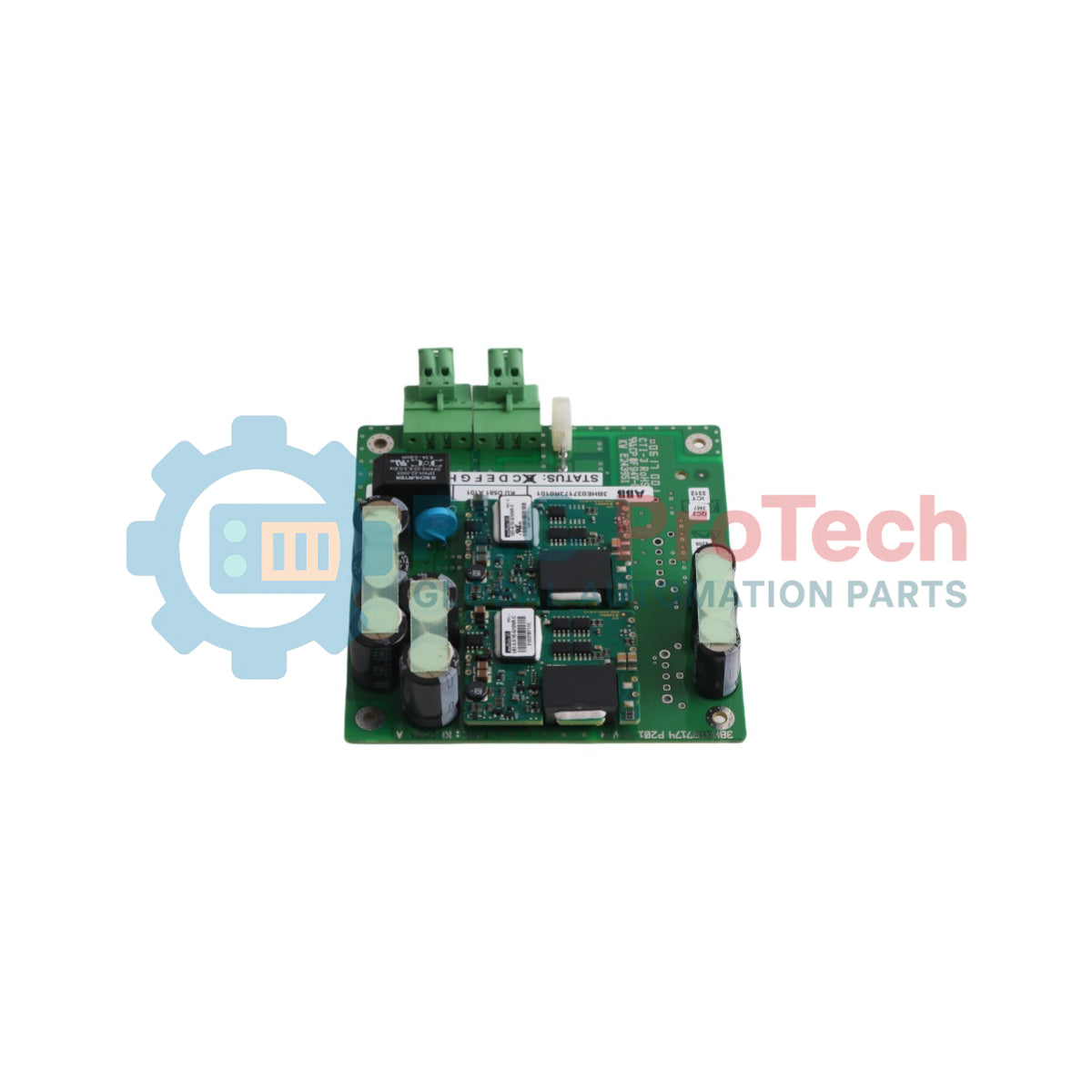

ABB 3BHE037173R0101 KUD581 A101 ACS 1000 DCS Controller Board

SKU 3BHE037173R0101 KUD581 A101

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ABB
  • Product No.: 3BHE037173R0101 KUD581 A101
  • Origin Sweden
  • Product Type: Control board
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.2 kg
  • Dimensions: 110 x 135 x 30 mm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

ACS 1000 Control Board
Quantity
Call sales Contact

Product Description

Description

The ABB 3BHE037173R0101 KUD581 A101 is a high-performance industrial controller board designed specifically for integration within ABB's ACS 1000 drive system architecture and broader DCS networks. Utilizing digital control technology, this board handles signal processing and control tasks to ensure optimized efficiency across complex industrial operations.

Built to sustain continuous operation in harsh industrial environments, the module tolerates broad temperature swings and demanding ambient conditions. Its compact form factor makes it ideal for cabinet installations with space constraints, while onboard RS-485 and Ethernet interfaces enable communication with networked machinery and supervisory systems.

Features

  • Advanced Digital Processing: Delivers real-time, precise control over connected machinery and process loops.
  • Network Integration: Features built-in Ethernet and RS-485 interfaces to support DCS networking and remote monitoring.
  • Industrial-Grade Reliability: Engineered to maintain consistent performance across extreme hot and cold operating environments.
  • Compact Physical Profile: Small-footprint card design allows easy installation into space-restricted control cabinets.
  • Safety & Regulatory Compliance: Built in accordance with established safety standards including IEC 61508 / ISO 61508.

Applications

  • Drive System Control: Primary control module for ABB ACS 1000 medium voltage drive systems.
  • Process Automation: Distributed Control System (DCS) node management across manufacturing, energy, and process plants.
  • Network Communication: Serves as a communication and routing link using standard RS-485 and Ethernet industrial protocols.

Technical Specifications

Parameter Specification
Manufacturer ABB
Model / Catalog Number 3BHE037173R0101 KUD581 A101
Module Type Controller Board
System / Drive Range ACS 1000 System / DCS
Communication Interfaces Ethernet, RS-485
Operational Lifecycle Status Active
Dimensions 110 x 135 x 30 mm (11 x 13.5 x 3 cm)
Net Weight 0.2 kg
Country of Origin Sweden
Safety Compliance Designed to IEC 61508 / ISO 61508 standards

Installation Guidelines

  1. Safety Isolation: Fully de-energize the host ACS 1000 drive chassis or control cabinet and wait for internal DC bus capacitors to discharge prior to installation.
  2. ESD Protection: Always wear a grounded electrostatic discharge (ESD) wrist strap when handling the exposed printed circuit board.
  3. Mounting: Carefully insert the board into its dedicated slot, ensuring proper alignment with backplane connectors and guide rails.
  4. Communication Wiring: Connect Ethernet and RS-485 lines using shielded twisted-pair cables, routing them away from high-voltage motor or supply cables.
  5. System Re-commissioning: Reapply power to the enclosure and verify status indicators and communication link health via your DCS network software.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What system is the ABB 3BHE037173R0101 KUD581 A101 designed for?
It is designed for use within ABB ACS 1000 drive systems and broader DCS (Distributed Control System) automation network setups.
What communication interfaces are supported on the KUD581 A101 board?
The board features onboard Ethernet and RS-485 interfaces for system networking and remote data exchange.
What are the physical dimensions and weight of the 3BHE037173R0101 module?
The module measures 11 x 13.5 x 3 cm (110 x 135 x 30 mm) and has a net weight of 0.2 kg.
Which safety standards apply to this control board?
The board is designed to meet functional safety standards including IEC 61508 and ISO 61508.
