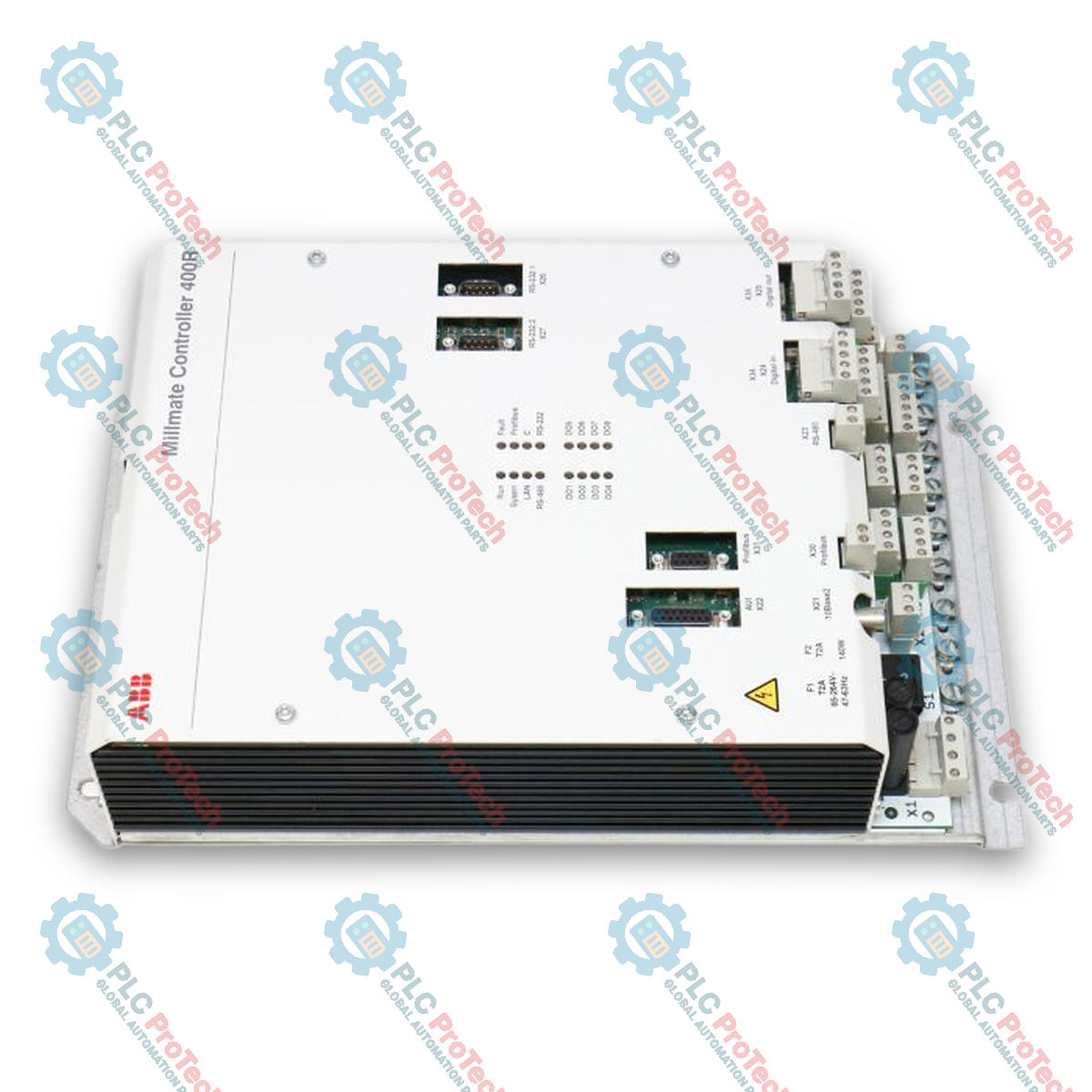

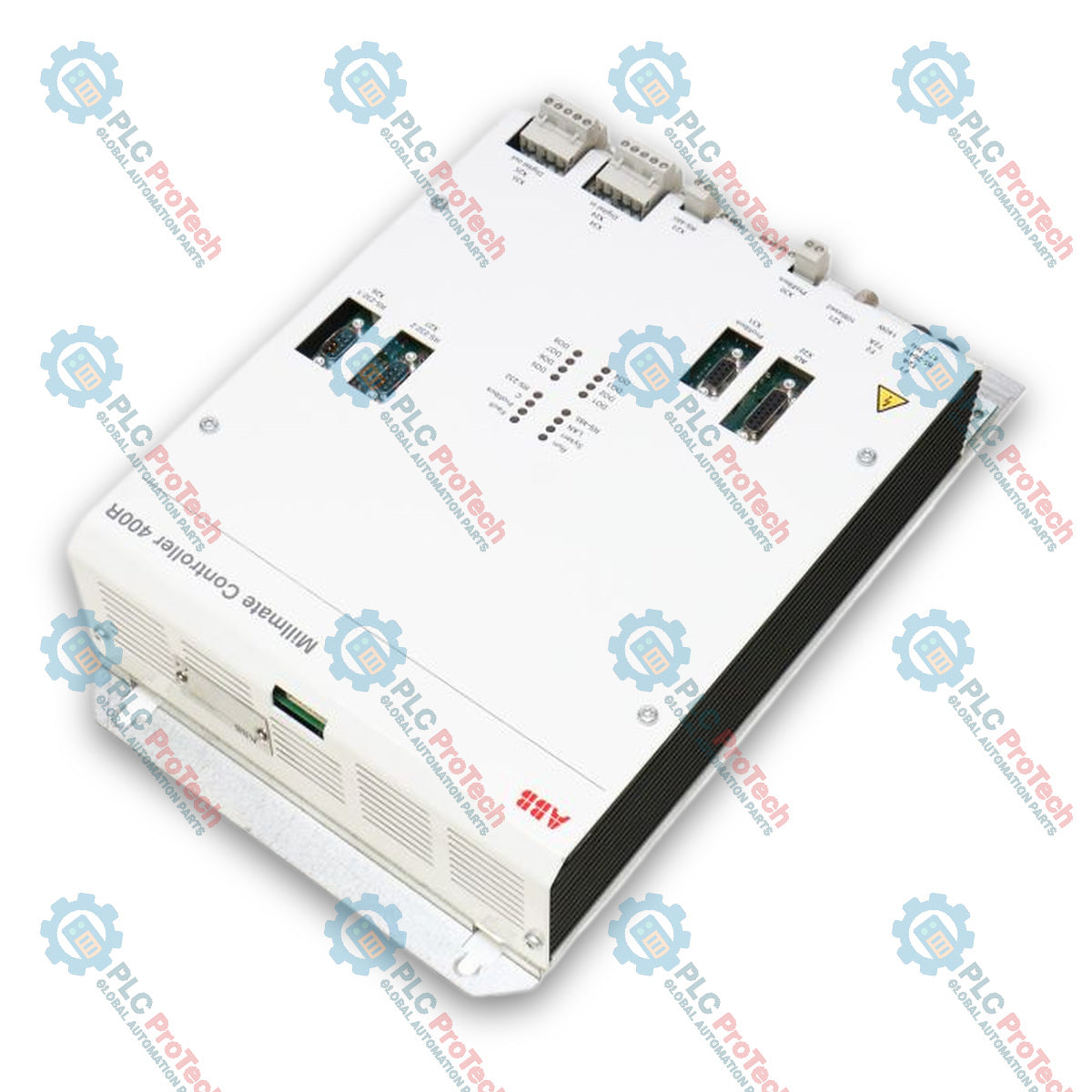

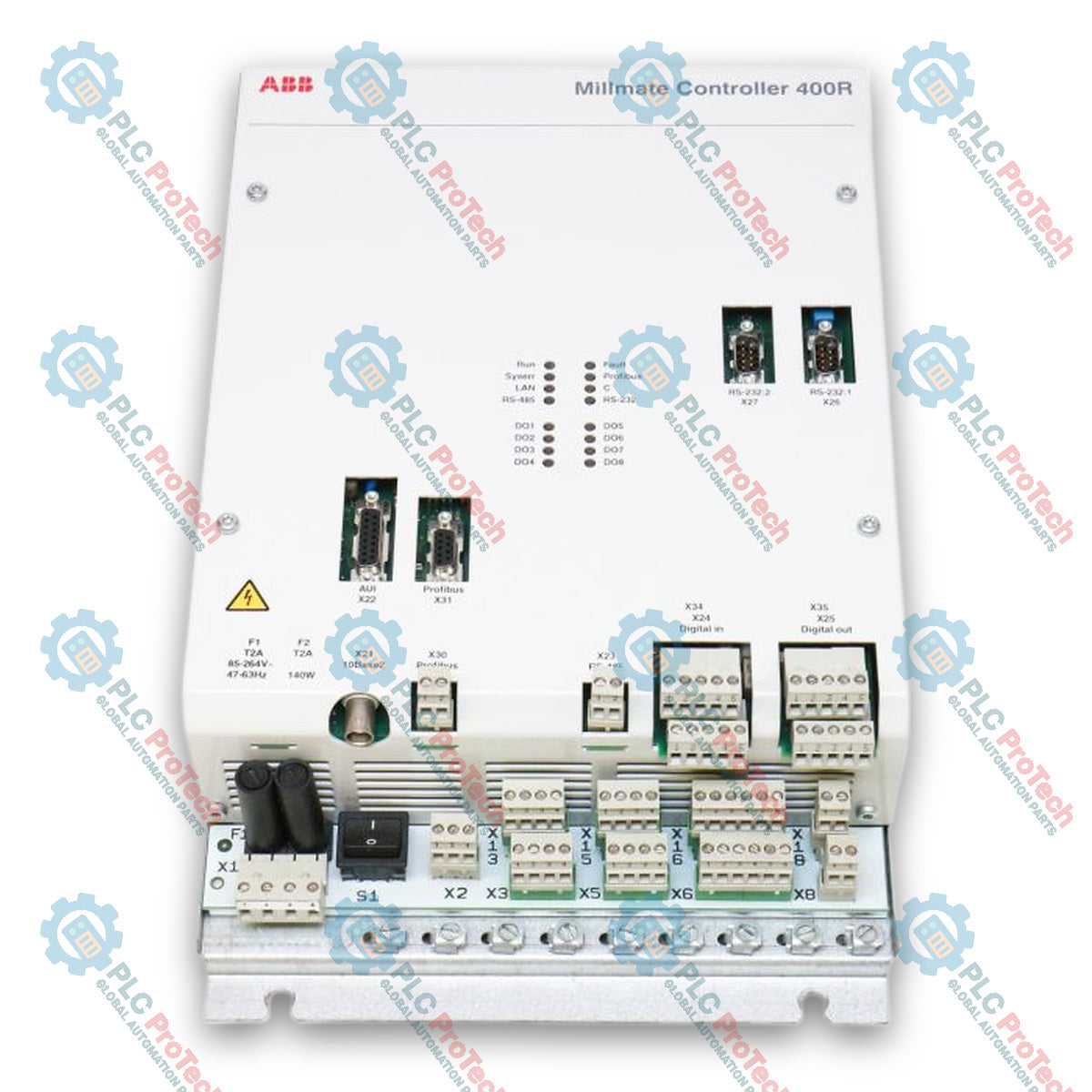

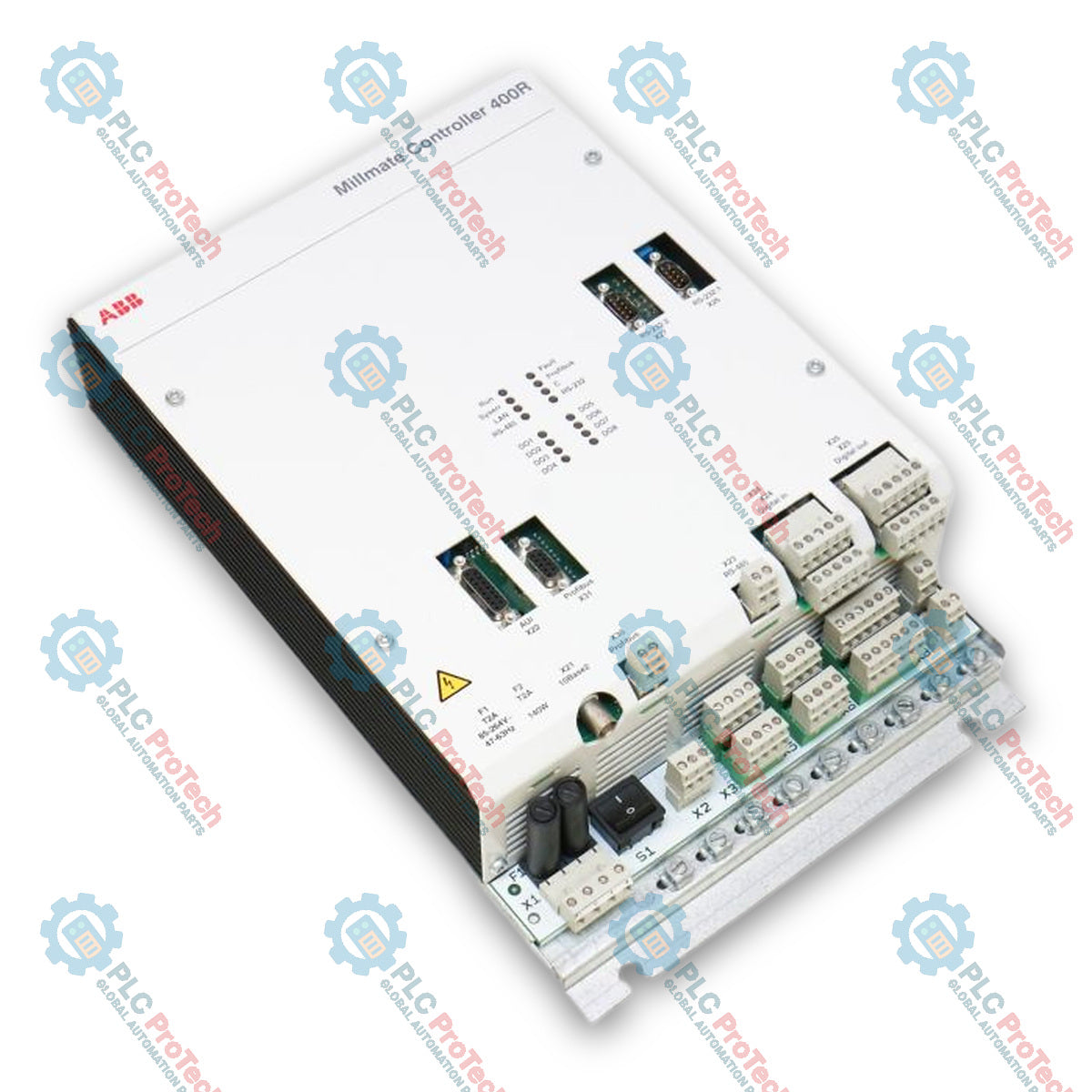

The ABB 3BSE024388R1 PFXA 401 is a control unit used in ABB force measurement, strip tension, and strip position measurement systems.
The PFXA 401 provides two analog inputs and supports angle compensation for compatible ABB load cells. ABB documents compatibility with QGPR 102/104 load cells up to 2 MN and PFBL 101/141 load cells up to 2 x 400 kN.
The control unit can also interface with two PMSG 123 or PMSG 125 edge sensors. This allows the PFXA 401 to participate in strip width and position measurement applications as well as force and tension measurement systems.
The unit incorporates dedicated mains, synchronization, analog output, digital signal, and sensor connection terminals. Its ABB product record also identifies an internal lithium battery and a 2 A, 250 V fuse.
ABB PFXA 401 control unit
Product ID 3BSE024388R1
Two analog inputs
Angle compensation for supported load-cell configurations
Compatible with QGPR 102/104 load cells up to 2 MN
Compatible with PFBL 101/141 load cells up to 2 x 400 kN
Interface capability for two PMSG 123 or PMSG 125 edge sensors
Dedicated analog output connections
Dedicated digital signal connections
Mains and synchronization terminals
Replaceable lithium battery identified by ABB
2 A, 250 V fuse identified by ABB
Used in ABB force, tension, and strip position measurement systems
Strip and web tension measurement
Roll force measurement
Strip width and position measurement
Load-cell signal processing
Edge sensor integration
Maintenance of ABB PFXA401 electronics
Replacement of existing 3BSE024388R1 control units
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product ID | 3BSE024388R1 |
| Type Designation | PFXA 401 |
| Product Type | Control Unit |
| Analog Inputs | 2 |
| QGPR Load Cell Compatibility | QGPR 102 / 104 |
| Maximum QGPR Load | 2 MN |
| PFBL Load Cell Compatibility | PFBL 101 / 141 |
| Maximum PFBL Configuration | 2 x 400 kN |
| Edge Sensor Compatibility | PMSG 123 / 125 |
| Supported Edge Sensors | 2 |
| Lithium Battery | 3BSC790006R1 |
| Fuse | 2 A, 250 V |
| Fuse Part Number | 3BSC770029R17 |
| Product Net Weight | 5 kg |
| Gross Weight | 5 kg |
| Gross Volume | 8 dm3 |
| Customs Tariff Number | 85389091 |
| Part Type | New |
| Interface | Function |
|---|---|
| X1 | Mains connection, 4-pole disconnectable terminal |
| X2 | Sync, 3-pole disconnectable terminal |
| X3 / X13 / X5 / X15 | 4-pole disconnectable terminals |
| X8 / X18 / X23 / X30 | 2-pole disconnectable terminals |
| X6 / X16 | Analog output, 6-pole disconnectable terminals |
| X24 / X25 / X34 / X35 | Digital signal, 5-pole disconnectable terminals |
| Component | ABB Reference |
|---|---|
| Lithium Battery | 3BSC790006R1 |
| Fuse | 3BSC770029R17 |
| X1 Terminal | 2664197-4 |
| X2 Terminal | 2664177-3 |
| X3 / X13 / X5 / X15 Terminal | 2664177-4 |
| X8 / X18 / X23 / X30 Terminal | 2664177-2 |
| X6 / X16 Analog Output Terminal | 2662177-6 |
| X24 / X25 / X34 / X35 Digital Signal Terminal | 2664163-5 |
Verify the complete 3BSE024388R1 / PFXA 401 identification before replacement.
Record existing terminal assignments before removing the installed unit.
Confirm the connected load-cell type and measurement range.
Verify whether QGPR, PFBL, or PMSG sensors are used in the existing system.
Preserve analog output and digital signal wiring during replacement.
Inspect the battery and fuse condition before commissioning.
Confirm sensor readings and angle compensation after installation.
Verify the associated tension, force, or strip-position measurement function before normal operation.
Match both Product ID 3BSE024388R1 and type designation PFXA 401.
Confirm the installed load cells and edge sensors before substitution.
Preserve existing measurement and compensation settings where applicable.
Do not assume terminal assignments beyond those explicitly identified in ABB documentation.
