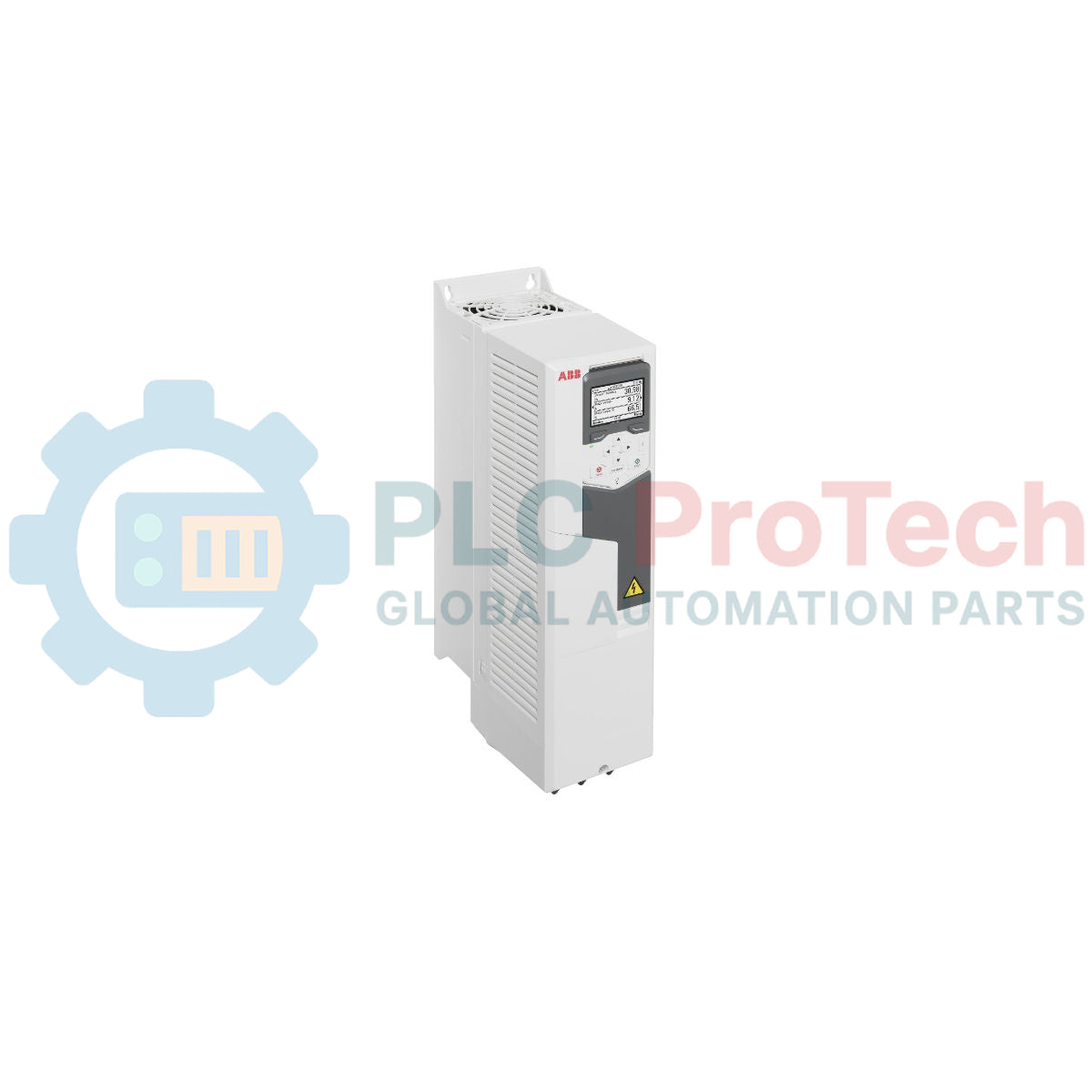

ABB ACS580-01-018A-4 General Purpose Wall‑Mounted AC Drive

Product Overview

The ACS580-01-018A-4 is a robust wall-mounted all-compatible AC drive engineered to streamline process control across diverse industrial landscapes, including water wastewater treatment, food and beverage processing, and heavy material handling. Rated for 7.5 kW (10 hp) at a nominal current of 17 A, this frequency converter serves as a critical component in stabilizing motor performance for pumps, fans, and conveyors. By integrating a built-in choke and EMC filter as standard, the ACS580-01-018A-4 minimizes harmonic distortion and electrical interference, significantly reducing system downtime and extending the operational lifecycle of connected rotating equipment in mission-critical environments.

Technical Specifications

Technical FAQs

Can this drive be used for both constant and variable torque applications? Yes, the ACS580 firmware includes pre-configured macros for both variable torque (pumps/fans) and constant torque (conveyors/mixers) to ensure optimal motor control and energy efficiency.

Does the ACS580-01-018A-4 require an external reactor to reduce harmonics? No, this model features a built-in swinging choke technology that provides superior harmonic reduction at both partial and full loads, eliminating the need for bulky external line reactors.

How is the drive programmed if a control panel is not available? While the drive is typically supplied with an assistant control panel, it can also be configured via the Drive Composer PC tool through the built-in USB port on the panel or via the optional Bluetooth control panel using a mobile device.

Engineering & Installation Guide

• Heat Dissipation and Clearances: For wall-mounted R2 frame installations, maintain a minimum vertical clearance of 200 mm above and below the unit. Ensure the mounting surface is non-flammable and capable of supporting the 6.6 kg weight to prevent vibration-induced fatigue on internal power terminals.

• Cabling and Grounding: Utilize symmetrical shielded motor cables to comply with EMC standards. Ensure the cable shield is grounded 360 degrees at both the drive end and the motor end to mitigate high-frequency common-mode currents that can lead to premature motor bearing failure.

• Safe Torque Off (STO) Integration: The drive features a hardware-based STO function (SIL 3 / PL e). When wiring the STO circuit, use twisted pair cabling and ensure both channels are switched simultaneously to prevent fault lockouts in the drive's diagnostic register.
