Description

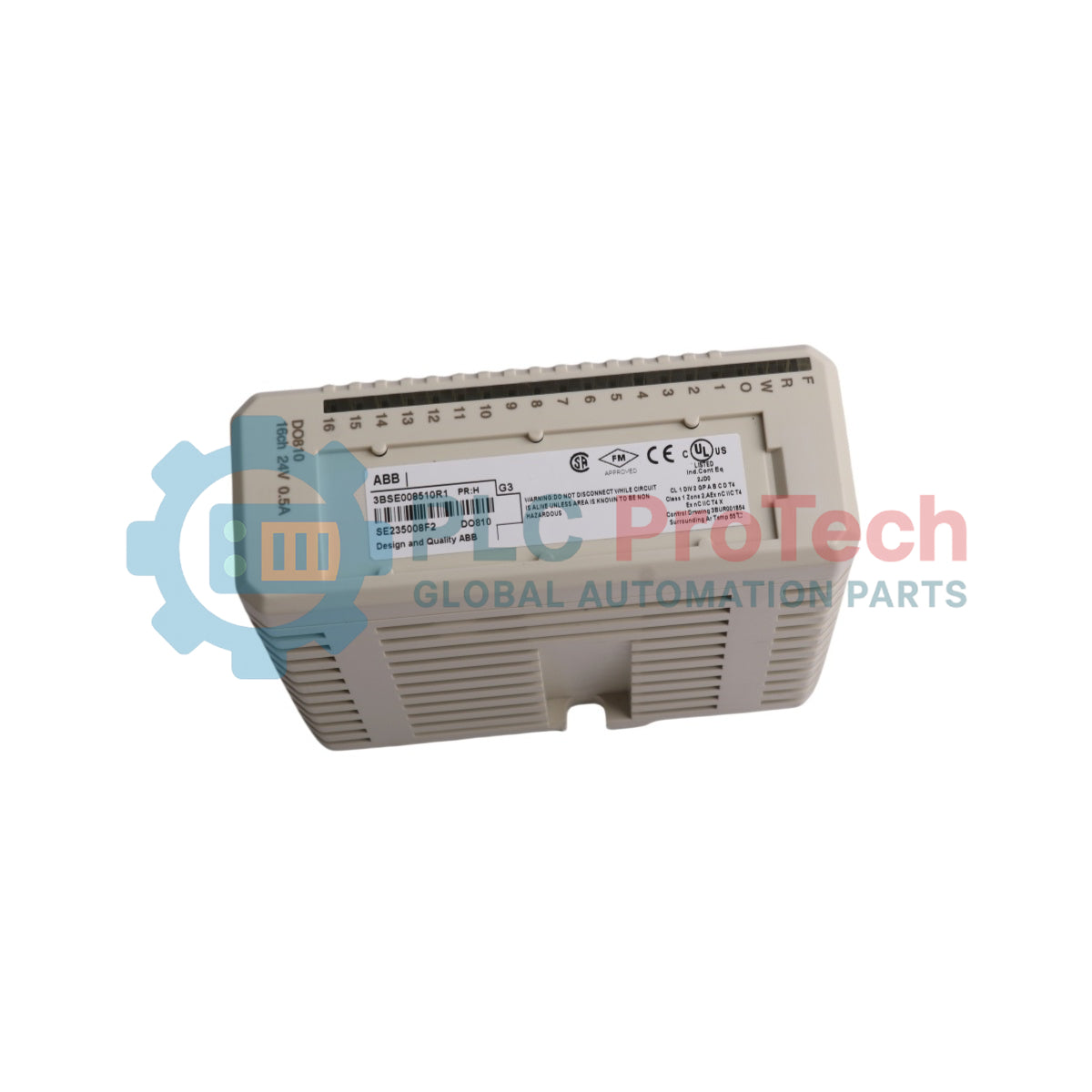

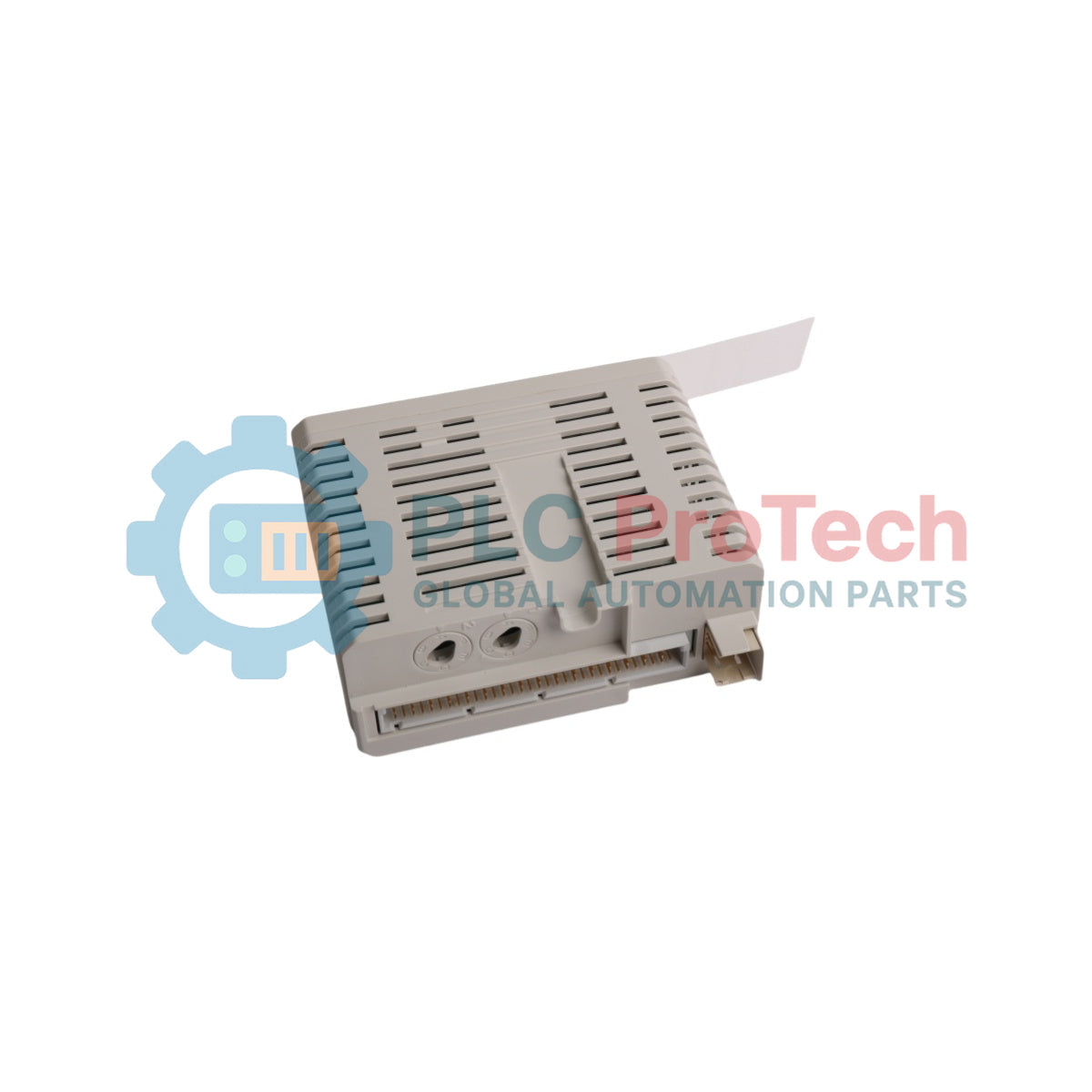

The ABB DO810 3BSE008510R1 is a 16-channel digital output module designed specifically for deployment within the ABB S800 I/O distributed control system architecture. This module serves as a critical interface between controller logic and field actuators, providing precise switching control for industrial automation processes. Operating within a 24 V DC nominal supply range, the DO810 facilitates reliable command execution for valves, contactors, and indicator lamps in process and discrete manufacturing environments.

Engineering features include two isolated channel groups of eight outputs each, providing independent supervision and fault isolation. The module integrates comprehensive diagnostics, including optical channel isolation, short-circuit protection, and process voltage supervision. Communication with the parent controller and system redundancy structures is handled efficiently via the ModuleBus interface, ensuring continuous operational visibility and rapid fault detection during abnormal plant conditions.

Features

• 16 digital output channels configured in two isolated groups of 8
• Nominal output voltage range of 24 V DC (10 to 30 V DC limits)
• Maximum continuous output current of 0.5 A per channel
• Short-circuit and thermal overload protection per channel
• Optical isolation between field signals and internal system logic
• Built-in inductive load suppression and EMC filtering
• ModuleBus communication interface for controller connectivity and diagnostics
• Front-panel LED indicators for channel status, error states, and power supervision

Applications

• Distributed Control Systems (DCS)
• Process manufacturing and chemical plants
• Power generation and distribution facilities
• Oil and gas upstream and downstream automation
• Discrete machinery and factory automation control panels

Technical Specifications

General

Electrical

Environmental and Mechanical

Installation Guidelines

1. Verify that the part number DO810 3BSE008510R1 matches your system engineering documentation.
2. Ensure all power to the target S800 I/O base unit and field terminal blocks is completely de-energized before handling.
3. Inspect the module housing, pins, and locking mechanisms for any transit damage.
4. Align the module with the correct S800 base unit slot and gently press straight in until the locking mechanism engages securely.
5. Connect field wiring to the corresponding terminal blocks according to the system installation schematic.
6. Restore system power and verify that the module initializes correctly via the controller diagnostic environment.
