ABB ICSC08L1 FPR3319101R1082 CS31 Binary Input/Output Unit

Description

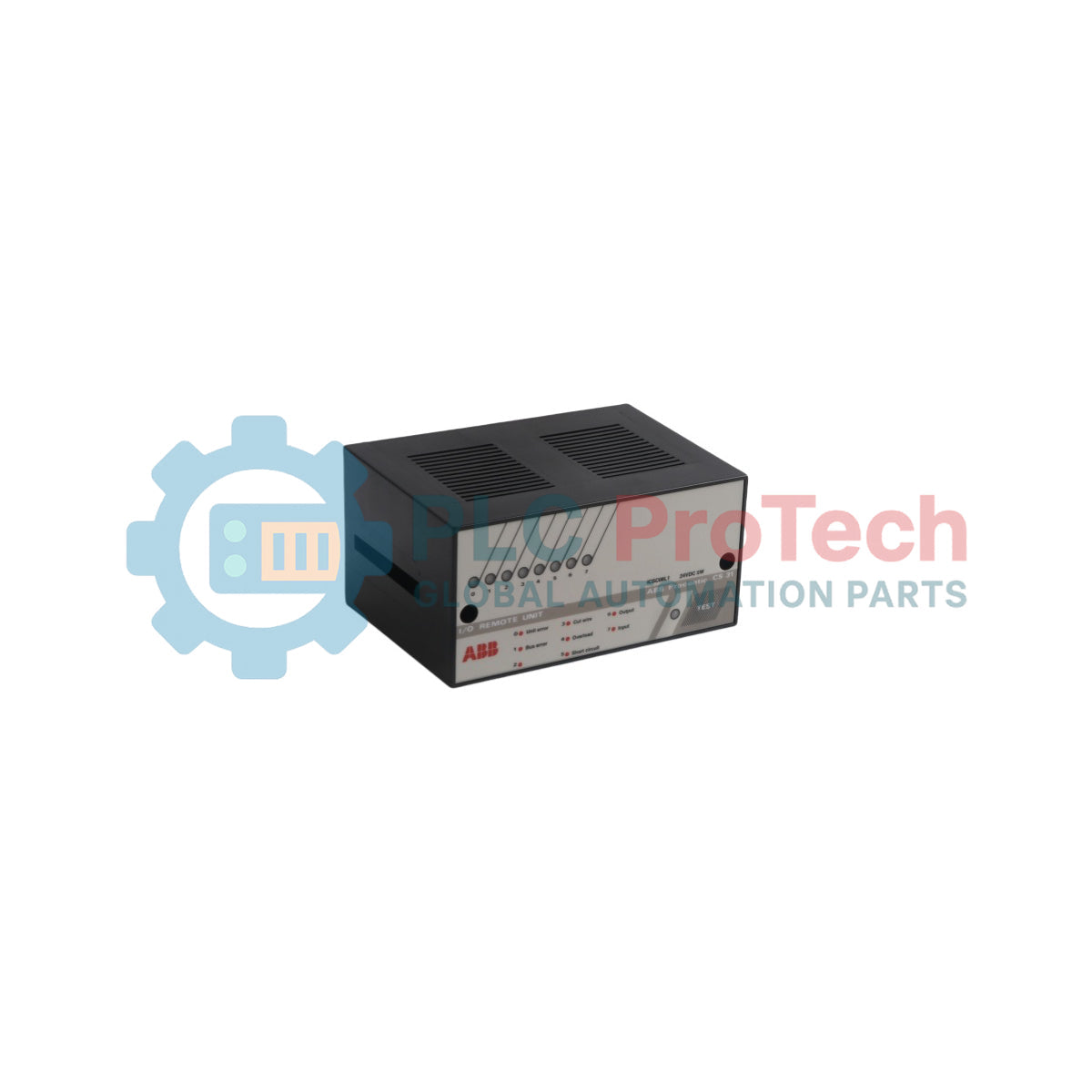

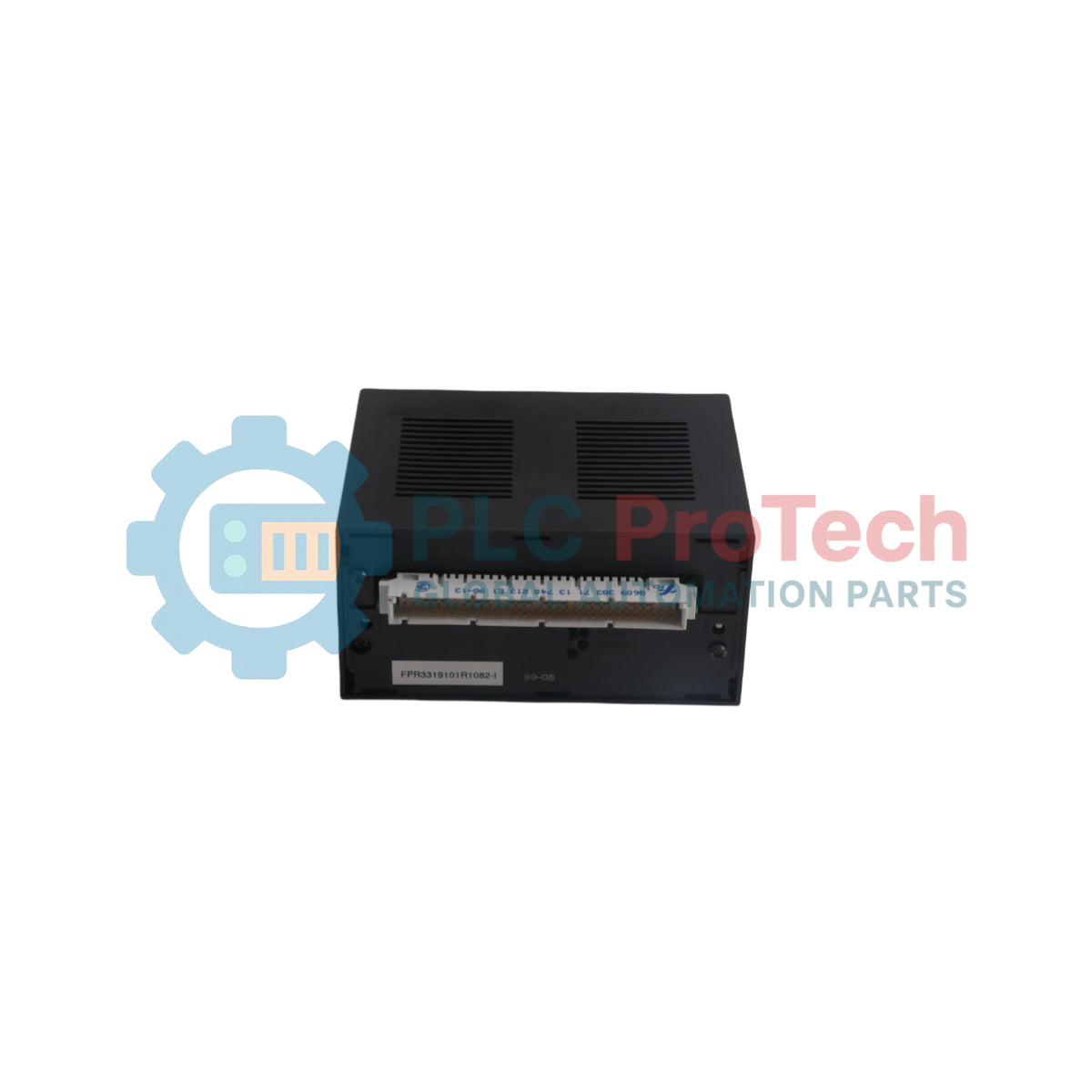

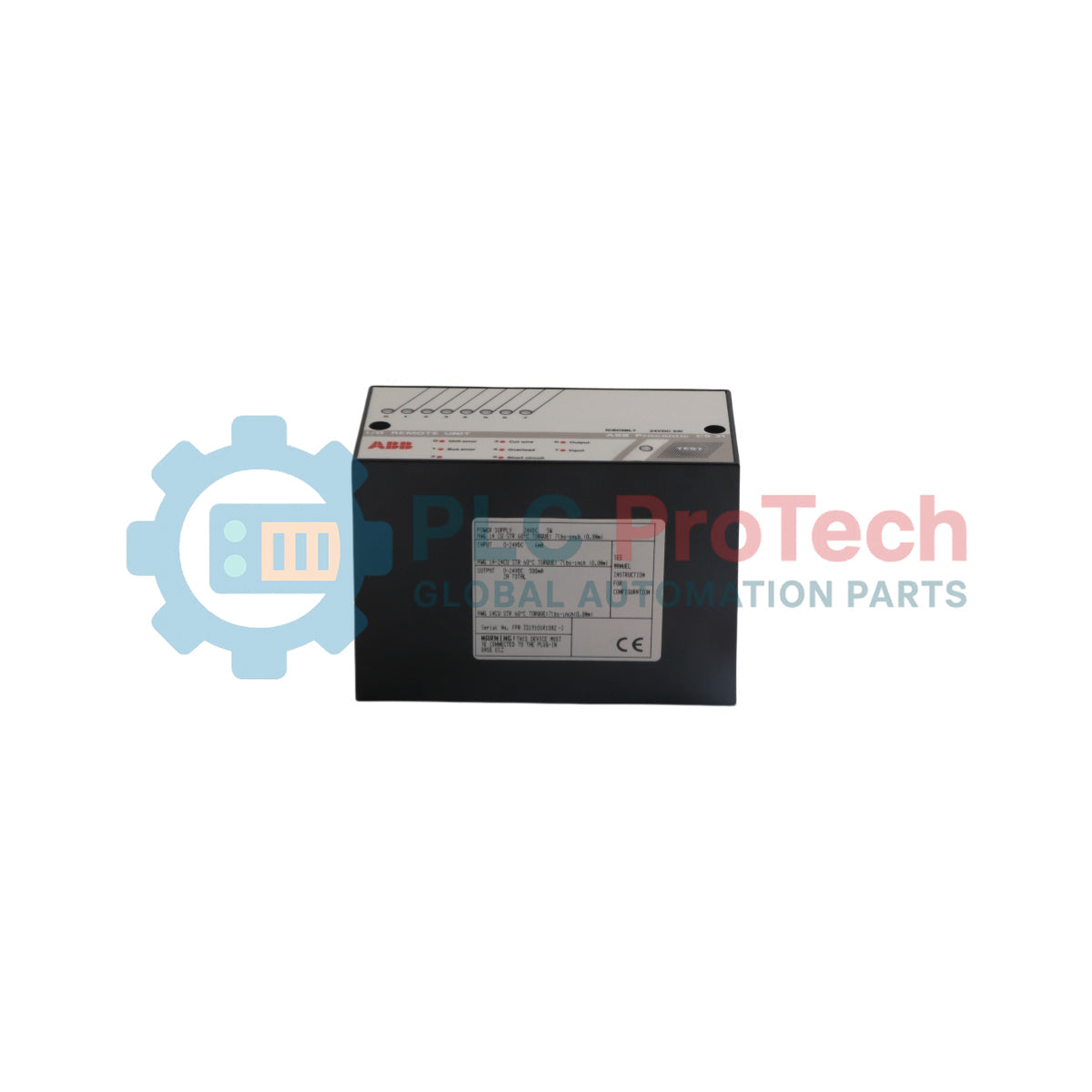

The ABB ICSC08L1, carrying the order code FPR3319101R1082 (also referenced under variants FPR3329101R1082, FPR3329101R0086, and FPR3329101R0084), is a professional-grade binary input/output unit developed for the Advant Controller 31 (AC 31) automation system. Operating as a versatile remote unit on the CS31 system bus, the device features 8 independent channels that can be user-programmed or configured via control logic. Each channel is dynamically capable of functioning either as a 24 V d.c. binary input or a 24 V d.c., 0.5 A transistor output.

Designed for long-term reliability and straightforward migration, this module can interface with newer system topologies such as the ICMK-CS31 remote interface combined with an XC08L1 binary extension module. This deployment preserves the functional integrity and software behavior of legacy 30 series applications without necessitating comprehensive user program rewrites.

Ordering Information

Features

• Provides 8 flexible, non-isolated binary channels configuration-dependent for input or output use.
• Supports dual-purpose electrical signaling as a 24 V d.c. digital input or a 24 V d.c. 0.5 A transistor output.
• Fully compatible with standard CS31 system bus infrastructure utilizing RS 485 serial communication protocols.
• Serves as an orderable legacy asset, with alternative modern system mapping solutions utilizing ICMK-CS31 and XC08L1 platforms.
• Designed to interface seamlessly with multi-voltage network environments supporting 24 V d.c., 120 V a.c., and 230 V a.c. power bases.

Applications

• Distributed digital I/O expansion across legacy Advant Controller 31 (AC 31) processor systems.
• Industrial factory automation demanding centralized field device monitoring and discrete low-current transistor switching.
• Modernization projects migrating legacy 30 series fieldbus modules onto standardized hardware layers.

Technical Specifications

Installation Guidelines

• Base Mounting: Install the remote unit onto the matching ECZ plug-in base assembly. Ensure locking clips are securely fastened.
• Fieldbus Termination: Connect the shielded twisted-pair communication bus to the designated RS 485 fieldbus terminals. Apply a 120 ohm, 0.25 W termination resistor across fieldbus extremities if the module resides at the physical line ends.
• Addressing: Set the decimal network station address manually by manipulating the physical hardware dip-switches located on the ECZ plug-in base prior to powering up the system.
• Wiring Requirements: Route signal wires separate from heavy power mains to minimize electro-magnetic interference. Strip field connections neatly and adhere to terminal torque limits to prevent contact degradation.
