ABB NDBU-95C 64008366 DDCS Branching Unit

SKU NDBU-95C 64008366

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ABB
  • Product No.: NDBU-95C 64008366
  • Origin Sweden, Finland
  • Product Type: DDCS Branching Unit
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.55 kg
  • Dimensions: 145 mm x 170 mm x 35 mm (W x H x D
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

DDCS Branching Unit
Quantity
Call sales Contact

Product Description

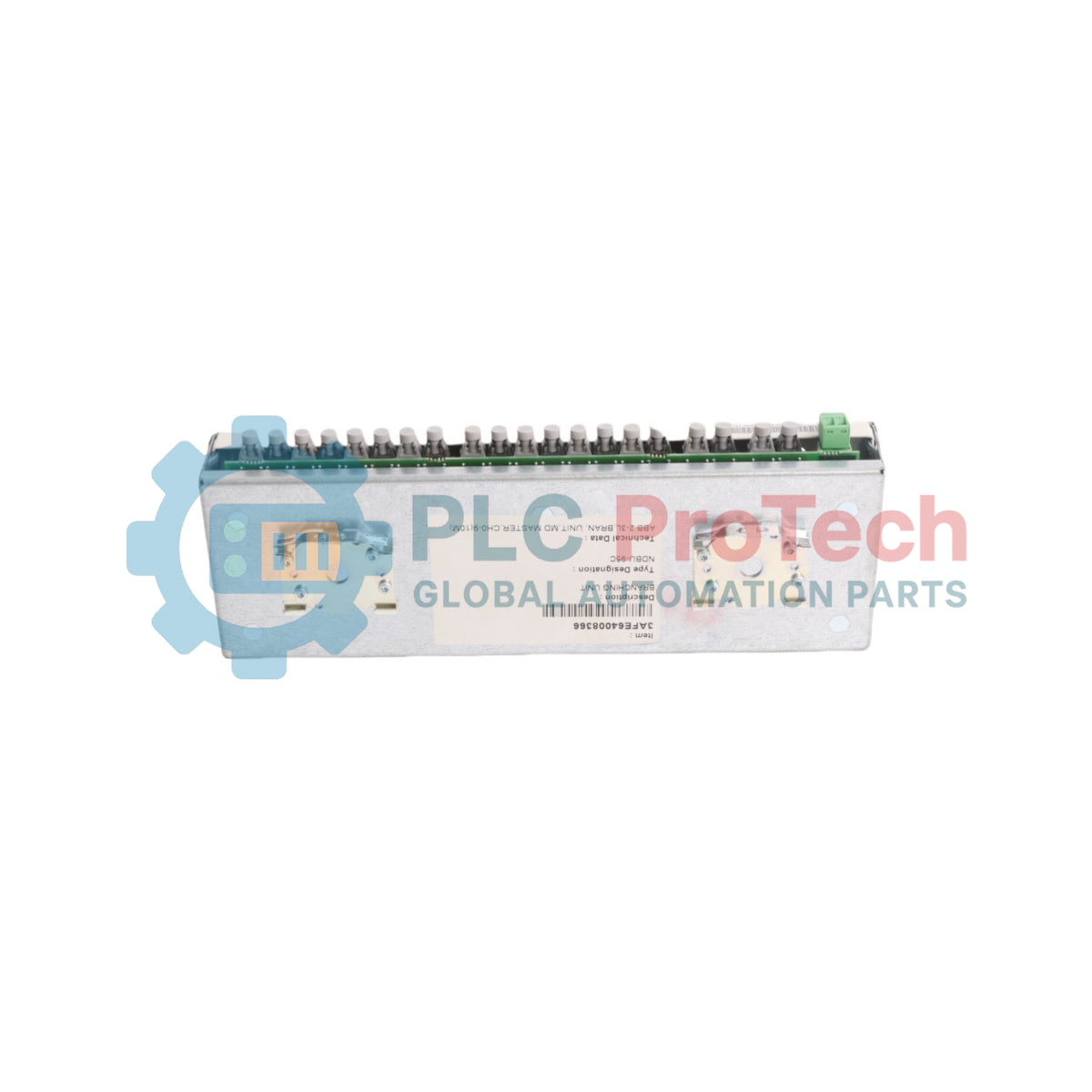

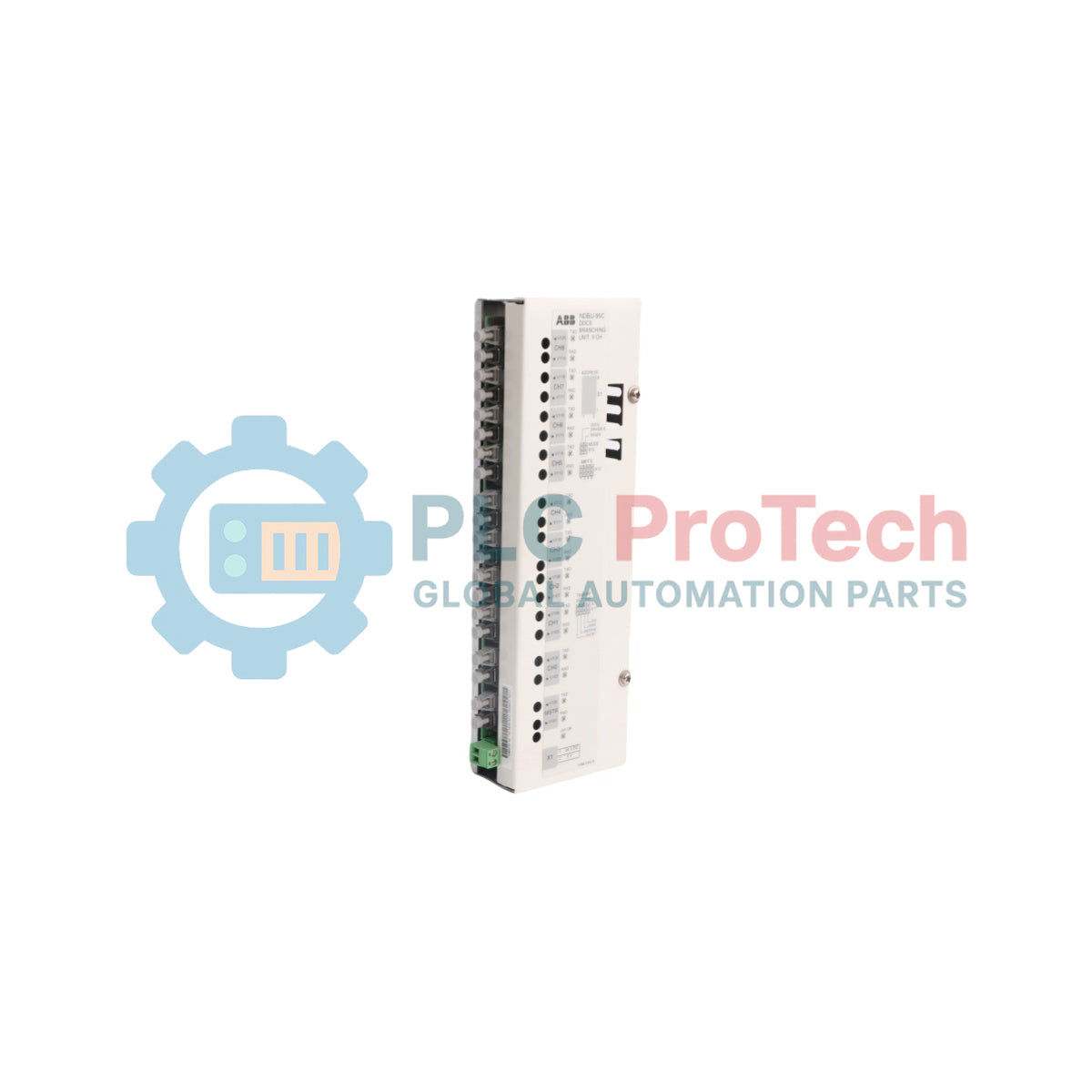

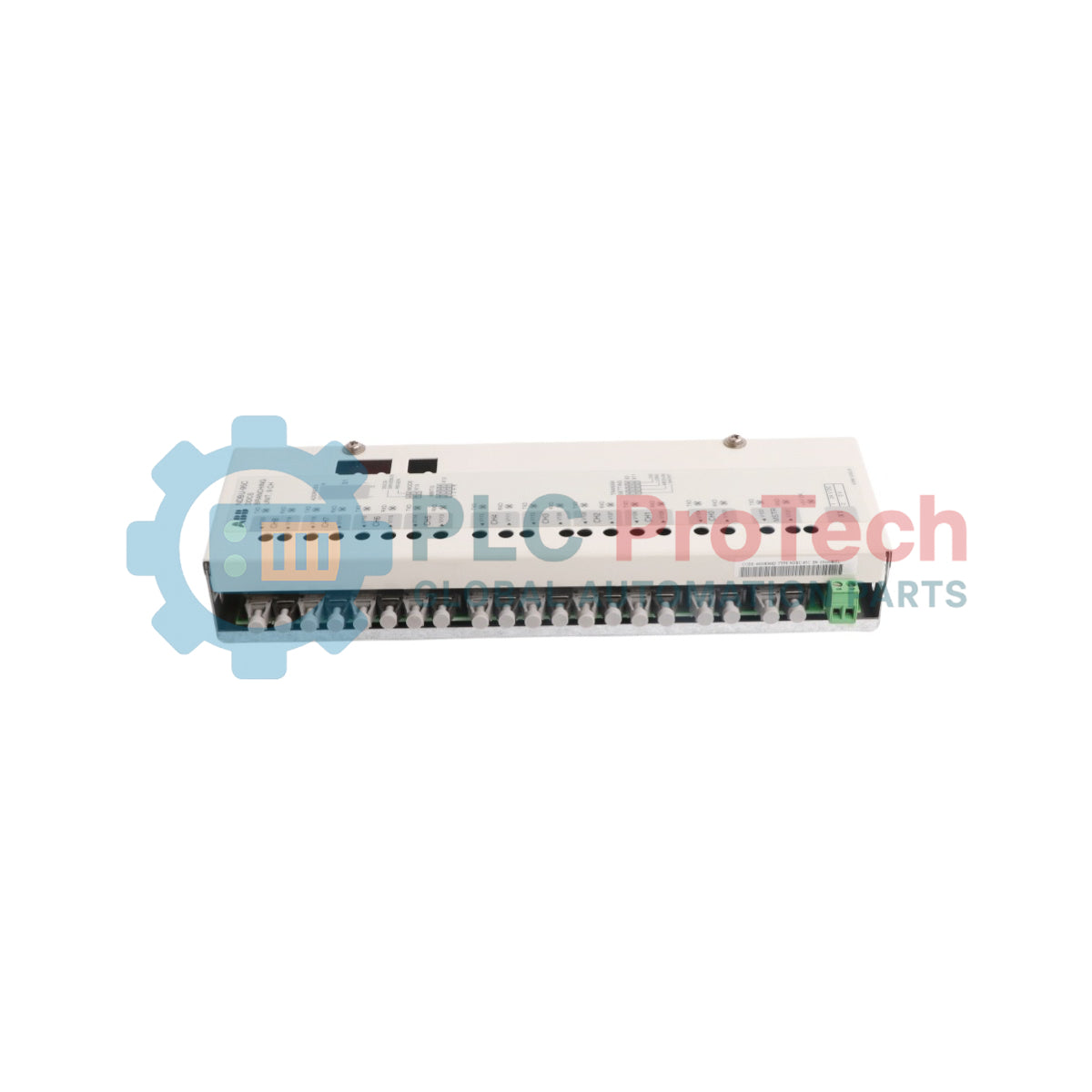

The ABB NDBU-95C (Product ID: 64008366) is a star connection branching unit designed for industrial drive communication networks utilizing the DDCS (Distributed Drives Communication System) protocol. It functions as a 9-channel branching component to enable reliable optical link communication and network expansion within multi-drive control architectures, such as the ACS800 and ACS880 series drive systems.

Features

  • 9-Channel Architecture: Equipped with 9 optical channels (CH0 to CH8) plus a master channel (MSTR) connection to handle multi-point data distribution.
  • High-Speed Optical Components: Features 10 MBd optical transmitters and receivers across all master and branch channels.
  • Flexible Media Support: Compatible with Plastic Optical Fibre (POF) and Hard Clad Silica (HCS) cabling systems depending on transmission distance requirements.
  • Configurable Transmission Current: Supports adjustable transmitter power settings (Short, Medium, Long) via board configuration to match optical fiber link length.
  • Hardware Address Selection: Integrates 8-position DIP switch (S1) enabling hardware-level node address definition within a structured star hierarchy.

Applications

  • ACS800 Multi-Drive Systems: Used as a key network distribution and spare part component for ACS800-107 configuration variants.
  • ACS880 Multi-Drive Platforms: Integrates within complex control topologies involving ACS880-207 drive architectures.
  • DCS Thyristor Power Converters: Coordinates optical signal distribution when interfacing with DC drive power converter segments.
  • DriveWindow Communication Networks: Acts as the central hardware node linking host commissioning computers running DriveWindow software to downstream drive controllers.

Technical Specifications

Parameter Value
Manufacturer ABB
Model NDBU-95C
Product ID 64008366
ABB Type Designation NDBU-95
Product Type Star connection branching unit (DDCS Branching Unit)
Optical Component Rate 10 MBd (All channels CH0...CH8 and MSTR)
Communication Protocol DDCS protocol
Input Power Supply 24 V DC
Channels Available 9 channels
Country of Origin Finland (FI) / Sweden (SE)
Product Net Weight 0.55 kg
Dimensions (W x H x D) 145 mm x 170 mm x 35 mm

Installation Guidelines

  • Address Hierarchy Configuration: Prior to network operation, set the unit node address via the onboard DIP switch S1. The branching unit physically positioned closest to the control PC must be configured with the highest address number within the allowed address range of 124 to 76.
  • Optical Link Setting Rules: Maintain uniform component speeds across the physical link network. Mixing 5 MBd and 10 MBd optical modules on the same transmission loop is strictly prohibited to prevent data loss or signal degradation.
  • Unused Channel Management: To maximize internal resource efficiency and prevent layout interference, select the DISABLED software/hardware jumper option for all unused optical channels.
  • Fiber Optic Length Boundaries:
    • Plastic Optical Fibre (POF): Max 30 m for ACS drives; max 20 m for DCS drive structures.
    • Hard Clad Silica (HCS): Max 200 m for ACS configurations; max 50 m for DCS installations.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Can 5 MBd and 10 MBd fiber optic channels be mixed on the device?
No. Mixing 5 MBd and 10 MBd optical components across the same communication framework is not possible, as both ends of the transmission path must be uniform.
What is the allowed network hardware address range for the device?
The allowed branching unit addresses configured via DIP switch S1 span from 76 to 124, with address 124 serving as the factory default layout setting.
What action should be taken for channels on the board that are not in use?
If a particular channel on the board is not selected or utilized in the current network network configuration, its transmitter setting must be switched to DISABLED.
Reviews

More from this brand

ABB Bailey INICT03A Infi-Net Computer Transfer Module
INICT03AABB Bailey INICT03A Infi-Net Computer Transfer Module
ABB TB845 3BSE021437R1 S800 I/O Redundant ModuleBus Cable Adaptor
TB845 3BSE021437R1ABB TB845 3BSE021437R1 S800 I/O Redundant ModuleBus Cable Adaptor
ABB 3BHB002751R0102 SVA 3k3V, XV C722 A02 Voltage Measurement Scaling Board
3BHB002751R0102ABB 3BHB002751R0102 SVA 3k3V, XV C722 A02 Voltage Measurement Scaling Board
ABB REF601 Relion 605 Series Feeder Protection and Control Relay
REF601ABB REF601 Relion 605 Series Feeder Protection and Control Relay

NDBU-95C 64008366

Stock & lead time on request

Call
  • ABB NDBU-95C 64008366
  • ABB NDBU-95C 64008366
  • ABB NDBU-95C 64008366
1 3

ABB NDBU-95C 64008366 DDCS Branching Unit

Only 5 item(s) left in stock

  • Manufacturer: ABB

  • Product No.: NDBU-95C 64008366

  • Country of origin:Sweden,Finland

  • Product Type: DDCS Branching Unit

  • Barcode: 8537101190

  • Payment: T/T, Western Union

  • Weight: 550g

  • Dimensions: 145 mm x 170 mm x 35 mm (W x H x D

  • Shipping port: Xiamen

  • Warranty: 12 months

View full details
Product Description
FAQ
Shipping Returns
Additional details
Reviews

The ABB NDBU-95C (Product ID: 64008366) is a star connection branching unit designed for industrial drive communication networks utilizing the DDCS (Distributed Drives Communication System) protocol. It functions as a 9-channel branching component to enable reliable optical link communication and network expansion within multi-drive control architectures, such as the ACS800 and ACS880 series drive systems.

Features

  • 9-Channel Architecture: Equipped with 9 optical channels (CH0 to CH8) plus a master channel (MSTR) connection to handle multi-point data distribution.
  • High-Speed Optical Components: Features 10 MBd optical transmitters and receivers across all master and branch channels.
  • Flexible Media Support: Compatible with Plastic Optical Fibre (POF) and Hard Clad Silica (HCS) cabling systems depending on transmission distance requirements.
  • Configurable Transmission Current: Supports adjustable transmitter power settings (Short, Medium, Long) via board configuration to match optical fiber link length.
  • Hardware Address Selection: Integrates 8-position DIP switch (S1) enabling hardware-level node address definition within a structured star hierarchy.

Applications

  • ACS800 Multi-Drive Systems: Used as a key network distribution and spare part component for ACS800-107 configuration variants.
  • ACS880 Multi-Drive Platforms: Integrates within complex control topologies involving ACS880-207 drive architectures.
  • DCS Thyristor Power Converters: Coordinates optical signal distribution when interfacing with DC drive power converter segments.
  • DriveWindow Communication Networks: Acts as the central hardware node linking host commissioning computers running DriveWindow software to downstream drive controllers.

Technical Specifications

Parameter Value
Manufacturer ABB
Model NDBU-95C
Product ID 64008366
ABB Type Designation NDBU-95
Product Type Star connection branching unit (DDCS Branching Unit)
Optical Component Rate 10 MBd (All channels CH0...CH8 and MSTR)
Communication Protocol DDCS protocol
Input Power Supply 24 V DC
Channels Available 9 channels
Country of Origin Finland (FI) / Sweden (SE)
Product Net Weight 0.55 kg
Dimensions (W x H x D) 145 mm x 170 mm x 35 mm

Installation Guidelines

  • Address Hierarchy Configuration: Prior to network operation, set the unit node address via the onboard DIP switch S1. The branching unit physically positioned closest to the control PC must be configured with the highest address number within the allowed address range of 124 to 76.
  • Optical Link Setting Rules: Maintain uniform component speeds across the physical link network. Mixing 5 MBd and 10 MBd optical modules on the same transmission loop is strictly prohibited to prevent data loss or signal degradation.
  • Unused Channel Management: To maximize internal resource efficiency and prevent layout interference, select the DISABLED software/hardware jumper option for all unused optical channels.
  • Fiber Optic Length Boundaries:
    • Plastic Optical Fibre (POF): Max 30 m for ACS drives; max 20 m for DCS drive structures.
    • Hard Clad Silica (HCS): Max 200 m for ACS configurations; max 50 m for DCS installations.
Key Features:
#DDCS Branching Unit

Can 5 MBd and 10 MBd fiber optic channels be mixed on the device?
No. Mixing 5 MBd and 10 MBd optical components across the same communication framework is not possible, as both ends of the transmission path must be uniform.

What is the allowed network hardware address range for the device?
The allowed branching unit addresses configured via DIP switch S1 span from 76 to 124, with address 124 serving as the factory default layout setting.

What action should be taken for channels on the board that are not in use?
If a particular channel on the board is not selected or utilized in the current network network configuration, its transmitter setting must be switched to DISABLED.

Global Express Shipping

  • Standard Delivery: 4-6 Business Days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries, including rapid delivery to Saudi Arabia and UAE.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our professional technical warranty.

Orders are processed and delivered Monday-Friday (excluding public holidays).


For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .
