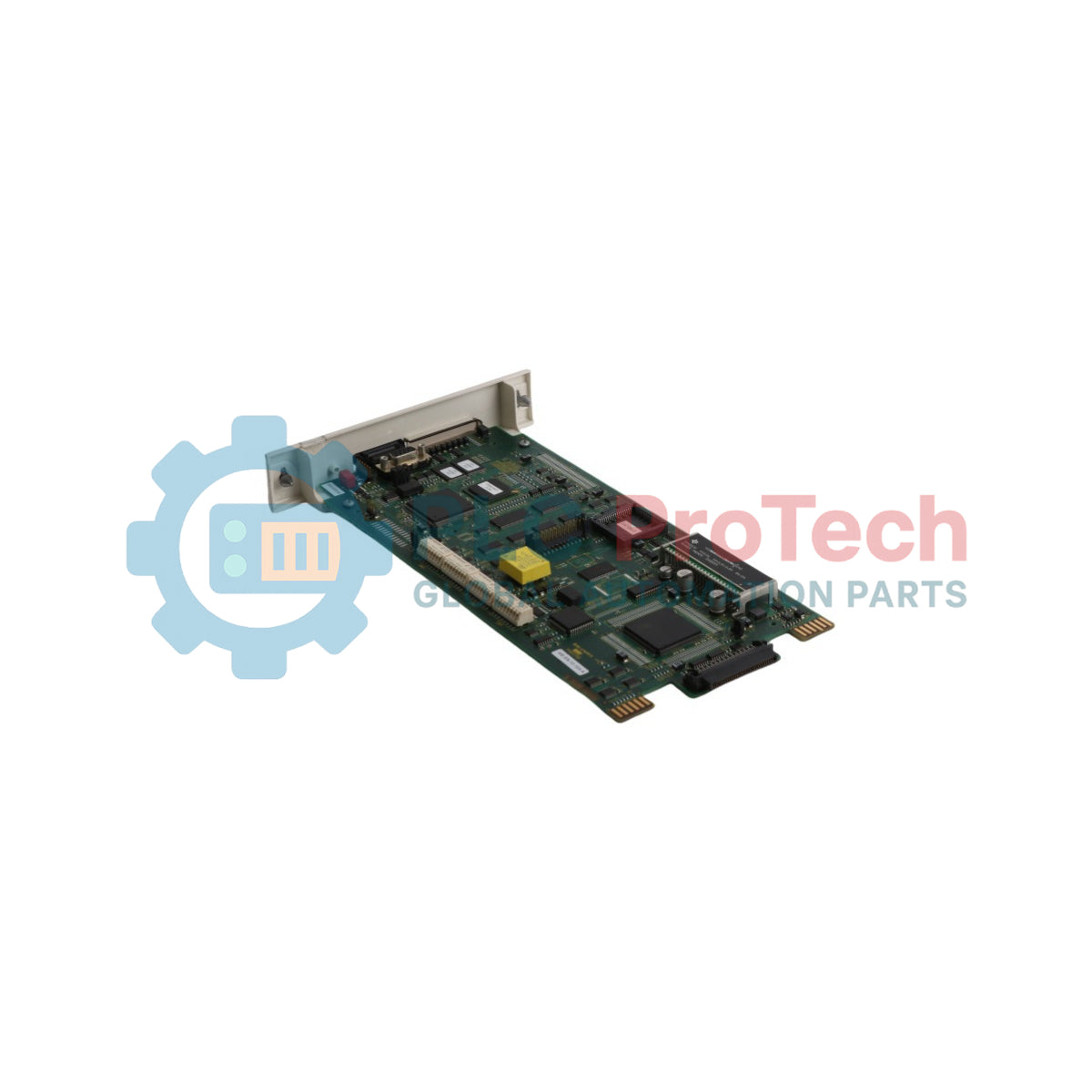

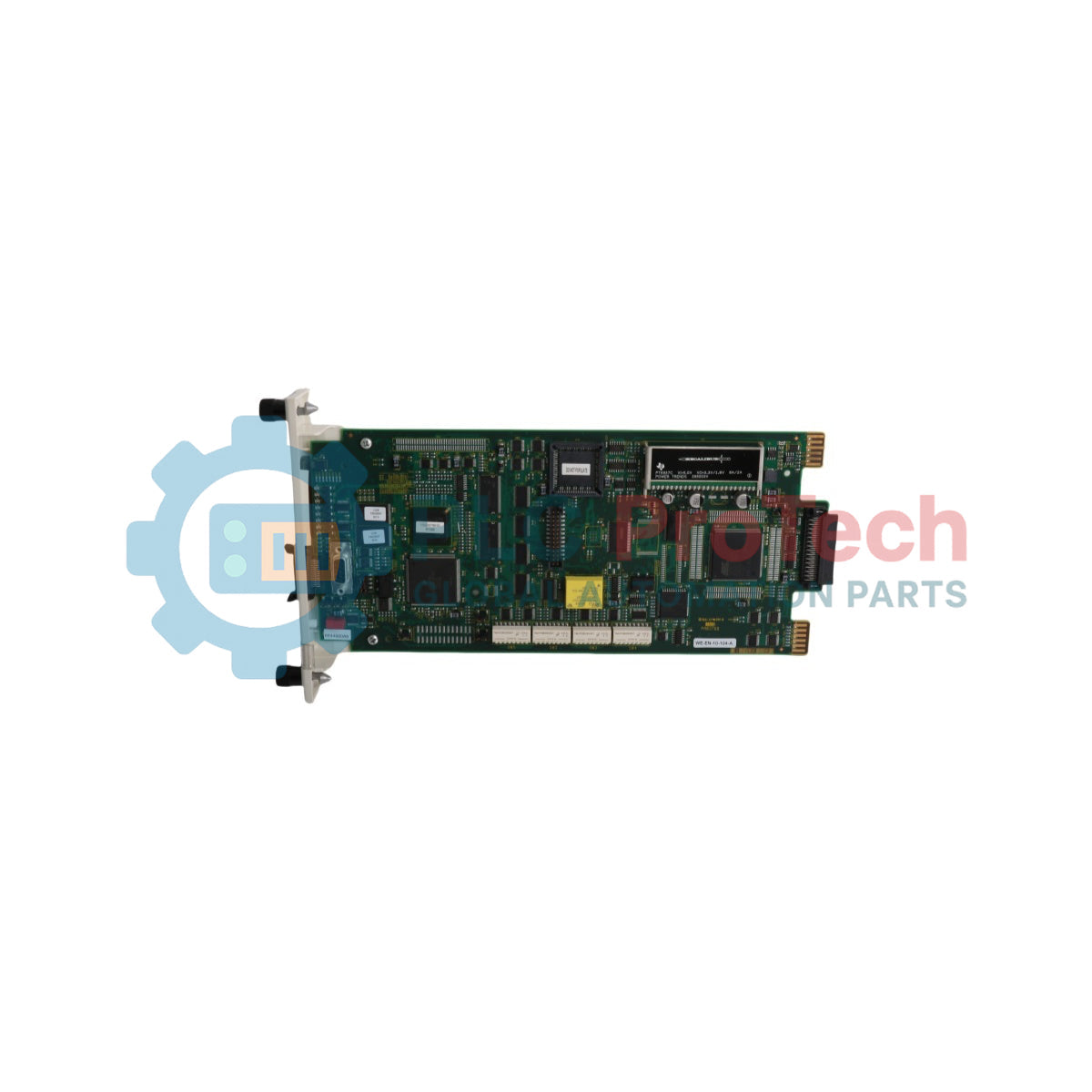

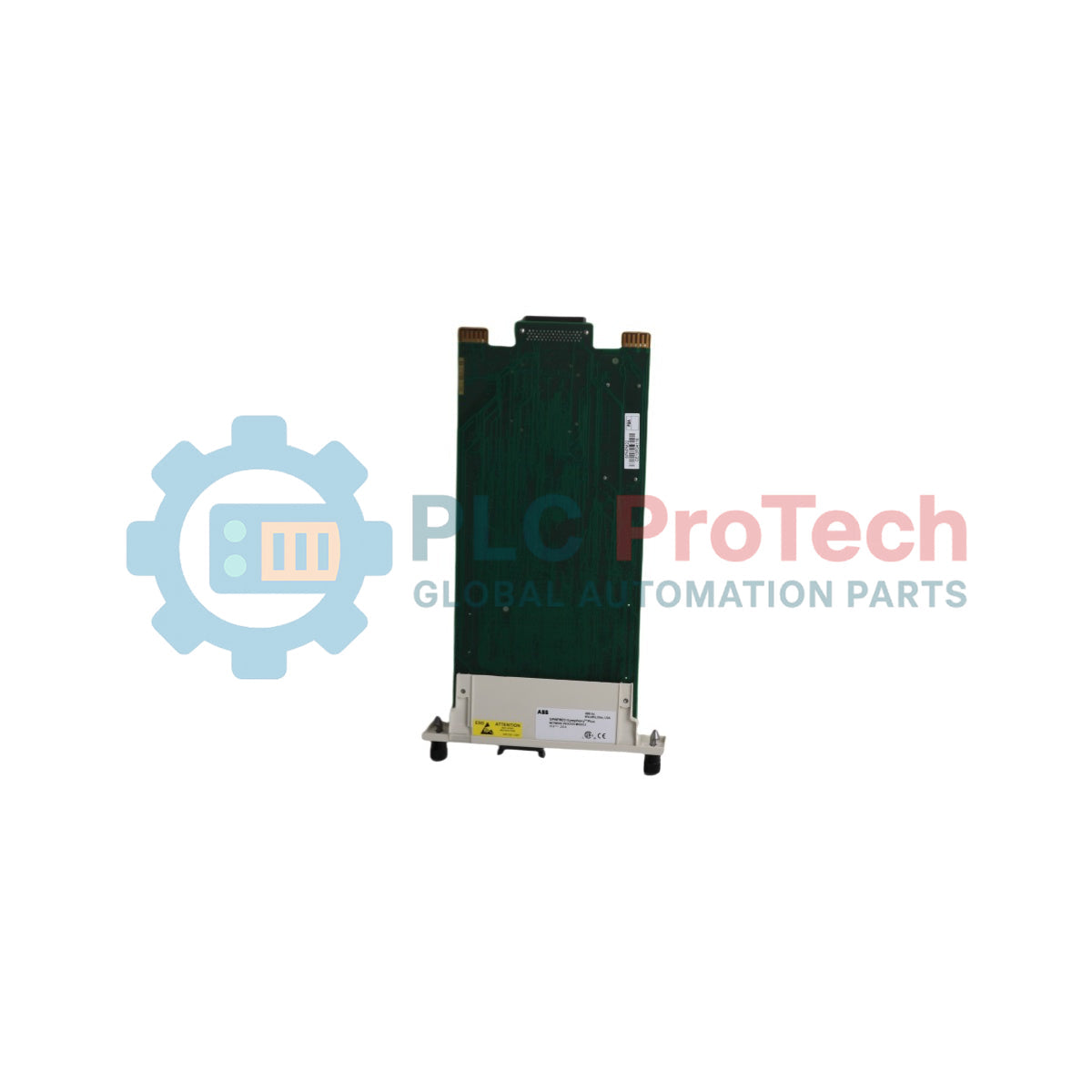

ABB SPNPM22 Symphony Plus Network Processing Module

Description

The SPNPM22 is a high-performance hardware communication interface module engineered to manage and execute high-speed data routing within distributed control topologies. This SPNPM22 network processing module operates as a vital link inside the rack infrastructure, handling the real-time conversion, reception, transmission, and regeneration of complex voice, image, or process data streams across local and wide-area industrial control networks. Developed specifically for the Harmony Rack architecture within the Symphony Plus platform, the unit interfaces directly with centralized system controllers to distribute process variables, synchronization signals, and diagnostic reports. Its onboard microprocessor independently processes communication protocols to alleviate host controller overhead and maintain determinism during dense network traffic conditions.

Features

• Dedicated communication processor handling real-time switching and data routing routines.
• Integrates seamlessly within Harmony Rack (HR Series) hardware sub-racks.
• Onboard memory backed by a long-life internal lithium button cell battery.
• Built-in signal regeneration properties to sustain data integrity across extensive physical network loops.

Applications

• High-speed process communication bridging inside Symphony Plus control systems.
• Plant-wide data highway interfacing and network segment control within HR Series environments.
• High-volume data conversion and switching in power generation and heavy industrial process automation networks.

Technical Specifications

Installation Guidelines

• Chassis Alignment: Match the communications module card guides with the dedicated network processing slots inside the Symphony Plus Harmony Rack chassis.
• Backplane Connection: Slide the module smoothly until the high-density backplane pin connectors interface completely with the passive rack distribution board. Secure all faceplate locking screws.
• Network Cable Routing: Arrange communication cables with proper physical segregation from high-voltage motor or drive power lines to minimize potential electromagnetic interference (EMI).
• Battery Inspection: Verify the internal 5 g lithium button cell is correctly placed and activated if pre-startup parameters or internal time-clocks must be preserved through prolonged total power outages.
• Ventilation Check: Ensure adjacent slot blanks are fitted with standard panels to preserve correct forced-air thermal circulation streams through the electronics chassis.
