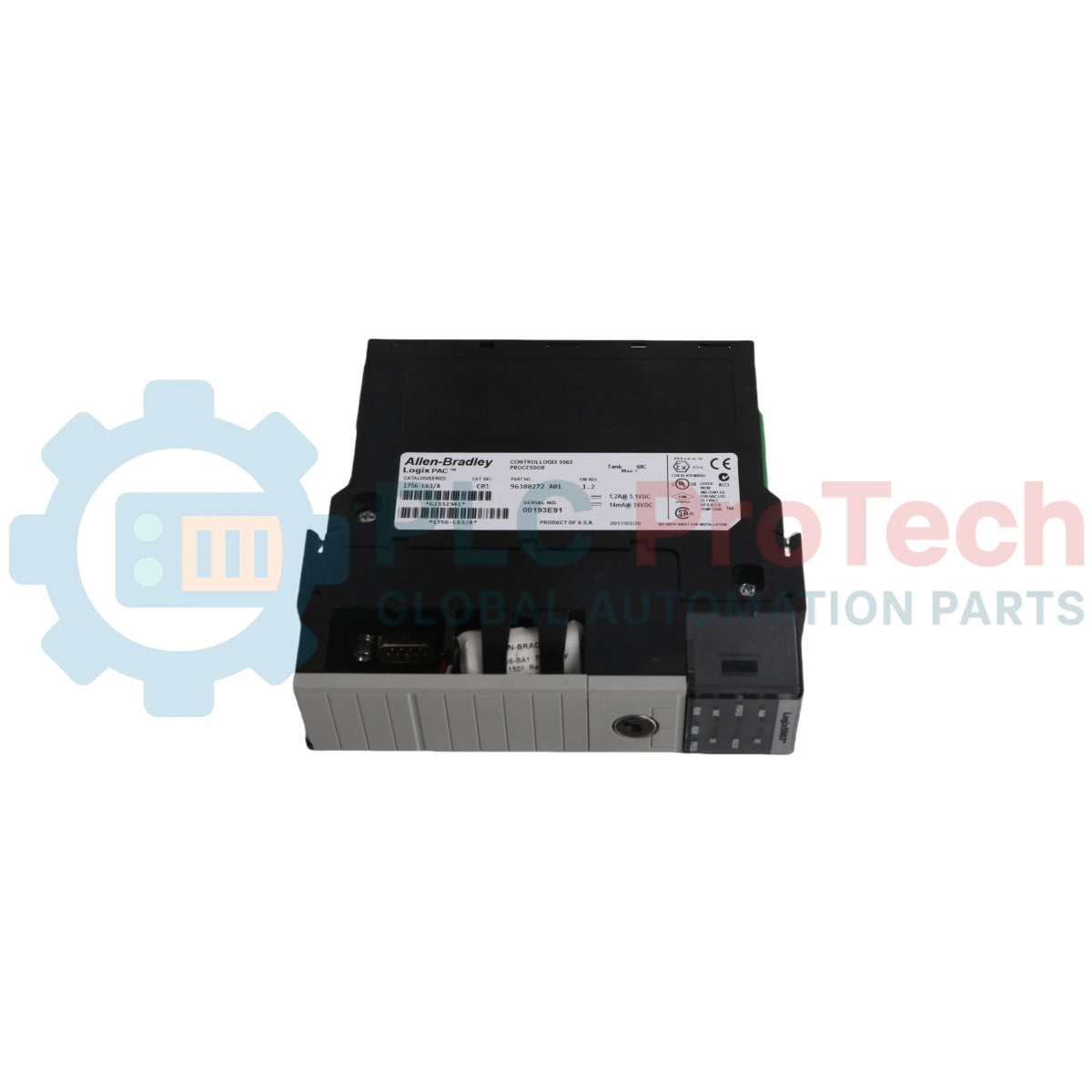

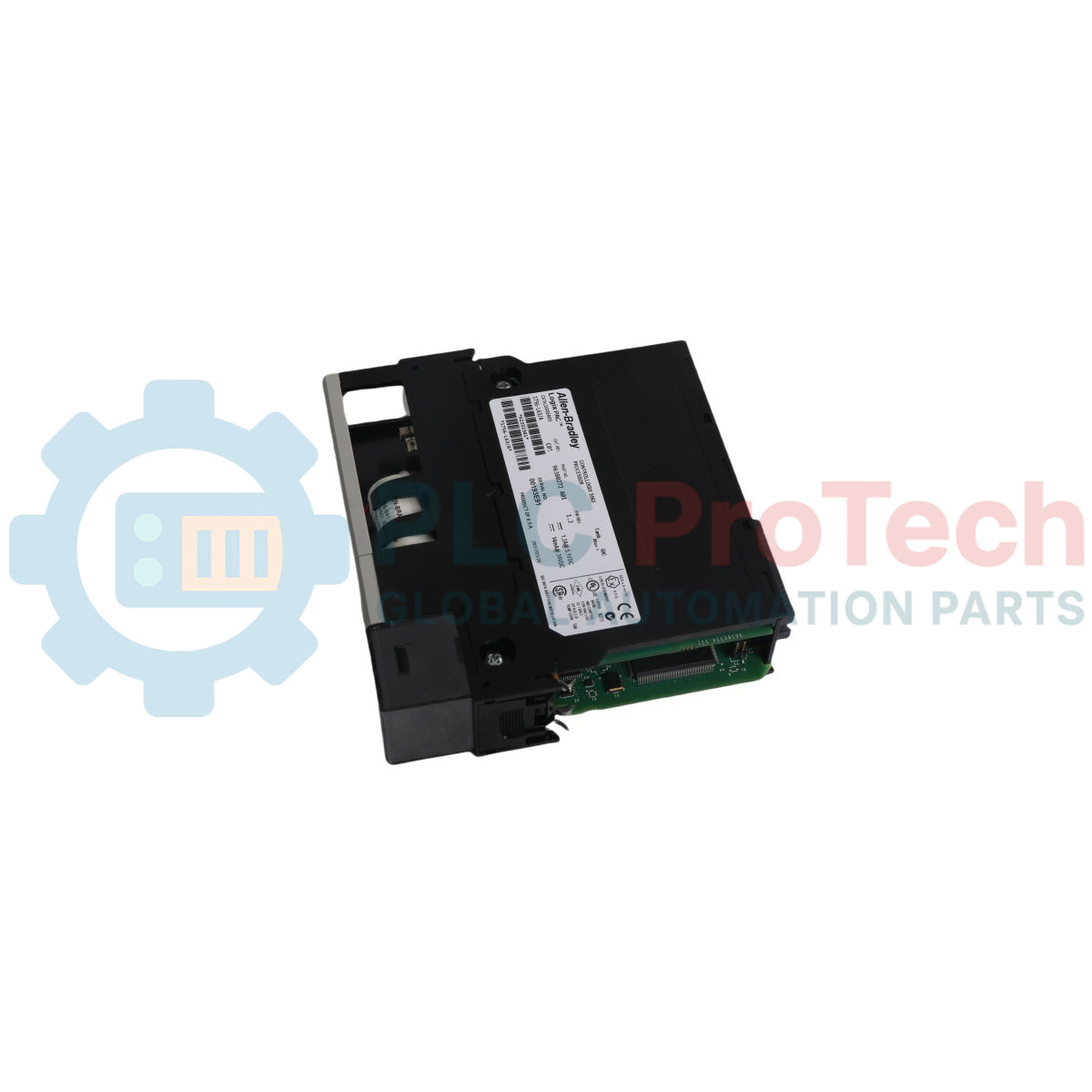

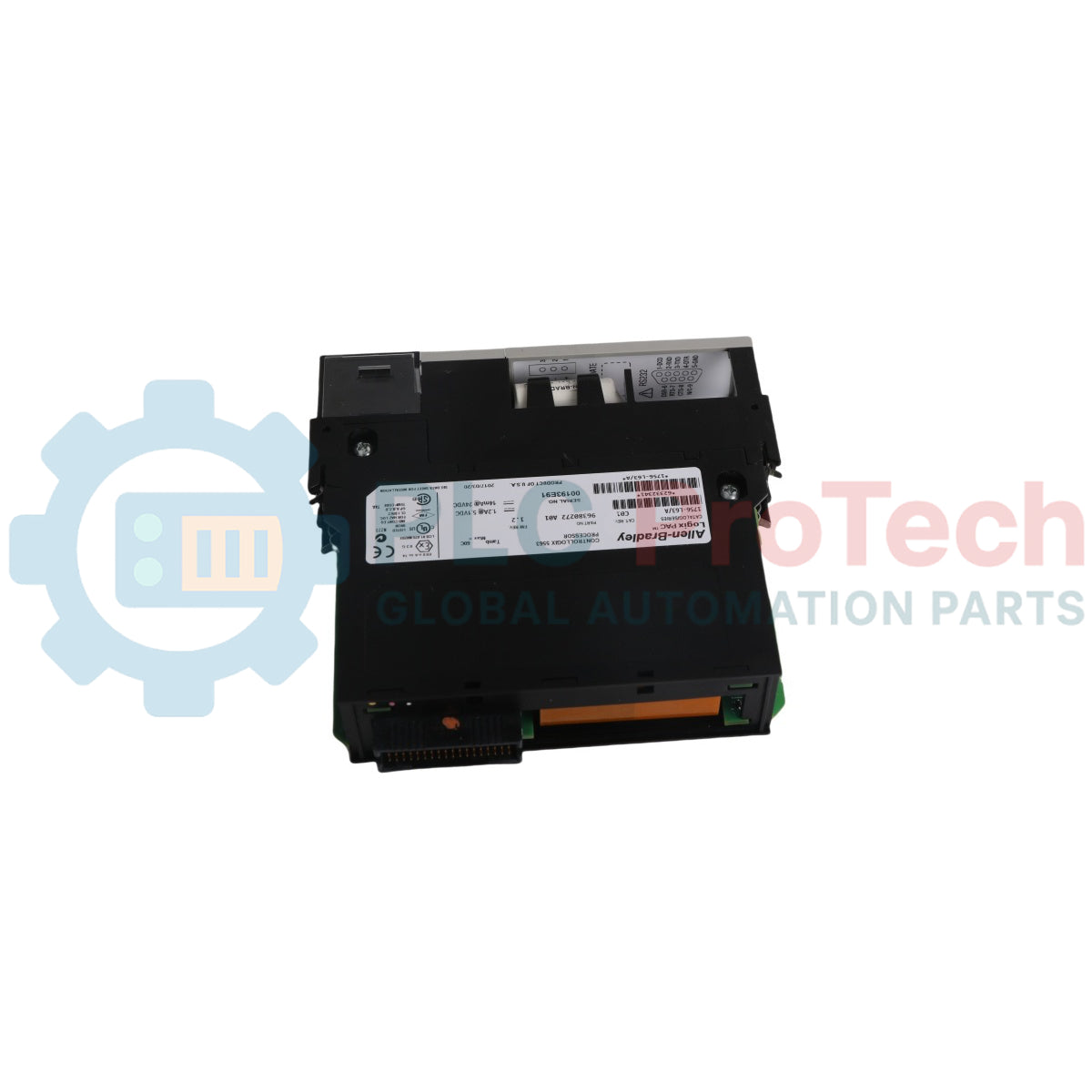

Allen-Bradley 1756-L63 ControlLogix 8 MB Memory Controller

SKU 1756-L63

In stock
  • 12-month warranty
  • Free returns within 30 days

  • Manufacturer: Allen-Bradley

  • Product No.: 1756-L63

  • Country of origin:United States

  • Product Type: ControlLogix Standard Controller

  • Barcode: 8537101190

  • Payment: T/T, Western Union

  • Weight: 320g

  • Dimensions: 145 mm x 35 mm x 130 mm

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

The Allen-Bradley 1756-L63 ControlLogix controller is a programmable automation controller designed for industrial automation systems. It features 8 MB of data and logic memory. The 1756-L63 executes control logic, communicates with I/O configuration devices, and handles Message (MSG) instructions along with OPC/DDE tags via RSLinx software. Nonvolatile memory capabilities are supported via an optional 1784-CF64 Industrial CompactFlash card. Serial RS-232 communications are integrated via an onboard point-to-point interface. The module installs into any slot of a ControlLogix chassis.

Features

  • 8 MB memory capacity for data and logic execution
  • Optional nonvolatile memory storage using a 1784-CF64 Industrial CompactFlash card
  • Integrated RS-232 serial port interface for programming and communications
  • Dynamic status indication LEDs for RUN, I/O, FORCE, RS232, BAT, and OK operating modes
  • Three-position front keyswitch for PROG, REM, and RUN mode selection
  • Support for chassis-based insertion and removal under backplane power

Applications

  • Industrial Process Control Systems
  • Factory Automation and Machine Control
  • Distributed I/O Architectures
  • Multi-Controller Chassis Configurations

Technical Specifications

Attribute Specification
Manufacturer Allen-Bradley / Rockwell Automation
Data and Logic Memory 8 MB
Backplane Current (5.1V DC) 1.20 A
Backplane Current (24V DC) 14 mA
Power Dissipation 3.5 W
Thermal Dissipation 11.9 BTU/hr
Weight 0.32 kg (11.3 oz) (Series A) / 0.35 kg (12.4 oz) (Series B)
Operating Temperature 0 to 60 degC (32 to 140 degF)
Storage Temperature -40 to 85 degC (-40 to 185 degF)
Relative Humidity 5 to 95% noncondensing
Vibration (Operating) 2 g @ 10 to 500 Hz
Shock (Operating) 30 g
Shock (Nonoperating) 50 g
Emissions CISPR 11: Group 1, Class A
ESD Immunity 6 kV contact discharges, 8 kV air discharges
Radiated RF Immunity 10V/m (80 to 2000 MHz)
EFT/B Immunity ±4 kV at 5 kHz on communications ports
Surge Transient Immunity ±2 kV line earth (CM) on communications ports
Conducted RF Immunity 10V rms (150 kHz to 80 MHz)
Isolation Voltage 30V (continuous), Basic Insulation Type, RS232 to system
Replacement Battery 1756-BA1 (Series A) / 1756-BA2 (Series B)
Programming Cable 1756-CP3 or 1747-CP3 serial cable
Enclosure Type Rating Open style

Connections/Interfaces

Connector Pin Function
Pin 1 CD (Carrier Detect)
Pin 2 RXD (Receive Data)
Pin 3 TXD (Transmit Data)
Pin 4 DTR (Data Terminal Ready)
Pin 5 GND / COMMON (Signal Ground)
Pin 6 DSR (Data Set Ready)
Pin 7 RTS (Request To Send)
Pin 8 CTS (Clear To Send)
Pin 9 N/C (Not Connected)

Installation Guidelines

  • Enclosure: Must be installed in an open-style enclosure appropriate for specific environmental conditions.
  • ESD Protection: Wear a grounded wriststrap and avoid touching connectors, pins, or internal circuit components prior to handling.
  • Chassis Mounting: Align the circuit board with top and bottom guides inside the chassis, sliding the controller until top and bottom latches lock securely.
  • Serial Cable: Limit custom-built RS-232 serial cables to a maximum distance of 15.2 m (50 ft) and connect shielding to both ends.
  • Hazardous Location: Do not connect or disconnect cables, batteries, or CompactFlash cards unless power is removed or the area is known to be nonhazardous.

Compliance and Certifications

  • c-UL-us: UL Listed Industrial Control Equipment for US and Canada (UL File E65584)
  • c-UL-us Class I Div 2: Certified for Class I Division 2 Groups A, B, C, D Hazardous Locations (UL File E194810)
  • CSA: CSA Certified Process Control Equipment (File LR54689C) and Class I Division 2 (File LR69960C)
  • FM: FM Approved Equipment for Class I Division 2 Groups A, B, C, D
  • CE: European Union 2004/108/IEC EMC Directive (EN 61326-1, EN 61000-6-2, EN 61000-6-4, EN 61131-2)
  • C-Tick: Compliant with AS/NZS CISPR 11 Industrial Emissions
  • EEx / ATEX: European Union 94/9/EC ATEX Directive (EN 60079-15, Zone 2)

FAQ

Does the controller support nonvolatile memory expansions?
Yes, nonvolatile memory can be added using a 1784-CF64 Industrial CompactFlash card.

Which programming cables can be used with the serial port?
The module is compatible with 1756-CP3 or 1747-CP3 serial programming cables.

What replacement battery is specified for this module?
Series A controllers use the 1756-BA1 lithium battery, while Series B controllers use the 1756-BA2 lithium battery.
