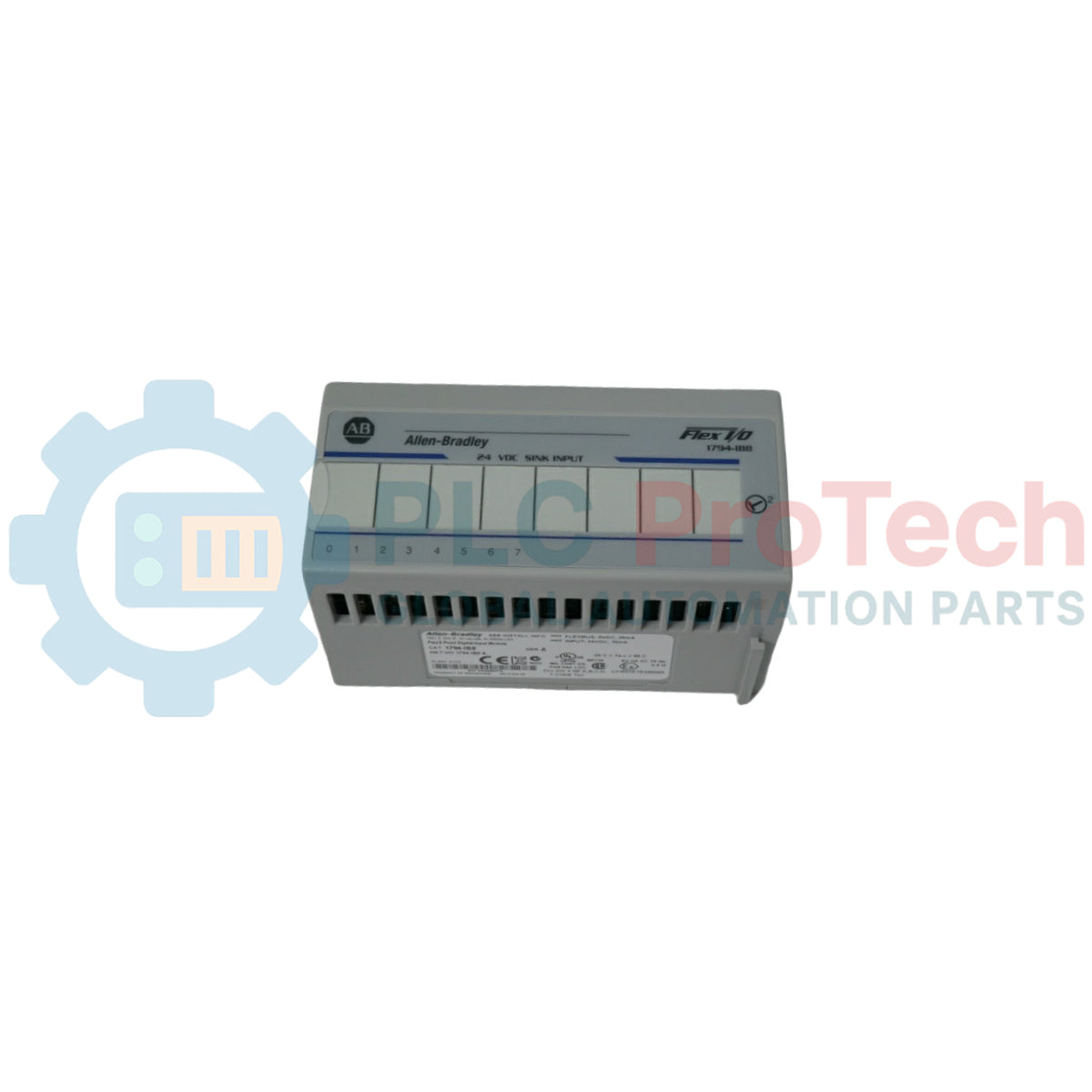

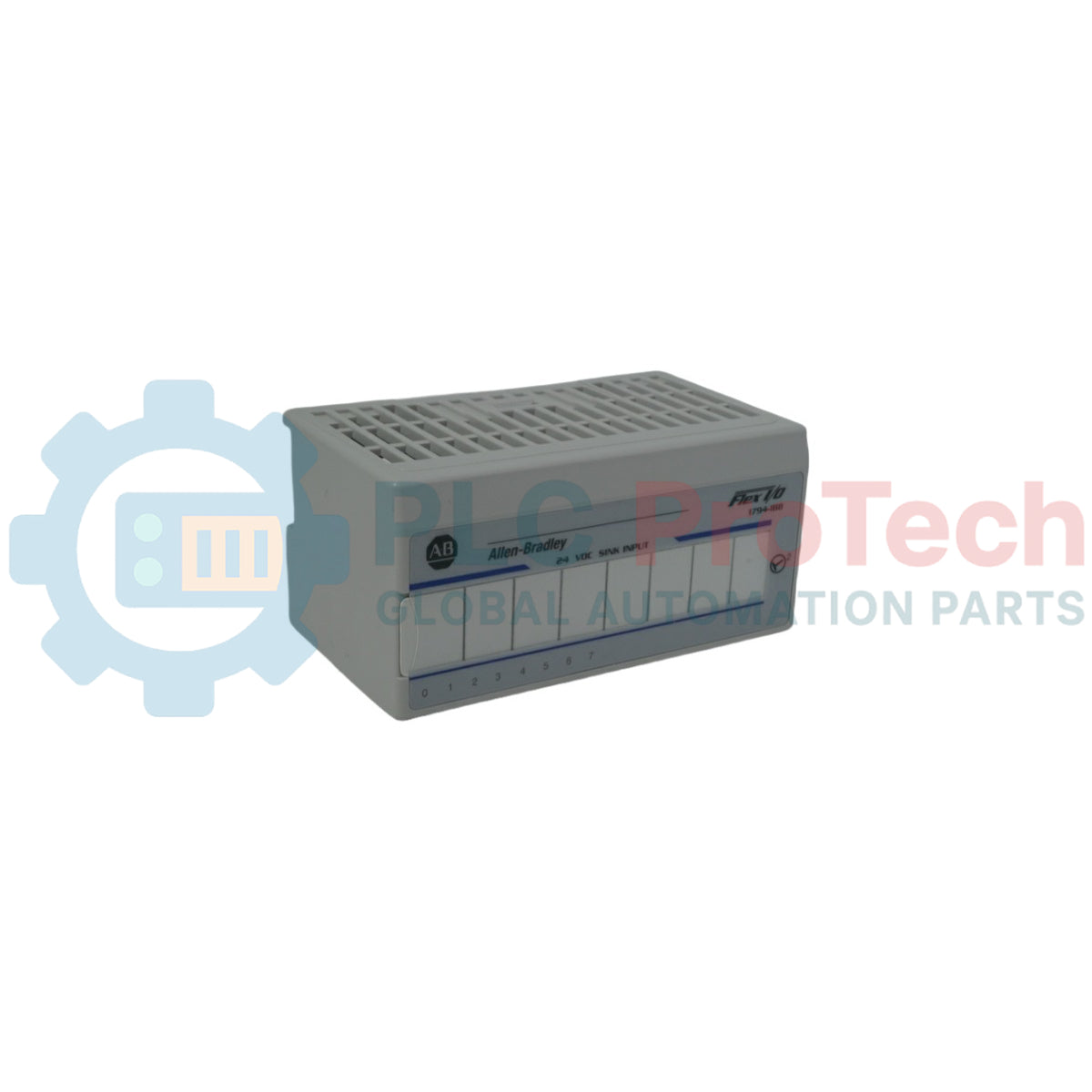

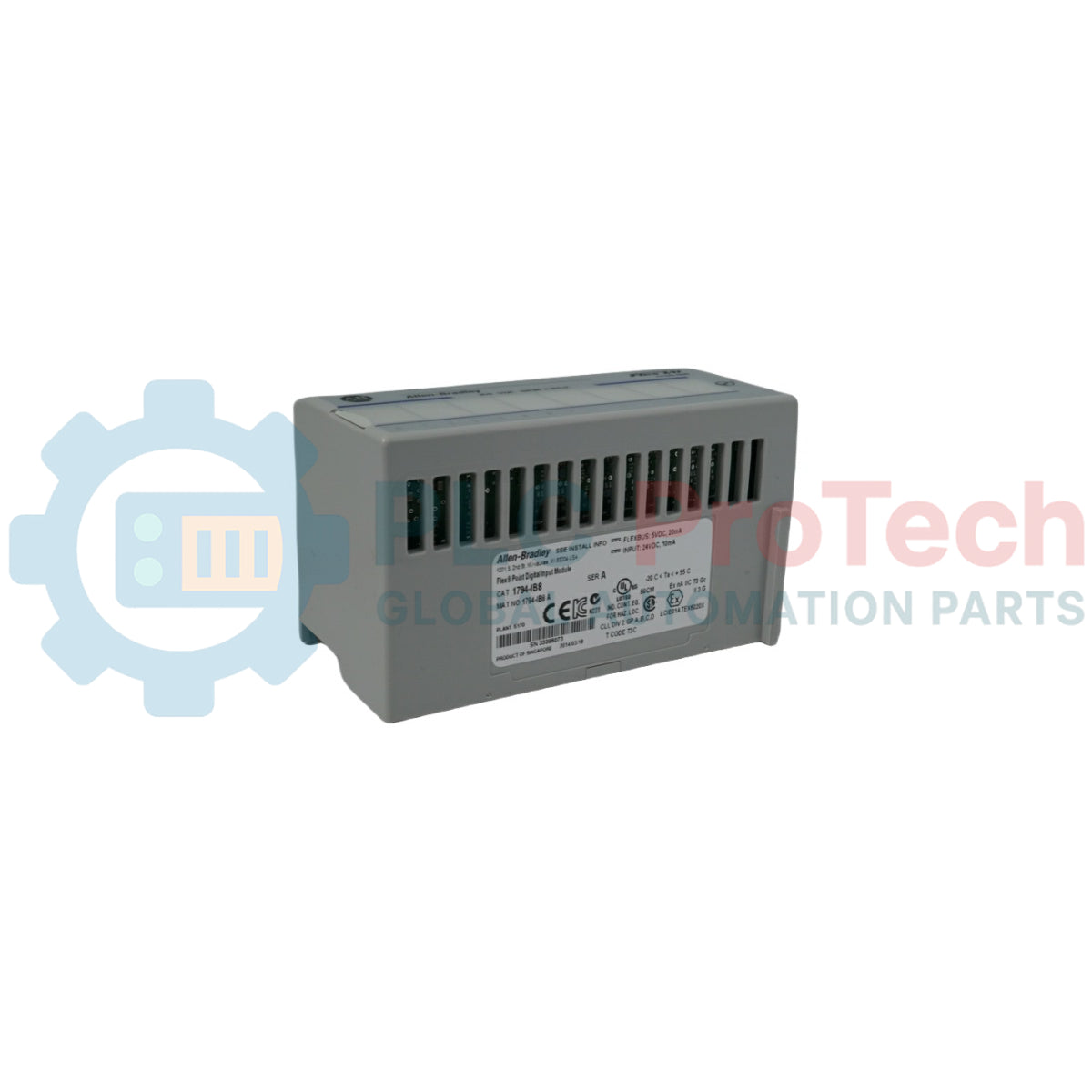

Allen-Bradley 1794-IB8 FLEX I/O Digital Input Module

Description

The 1794-IB8 is a discrete hardware component engineered for the FLEX I/O distributed input/output platform. This 24V DC digital input module is designed to monitor binary field conditions by converting high-level voltage potentials from industrial sensing devices into digital status bits for the system processor. Operating as a sinking configuration, the unit senses current passing from sourcing field elements through its input circuitry to the common return rail, establishing a clean interface between physical plant switches and digital logic registers.

Equipped with eight independent, non-isolated input channels, the device routes field signals back to a centralized programmable logic controller via a compatible FLEX I/O network adapter across EtherNet/IP, ControlNet, or DeviceNet backplanes. The 1794-IB8 plugs directly into a specialized terminal base unit that anchors the module to standard industrial mounting frameworks. This module type is typically integrated into manufacturing applications, material handling facilities, logistics sorting hubs, and water infrastructure management panels requiring low-channel-count, reliable sensor aggregation.

Features

• Eight discrete sinking input channels for low-density distributed field monitoring.
• 24V DC nominal operation matching standard industrial proximity sensors and switches.
• Support for Removal and Insertion Under Power (RIUP) to facilitate rapid maintenance cycles.
• Individual front-facing LED indicators displaying real-time digital status for each input loop.
• Integrated software filtering configurations to reduce signal bounce from mechanical contacts.

Applications

• Proximity sensor and photoelectric eye array state tracking.
• Pushbutton stations and selector switch monitoring.
• Conveyor line jam switch and sorting gate alignment verification.
• Mechanical limit switch safety interlock logging.

Technical Specifications

Connections/Interfaces

Installation Guidelines

DIN Rail Installation

Hook the upper retention slots of the enclosure chassis over the top flange of standard 35 mm DIN tracking. Rotate the lower portion of the housing down until the spring-loaded lower locking mechanisms snap firmly around the base metal rail.

Terminal Base Seating

Align the molded structural alignment channels on the underside of the electronic module with the guide rails on the pre-installed terminal base unit. Push the module directly into the socket until the edge latches click to secure the unit.

Wiring Configuration

Connect external sourcing sensors to terminals 0 through 7. Ensure that the 24V DC external operational voltage loop supplies field devices from the corresponding power rail on the terminal block to maintain a proper common return path.

Signal Integrity and Routing

Isolate the low-voltage direct current input lines from high-voltage AC electrical lines, electric motor feeds, and inductive switching fields to prevent ambient electromagnetic noise from generating false input transitions.

FAQ

What is the electrical switching configuration of this module?

The module uses a sinking configuration, which requires connected field devices to source current into the input terminal.

Are individual input channels electrically isolated from each other?

No, the eight input channels share a common internal ground reference rail within the module assembly.

Can an engineer hot-swap this device during active plant operation?

Yes, it supports removal and insertion under power, allowing for module replacement without shutting down power to the wider assembly.

What terminal base models can be used to mount this unit?

It is compatible with standard terminal base assemblies including the 1794-TB2, 1794-TB3, 1794-TB3S, and 1794-TBN units.

How can high-frequency signal bounce from a mechanical switch be prevented?

The digital input filter time can be adjusted in the controller configuration parameters to stabilize noisy field signals.

What do the yellow LED indicators on the faceplate signify?

Each indicator lights up when the corresponding input channel senses an active on-state voltage parameter.

Does the module require external power to operate?

Yes, a nominal 24V DC power source must be run to the terminal base block to drive the internal field-side input circuitry.

What voltage constitutes a logical off-state for a channel?

An input channel registers as off when the voltage potential drops below 5.0V DC or the input loop current falls below 1.5 mA.

Can this device process signals from 120V AC limit switches?

No, this module is rated exclusively for low-voltage direct current ranges between 10V DC and 31.2V DC.

How is input data sent from this module to a ControlLogix processor?

The unit transmits register values across the local FlexBus backplane to a network adapter module, which then forwards the data to the central controller.
