Allen-Bradley 1797-IE8 FLEX Ex Intrinsically Safe Analog Input Module

Description

The 1794-OB16 is a high-density digital output module functioning within the FLEX I/O distributed architecture. This hardware component interfaces directly with standard terminal bases to supply twenty-four volt direct current (24V DC) sourcing signals to various field actuators, indicators, and interposing relays. By converting electronic logic commands from a central processing unit into physical switching operations, the device enables modular extension of control topologies away from the main chassis over industrial networks such as EtherNet/IP, ControlNet, or DeviceNet through the addition of an appropriate network adapter.

This module houses sixteen independent, non-isolated output channels configured in a sourcing topology, drawing operational current directly from an external power bus via the terminal base assembly. The 1794-OB16 features internal diagnostic indicators that provide local troubleshooting data to electrical maintenance teams, streamlining verification during line installation and preventive upkeep within continuous process plants, material handling facilities, and automotive manufacturing lines.

Features

• Sixteen discrete output points arranged in a compact sourcing arrangement.
• Direct insertion into compatible terminal base units for fast, toolless hot-swapping during active operations.
• Individual light-emitting diode indicators mapping the status of each discrete channel for fast diagnostics.
• Flexible system engineering through native compatibility with diverse communication adapters.
• Solid-state switching mechanics eliminating physical contact wear for expanded life cycles.

Applications

• Solvent pump and pneumatic valve actuation systems.
• Control panel indication lights and stacked signaling towers.
• Interposing relay driver circuits inside power distribution boards.
• Packaging line sorting gate activation switches.

Technical Specifications

Connections/Interfaces

Installation Guidelines

DIN Rail Installation

Hook the top of the unit under the upper edge of the standard 35 mm DIN rail. Rotate the chassis downward until the integrated locking mechanism engages securely with the lower lip of the tracking rail.

Terminal Base Compatibility

Align the module side grooves with the guide rails on the pre-installed terminal base unit, such as a 1794-TB2 or 1794-TB3. Push down firmly until the module is fully seated and the retention latch snaps into place.

Cable Routing

Keep all discrete output wire channels physically separated from high-voltage AC lines and motor drive supply cords. Utilize bundled wiring trays to reduce cross-talk and ambient electromagnetic disturbance across the signal conductors.

Power Termination

Verify that external 24V DC power leads are securely screwed into the corresponding bus links on the terminal base block. Disconnect the primary line breakers before running terminal terminations to prevent unintended component short-circuiting.

FAQ

What is the switching orientation of this specific module?

The module operates using a sourcing design, delivering 24V DC from the supply bus to the wired load device when an output point transitions to the active high state.

Does this device feature individual isolation barriers between channels?

No, the sixteen points are non-isolated and utilize a shared internal power and common reference rail across the module circuit board.

Can a damaged unit be swapped while the terminal base remains powered?

Yes, the hardware structure allows for removal and replacement under power, but field-side actuator power should be isolated to prevent accidental equipment motion.

What terminal bases are recommended for installation?

The unit fits onto standard modules including the 1794-TB2, 1794-TB3, 1794-TBN, and 1794-TB3S options depending on the required wiring termination layout.

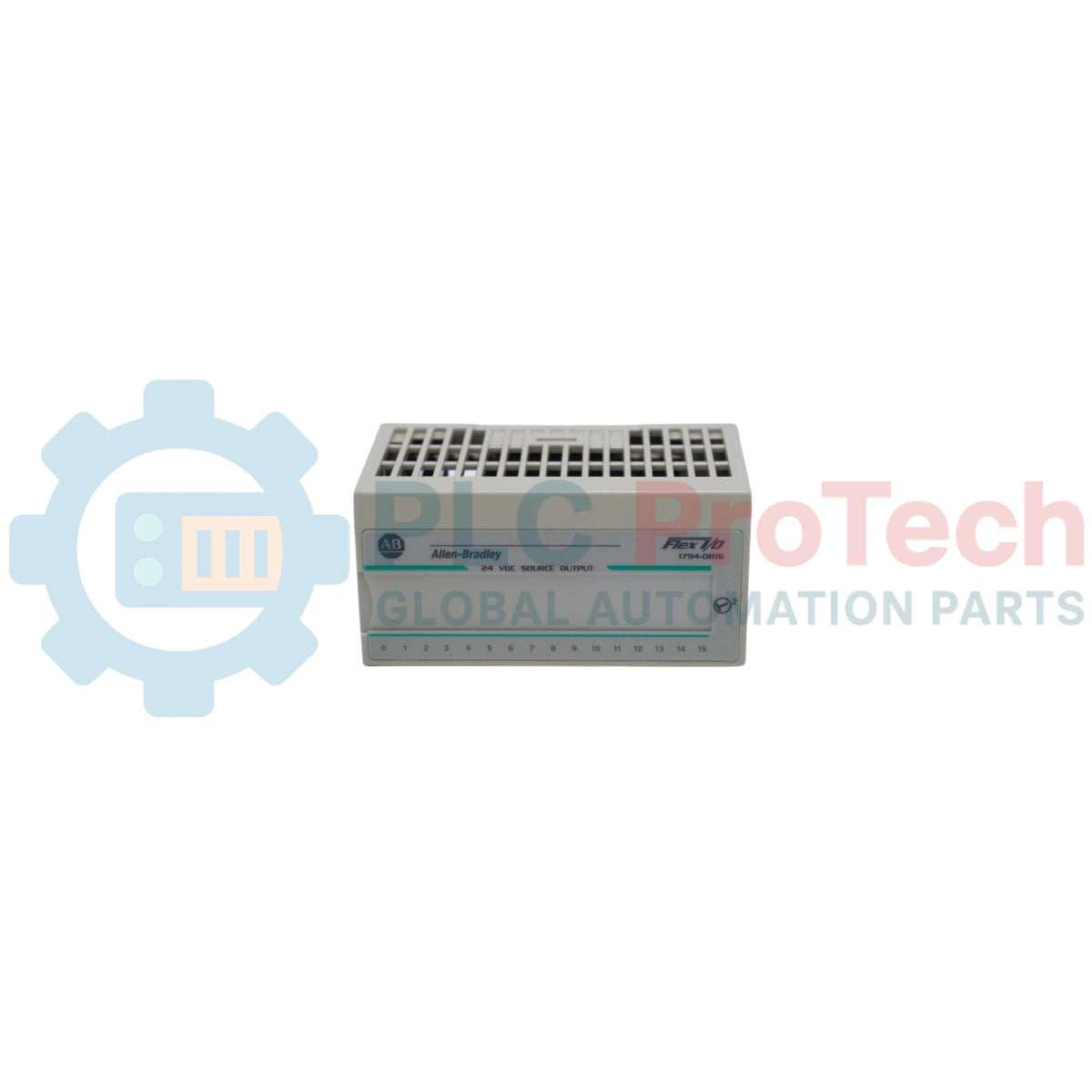

What do the front panel yellow LED lights represent?

Each numbered indicator corresponds to an output point and illuminates when that channel receives a logical command to turn on.

Is there built-in overcurrent or short-circuit protection for each channel?

The module relies on external fusing or the electrical characteristics of the sourcing circuitry to prevent overload damage if an external short occurs.

What is the current capacity per point if all channels are active?

Each channel can supply up to 0.5 A continuously, provided the total cumulative module current draw does not exceed the maximum aggregate limit of 8.0 A.

How does the module communicate back to a main ControlLogix controller?

It transfers data across the backplane to a network adapter module installed on the leftmost side of the local DIN rail cluster.

What is the minimum operating voltage required for stable output switching?

The reliable electrical operating window requires a minimum input potential of 10V DC to drive the internal solid-state output circuits.

Does this purchase include the terminal block base unit?

No, this part number represents the electronic plug-in module only, requiring the terminal base to be sourced separately.
