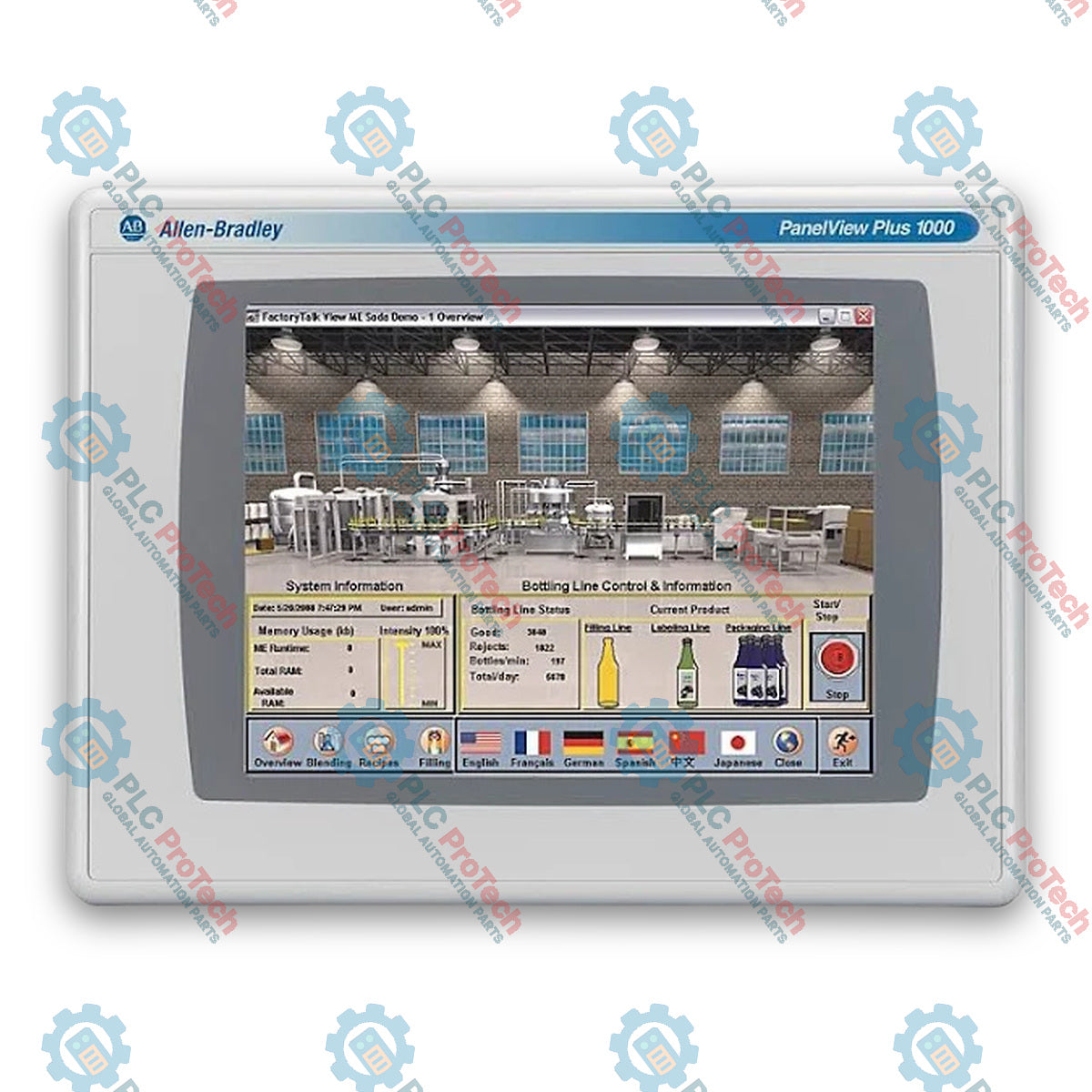

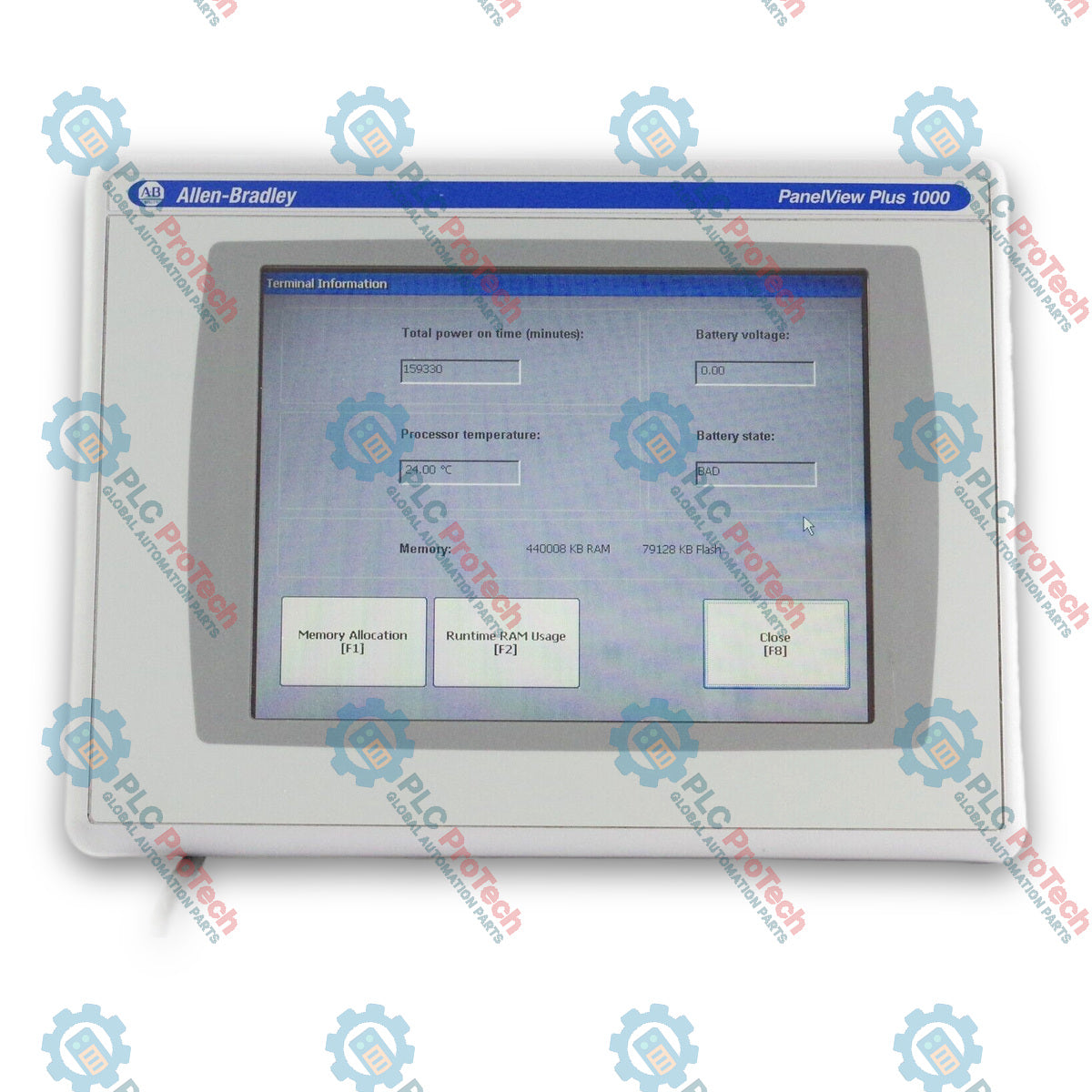

Allen-Bradley 2711P-T10C4A9 PanelView Plus 6 1000 Touch Screen Terminal

SKU 2711P-T10C4A9

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Allen-Bradley
Product No.: 2711P-T10C4A9
Origin United States
Product Type: Operator Interfaces
Payment: T/T, Western Union
Weight: 2.5 kg
Dimensions: 224 x 305 x 55 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The Allen-Bradley 2711P-T10C4A9 is a 10.4-inch color touch screen HMI terminal belonging to the PanelView Plus 6 1000 product platform. Built on modular architecture, this terminal integrates a 10.4-inch active-matrix TFT display module with a high-performance AC-powered logic module. It operates on the Windows CE 6.0 operating system with extended features and Microsoft Office file viewers, providing pre-loaded FactoryTalk View Machine Edition runtime software along with single-license access to FactoryTalk ViewPoint for browser-based remote monitoring.

Designed for real-time visualization and machine control, the 2711P-T10C4A9 processes complex graphical interfaces while interfacing with ControlLogix, CompactLogix, and other automation platforms over EtherNet/IP or serial connections. The logic module features 512 MB RAM and 512 MB nonvolatile flash memory (with approximately 79 MB of free user memory), ensuring adequate capacity for runtime file storage, historical data logging, and alarm logging. System connectivity is supported natively via an integrated 10/100 Mbps Ethernet port, an RS-232 serial port, dual USB host ports, and a hot-swappable Secure Digital (SD) card slot.

Features

Modular Hardware Design: Features field-replaceable display and logic modules, allowing efficient field serviceability and straightforward hardware updates.
Standard Communications: Integrated 10/100 Mbps Ethernet (Auto-MDI/MDI-X) and RS-232 serial interface for controller connectivity and programming.
Optional Network Expansion: Features an internal expansion interface accepting modular network cards for DH+, DH-485, ControlNet (scheduled or unscheduled), or an additional Ethernet port.
Extended Software Features: Windows CE 6.0 OS extended features add web browser functionality, Remote Desktop connection, VNC server/client support, FTP server capability, PDF reader, and Microsoft file viewers.
Pre-Installed FactoryTalk Software: Loaded with FactoryTalk View Machine Edition Station runtime (v6.0 or later) and FactoryTalk ViewPoint (v1.2 or later) for browser-based remote access.
Hot-Swappable External Media: Dual USB 2.0 host ports and an SD card slot (supporting 1784-SDx cards) enable fast application updates, parameter backups, and data log exports.
Durable Resistive Touchscreen: Equipped with an 8-wire analog resistive touch screen designed for tactile input in harsh industrial settings.

Applications

Machine Interface: Primary operator control terminal for packaging equipment, material handling systems, and assembly lines.
Process Visualization: Local monitoring and supervisory control in water treatment, food and beverage processing, and discrete manufacturing cells.
Data Logging and Reporting: Local storage and viewing of production statistics, process parameters, and diagnostic alarm logs via extended Windows CE features.

Ordering Information

Catalog Number Structure	Selection Option
Bulletin	2711P PanelView Plus 6 Series
Input Type	T = Touch Screen
Display Size	10 = 10.4-inch
Display Type	C = Color TFT
Communication	4 = Ethernet, RS-232, (2) USB
Power Supply	A = AC Input (100...240V AC)
Operating System	9 = Windows CE 6.0 with Extended Features

Technical Specifications

General

Parameter	Specification
Manufacturer	Allen-Bradley / Rockwell Automation
Exact Model	2711P-T10C4A9
Product Family	PanelView Plus 6 1000
UPC	885630004211
Country of Origin	United States of America

Display and Touch

Parameter	Specification
Display Size	10.4 in (264 mm)
Display Type	Color Active-Matrix TFT
Display Resolution	640 x 480 (VGA)
Display Area	211 x 158 mm
Luminance	300 cd/m2 (nits)
Backlight Type	CCFL, field replaceable
Backlight Life	50,000 hr minimum at 25 degC (77 degF)
Touch Screen Type	8-wire analog resistive
Touch Actuation Force	10 g
Touch Screen Life	1 million actuation presses

Electrical & Processing

Parameter	Specification
Supply Voltage	100...240V AC, 50/60 Hz
Power Consumption	160VA maximum, 65VA typical
Heat Dissipation	240 BTU/hr
System Memory	512 MB RAM, 512 MB nonvolatile flash
Free User Memory	Approx. 79 MB
Real-Time Clock Battery	Field-replaceable CR2032 coin-cell lithium (Cat. No. 2711P-RY2032); 4 yr min life at 25 degC
Real-Time Clock Accuracy	+/- 2 minutes per month

Operating System & Software

Parameter	Specification
Operating System	Windows CE 6.0 with extended features
Included Applications	FTP Server, VNC Server/Client, PDF Reader, Internet Explorer, Media Player, Remote Desktop, Microsoft Office Viewers
Runtime Software	FactoryTalk View Machine Edition Station v6.0 or later
Remote View Software	FactoryTalk ViewPoint v1.2 or later

Mechanical & Environmental

Parameter	Specification
Cutout Dimensions	224 x 305 mm
Front Bezel Dimensions	248 x 399 mm
Built-in Depth	55 mm
Weight	Approx. 2.5 kg
Enclosure Ratings	NEMA/UL Type 12, 13, 4X (indoor use only), IEC IP54, IP65
Front Panel Protection	IP65, NEMA 4X
Operating Temperature	0...55 degC (32...131 degF)
Nonoperating Temperature	-25...70 degC (-13...158 degF)
Relative Humidity	5...95% noncondensing
Operating Altitude	2000 m (6561 ft)
Shock	Operating: 15 G at 11 ms
Vibration	10...57 Hz at 0.012 in peak-to-peak displacement; 57...500 Hz at 2 G peak acceleration

Connections / Interfaces

Interface	Connector / Description
Ethernet Port	(1) RJ45 10/100 Mbps, Auto-MDI/MDI-X
Serial Port	(1) RS-232, 9-pin D-sub male
USB Host Ports	(2) USB 2.0 Type A, high-speed, hot-swappable
USB Device Port	(1) USB Type B (for PC connection / programming)
Card Slot	(1) Hot-swappable Secure Digital (SD) card slot
Network Module Slot	Internal slot for optional DH+, DH-485, ControlNet, or Ethernet module
Power Terminal	3-pin AC power terminal block

Installation Guidelines

Panel Cutout Preparation: Ensure the mounting panel is clean, flat, and cut precisely to 224 x 305 mm with smooth edges to provide proper sealing against the front gasket.
Mounting Clearance: Maintain adequate clearance around the display unit inside the enclosure for ventilation (at least 2 inches on all sides).
Panel Mounting: Insert the terminal into the cutout from the front of the panel. Attach the provided mounting clips around the bezel and tighten evenly to ensure NEMA 4X / IP65 water-tight seal without over-torquing.
Power Wiring: Verify that AC supply voltage matches the terminal rating (100...240V AC). Wire the line, neutral, and earth ground wires to the 3-pin AC terminal block.
Grounding: Connect a dedicated, low-impedance ground conductor to the functional earth terminal to mitigate electrical noise and static charge buildup.

Configuration and Commissioning

Initial Power-Up: Apply power and allow the terminal to boot into the Windows CE operating system and automatically load the FactoryTalk View ME runtime station.
Network Setup: Configure IP address parameters (DHCP or static IP), Subnet Mask, and Gateway within the PanelView Terminal Settings menu.
Application Transfer: Load runtime .MER project files via USB drive, SD card, or over Ethernet using FactoryTalk View Studio Transfer Utility.
Communication Verification: Verify active RSLinx Enterprise data paths to target controllers (e.g., Logix5000) and confirm tag communication status.
Backup Setup: Maintain a backup copy of the original .MER project file on an external SD card or secure server for quick replacement deployment.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What software is used to program the 2711P-T10C4A9 terminal?

The Allen-Bradley 2711P-T10C4A9 terminal is programmed using FactoryTalk View Studio for Machine Edition (ME) software. Runtime `.MER` applications are created in FactoryTalk View Studio and transferred to the terminal over Ethernet, USB, or SD card.

What is the difference between Windows CE 6.0 standard and extended features on PanelView terminals?

Extended features (indicated by '9' in the catalog code) add applications such as Internet Explorer web browser, Remote Desktop connection, Media Player, WordPad, and Microsoft Office file viewers (Word, Excel, PowerPoint) to the base Windows CE operating system.

Can I add DH+ or ControlNet communication to the 2711P-T10C4A9?

Yes, the terminal includes an internal network expansion interface that supports modular communication modules, such as 2711P-RN6 for DH+/DH-485 or 2711P-RN15S for ControlNet.

What replacement battery is required for the real-time clock in this terminal?

The 2711P-T10C4A9 uses a field-replaceable CR2032 coin-cell lithium battery (Allen-Bradley catalog number 2711P-RY2032 or equivalent) to maintain time stamping for critical data.
