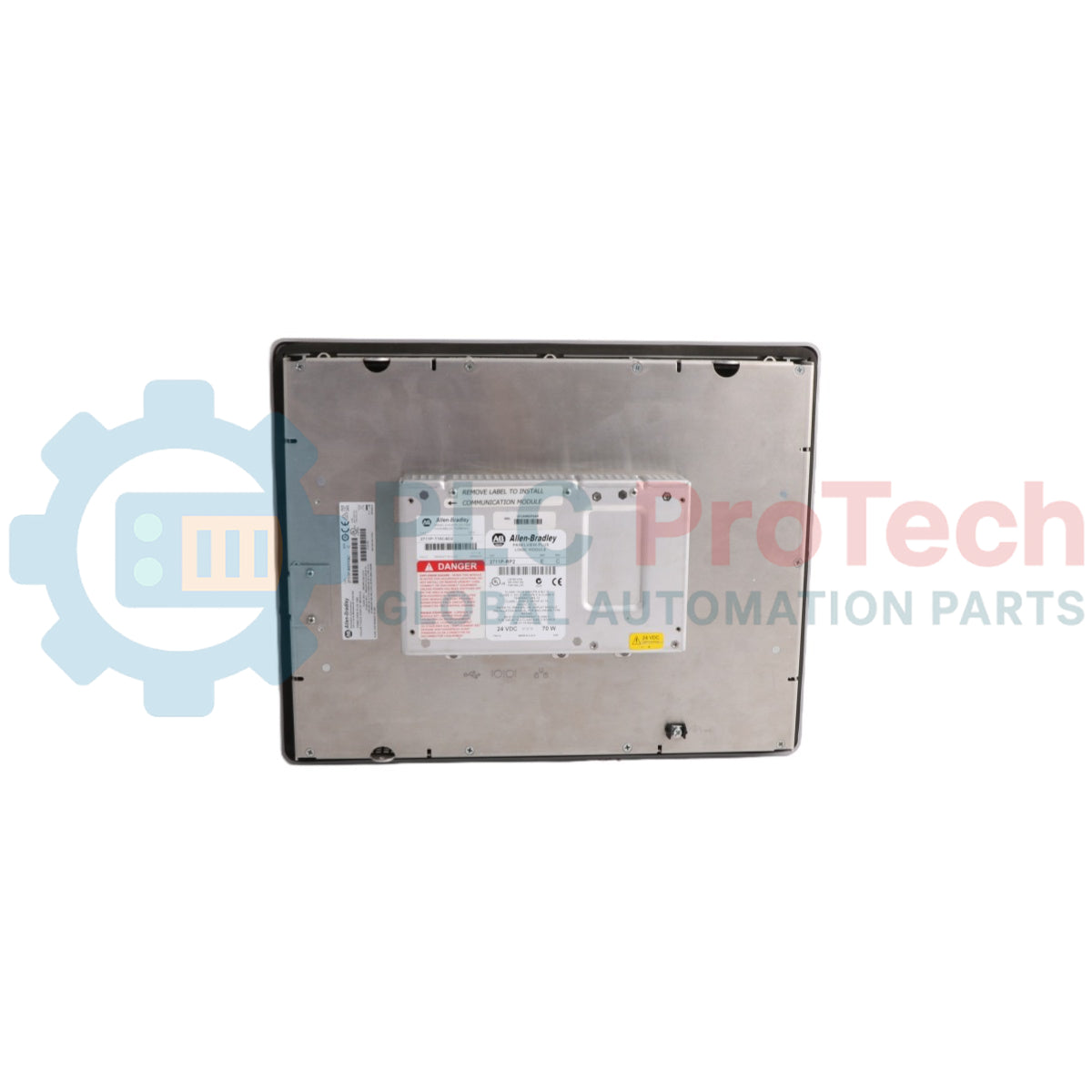

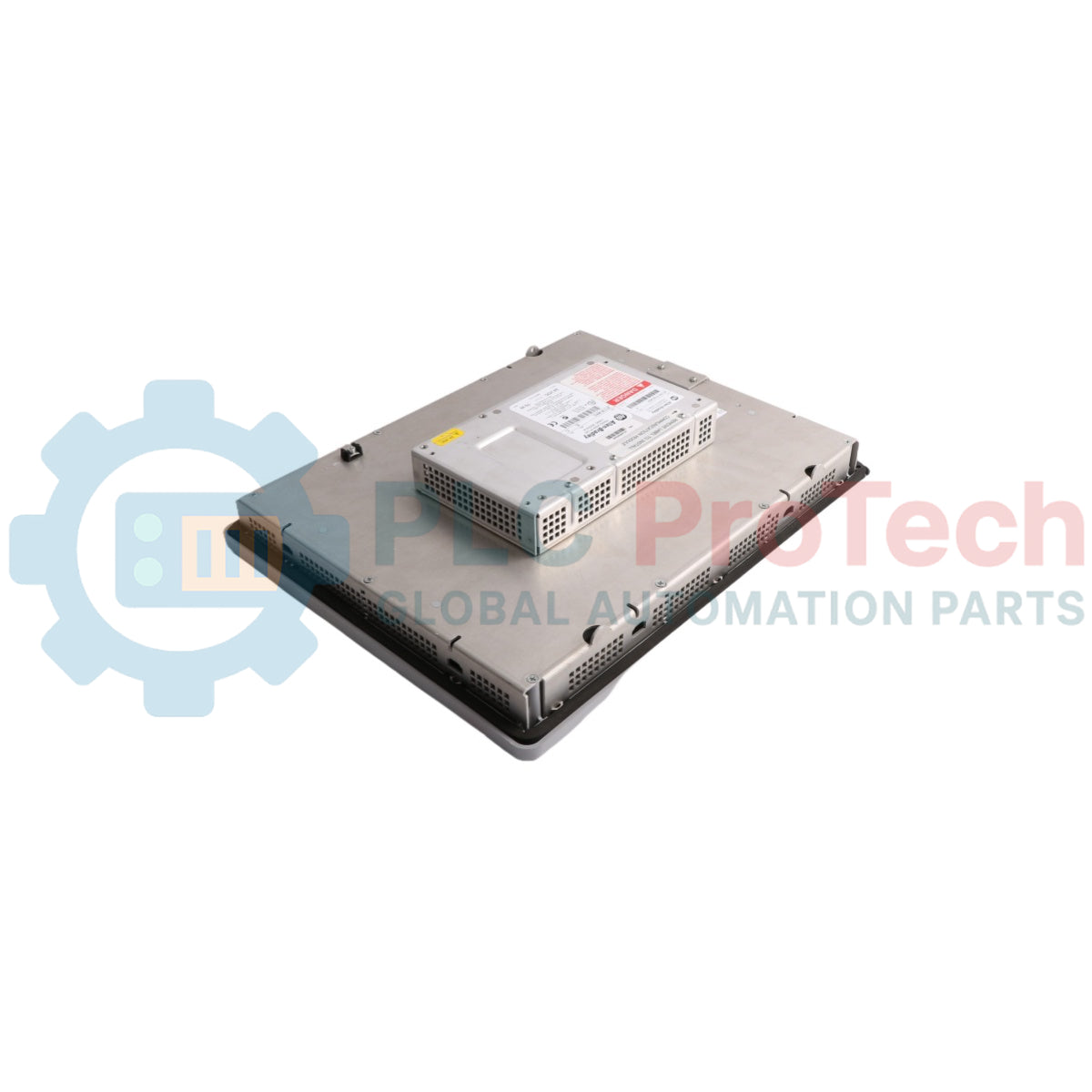

Allen-Bradley 2711P-T15C4A2 PanelView Plus 1500 Color Active-Matrix TFT Touchscreen HMI Terminal

Product Overview

The 2711P-T15C4A2  functions as a high-performance Human-Machine Interface (HMI) station engineered within the Allen-Bradley PanelView Plus 1500 network platform. Purpose-built to provide industrial operators with real-time process monitoring and deterministic machinery control, this visualization terminal operates in harsh industrial infrastructure sectors such as heavy chemical processing plants, municipal water treatment facilities, and automotive stamping lines. By consolidating complex automation data into centralized, high-resolution graphic arrays, the system enables immediate fault assessment and setpoint adjustments. This localized visibility allows maintenance teams to bypass slow field diagnostics, directly optimizing system efficiency and reducing expensive production line downtime.

Hardware Architectural Configuration

The 2711P-T15C4A2 integrates a modular physical design comprised of a 15-inch flat-panel display module paired with a heavy-duty logic execution module. Communication tracking and data exchange layer with upstream Programmable Logic Controllers (PLCs) or Programmable Automation Controllers (PACs) utilize a standardized onboard interface array:

• Ethernet Communications: Provides seamless integration into standard EtherNet/IP networks for high-speed scheduled I/O mirroring and production data mapping.

• RS-232 Serial Port: Accommodates legacy peer-to-peer serial lines utilizing DF1 or DH-485 protocol streams.

• Dual USB 2.0 Interfaces: Supports local engineering maintenance tasks and peripheral expansions, permitting the direct connection of an external keyboard, mouse, or flash drive.

The core logic processing module features 128 MB of volatile execution RAM alongside non-volatile memory layouts capable of running mathematical expressions, multi-variable If/Then/Else conditioning statements, and parameter screen reuse configurations to lower development cycle times.

Technical Specifications

Engineering FAQs

How can I expand the non-volatile memory storage on the legacy 2711P-T15C4A2 terminal?

The 2711P-T15C4A2 contains a dedicated internal slot that supports standard industrial-grade CompactFlash (CF) memory cards. You can utilize these external storage modules to hold heavy runtime application graphics, localized fault history logs, historical trending reports, and user-accessible technical manual documents directly inside the HMI operating environment.

What is the migration pathway for this discontinued PanelView Plus 1500 terminal?

Because Rockwell Automation transitioned the legacy PanelView Plus 1500 series to obsolete status, the direct modernized replacement pathway is the PanelView Plus 7 Performance or PanelView 5510 15-inch widescreen touchscreen assembly. Migration requires importing the legacy FactoryTalk View ME (.MED or .MER) project files into updated versions of Studio 5000 View Designer or FactoryTalk View Studio software to reformat screen aspect ratios.

Can the touchscreen surface be cleaned or protected against aggressive chemical splashes?

Yes. The front analog resistive screen is protected by a tough polyester outer layer that resists standard industrial cleaners, oils, and mild chemical exposure. For severe washdown or high-glare setups, it is highly recommended to install a clear, anti-glare protective overlay accessory over the display area to preserve the 1 million actuation touch matrix from scratches and physical wear.

Field Installation and Maintenance Directives

• Enclosure Cutout and Mounting Torque: Prepare the panel cabinet mounting cutout using precise template dimensions. Ensure the continuous rubber gasket seated on the back of the front bezel is clean and free of twists. Slide the terminal into the cutout and clip the heavy-duty industrial mounting levers into their slotted tracks along the perimeter of the housing. Tighten the mounting screws evenly in an alternating sequence to a torque value of 0.90 Nm (8.0 lb-in) to secure an airtight seal and achieve proper NEMA / IP rating compliance. Over-tightening will warp the front plastic housing and cause false touch activations on the resistive grid.

• AC Input Power Termination and Grounding: Bring the 85-264 VAC supply lines through an independent branch conduit to insulate the terminal from heavy inductive noise generated by adjacent motor starters or variable frequency drives. Strip conductor insulation back 7 mm (0.28 inches) and terminate securely at the screw-clamp power block assembly. The Protective Earth (PE) ground wire terminal must connect directly to the main control panel enclosure ground stud via a low-impedance copper conductor to enable the integrated electromagnetic compatibility (EMC) protection filters.

• Thermal Management and Convection Spacing: The 2711P-T15C4A2 relies on natural air convection through its back venting slots to cool the CCFL backlight and processor core. Mount the terminal vertically within an enclosure that preserves a minimum free clearance space of 51 mm (2.0 inches) on the top, bottom, and side panels. If cabinet temperatures routinely climb above 55 deg C, install filtered louvers or a dedicated cabinet cooling unit to prevent rapid degradation of the CCFL backlight and avoid automatic thermal processor shutdown.
