Allen-Bradley

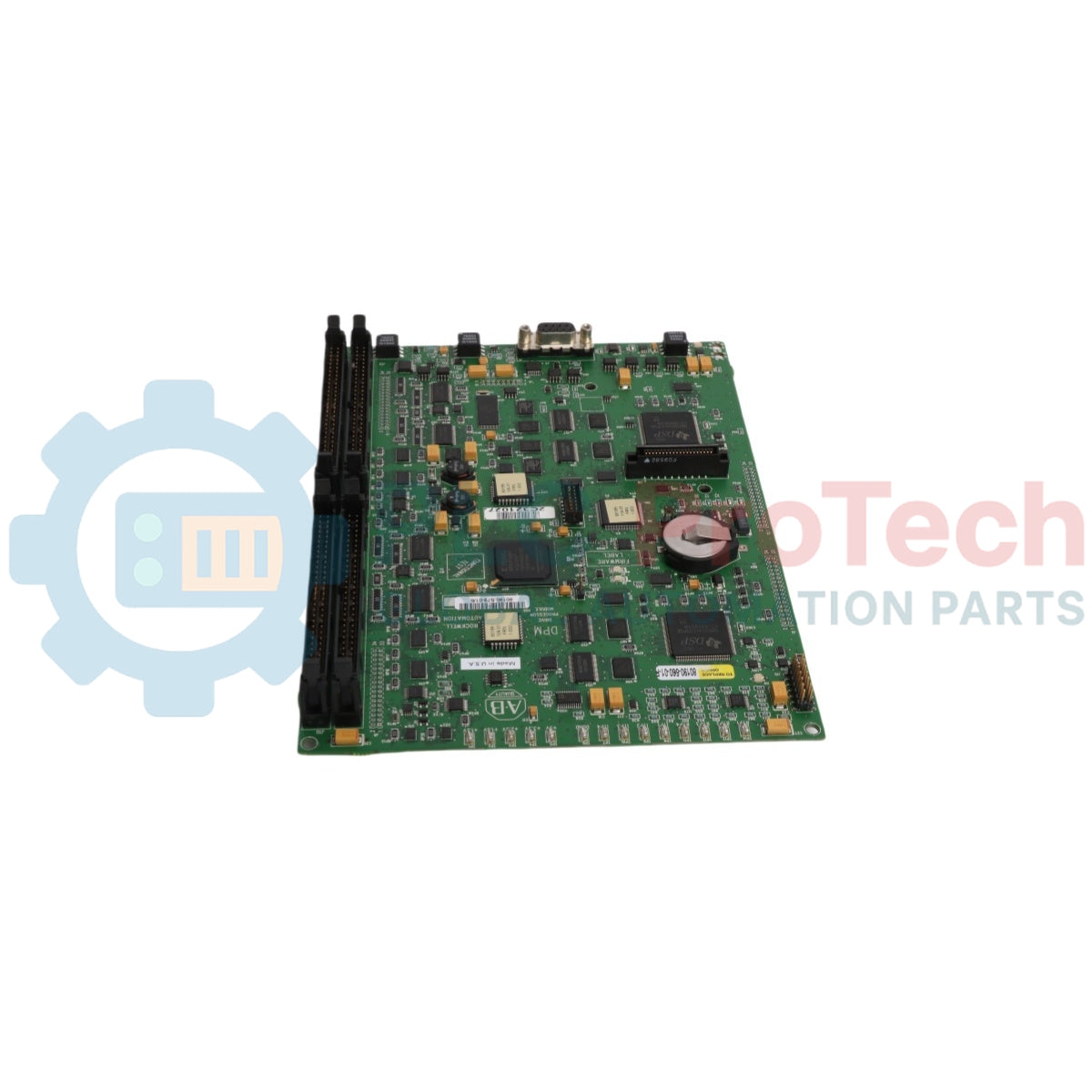

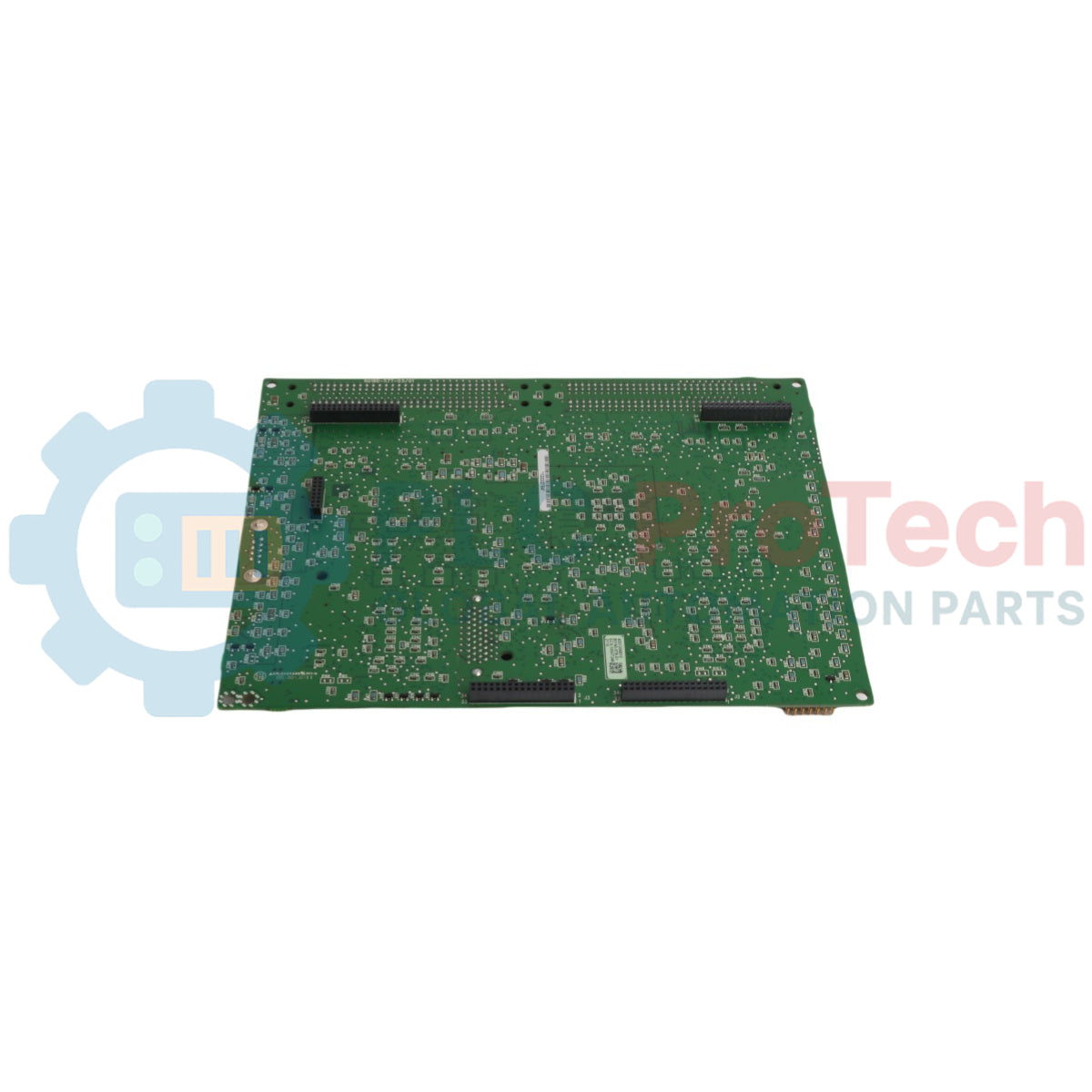

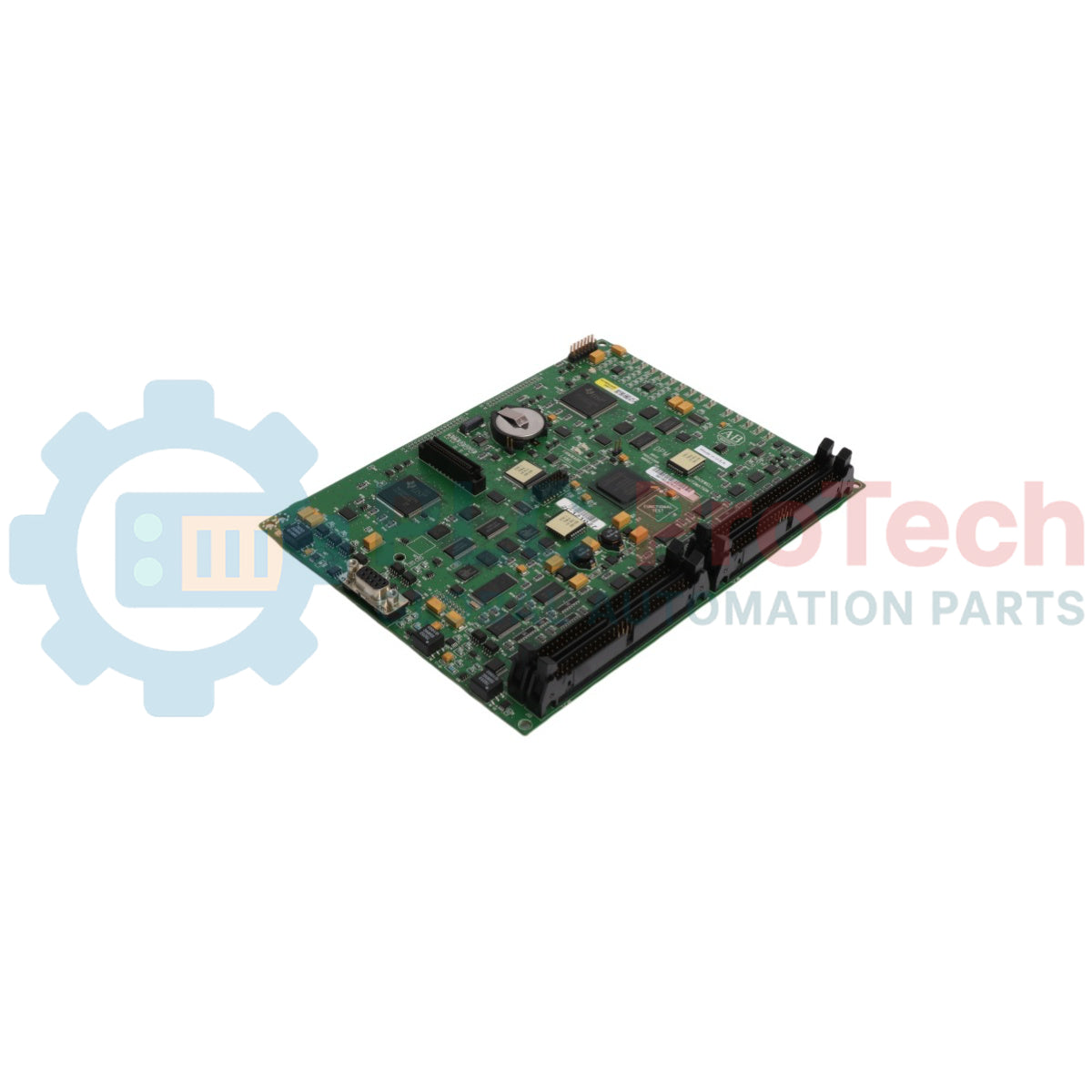

Allen-Bradley 80190-520-01-R Current Loop Self-Powered Gate Driver Board

SKU 80190-520-01-R

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Allen-Bradley
  • Product No.: 80190-520-01-R
  • Origin United States
  • Product Type: Gate Driver Board
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.45 kg
  • Dimensions: 130 mm x 130 mm x 85 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

CENTERLINE 1500 Gate Driver Boards

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Allen-Bradley 80190-520-01-R Current Loop Self-Powered Gate Driver Board

Download Open in new tab
Quantity
Call sales Contact

Product Description

Allen-Bradley 80190-520-01-R is a current loop self-powered gate driver board (CLGD) designed for use within the CENTERLINE 1500 Medium Voltage SMC-50 Motor Controller system. The device provides the essential turn-on capability for silicon-controlled rectifier (SCR) power semiconductors by recovering energy primarily from the integrated snubber circuit, ensuring complete isolation from standard control and logic circuits. It also accepts structural connection to heatsink thermistors to continually monitor power module temperature.

Technical Specifications

Specification Value
Manufacturer Allen-Bradley / Rockwell Automation
Model 80190-520-01-R
Board Type Current Loop Gate Driver (CLGD) Board
Power Source Self-powered via snubber circuit recovery / current loop power supply
Isolation Type Optical fiber isolation
Overtemperature Trip Threshold Greater than 85 degC
Power Assembly Terminal Torque 5.6 N-m (50 lb-in)

Features

  • Self-Powered Operation: Primarily derives internal operating power directly from the snubber circuit to achieve full electrical isolation from low-voltage logic circuits.
  • Fiber-Optic Isolation: Utilizes an optical fiber interface for receiving gating source logic signals and transmitting status feedback safely across high-voltage boundaries.
  • Integrated Thermal Monitoring: Interfaces directly with heatsink-mounted thermistors to halt gating operations and signal a temperature fault if the module exceeds 85 degC.
  • Short-Term Backplane Power: Receives auxiliary short-term power from the integrated current loop power supply to maintain stable gate drive triggers.

Applications

  • CENTERLINE 1500 Systems: Designed as a key power stack component in Bulletin 1503E, 1560F, and 1562F medium-voltage smart motor controllers.
  • Industrial SCR Gating: Used in three-phase solid-state AC line controllers for managing induction motor starting and stopping configurations.

Installation Guidelines

  • Static Precautions: This board contains electrostatic discharge (ESD) sensitive components; proper grounding wrist straps must be used during handling and installation.
  • Fiber-Optic Handling: The fragile gray or black fiber-optic cables must be routed carefully to avoid impact or sharp bends that cause signal attenuation.
  • Terminal Tightening: Secure all power assembly connections to the designated torque specification of 5.6 N-m (50 lb-in) to prevent contact resistance.
  • Heatsink Mounts: Ensure the thermistor connections are properly seated to allow correct overtemperature feedback transmission via the optical links.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
How does the device obtain its operating power?
The device is self-powered, recovering its primary operating energy directly from the snubber circuit, and it receives short-term power from the current loop power supply.
What happens if the power module temperature exceeds 85 degC?
The board turns off its driver output and transmits a signal over a fiber-optic cable to the control module to halt gating operations and trigger a temperature fault.
What is the correct torque specification for the power terminals on this board?
The recommended tightening torque for the power assembly terminals on the board is 5.6 N-m (50 lb-in).
