Description

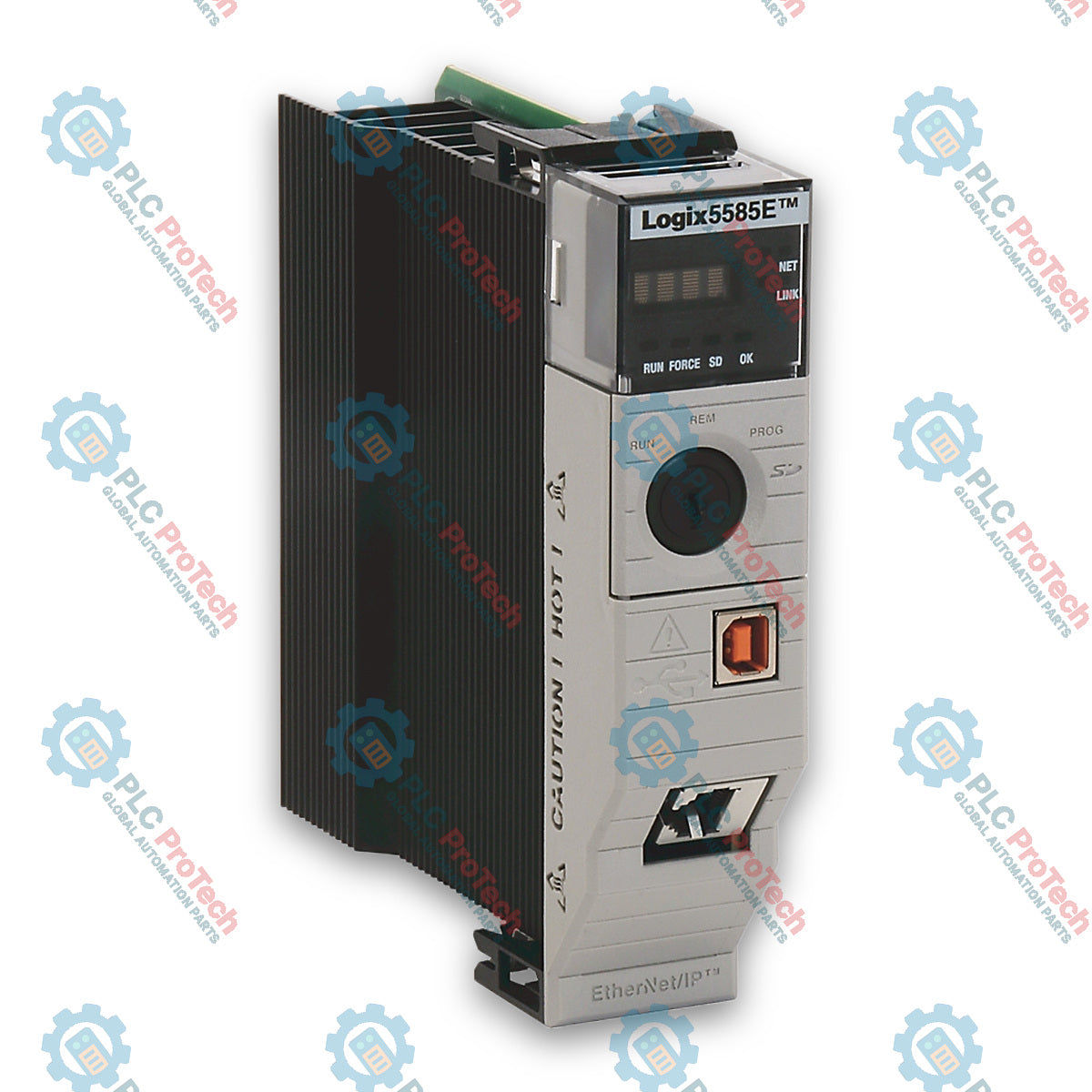

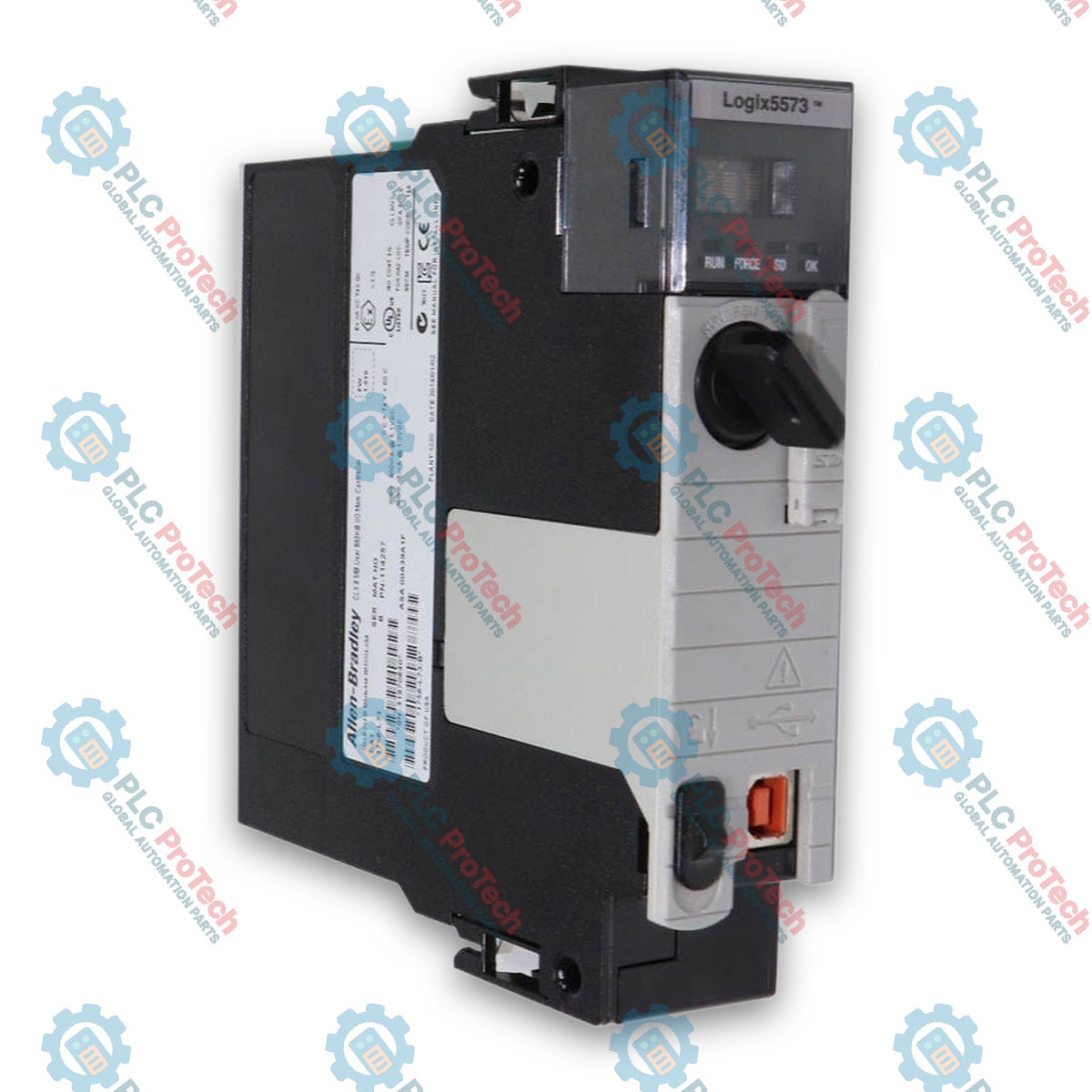

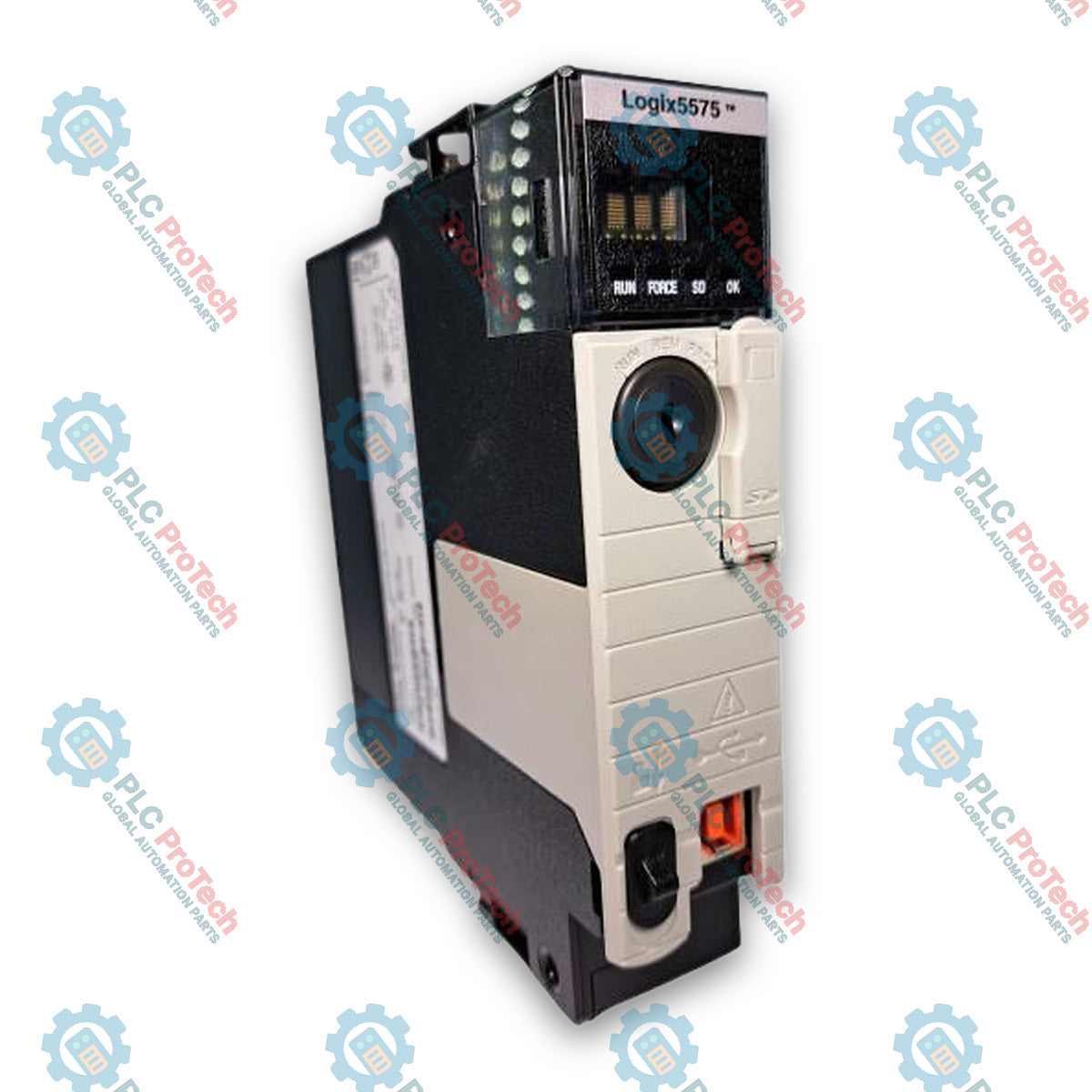

The Allen-Bradley 1756-L75 is a high-performance programmable automation controller (PAC) belonging to the ControlLogix 5570 controller family. Designed for complex industrial control applications, it acts as a central processing unit within the Rockwell Automation Integrated Architecture system. The controller is capable of managing demanding discrete, motion, process, and safety tasks across broad industrial automation environments.

Equipped with 32 MB of user memory, the 1756-L75 provides substantial capacity for large control programs, extensive data logging, and complex tag structures. Front-panel features include a 1-port USB 2.0 connection intended for local programming, commissioning, and firmware updates, alongside a 4-character alpha/numeric display that provides real-time operational status, diagnostic codes, and system initialization feedback.

The 1756-L75 operates within any standard slot of a ControlLogix 1756 chassis. Communicating across the high-speed backplane, the controller integrates with a wide variety of network interface modules—including EtherNet/IP, ControlNet, and DeviceNet—and connects directly to localized or remote I/O expansion modules. It relies on an embedded, non-removable Energy Storage Module (ESM), eliminating the maintenance requirements associated with conventional lithium battery replacement.

Features

• 32 MB User Memory: Provides large capacity for extensive application code, complex tag structures, and data handling without supplemental memory hardware.
• Integrated Motion Capability: Supports motion control over EtherNet/IP networks as well as SERCOS and analog motion interfaces via compatible chassis-based modules.
• USB 2.0 Maintenance Port: Front-facing USB 2.0 Type-B port allows full-speed (12 Mbps) local programming, configuration, firmware updates, and online edits.
• Alphanumeric Status Display: Integrated 4-character display provides real-time diagnostic indicators, fault codes, and operational status at a glance.
• Battery-Free Energy Storage: Utilizes an embedded, non-removable Energy Storage Module (ESM) to preserve critical data during power cycles without requiring battery maintenance.
• Flexible Networking: Communicates across the backplane to support EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, and SynchLink communication interfaces.
• Nonvolatile Data Backup: Includes a pre-installed 1 GB Secure Digital memory card (1784-SD1) for automated or manual backup of program code and system parameters.
• High-Speed Execution: Supports up to 32 controller tasks with up to 1,000 programs per task, enabling prioritized periodic, event-driven, and continuous execution.

Applications

• Complex Machine Control: Provides high-speed processing and logic execution for automated assembly lines, packaging machinery, and material handling systems.
• Integrated Motion Systems: Coordinates multi-axis servo drives and positioning systems using Integrated Motion over EtherNet/IP or SERCOS interfaces.
• Plant-Wide Process Control: Manages continuous and batch processing equipment, regulatory loops, and data integration across distributed I/O architectures.
• Redundancy Systems: Functions as a primary or secondary processor in high-availability ControlLogix redundant chassis configurations.

Technical Specifications

General

Performance and Memory

Communication and Interfaces

Compatibility and Chassis Support

Isolation and Wire Category

Environmental

Connections / Interfaces

Installation Guidelines

1. Safety Precaution: Disconnect all system power sources and observe electrostatic discharge (ESD) handling procedures before inserting or removing the controller.
2. Chassis Inspection: Verify that the 1756 chassis, power supply, and backplane connectors are clean, undamaged, and securely mounted.
3. Module Insertion: Align the 1756-L75 controller with the guide rails of any open chassis slot. Slide the controller firmly into the slot until the top and bottom card guides latch securely.
4. Card and ESM Verification: Ensure the 1784-SD1 memory card is fully seated in its card slot before powering up the rack.
5. USB Usage Note: The front USB port is intended solely for temporary programming, troubleshooting, and commissioning. Do not keep a USB cable permanently connected in hazardous locations.

Configuration and Maintenance Guidelines

• Software Compatibility: Program and configure the controller using Rockwell Automation Studio 5000 Logix Designer application software. Ensure the controller firmware matches the Studio 5000 project major revision.
• Parameter Backup: Load the completed application code into nonvolatile memory (1784-SD1) through Logix Designer to ensure automatic recovery upon complete loss of system power.
• Firmware Updates: Perform firmware updates over the front USB interface or via an EtherNet/IP connection using ControlFLASH or ControlFLASH Plus software.
• Energy Storage Maintenance: Because the 1756-L75 utilizes an embedded Energy Storage Module, routine lithium battery maintenance and scheduled replacements are not required.
