Manufacturer: Basler Electric
Product No.: DECS-200-2L
Country of origin:United States
Product Type: Digital Excitation Control Systems
Payment: T/T, Western Union
Weight: 6350g

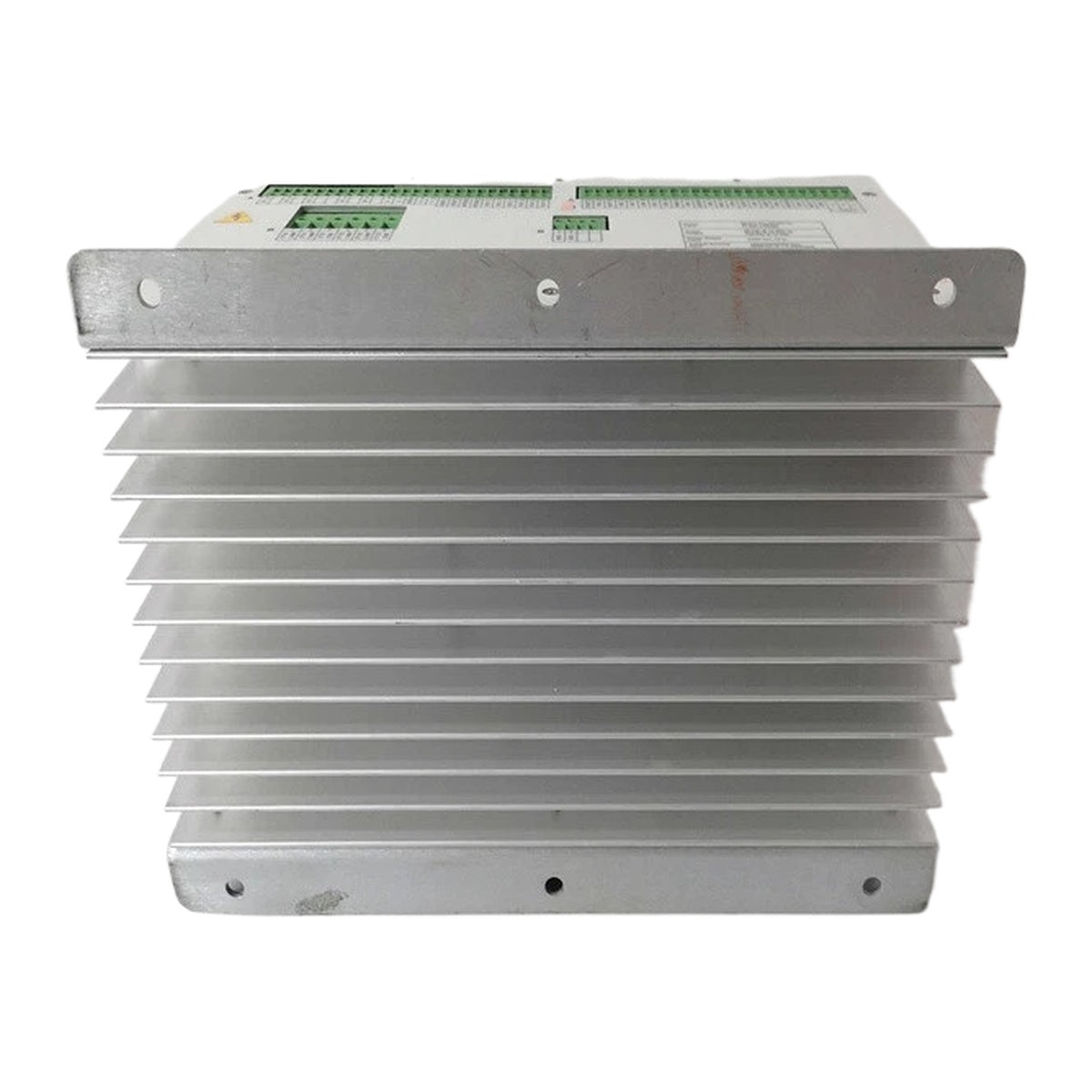

Dimensions: 171 mm x 205 mm x 304 mm (D x W x H)
Shipping port: Xiamen
Warranty: 12 months

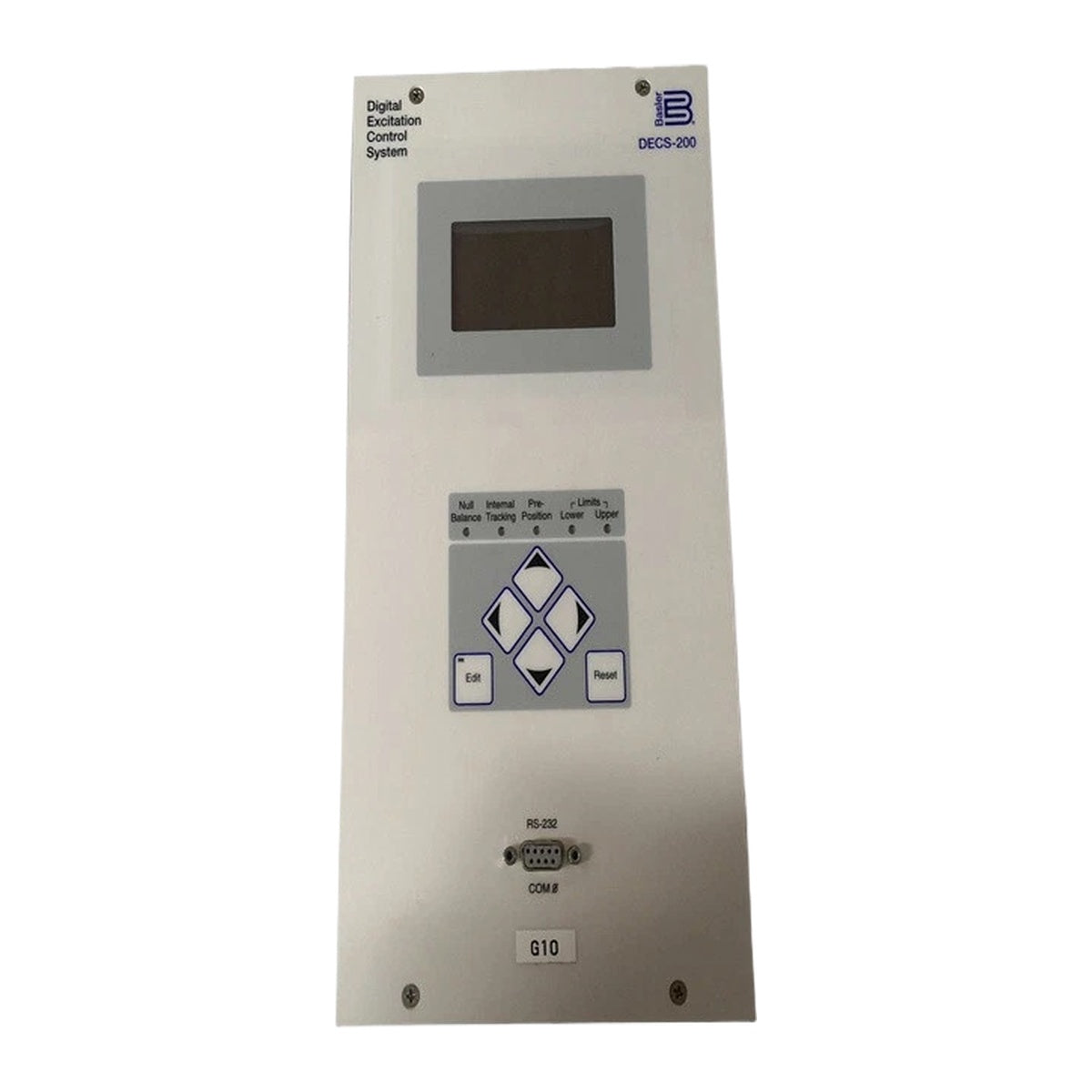

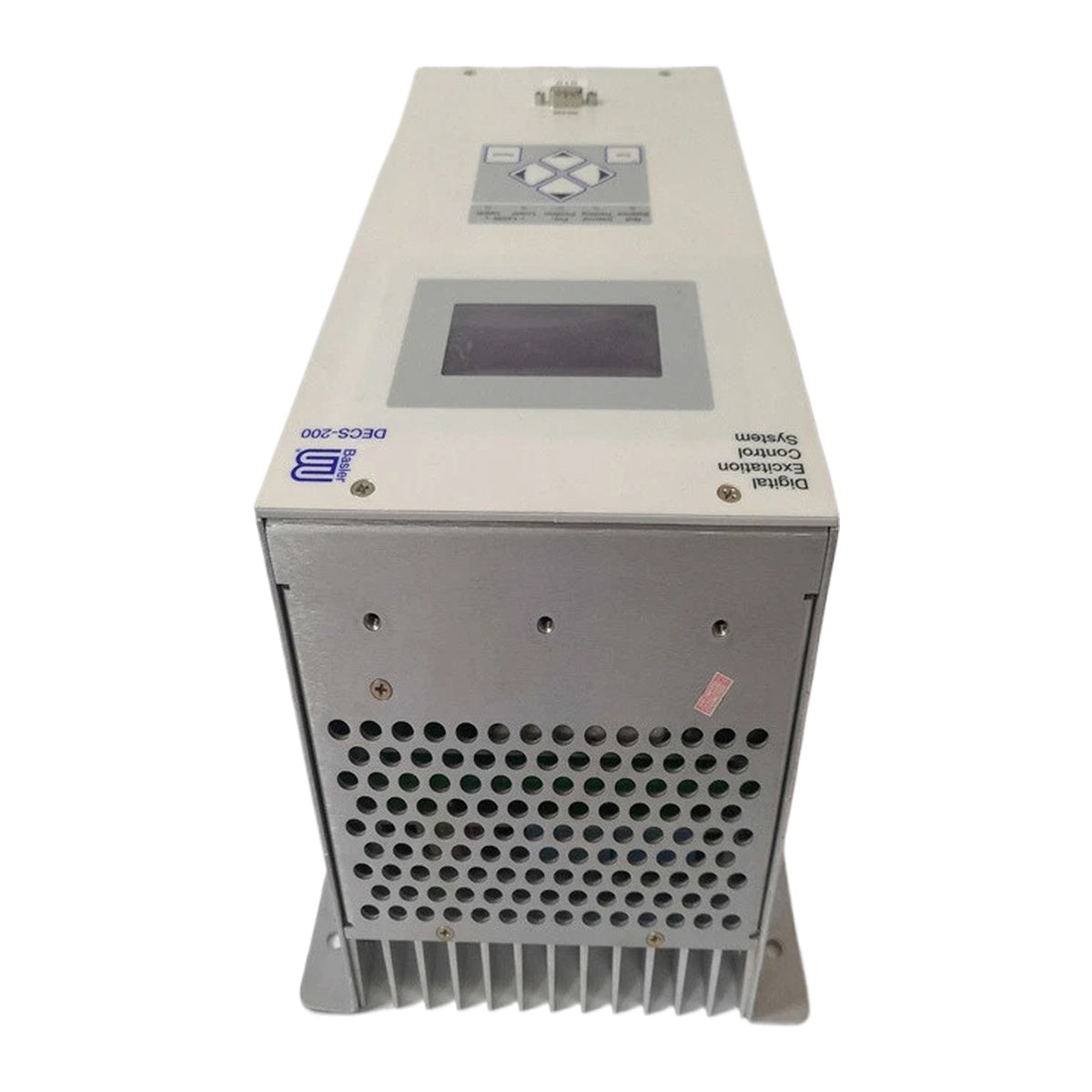

The Basler Electric DECS-200-2L is a total digital excitation control system packaged in a single enclosure, designed to control the output voltage, vars, or power factor of synchronous generators by varying DC excitation applied to the exciter field. Operating with 15 Adc continuous rated output across 32 Vdc, 63 Vdc, or 125 Vdc excitation applications, this unit incorporates a pulse-width-modulated (PWM) power stage to deliver regulation stability under non-linear load conditions. The DECS-200-2L style configuration specifies external and internal autotracking functionality paired with a 24/48 Vdc control power supply.
Equipped with a microprocessor-based architecture, the device provides true RMS single- or three-phase sensing for generator voltage, bus voltage, and generator currents. Integrated features include multiple operating modes (Automatic Voltage Regulation, Field Current Regulation, var, and Power Factor modes), soft start voltage buildup, limiters, generator protection functions, sequence of events recording, and oscillography. Local operator interface is provided via a front-panel backlit LCD display, six navigation pushbuttons, status LEDs, and an RS-232 serial port, with an additional RS-485 port supporting Modbus RTU network communication up to 4,000 feet.
| Style Option | Code | Selection Description |
|---|---|---|
| Tracking | 2 | External/Internal autotracking |
| Power Supply | L | 24/48 Vdc control power supply |
| Parameter | Specification |
|---|---|
| Manufacturer | Basler Electric |
| Model | DECS-200-2L |
| Control Power Input Voltage (Style L) | 16 to 60 Vdc |
| Control Power Burden | 30 W |
| AC Operating Power Input (32 Vdc Output) | 60 Vac nominal, 56 to 70 Vac +/-10%, 1 or 3 Phase, 50 to 500 Hz, 780 VA burden |
| AC Operating Power Input (63 Vdc Output) | 120 Vac nominal, 100 to 139 Vac +/-10%, 1 or 3 Phase, 50 to 500 Hz, 1570 VA burden |
| AC Operating Power Input (125 Vdc Output) | 240 Vac nominal, 190 to 277 Vac +/-10%, 1 or 3 Phase, 50 to 500 Hz, 3070 VA burden |
| Minimum Voltage Buildup | 3 Vac |
| Continuous Field Output Current | 15 Adc |
| 10-Second Forcing Output Current | 30 Adc |
| Rated Field Output Voltage (32 Vdc Output) | 32 Vdc continuous, 50 Vdc 10-sec forcing, 2.13 Ohm min field resistance |
| Rated Field Output Voltage (63 Vdc Output) | 63 Vdc continuous, 100 Vdc 10-sec forcing, 4.2 Ohm min field resistance |
| Rated Field Output Voltage (125 Vdc Output) | 125 Vdc continuous, 200 Vdc 10-sec forcing, 8.3 Ohm min field resistance |
| Generator Voltage Sensing Ranges | 100V/50Hz (85 to 127V), 120V/60Hz (94 to 153V), 200V/50Hz (170 to 254V), 240V/60Hz (187 to 305V), 400V/50Hz (340 to 508V), 480V/60Hz (374 to 600V), 500V/50Hz (425 to 625V), 600V/60Hz (510 to 660V) |
| Bus Voltage Sensing Ranges | 100V/50Hz (85 to 127V), 120V/60Hz (94 to 153V), 200V/50Hz (170 to 254V), 240V/60Hz (187 to 305V), 400V/50Hz (340 to 508V), 480V/60Hz (374 to 600V), 500V/50Hz (425 to 625V), 600V/60Hz (510 to 660V) |
| Generator Current Sensing Rating | 1 Aac and 5 Aac for metering/control; 1 Aac and 5 Aac for cross current compensation |
| Sensing Burden | Voltage: <0.1 VA per phase; Current: <1 VA; Parallel Compensation: <1 VA |
| Contact Switching Inputs | 11 inputs supplied with 24 Vdc for dry contacts |
| Remote Set Point Auxiliary Inputs | Selectable +10 Vdc or 4 to 20 mA |
| Contact Output Carry Rating | 7.0 A resistive @ 24/48/125 Vdc / 120/240 Vac |
| Contact Output Make/Break Rating | 7.0 A @ 24 Vdc, 0.7 A @ 48 Vdc, 0.2 A @ 125 Vdc, 7.0 A @ 120/240 Vac |
| AVR Regulation Accuracy | +/-0.25% over load range at rated power factor and constant frequency |
| AVR Steady State Stability | +/-0.1% at constant load and frequency |
| AVR Temperature Drift | +/-0.5% for 0 to 50 degC change |
| FCR Regulation Accuracy | +/-1.0% of nominal value for 10% input voltage or 20% field resistance change |
| var Regulation Accuracy | +/-2.0% of nominal VA rating at rated frequency |
| PF Regulation Accuracy | +/-0.02 PF for real power between 10% and 100% at rated frequency |
| Operating Temperature | -40 degC to +60 degC (-40 degF to +140 degF) |
| Storage Temperature | -40 degC to +85 degC (-40 degF to +185 degF) |
| Salt Fog Resistance | Per MIL-STD-810E, Method 509.3 (100 hrs salt fog, 100 hrs drying) |
| Shock Resistance | 15 Gs in each of three mutually perpendicular planes |
| Vibration Resistance | 5-26 Hz: 1.2 Gs; 27-52 Hz: 0.914 mm (.036 in) double amplitude; 53-500 Hz: 5.0 Gs |
| Dimensions (H x W x D) | 12.0 in x 8.08 in x 6.76 in (304 mm x 205 mm x 171 mm) |
| Weight | 14 lbs (6.35 kg) |

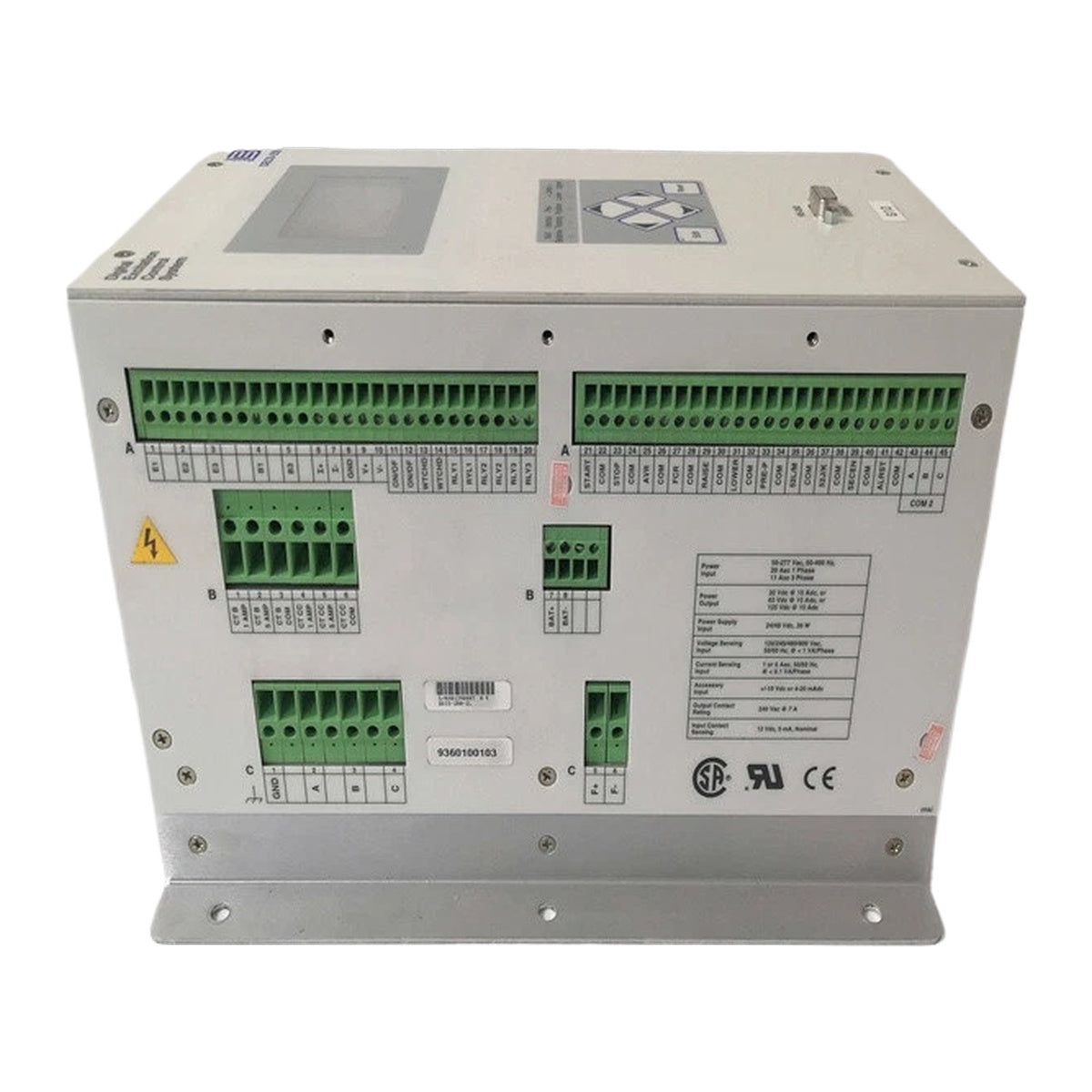

| Terminal / Port | Function |
|---|---|

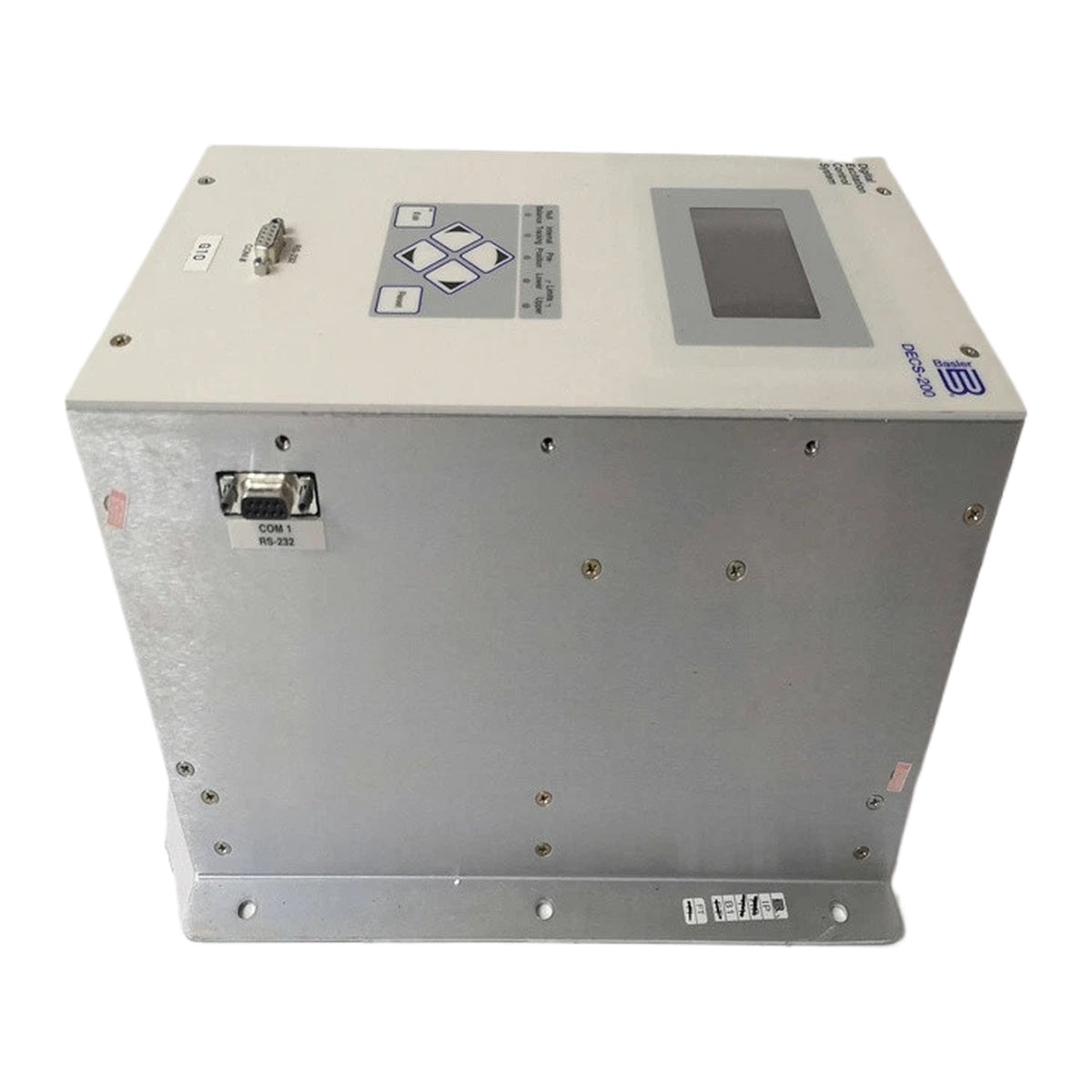

| COM0 (Front Panel) | RS-232, 9-pin sub-D connector, ASCII commands, 1200 to 19200 baud for local PC |
| COM1 (Right Side Panel) | RS-232, 9-pin sub-D connector, autotracking port for dual DECS-200 units |
| COM2 (Left Side Panel) | RS-485, Modbus protocol, 1200 to 19200 baud, half duplex |
| B7 / B8 | DC Control Power Input (BATT+ / BATT-) |
| B9 / B10 | AC Power Control Input (L / N) |
| C1 / C2 / C3 / C4 | Operating Power Input (GND / A / B / C) |
| C5 / C6 | Exciter Field Output (F+ / F-) |
| A1 / A2 / A3 | Voltage Sensing Inputs (E1 / E2 / E3) |
| B1 / B2 / B3 | Current Sensing Inputs (CTB 1 AMP / 5 AMP / COM) |
| B4 / B5 / B6 | Paralleling CT Cross Current Sensing (CTCC 1 AMP / 5 AMP / COM) |
| A4 / B1 / A5 / B3 | Bus Voltage Matching Inputs |
| A6 / A7 | Auxiliary Current Input (4-20 mAdc, I+ / I-) |
| A8 / A9 / A10 | Auxiliary Voltage Input (+/-10 Vdc, GND / V+ / V-) |
| A11 / A12 | Contact Input: Stop / Start |
| A13 / A14 | Contact Output: Watchdog Relays |
| A15 / A16 | Contact Output: Programmable Relay #1 |
| A17 / A18 | Contact Output: Programmable Relay #2 |
| A19 / A20 | Contact Output: Programmable Relay #3 |
| A21 / A22 | Contact Input: Start Command |
| A23 / A24 | Contact Input: Stop Command |
| A25 / A26 | Contact Input: AVR Regulation Mode Select |
| A27 / A28 | Contact Input: FCR Field Current Regulation Mode Select |
| A29 / A30 | Contact Input: Active Mode Raise |
| A31 / A32 | Contact Input: Active Mode Lower |
| A33 / A34 | Contact Input: Pre-Position Close |
| A35 / A36 | Contact Input: Unit / Parallel Contact (52 L/M) |
| A37 / A38 | Contact Input: Var / PF Control (52 J/K) |
| A39 / A40 | Contact Input: Enable Unit as Secondary (SECEN) |
| A41 / A42 | Contact Input: Alarm Reset (ALRST) |
| A43 / A44 / A45 | RS-485 Output Terminals (A / B / C) |
