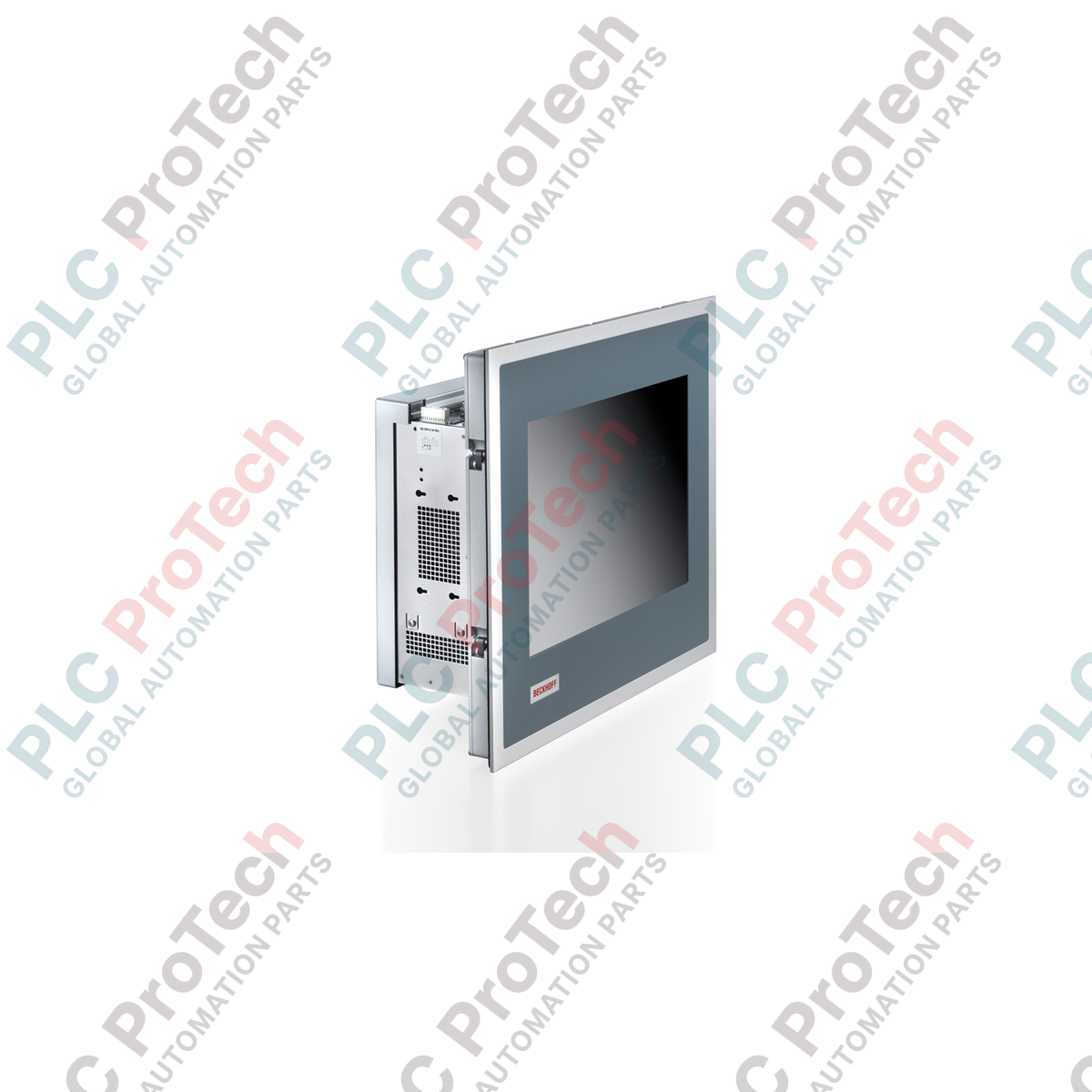

BECKHOFF CP6501-0000-0090 Built-in Panel PC

SKU CP6501-0000-0090

In stock

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: CP6501-0000-0090
Origin Germany
Product Type: Built-in Panel PCs
Payment: T/T, Western Union
Weight: 0.5 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The BECKHOFF CP6501-0000-0090 is an industrial built-in Panel PC engineered for demanding HMI and control tasks in automation environments. Combining a 12-inch visualization display with a robust 7-slot ATX computing unit, this device provides a unified hardware platform for operator control and localized processing. The physical integration is simplified through pull-out clamping levers, facilitating fast installation into control cabinet doors or consoles without loose mounting components.

This model is equipped with an Intel Celeron G3900 dual-core processor running at 2.8 GHz on an ATX motherboard designed to support 6th and 7th generation Intel architectures. Backed by 4 GB of DDR4 system memory, an integrated SATA RAID 1 controller, and a 1 TB 3.5-inch hard disk drive, it offers stable execution environments for control software, visualization pipelines, and data logging applications. For communication, the system includes dual onboard gigabit Ethernet interfaces alongside specialized legacy and high-bandwidth peripheral ports.

Features

12-inch display featuring a 800x600 resolution for precise plant visualization.
7-slot ATX housing accommodating substantial internal card expansions.
Fast cabinet assembly using specialized pull-out clamping levers.
Durable front-panel engineering rated to IP65 protection standards.
Dual onboard 100/1000BASE-T Ethernet ports for robust network segregation.
Comprehensive I/O assortment including USB 3.0, DVI, DisplayPort, and RS232.

Applications

Control cabinet-integrated human-machine interface (HMI) applications.
Local machine control demanding high PCIe and PCI physical expansion.
Centralized factory automation requiring high-capacity onboard storage and RAID configurations.

Technical Specifications

Display and Interface

Parameter	Specification
Display Size	12-inch
Resolution	800 x 600 pixels
Touch Technology	Single-finger touch screen or touchpad layout option

Processor and Core Architecture

Parameter	Specification
Processor	Intel Celeron G3900 2.8 GHz (2 cores)
Motherboard compatibility	ATX motherboard for 6th/7th generation Intel Celeron, Pentium, Core i3/i5/i7
System Memory	4 GB DDR4 RAM
Hard Disk Storage	1 TB 3.5-inch SATA hard disk
RAID Controller	On-board SATA RAID 1 controller

Expansion and Interfaces

Parameter	Specification
PCIe/PCI Slots	2 x PCIe-x1, 1 x PCIe-x4, 1 x PCIe-x16, 3 x PCI (up to 190 mm length)
Ethernet Ports	2 x 100/1000BASE-T on-board
USB Interfaces	4 x USB 3.0
Video Interfaces	2 x DVI, 1 x DisplayPort
Serial Interface	1 x RS232
Legacy Inputs	PS/2 keyboard and mouse ports

Mechanical and Environmental

Parameter	Specification
Power Supply Unit	100 to 240 V AC
Housing Construction	7-slot ATX industrial housing
Installation Method	Pull-out clamping levers
Protection Rating (Front)	IP65
Protection Rating (Rear)	IP20
Operating Temperature	0 to 55 degC

Installation Guidelines

Verify that the cutout in the cabinet door or panel corresponds exactly to the mounting template for the 12-inch variant.
Ensure all electrical lines and power sources are fully de-energized before mounting.
Carefully insert the Panel PC from the front of the prepared cutout.
From the rear of the panel, secure the housing by engaging the integrated pull-out clamping levers until fully locked.
Connect the main 100 to 240 V AC power cord to the system's power receptacle in accordance with local safety and grounding standards.
Ensure all physical peripheral, display, and Ethernet cables are strain-relieved and separated from high-voltage cables.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What type of expansion slots does the BECKHOFF CP6501-0000-0090 have?

The BECKHOFF CP6501-0000-0090 Built-in Panel PC features a 7-slot ATX housing that includes 2 x PCIe-x1, 1 x PCIe-x4, 1 x PCIe-x16, and 3 x PCI slots, supporting expansion cards up to 190 mm in length.

What are the ingress protection (IP) ratings for this panel PC?

The BECKHOFF CP6501-0000-0090 provides IP65 protection on the front side and IP20 protection on the rear side when properly integrated into a control cabinet.

What processor and memory configuration is integrated into this model?

The BECKHOFF CP6501-0000-0090 is equipped with an Intel Celeron G3900 2.8 GHz dual-core processor, 4 GB of DDR4 RAM, and a 1 TB 3.5-inch hard disk drive.
