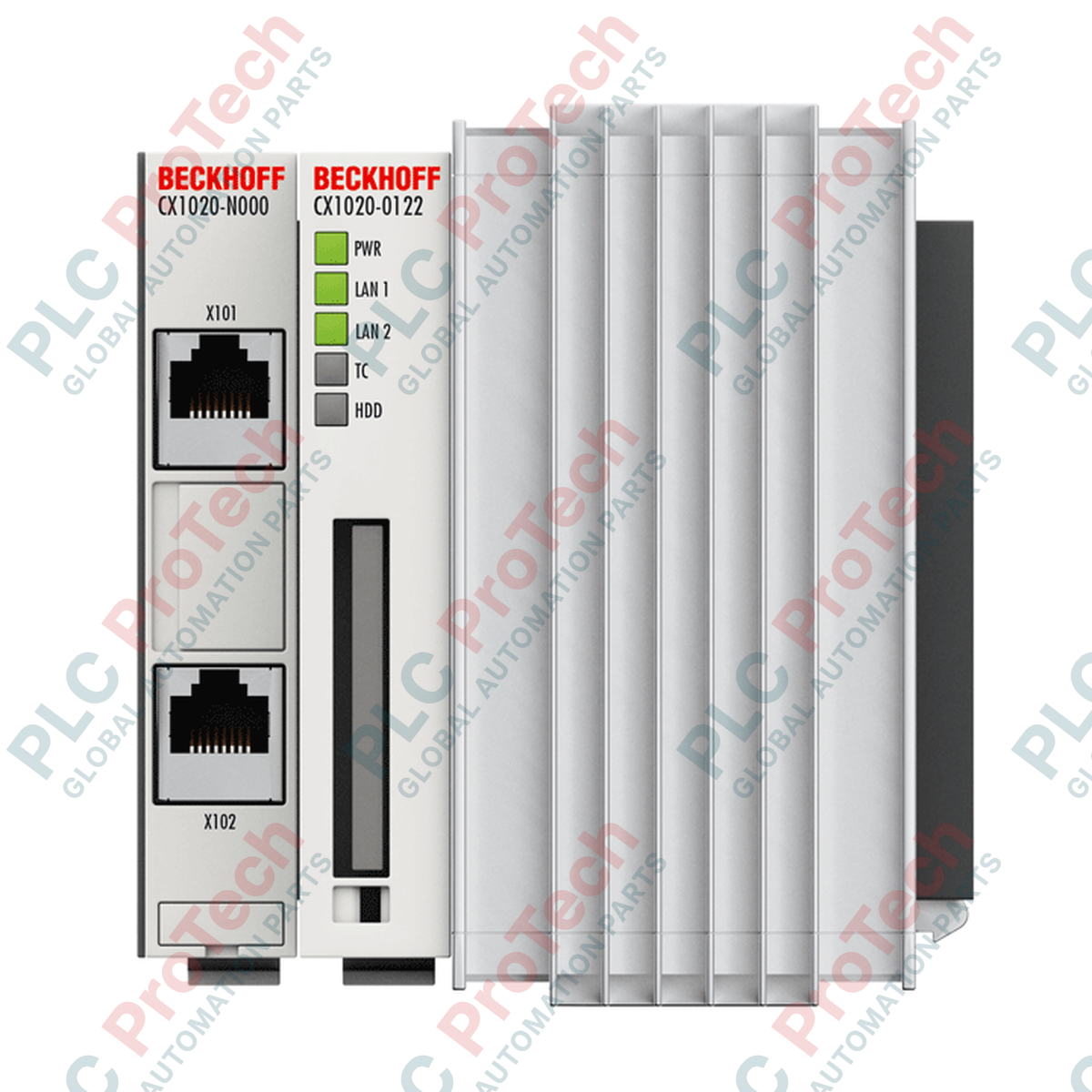

BECKHOFF CX1020-0100 CX1020 Series CPU Module

SKU CX1020-0100

In stock

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: CX1020-0100
Country of origin:Germany
Product Type: CPU Modules
Payment: T/T, Western Union
Weight: 550g
Dimensions: 96 mm x 112 mm x 99 mm
Shipping port: Xiamen
Warranty: 12 months

Description

Designed for DIN rail mounting in demanding industrial environments, the BECKHOFF CX1020-0100 basic CPU module serves as the central processing controller within the modular CX1020 Embedded PC system. This controller delivers dependable real-time execution capabilities powered by an Intel Celeron M ULV processor running at a 1 GHz clock frequency, making it suitable for PLC, Motion Control, and visualization tasks.

The unit features two integrated RJ45 Ethernet interfaces connected through an internal switch, allowing cost-effective line topologies to be constructed without additional networking hardware. Connection to Beckhoff I/O systems, such as EtherCAT Terminals (E-bus) or Bus Terminals (K-bus), is established by joining a compatible CX1100-xxxx power supply module to the CPU block. System memory is configurable, featuring a standard 256 MB DDR RAM configuration alongside a Compact Flash slot for system boot, storage, and operating system deployment.

Features

Intel Celeron M ULV processor with a 1 GHz clock frequency.
Integrated dual-port RJ45 Ethernet switch (10/100 Mbit/s) for simple daisy-chain networking.
Equipped with a Compact Flash Type I/II slot featuring an eject mechanism.
Expansion capabilities supporting up to 1 GB DDR RAM ex factory.
Direct system bus interface (16-bit ISA PC/104) for module extension.
Diagnostic LEDs indicating power status, network activity, TwinCAT status, and flash access.
Battery-backed internal real-time clock for time and date synchronization.

Applications

Industrial factory automation and manufacturing line control.
Multi-axis Motion Control and high-speed positioning tasks.
Process technology monitoring and visualization systems.
Power generation and environmental control monitoring.

Technical Specifications

Manufacturer	BECKHOFF
Model Number	CX1020-0100
Processor	Intel Celeron M ULV, 1 GHz, 1 core
Main Memory	256 MB DDR RAM (expandable ex factory to 1 GB)
Flash Memory	Compact Flash Type I + II slot (128 MB CF card included)
Interfaces	2 x RJ45 10/100 Mbit/s (internal switch)
Diagnostics LED	1 x Power, 2 x LAN link/activity, TC status, 1 x Flash access
System Bus Connection	16-bit ISA (PC/104)
Power Supply	Via system bus (through CX1100-xxxx power supply modules)
Max. Power Consumption	11 W
Dimensions (W x H x D)	96 mm x 112 mm x 99 mm
Weight	Approx. 550 g
Operating Temperature	0 to +50 degC
Storage Temperature	-25 to +85 degC
Relative Humidity	95 %, non-condensing
Protection Rating	IP20
Vibration Resistance	Conforms to EN 60068-2-6
Shock Resistance	Conforms to EN 60068-2-27
EMC Immunity / Emission	Conforms to EN 61000-6-2 / EN 61000-6-4

Connections and Interfaces

Interface / Port	Physical Format	Function
Ethernet Ports (1 & 2)	RJ45	10/100 Mbit/s network connection via internal switch
CF Slot	Compact Flash Type I/II	Operating system, control application, and storage slot
System Bus	PC/104 (16-bit ISA)	Interconnection for CX system expansions
Power Supply Connection	Backplane Terminal	Power feed interface from connected CX1100 power module

Installation Guidelines

Mount the CPU module on a standard 35 mm DIN rail (EN 60715) in a horizontal orientation.
Ensure at least 30 mm of free clearance space above and below the module for natural convection cooling.
Power down the entire system before inserting, removing, or swapping the Compact Flash memory card.
Verify that the slide latch mechanism to adjacent CX modules (such as the power supply module) is fully locked to ensure a reliable electrical bus connection.

Compliance and Certifications

CE
UL

FAQ

What processor is integrated into the BECKHOFF CX1020-0100 CPU module?

The CX1020-0100 CPU module features an Intel Celeron M ULV processor with a 1 GHz clock frequency and a single processing core.

How does the CX1020-0100 connect to Beckhoff I/O terminals?

It interfaces with Beckhoff E-bus (EtherCAT Terminals) or K-bus (Bus Terminals) via an attached CX1100 series power supply module, which connects directly to the CPU's system bus.

Is the Compact Flash card replaceable on this module?

Yes, the module includes a Type I/II Compact Flash slot with an integrated eject mechanism for quick field replacement or capacity expansion.

Does this module require an external network switch to configure a daisy-chain network?

No, the CX1020-0100 has two RJ45 ports connected via an internal switch, enabling the direct implementation of line topologies.

What are the permissible operating temperatures for this device?

The module operates safely in ambient temperatures ranging from 0 to +50 degC.
