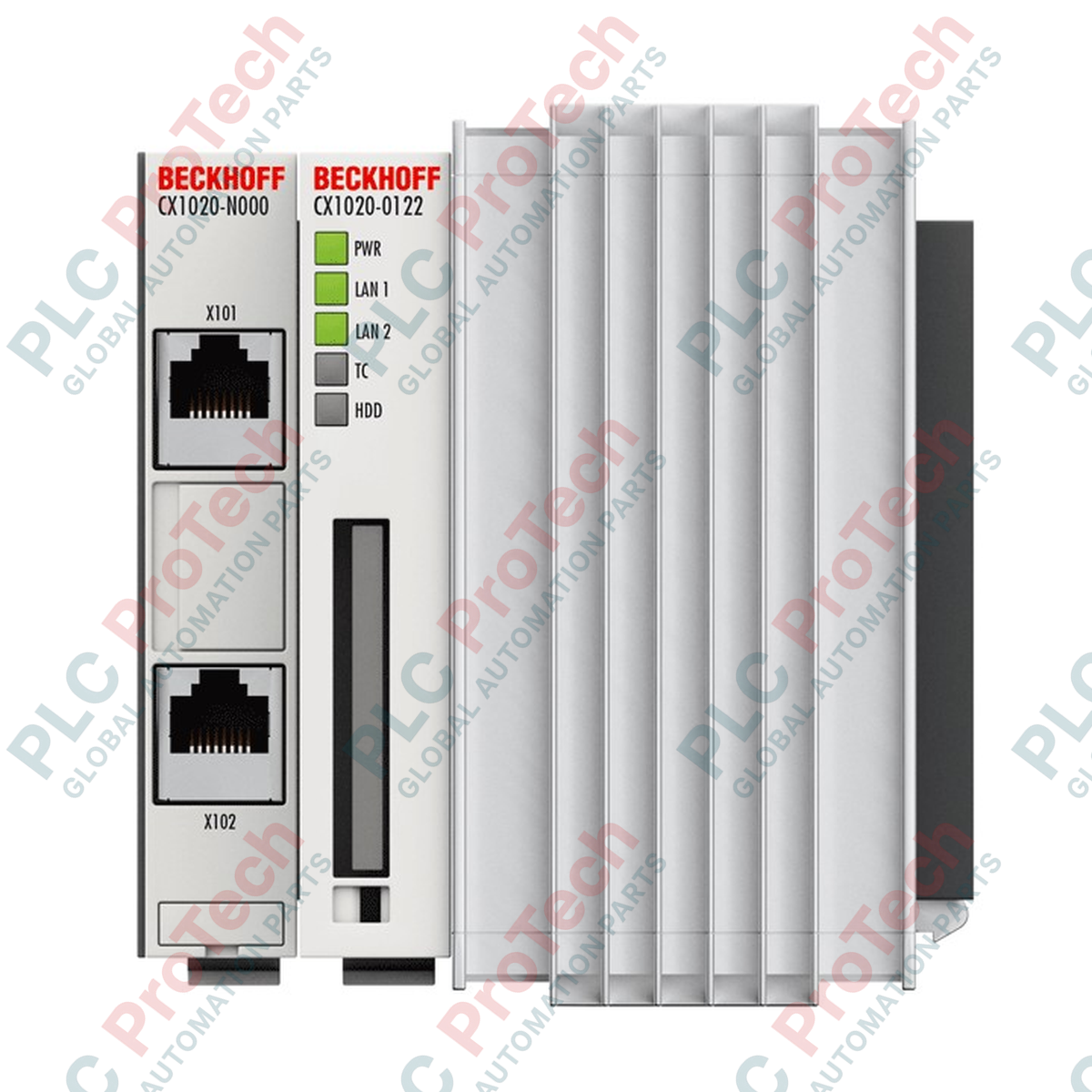

BECKHOFF CX1020-0113 Basic CPU Module

Description

The BECKHOFF CX1020-0113 is a basic CPU module designed to serve as the core processing unit within modular Embedded PC control systems. Featuring an integrated Intel Celeron M ULV processor with a 1 GHz clock frequency, this controller provides reliable performance for industrial automation, logic execution, and motion control tasks. Engineered for DIN rail mounting, the CX1020-0113 integrates directly with modular system components, power supply units, and scalable memory expansions to form a complete, compact industrial controller.

This controller model includes onboard memory provisions and dual Ethernet interfaces to support robust communication and network connectivity. Operating within the modular BECKHOFF Embedded PC architecture, the unit connects to various I/O terminals and system buses via compatible power supply modules. The device is built to meet established industrial EMC standards, ensuring reliable operation in standard control cabinet environments.

Features

• Equipped with an Intel Celeron M ULV processor operating at a 1 GHz clock frequency
• Features dual RJ45 10/100 Mbit/s Ethernet interfaces via an internal switch
• Includes a Compact Flash card slot with 128 MB included for operating system and application storage
• Supplied with 256 MB DDR RAM main memory
• Integrated internal battery-backed clock for maintaining time and date
• Diagnostic LEDs for power, LAN link and activity, TwinCAT status, and flash access
• DIN rail mountable form factor designed for industrial control cabinets

Applications

• Central processing unit for modular industrial automation and machine control systems
• PLC logic execution and discrete manufacturing machine coordination
• Point-to-point motion control and basic numerical control applications
• Data acquisition and local processing nodes within networked production lines

Technical Specifications

Processor and Memory

Interfaces and Communication

Electrical and Power

Software and Diagnostics

Mechanical and Environmental

Installation Guidelines

1. Ensure the entire control system is de-energized before beginning installation or maintenance work.
2. Verify that the mounting rail is securely installed and free from debris.
3. Mount the BECKHOFF CX1020-0113 CPU module onto the DIN rail and engage it with adjacent system modules and power supply units via the internal system bus connectors.
4. Connect the required Ethernet cables to the RJ45 ports for network communication.
5. Check all power and bus connections thoroughly before restoring system power.
6. Power on the system and observe the diagnostic LEDs to confirm proper boot sequence and operational status.
