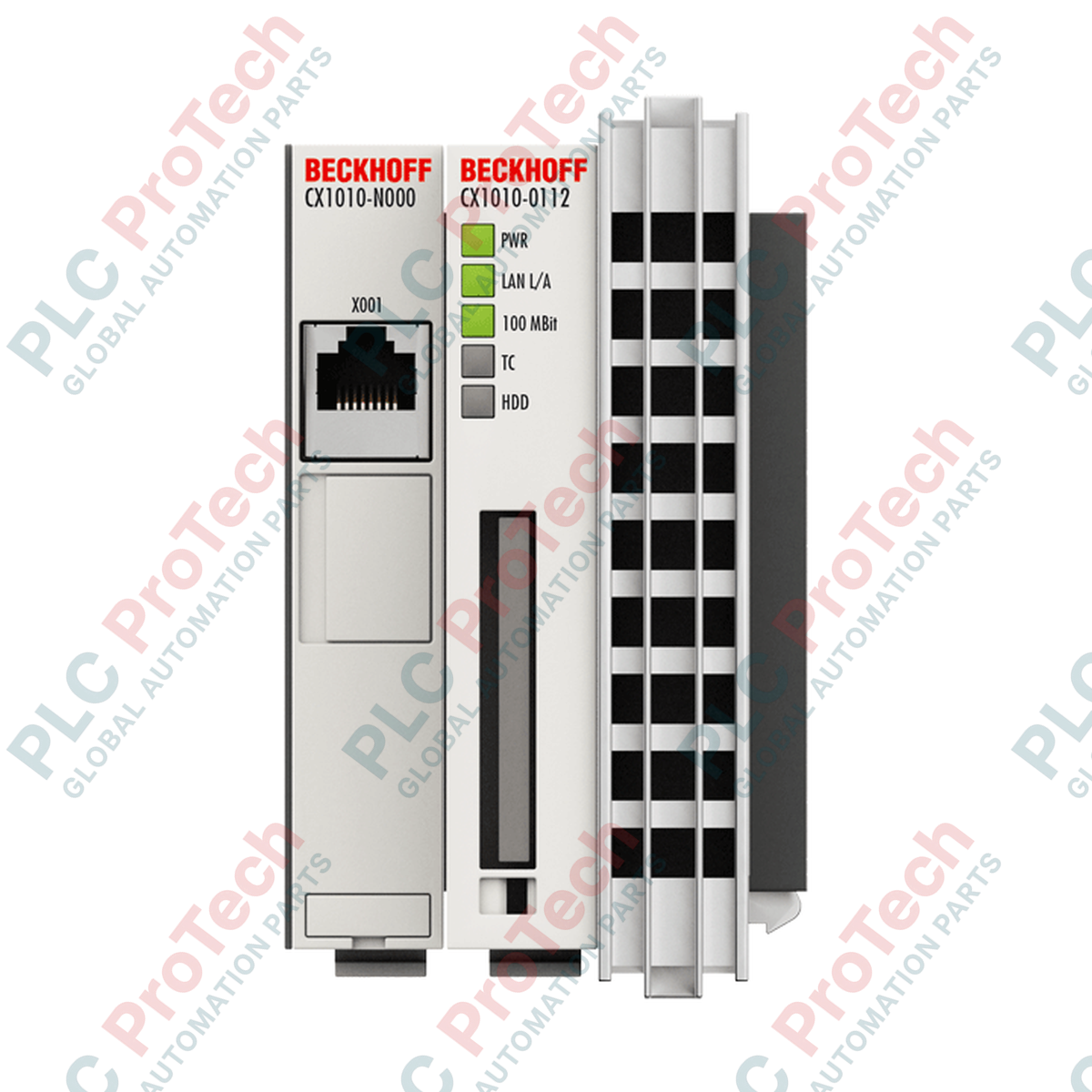

BECKHOFF CX1010-0000 Embedded PC Basic CPU Module

SKU CX1010-0000

In stock

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: CX1010-0000
Origin Germany
Product Type: Embedded PCs
Payment: T/T, Western Union
Weight: 0.355 kg
Dimensions: 58 mm x 120 mm x 91 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The BECKHOFF CX1010-0000 is a compact, DIN-rail mounted Basic CPU Module designed as the core processing unit of the modular CX1010 Embedded PC system. Equipped with a 500 MHz processor compatible with the Intel Pentium MMX architecture, this module provides an energy-efficient and highly reliable industrial computing platform for mid-range PLC, motion control, and visualization applications.

The CX1010-0000 is supplied as a hardware-only base unit without a pre-installed operating system or TwinCAT runtime environment. This configuration offers automation engineers the flexibility to load custom operating system images or deploy tailored control software configurations. It includes an integrated Compact Flash Type II card slot equipped with a 128 MB card for non-volatile storage, alongside 256 MB of non-expandable on-board DDR RAM.

Physical communication and network integration are provided by a single RJ45 Ethernet port supporting speeds of 10/100 Mbit/s. To build out functional industrial I/O, the CX1010-0000 interfaces with an associated CX1100-xxxx series power supply module through its integrated 16-bit ISA system bus, facilitating communication with K-bus Bus Terminals or E-bus EtherCAT Terminals.

Features

Energy-efficient, Pentium MMX-compatible processor running at 500 MHz
Passive cooling system without moving parts for maintenance-free operation
Integrated Compact Flash Type II expansion slot with mechanical ejector
128 MB Compact Flash memory card included
On-board 256 MB DDR RAM main memory
One RJ45 physical Ethernet interface supporting 10/100 Mbit/s
Diagnostic LEDs indicating status for Power, LAN Speed, LAN Activity, TwinCAT, and Flash access
Internal battery-backed real-time clock with a field-exchangeable battery
Modular expansion utilizing a 16-bit ISA system bus (PC/104 format)

Applications

Centralized PLC and logic processing in industrial factory automation
Decentralized data acquisition and protocol gateway nodes
Custom OEM control application deployment using dedicated operating systems
Modular machine control systems integrated with EtherCAT or Bus Terminal I/O

Technical Specifications

System Architecture

Parameter	Specification
Manufacturer	BECKHOFF
Exact Model	CX1010-0000
Processor	Pentium MMX-compatible, 500 MHz
Number of Cores	1
Main Memory	256 MB DDR RAM (not expandable)
Flash Memory	1 x Compact Flash Type II slot, 128 MB CF card included
Operating System	None
Control Software	None (TwinCAT compatible)

Interfaces and Diagnostics

Parameter	Specification
Network Interface	1 x RJ45 10/100 Mbit/s Ethernet
System Bus	16-bit ISA (PC/104 stack)
Diagnostic Indicators	1 x Power, 1 x LAN Speed, 1 x LAN Activity, 1 x TwinCAT Status, 1 x Flash Access
Real-Time Clock	Internal battery-backed clock (replaceable battery)

Electrical and Mechanical

Parameter	Specification
Power Supply Connection	Via system bus from an adjacent CX1100-xxxx module
Max. Power Consumption	8 W
Dimensions (W x H x D)	58 mm x 120 mm x 91 mm
Weight	Approx. 355 g
Protection Class	IP20

Environmental and Compliance

Parameter	Specification
Operating Temperature	0 degC to +50 degC
Storage Temperature	-25 degC to +85 degC
Relative Humidity	95%, non-condensing
EMC Immunity/Emission	Conforms to EN 61000-6-2 / EN 61000-6-4
Vibration/Shock Resistance	Conforms to EN 60068-2-6 / EN 60068-2-27
Approvals	CE, UL

Installation Guidelines

Ensure all electrical power to the system enclosure and DIN rail is de-energized before mounting or modifying connections.
Install the CX1010-0000 basic CPU module on a standard 35 mm DIN rail (EN 60715) within an IP20-rated enclosure.
Mechanically align and connect the CPU module to an adjacent, compatible CX1100-xxxx power supply unit to supply operational power and enable functional I/O buses.
Ensure the system bus connectors (PC/104 interface) are cleanly engaged before snapping the units firmly onto the DIN rail.
Connect the network interface using standard RJ45 Ethernet cabling. Ensure proper grounding and shielding guidelines are observed to avoid electrical interference.
Verify that the Compact Flash card is fully seated in the slot prior to initial power-up.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

Does the BECKHOFF CX1010-0000 come with a pre-installed operating system or TwinCAT license?

No, the BECKHOFF CX1010-0000 Basic CPU module is supplied without an operating system or TwinCAT control software runtime, allowing users to load custom operating systems or configure specific software setups as needed.

How is power supplied to the BECKHOFF CX1010-0000 CPU module?

The BECKHOFF CX1010-0000 does not connect directly to main power; instead, it is powered through the system bus connection by an adjacent, compatible CX1100-xxxx series power supply module.

What type of storage expansion is supported on the BECKHOFF CX1010-0000?

The BECKHOFF CX1010-0000 features an integrated Compact Flash Type II slot with an ejector and includes a 128 MB Compact Flash card, which can be replaced with larger-capacity compatible CF media.

Can the system RAM on the BECKHOFF CX1010-0000 be upgraded in the field?

No, the BECKHOFF CX1010-0000 contains 256 MB of integrated DDR RAM which is fixed on the motherboard and cannot be upgraded or expanded in the field.
