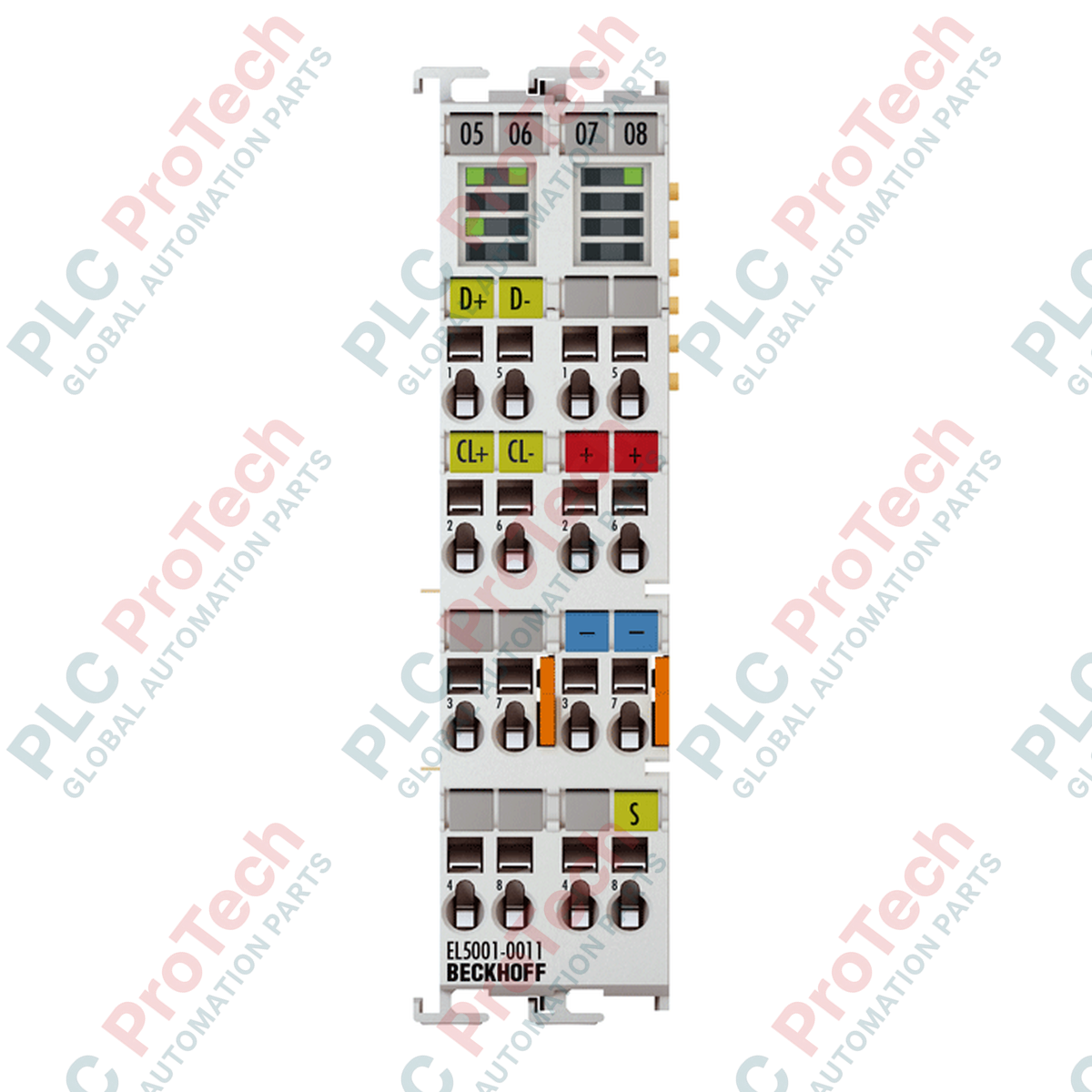

BECKHOFF EL5001-0011 EtherCAT Terminal

Description

The BECKHOFF EL5001-0011 is a 1-channel Synchronous Serial Interface (SSI) monitor terminal designed for passive interception and analysis of SSI encoder signals. Functioning as a non-intrusive listening interface, this terminal monitors the communication between an external master controller and an SSI encoder without driving or disrupting the clock line. This makes it an ideal solution for diagnostic monitoring, secondary feedback systems, and redundant position verification.

Operating within the modular EtherCAT terminal system, the BECKHOFF EL5001-0011 receives differential RS422 clock and data signals from the encoder path. It features electrical isolation between the E-bus internal circuitry and the field-side electronics to maintain high signal integrity. The integration of Distributed Clocks (DC) allows the captured position data to be synchronized precisely with other network processes inside the TwinCAT environment.

Features

• Single-channel passive SSI monitoring interface that listens without generating an active clock output.
• Compatible with differential RS422 input signals for both clock and data paths.
• Supports variable data transfer rates up to 1 MHz, with a default rate of 250 kHz.
• Configurable data frame lengths up to 32 bits, with a default word length of 24 bits.
• Integrated Distributed Clocks (DC) capability for highly accurate time-stamped synchronization.
• Diagnostics functions including an activatable power fail bit for real-time status tracking.
• Built-in 500 V electrical isolation between the E-bus and the field potential.

Applications

• Passive tracking of absolute positioning values from existing encoder systems.
• Redundant feedback monitoring and verification in safety-related positioning loops.
• Secondary data acquisition without introducing loading or line degradation to the original clock driver.
• Industrial machinery positioning verification where primary controller interfaces cannot be modified.

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Ensure all electrical supplies to the mounting rail and surrounding devices are completely de-energized before beginning work.
2. Examine the terminal housing for any physical damage sustained during transit or handling.
3. Mount the terminal securely onto a 35 mm DIN rail (conforming to EN 60715) by snapping it into place until the lock engages.
4. Ensure correct lateral mechanical and electrical coupling with adjacent EtherCAT terminals via the double slot and key connection.
5. Wire the differential clock and data connections using shielded twisted-pair cabling suitable for RS422 signals to minimize EMI.
6. Connect the power contacts to a verified 24 V DC field supply.
7. Restore power to the system and verify operational state using the diagnostic LEDs integrated into the front face of the module.
