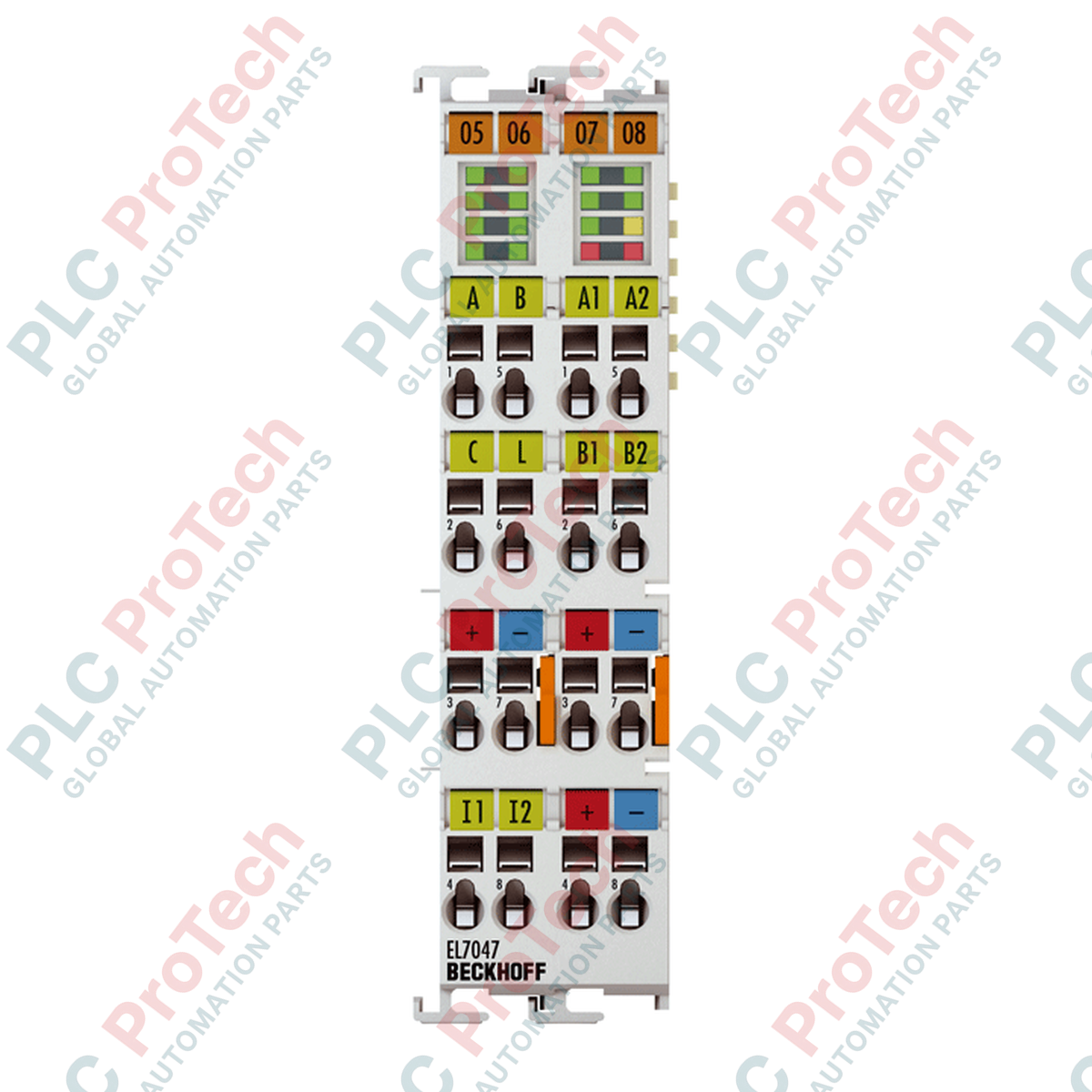

The BECKHOFF EL7047 is a high-performance EtherCAT Terminal designed as a 1-channel motion interface for direct connection and control of 2-phase stepper motors. Operating at voltages up to 48 V DC and supporting an output current of up to 5 A, this compact drive terminal integrates advanced field-oriented vector control and a dedicated feedback interface to deliver precise and dynamic motion control.
By implementing vector control, the BECKHOFF EL7047 optimizes motor operation by dynamically adjusting the current vector. This results in smoother motor rotation, significantly reduced resonance, lowered operating temperatures, and increased energy efficiency compared to standard microstepping methods. The integrated incremental encoder input enables closed-loop positioning, tracking, and travel distance control directly within the EtherCAT system architecture.
For demanding drive applications requiring increased thermal performance, the terminal's output current capacity can be expanded up to 6.5 A by mounting the optional ZB8610 fan cartridge. The 12 mm terminal housing fits seamlessly into standard EtherCAT Terminal segments, utilizing high-speed E-bus communication and Distributed Clocks (DC) for highly synchronized multi-axis coordination.
| Manufacturer | BECKHOFF |
| Exact Model | EL7047 |
| Product Type | EtherCAT Terminal (Compact Drive Technology) |
| Load Type | 2-phase stepper motor (unipolar or bipolar) |
| Number of Channels | 1 |
| Supply Voltage (Electronics) | 24 V DC (via power contacts) |
| Supply Voltage (Power) | 8 to 48 V DC (external supply) |
| Output Current | Max. 5.0 A (up to 6.5 A with ZB8610 fan cartridge) |
| Step Frequency | Configurable up to 16,000 full steps/s |
| Step Pattern | 64-fold microstepping |
| Current Controller Frequency | Approx. 30 kHz |
| Resolution | Approx. 5000 positions per revolution (typical application dependent) |
| Physical Inputs | 2 x end position, 1 x encoder |
| Physical Outputs | 1 x stepper motor connection, 1 x motor brake connection |
| Encoder Input Signal | 5 to 24 V DC, typical 5 mA, single-ended |
| Encoder Connection | A, B, C, gate/latch |
| Input Frequency (Encoder) | Max. 400,000 increments/s (with 4-fold evaluation) |
| Current Consumption (E-bus) | Typical 140 mA |
| Current Consumption (Power Contacts) | Typical 50 mA |
| Distributed Clocks (DC) | Yes |
| Electrical Isolation | 500 V (E-bus / field potential) |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Weight | Approx. 90 g |
| Mounting | 35 mm DIN rail (EN 60715) with double slot and key lock |
| Operating Temperature | 0 to +55 degC |
| Storage Temperature | -25 to +85 degC |
| Relative Humidity | 95%, non-condensing |
| IP Protection Class | IP20 |
| Connection Technology | Spring-clamp (direct push-in for solid/ferruled wires) |
| Approvals | CE, UL |
Global Express Shipping
Returns & Warranty
Manufacturer: BECKHOFF
Product No.: EL7047
Country of origin:Germany
Product Type: EtherCAT Terminals
Payment: T/T, Western Union
Weight: 90g
Dimensions: 12 mm x 100 mm x 68 mm
Shipping port: Xiamen
Warranty: 12 months
