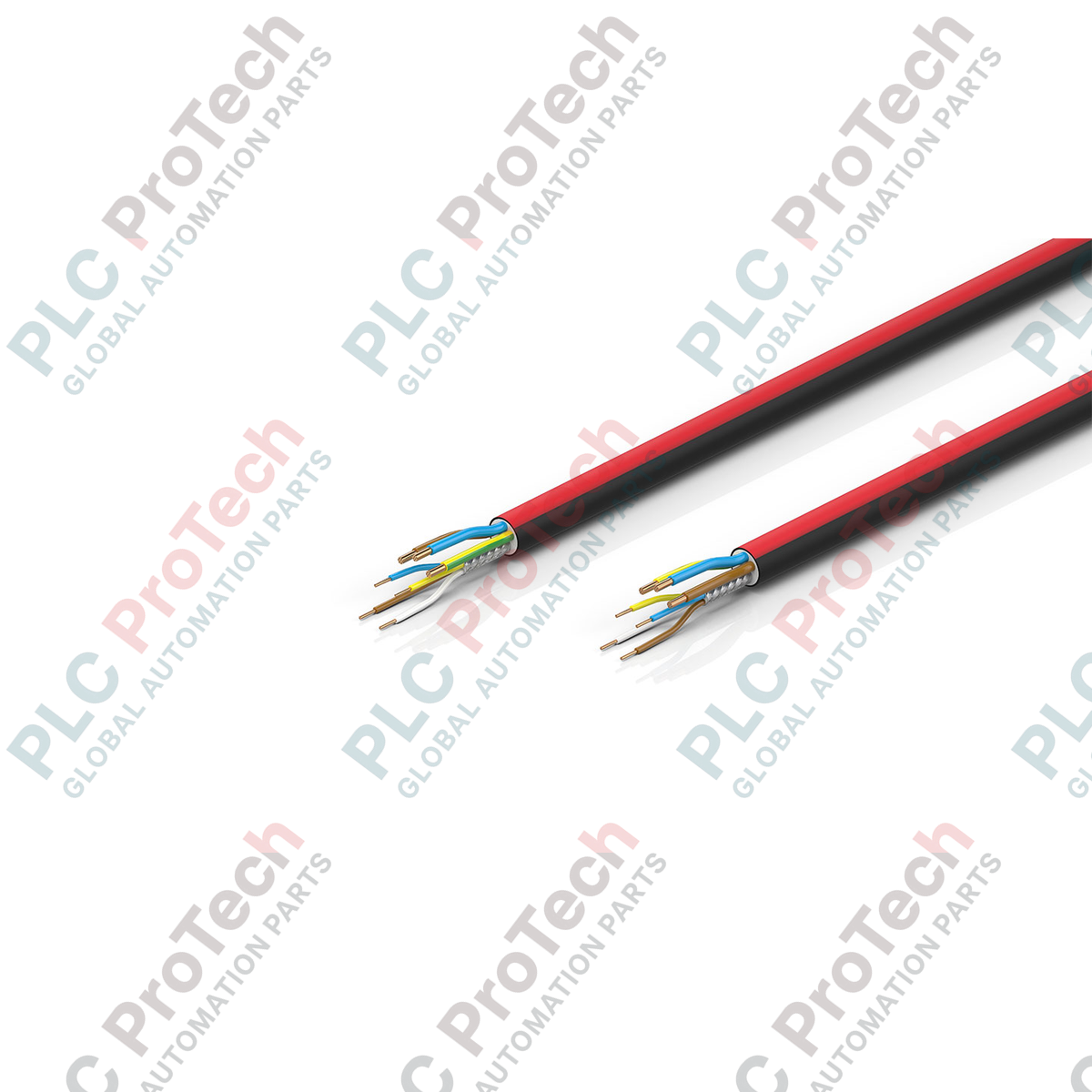

Beckhoff ZB7210-0250 EtherCAT P Cable

Description

Designed to transmit both EtherCAT communication and electrical power through a single integrated line, the Beckhoff ZB7210-0250 establishes secure physical layer connections in dynamic industrial networks. This high-flexibility cable contains a dedicated 4-core Ethernet element alongside three heavy-gauge power conductors, eliminating the need for separate data and power lines. Built with a rugged polyurethane jacket, the ZB7210-0250 maintains signal integrity and power transmission under continuous mechanical stress.

Features

• Drag-Chain Suitability: Engineered with high-flex stranding to withstand continuous bending and linear movement in automated machinery.
• PUR Outer Jacket: Polyurethane sheath offers high resistance to mineral oils, chemical exposure, abrasion, and mechanical tearing.
• Dual-Purpose Core Design: Combines a 4-core Ethernet star-quad element with 3 dedicated power conductors inside a single outer diameter.
• Standardized Coding: Features a black jacket with a distinct red stripe for immediate visual identification as an EtherCAT P circuit, preventing connection errors.

Applications

• Multi-axis gantry robots and dynamic motion control systems.
• Industrial drag chains requiring reliable 100 Mbps data and supply voltage routing.
• Harsh manufacturing environments demanding oil-resistant and wear-resistant cabling.

Technical Specifications Table

Empirical Engineering Insights

Alternative Models & Compatibility

This cable is purpose-built for the EtherCAT P standard (combining US and UP voltages on the signal lines). It must not be confused with standard green-jacketed EtherCAT cabling. When terminating or connecting this cable, always pair it with authorized EtherCAT P connectors (such as M8 or B23 sizes) designed to separate power and communication paths properly.

Application Pitfalls & Engineering Notes

Because this specific variant is unshielded overall, installers must avoid laying this cable parallel to heavy-duty, high-voltage motor or variable frequency drive (VFD) output lines inside the same drag chain. High-frequency noise from unshielded VFD lines can couple into the unshielded data pairs, leading to CRC errors and lost EtherCAT packets.

Commissioning & Wiring Tips

When stripping the outer PUR jacket, take extreme care not to nick the insulation of the inner 4-core Ethernet star-quad or the three 2.5 mm2 power wires. For dynamic applications, always observe the minimum bending radius specified for dynamic operation to prevent premature conductor fatigue.

Installation Guidelines
