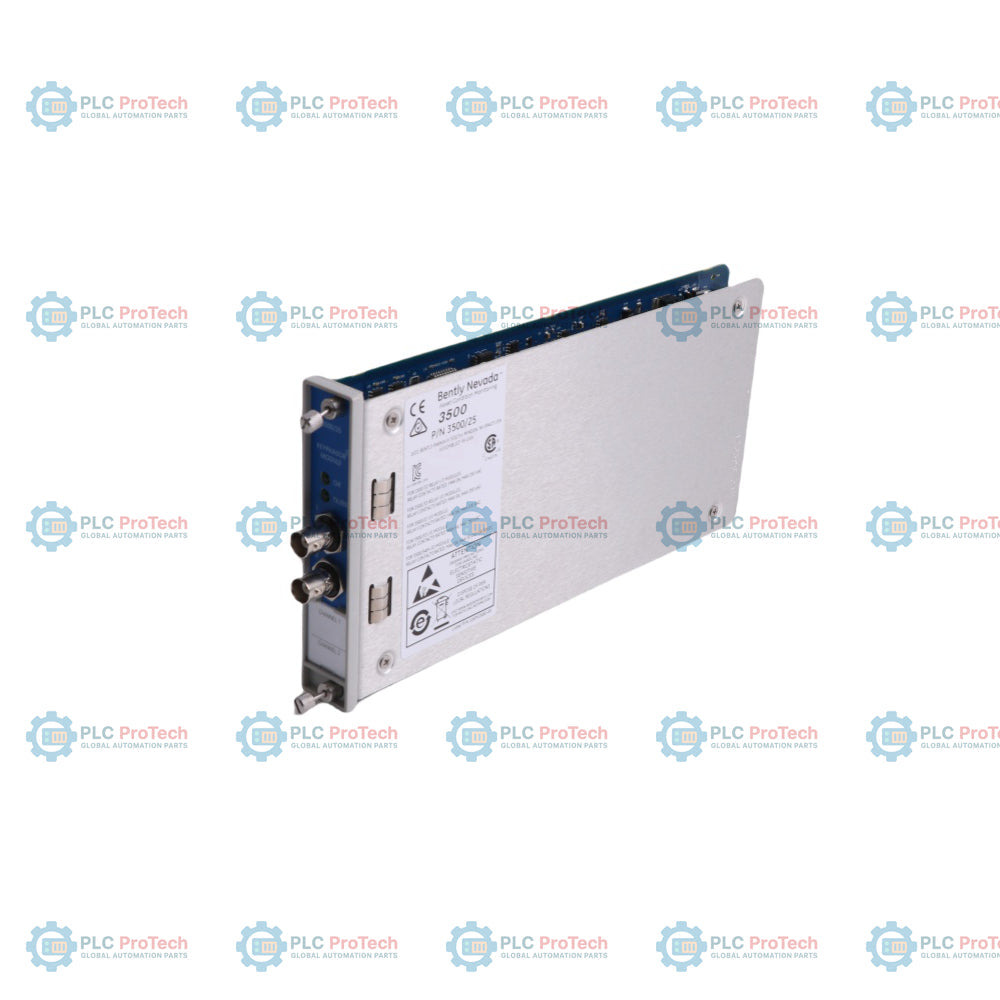

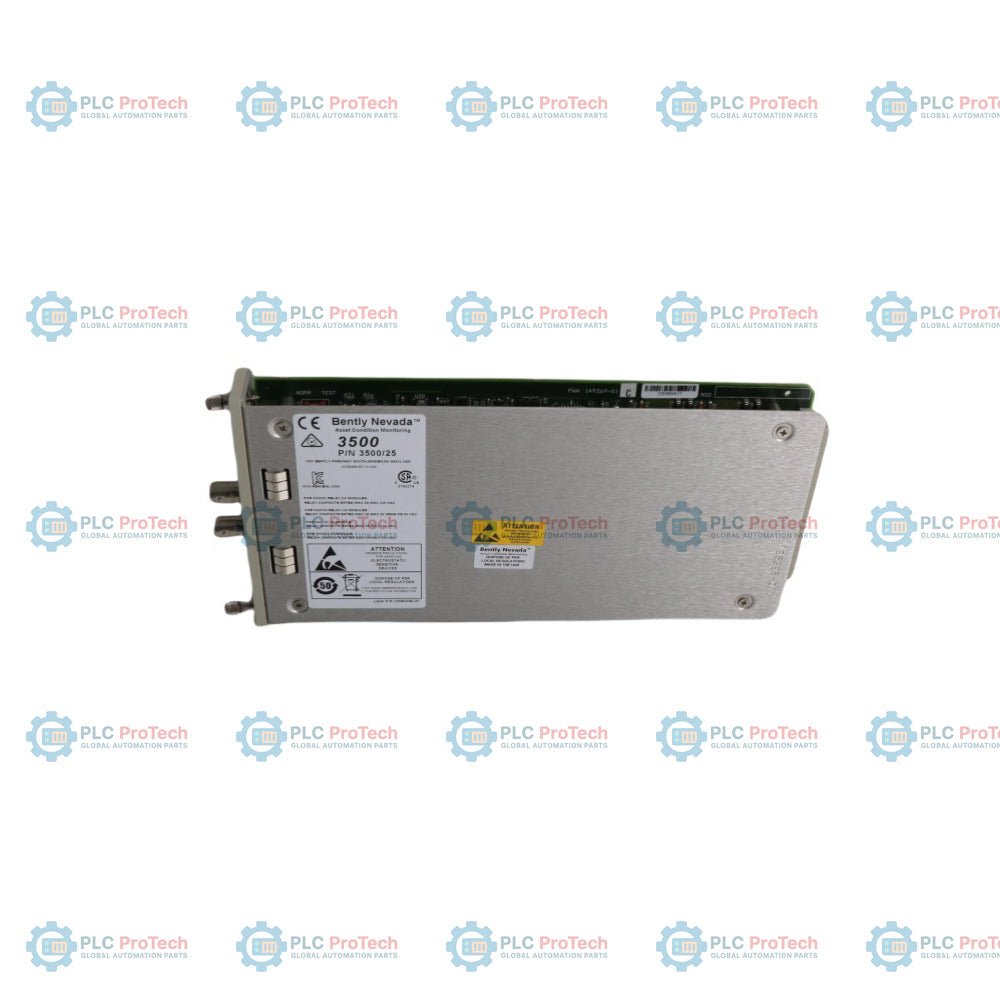

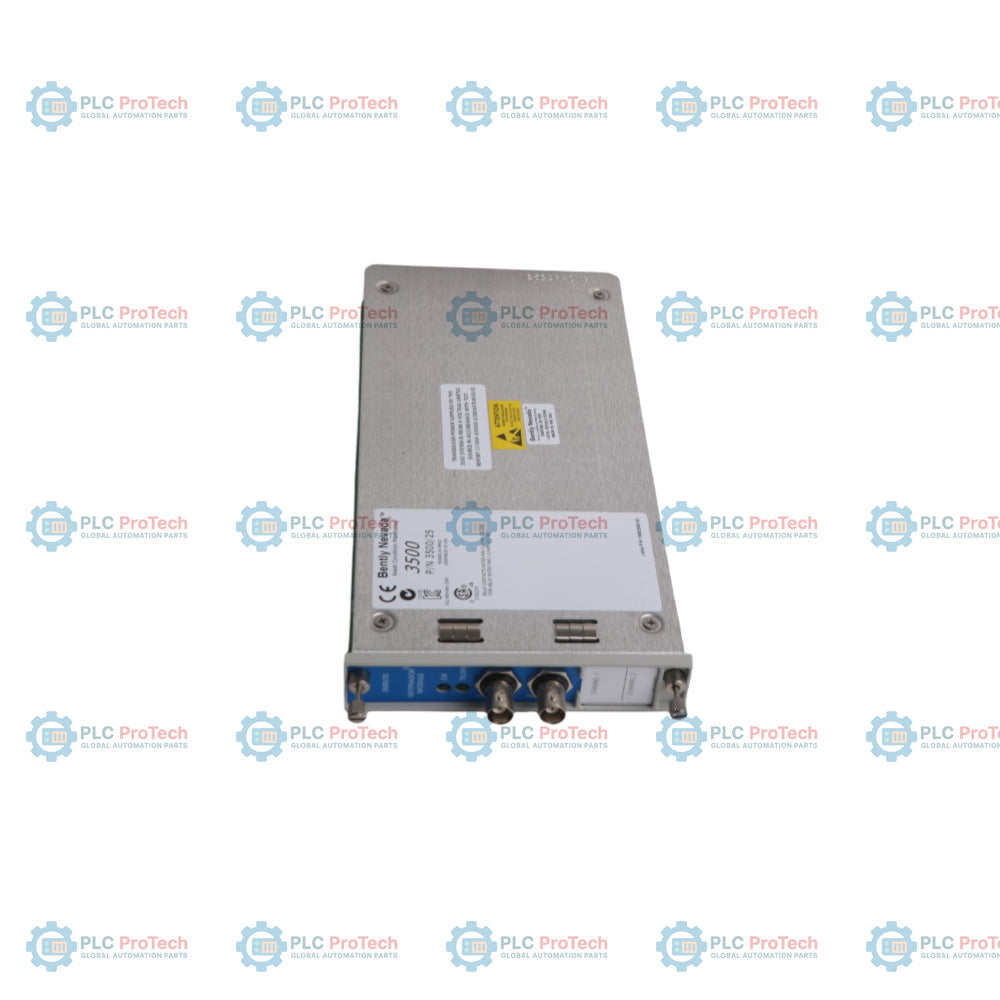

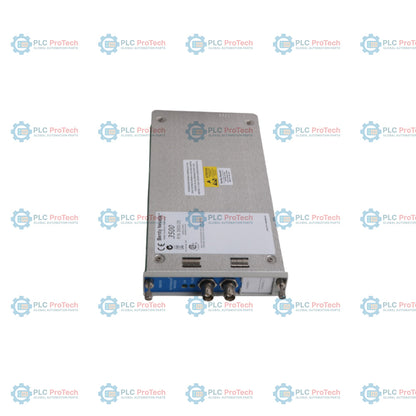

The 3500/25, engineered under upgraded spare part assembly component 149369-01, is a half-height, two-channel hardware instrument engineered to distribute precise timing signals to monitoring modules within a 3500 Machinery Protection System rack. The module conditions raw analog pulse waveforms acquired directly from proximity probes or passive magnetic pickups, converting them into digital phase references that signify the precise moment a physical shaft event marker coincides with the field transducer. Operating as a core measurement layer, it tracks once-per-turn or multiple-event-per-turn indices to enable adjacent rack monitors and external diagnostic instruments to compute shaft rotative speed along with vector parameters, including 1X vibration amplitude and phase angle. Formatted with complete backward compatibility to older sub-assemblies, the unit supports multi-channel correlation networks, allowing normal configurations of up to four independent inputs and paired layout mapping up to eight distinct Keyphasor variables across the internal backplane architecture.
Features
Dual-channel high-accuracy phase and tracking processing executed within a half-height card structure.
Full backward compatibility completely replacing legacy product hardware configurations and part number 125792-01.
Wide input flexibility adapting dynamically to both magnetic pickups and eddy current proximity transducers.
Non-volatile peak hold logic sustaining historic records of maximum forward and reverse rotative velocity.
Short-circuit protected front-mounted coaxial connections supplying pure unconditioned transducer telemetry.
Applications
Large multi-bearing utility steam turbine shaft phase angle determination and 1X vibration analysis.
High-speed centrifugal compressor multi-shaft synchronicity alignment and rotor balance calculation.
Accepts up to 2 single-event or multiple-event pulses per module
Standard Input Impedance
21.8 kΩ
Isolated Input Impedance
21.8 kΩ
Internal Barrier Impedance
6.65 kΩ
Nominal Power Consumption
3.2 Watts typical
Transducer Supply Voltage
-24 Vdc, 40 mA maximum per channel
Maximum Input Frequency
20 kHz for Proximity Probes | 10 kHz for Magnetic Pickups
Maximum Tracked Shaft Speed
99,999 rpm
Minimum Proximity Speed
1 rpm (0.017 Hz)
Minimum Magnetic Pickup Speed
200 rpm (3.3 Hz)
Signal Trigger Range
+10.0 Vdc to -24.0 Vdc
Manual Hysteresis Scope
User adjustable from 0.2 to 2.5 Volts
Auto-Threshold Frequency
Minimum 1 Hz (60 rpm)
Auto-Threshold Amplitude
Minimum 2 Volts peak-to-peak
Digital Speed Output Accuracy
Within ±0.01% for speed variables up to 99,999 rpm
Phase Accuracy Performance
Max ±1 Celsius shift error up to 10,000 rpm | Max ±6 Celsius shift error up to 99,999 rpm
Operating Temperature Range
-30 Celsius to +65 Celsius (-22 Fahrenheit to +150 Fahrenheit)
Storage Temperature Scope
-40 Celsius to +85 Celsius (-40 Fahrenheit to +185 Fahrenheit)
Operating Humidity Target
95% non-condensing relative humidity
Main Module Card Weight
0.46 kg (1.0 lb)
I/O Module Card Weight
0.20 kg (0.44 lbs)
Main Module Dimensions
119.4 mm x 24.4 mm x 241.8 mm
I/O Module Dimensions
241.3 mm x 24.4 mm x 99.1 mm
Rack Slot Requirements
Requires 1 half-height front slot position
Connections/Interfaces
Terminal / Connector Pin
Function
CH1 / CH2 Coaxial BNC (Front)
Short-circuit protected dynamic unconditioned output for signal capture
TRANSDUCERS (PWR / COM / KPH)
Rear terminal connections mapping sensor power, common, and pulse signal
SHLD / GND Terminals
Instrumentation shield frame common and chassis earth ground points
BUFFERED KPH (BUF1 / BUF2)
Dedicated terminal points providing buffered digital pulse lines to peripherals
Installation Guidelines
Shielding Control: Secure the field transmitter outer ground shields explicitly to the designated SHLD common connections on the rear I/O interface blocks to obstruct electromagnetic signal degradation.
Slot Structuring: Ensure this half-height front module card is paired into a single vertical track with another half-height module or matching blank panel insert to keep internal rack structural support aligned.
Sensor Limitations: Do not connect magnetic pickup sensors to channels tasked with tracking low shaft rotative speeds under 200 rpm, as the transducer cannot generate sufficient signal voltage amplitude for auto-threshold processing.
Thermal Regulation: Prevent obstruction of ventilation openings located along the top and base plates of the 3500 instrumentation frame to sustain necessary passive airflow cooling across the processing chips.
Compliance and Certifications
Low Voltage Standards: EN 61010-1 Safety requirements for electrical measurement and laboratory instrumentation.
Electromagnetic Emissions: EN 61000-6-4 Industrial Radiated and Conducted Emissions, EN 55011 Class A limits.
Electromagnetic Immunity: EN 61000-6-2 Industrial Susceptibility compliance parameters.
Hazardous Location Codes: CSA Class I, Division 2, Groups A, B, C, and D ratings under option code 01.
Technical & Procurement FAQ
Q: Can this specific module card trigger downstream emergency overspeed machinery trip relays directly?
A: No, this Keyphasor instrument is engineered as a phase diagnostic data engine rather than a safety shutdown system, as it lacks the redundant hardware vote loops and specific execution speeds required for machine overspeed trip paths.
Q: What represents the functional variance between model designation 3500/25 and part number 149369-01?
A: The term 3500/25 specifies the operational functional system family within the rack architecture, while code 149369-01 dictates the exact factory physical main processing circuit card supplied as a replacement part.
Q: Is physical potentiometer tuning required to align the trigger points when swapping a sensor?
A: No, all trigger adjustments, voltage ranges, event hysteresis levels, and pulse criteria are executed digitally via software variables within the 3500 configuration workspace.
Q: How does a severe line short on the buffered front-panel coaxial output impact backplane processing?
A: The front panel BNC connections are equipped with thorough short-circuit isolation, ensuring external test lines do not damage internal components or halt signal propagation across the internal backplane lines.
Q: Does this modern card interface cleanly into legacy 3500 system racks running original firmware revisions?
A: Yes, it provides full functional compatibility, replacing the older 125792-01 assemblies seamlessly while matching the original dimensions, connector positions, and mechanical installation tracks.
